Device Overview

General Description

The MM2-0530LBH is a passive MMIC triple balanced mixer. It features a broadband IF port that spans from 2 to 20 GHz, and has excellent spurious suppression. GaAs MMIC technology improves upon the previous generation of hand assembled, hybrid M2 triple balanced mixers with improved isolations, unit-to-unit repeatability and reliability. The MM2-0530L is available as a wire bondable chip or connectorized bullet housing package.

Photo of MM2-0530LBH

Features

  • Broadband IF Port
  • Typical Input 1 dB Compression of +9 dBm
  • High Input IP3 of +15 dBm
  • Excellent LO to IF Isolation
  • Unit-to-Unit Repeatability
  • RoHS Compliant

Applications

  • SATCOM
  • Test and Measurement Equipment
  • Aerospace and Defense
  • Electronic Warfare

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
MM2-0530LBHGaAs MMIC 5-30 GHz Triple Balanced MixerBH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2026-02-13Initial Release

Rev: - | Copyright © 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

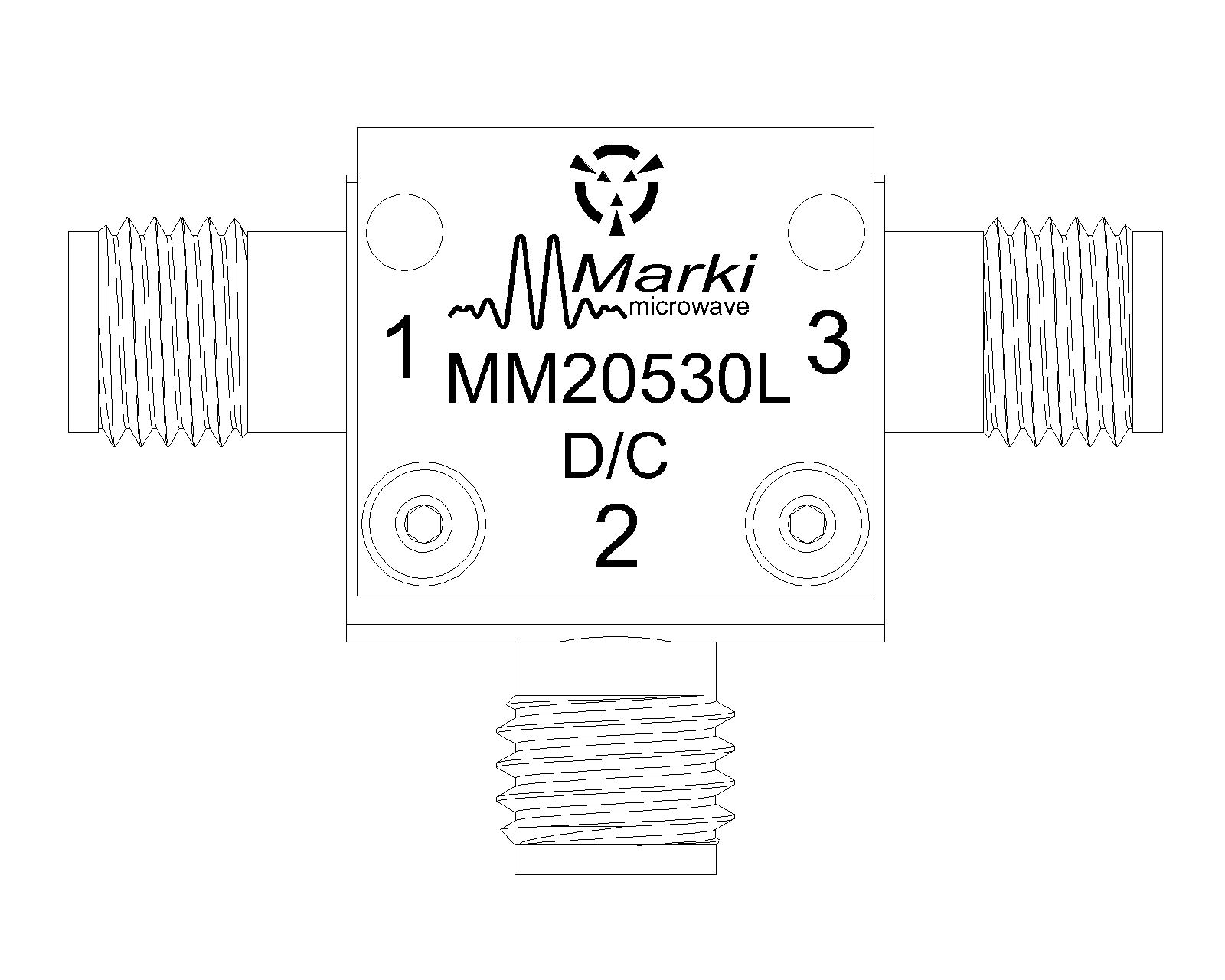

Diagram of the port configuration for MM2-0530LBH

Port Functions

Configuration A

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO 2.92FPort 1 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
Port 2IF 2.92FPort 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3RF 2.92FPort 3 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: - | Copyright © 2026 Marki Microwave LLC.

3

Configuration B

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1RF 2.92FPort 1 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.Equivalent circuit for the RF
Port 2IF 2.92FPort 2 is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
Port 3LO 2.92FPort 3 is DC short and AC matched to 50 Ω from 5 to 30 GHz. Blocking capacitor is optional.Equivalent circuit for the LO

Rev: - | Copyright © 2026 Marki Microwave LLC.

4

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
Port 1 DC Current 21mA
Port 2 DC Current 15mA
Port 3 DC Current 24mA
RF Power Handling (RF+LO), 100°C 20dBm
RF Power Handling (RF+LO), 25°C 25dBm

Package Information

ParameterDetailsRating
ESD250 to < 500 VoltsHBM Class 1A
WeightPackage name: BH12g
Dimensions-29.01 x 19.84 mm
ParameterMinNominalMaxUnit
LO Input Power 91517dBm

Rev: - | Copyright © 2026 Marki Microwave LLC.

5

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH package mixer used in the forward direction with a sine wave LO of +15 dBm and RF input power of -10 dBm, aside from linearity measurements. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C.

ParameterPort ConfigurationTest ConditionsMinTypMaxUnit
RF Frequency Range --5-30GHz
LO Frequency Range --5-30GHz
IF Frequency Range --2-20GHz
Conversion Loss A--7.5-dB
Conversion Loss B--9.5-dB
Input IP3 A--15-dBm
Input IP3 B--18.5-dBm
Input P1dB A--9-dBm
Input P1dB B--9.5-dBm
LO-RF Isolation A--42-dB
LO-RF Isolation B--41-dB
LO-IF Isolation A--46-dB
LO-IF Isolation B--45-dB
RF-IF Isolation A--45-dB
RF-IF Isolation B--46-dB
Noise Figure 1ALO/RF=5-30 GHz
IF=3 GHz
LO Drive = +15.00 dBm
-7.5-dB
Noise Figure 2BLO/RF=5-30 GHz
IF=3 GHz
LO Drive = +15.00 dBm
-9.5-dB

[1][2] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Rev: - | Copyright © 2026 Marki Microwave LLC.

6

Typical Performance Plot

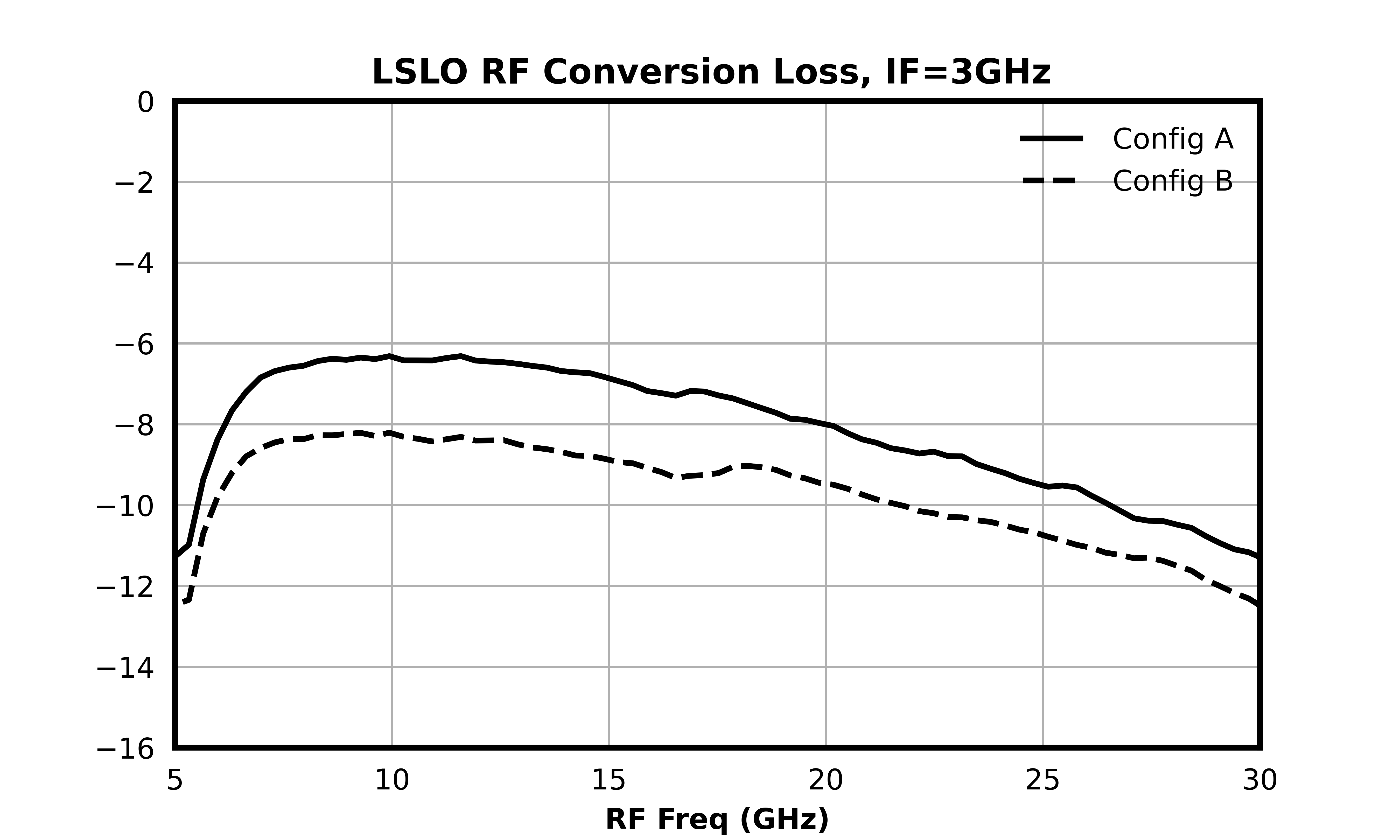

LSLO RF Conversion Loss, IF=3GHz  graph for MM2-0530LBH

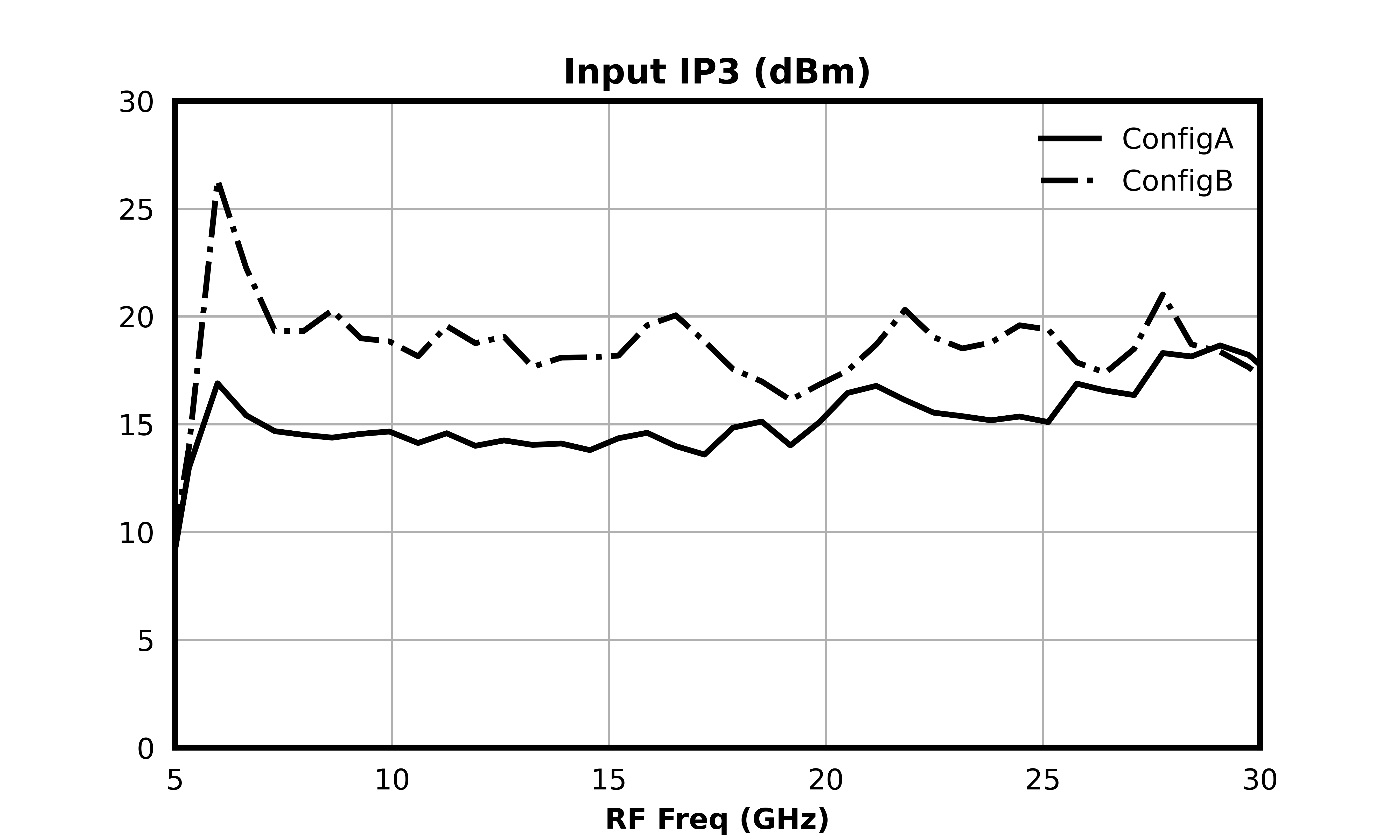

Input IP3 (dBm) graph for MM2-0530LBH

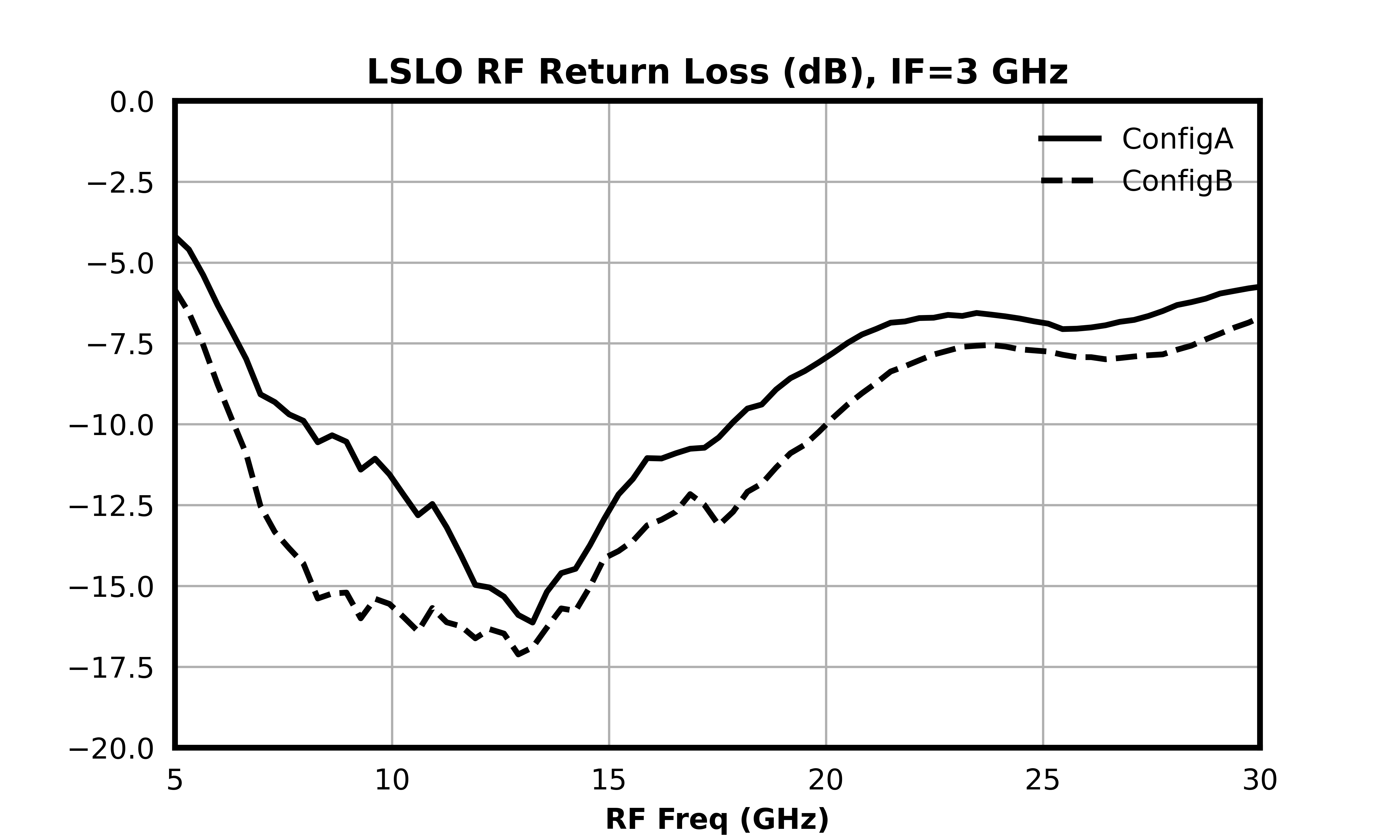

LSLO RF Return Loss (dB), IF=3 GHz graph for MM2-0530LBH

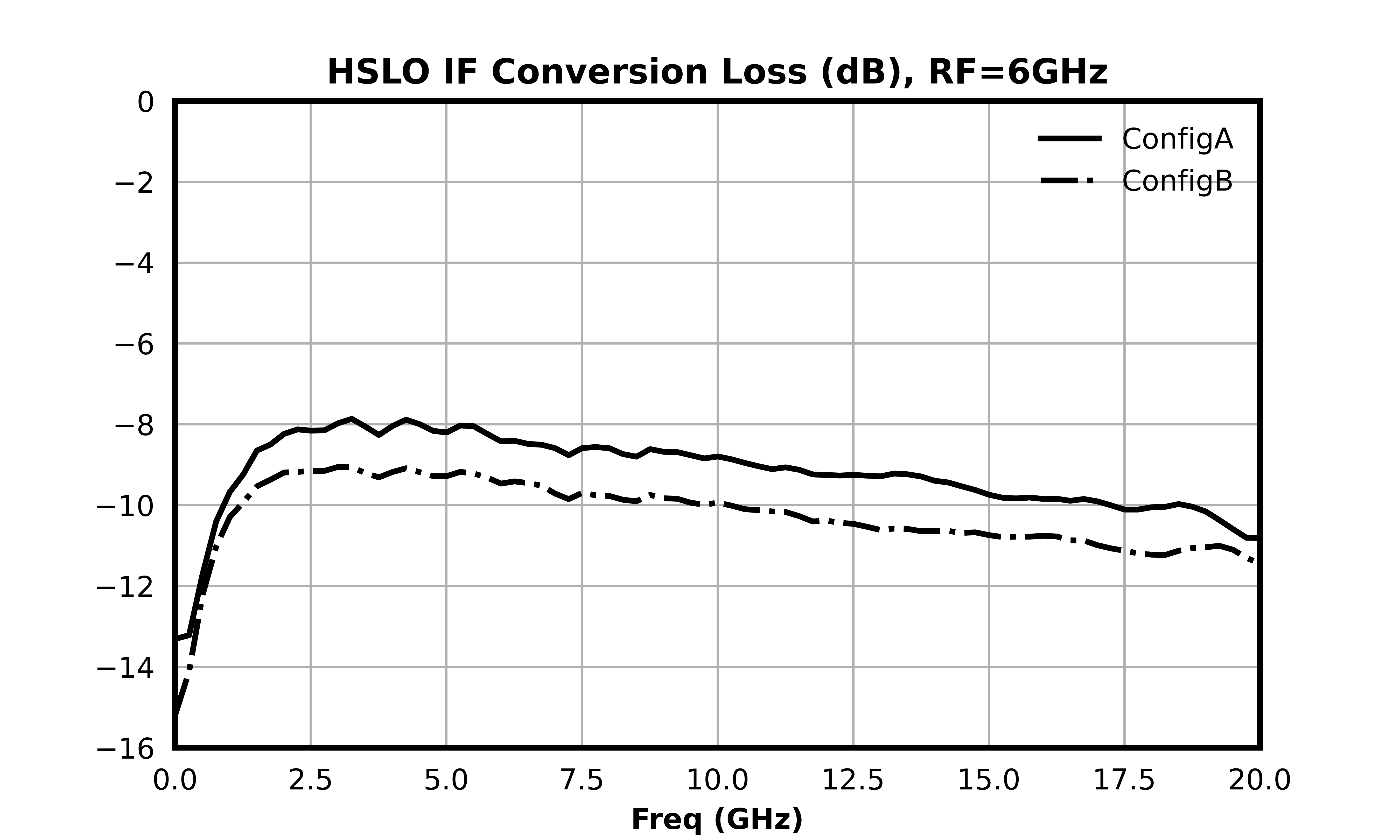

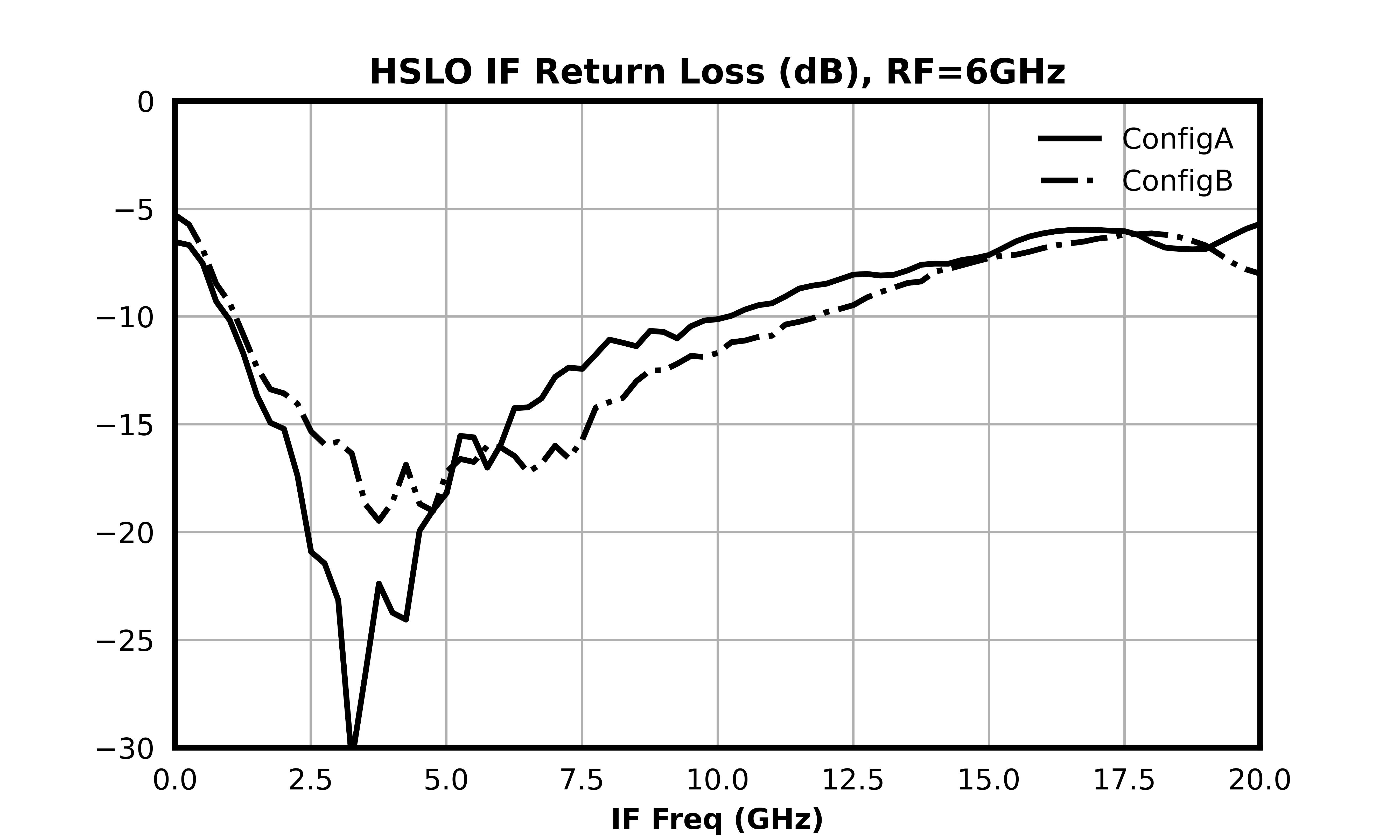

HSLO IF Conversion Loss (dB), RF=6GHz graph for MM2-0530LBH
HSLO IF Return Loss (dB), RF=6GHz graph for MM2-0530LBH

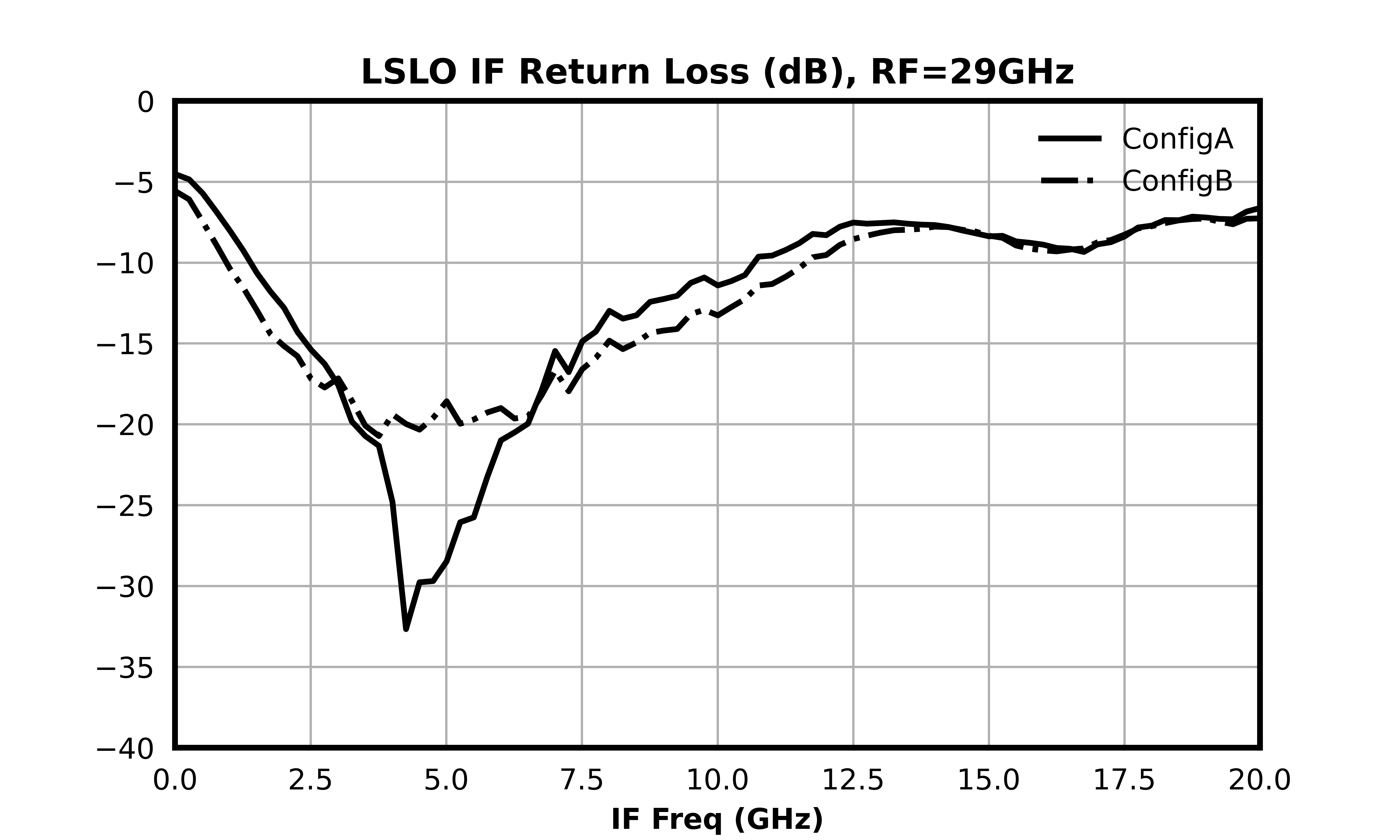

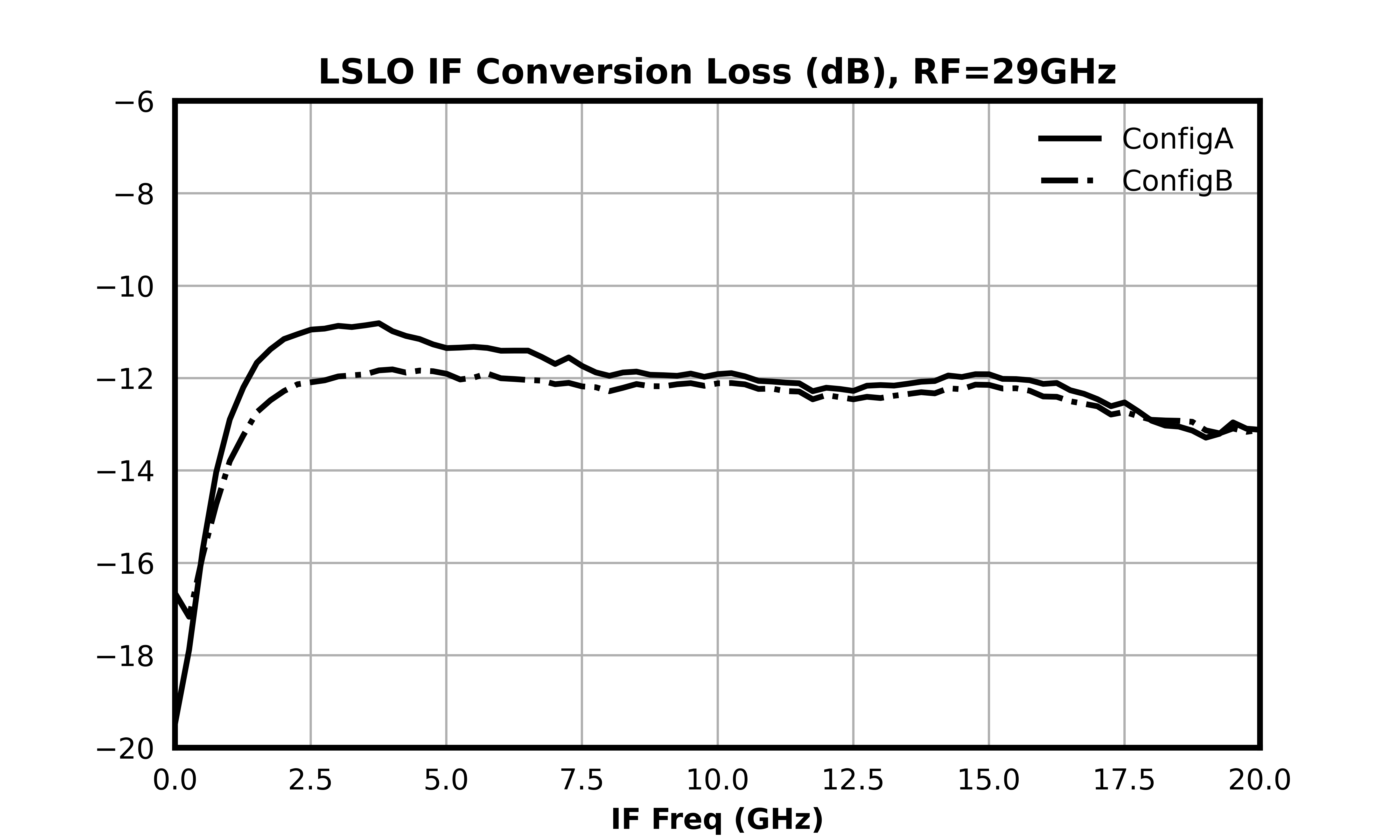

LSLO IF Conversion Loss (dB), RF=29GHz graph for MM2-0530LBH
LSLO IF Return Loss (dB), RF=29GHz graph for MM2-0530LBH

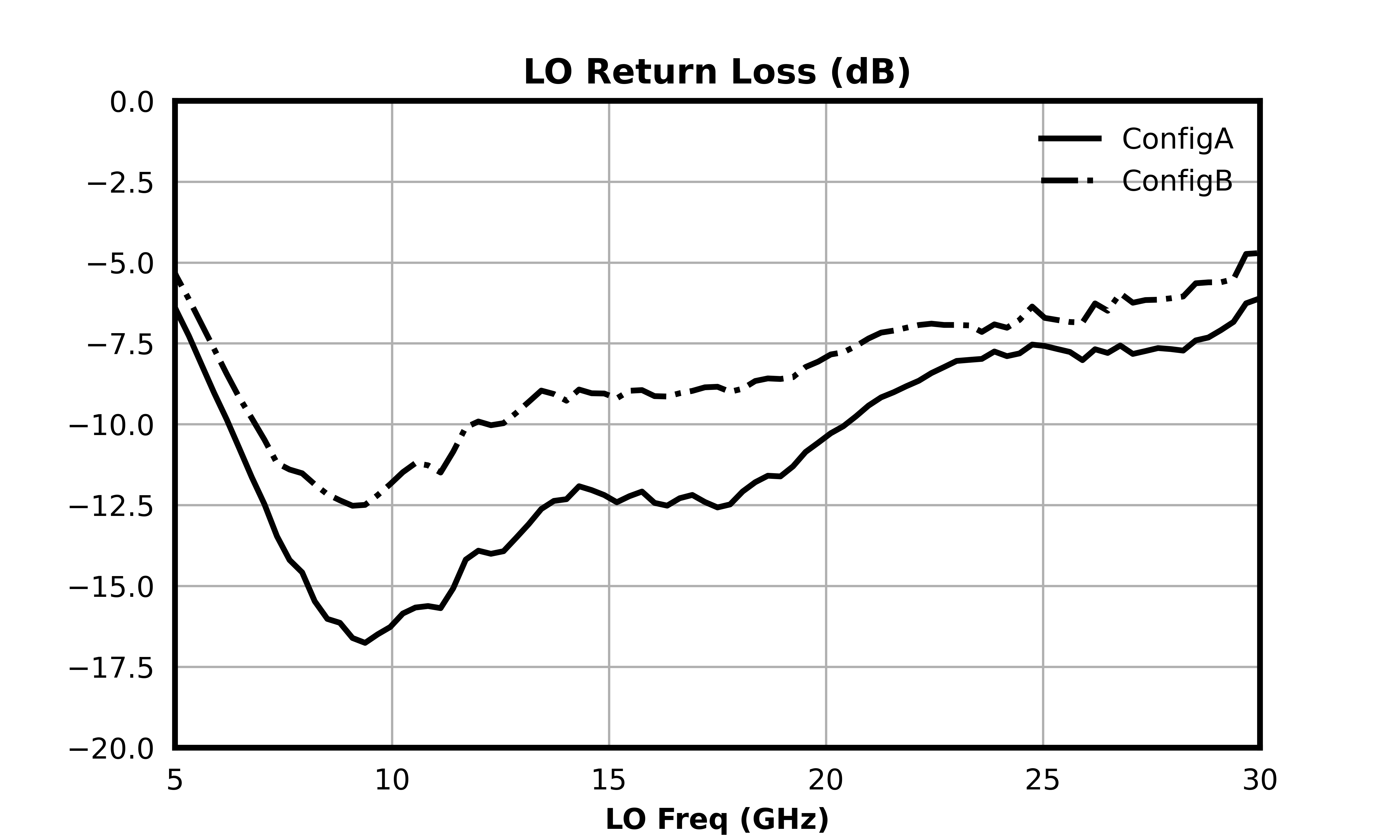

LO Return Loss (dB) graph for MM2-0530LBH

Rev: - | Copyright © 2026 Marki Microwave LLC.

7

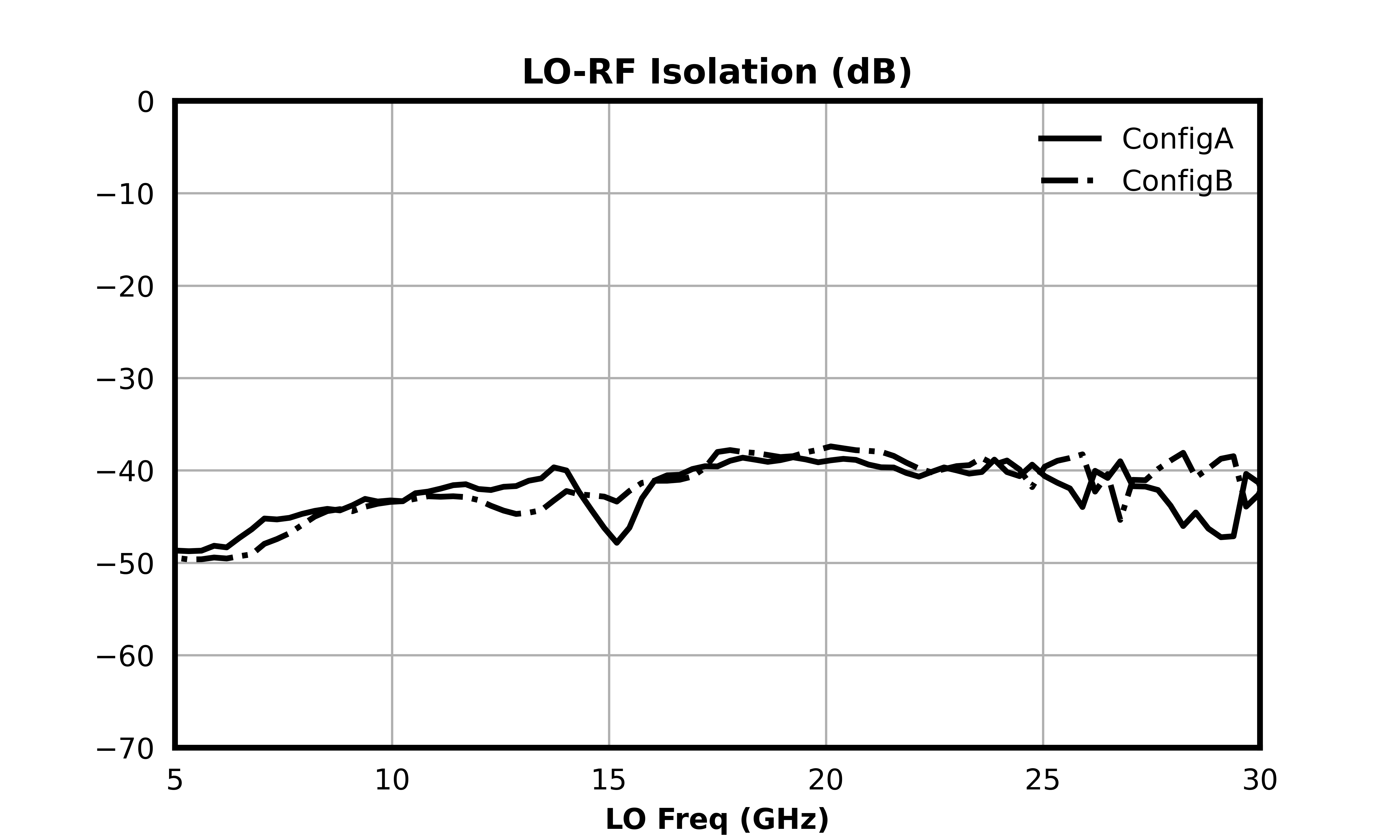

LO-RF Isolation (dB) graph for MM2-0530LBH

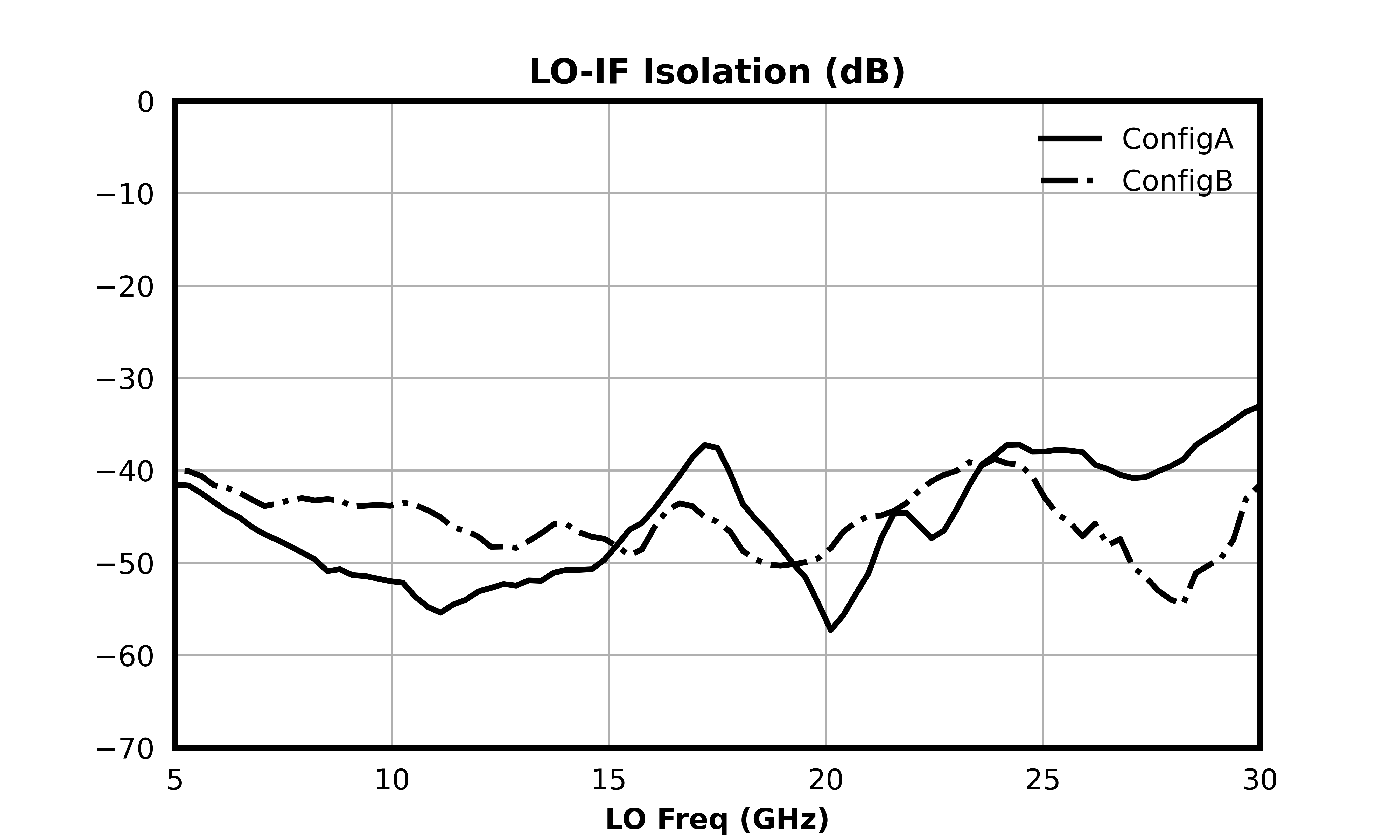

LO-IF Isolation (dB) graph for MM2-0530LBH

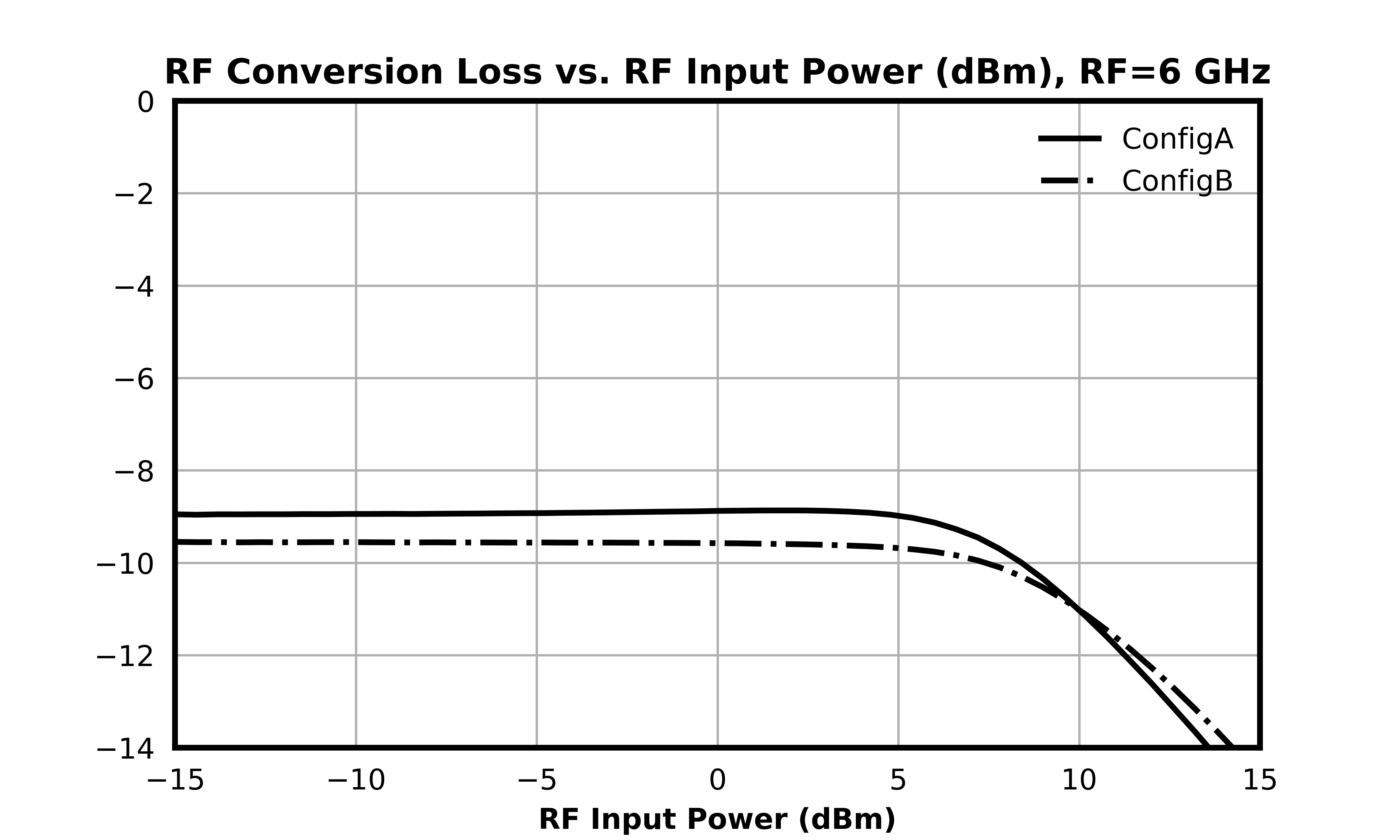

RF Conversion Loss vs. RF Input Power (dBm), RF=6 GHz graph for MM2-0530LBH

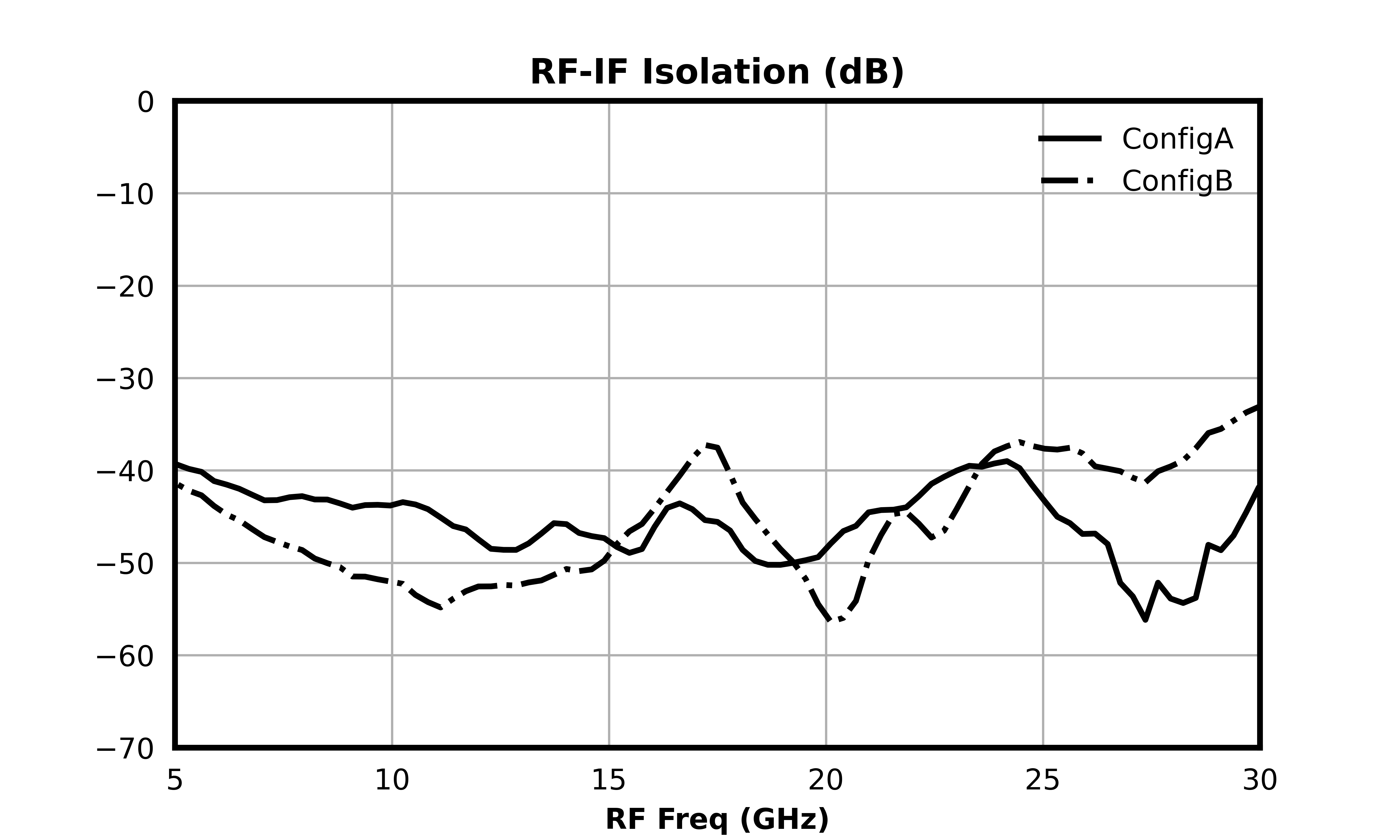

RF-IF Isolation (dB) graph for MM2-0530LBH

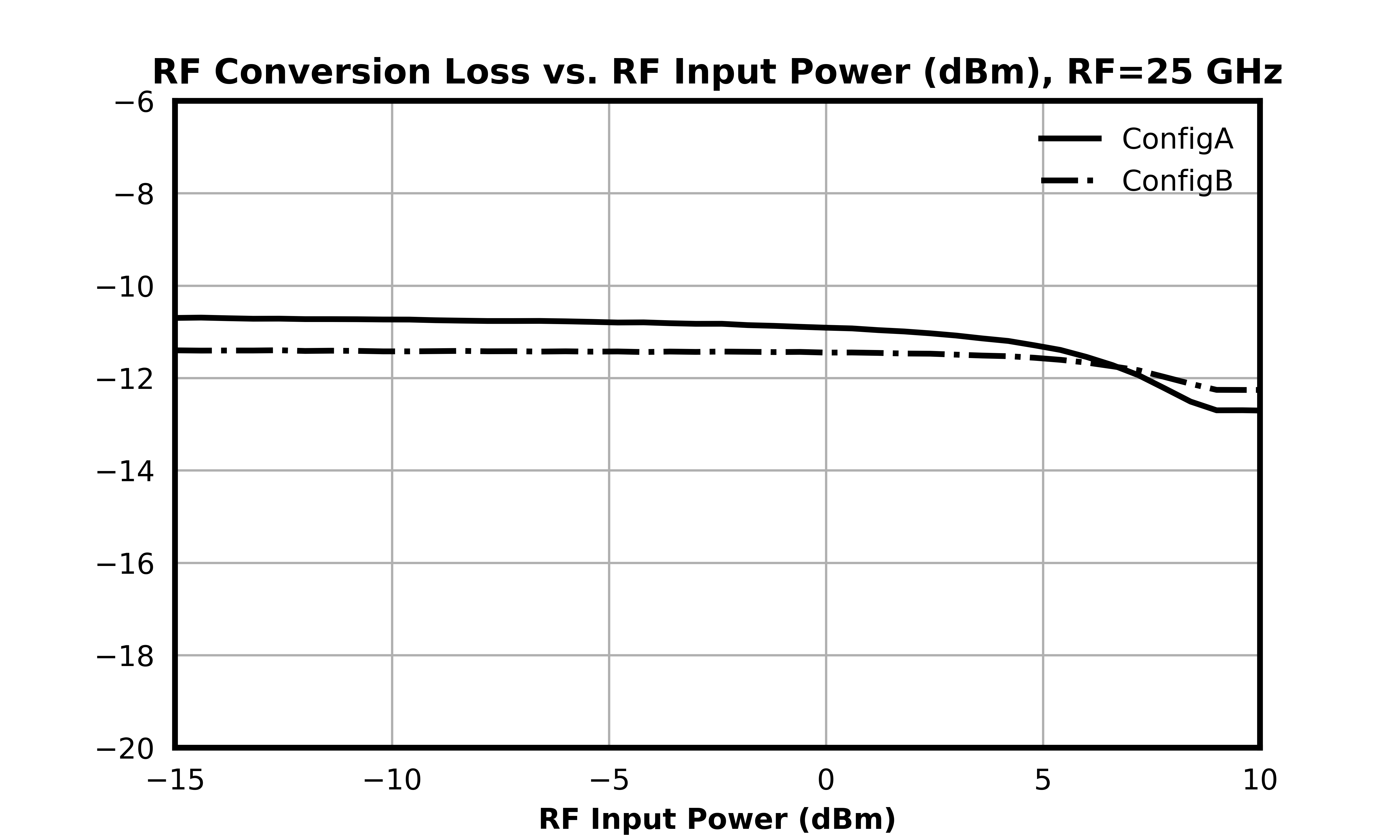

RF Conversion Loss vs. RF Input Power (dBm), RF=20 GHz graph for MM2-0530LBH

Rev: - | Copyright © 2026 Marki Microwave LLC.

8

Typical Performance Plots: LO Harmonic Isolation

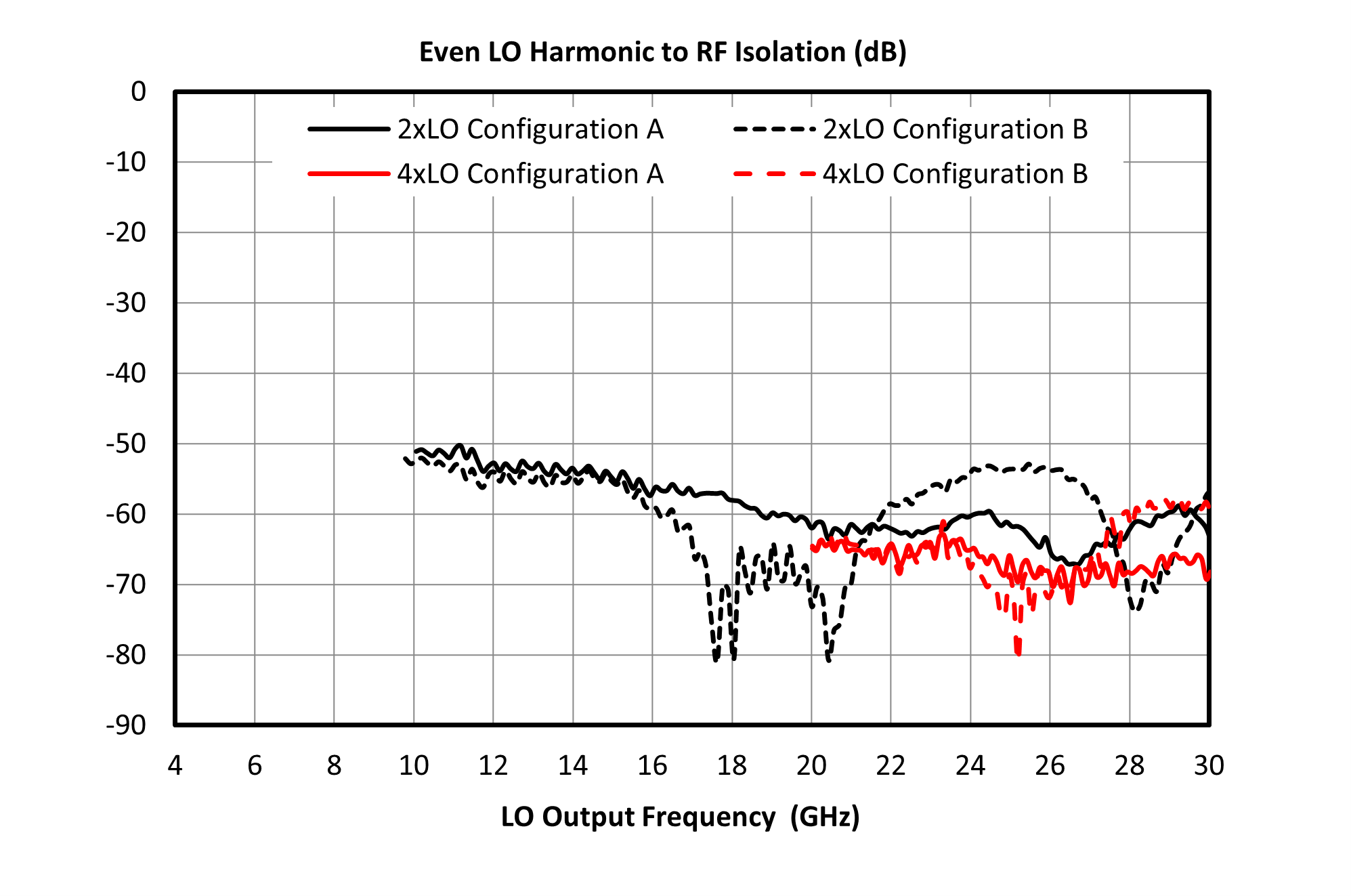

Even LO Harmonic to RF Isolation (dB) graph for MM2-0530LBH

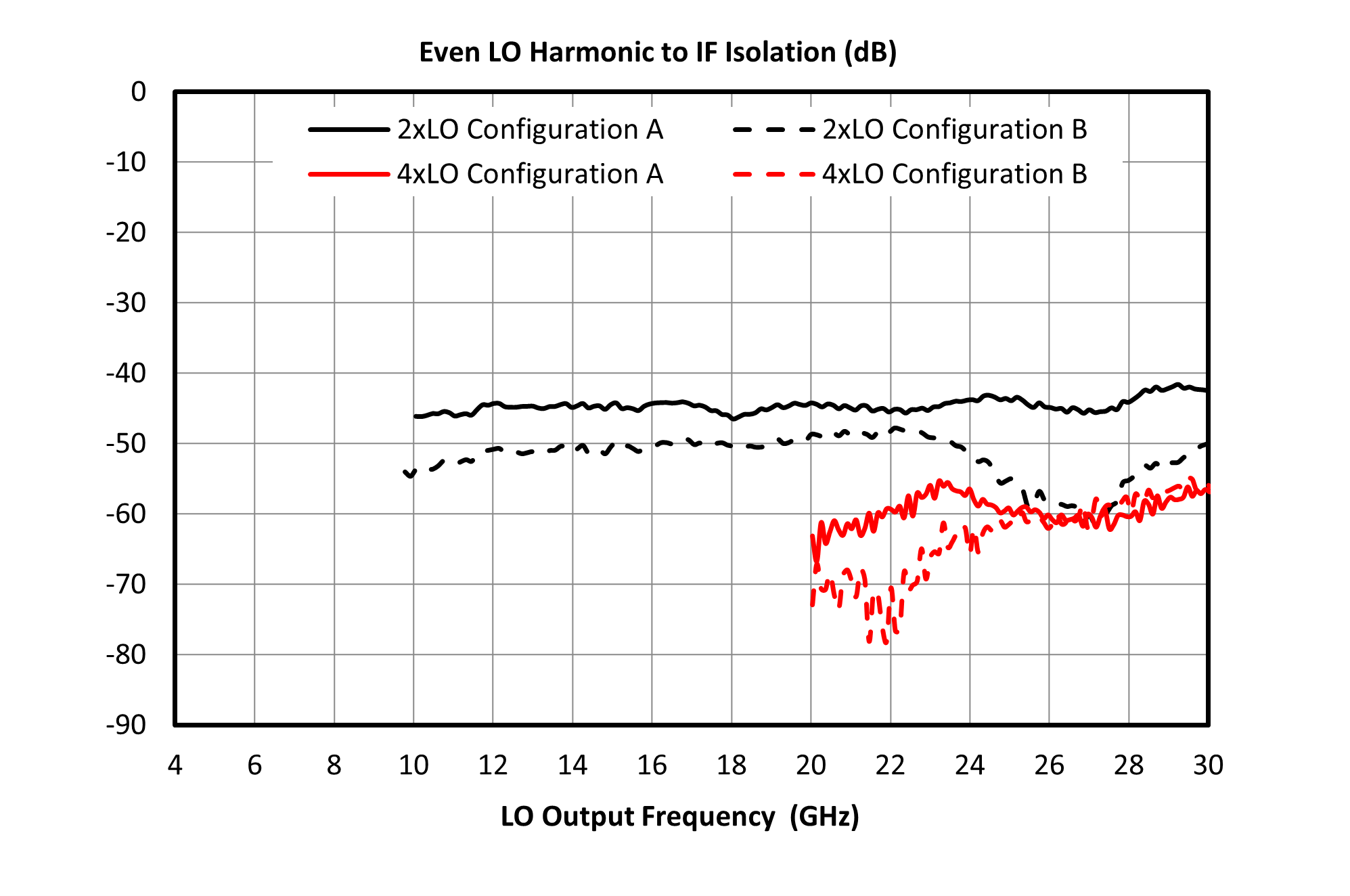

Even LO Harmonic to IF Isolation (dB) graph for MM2-0530LBH

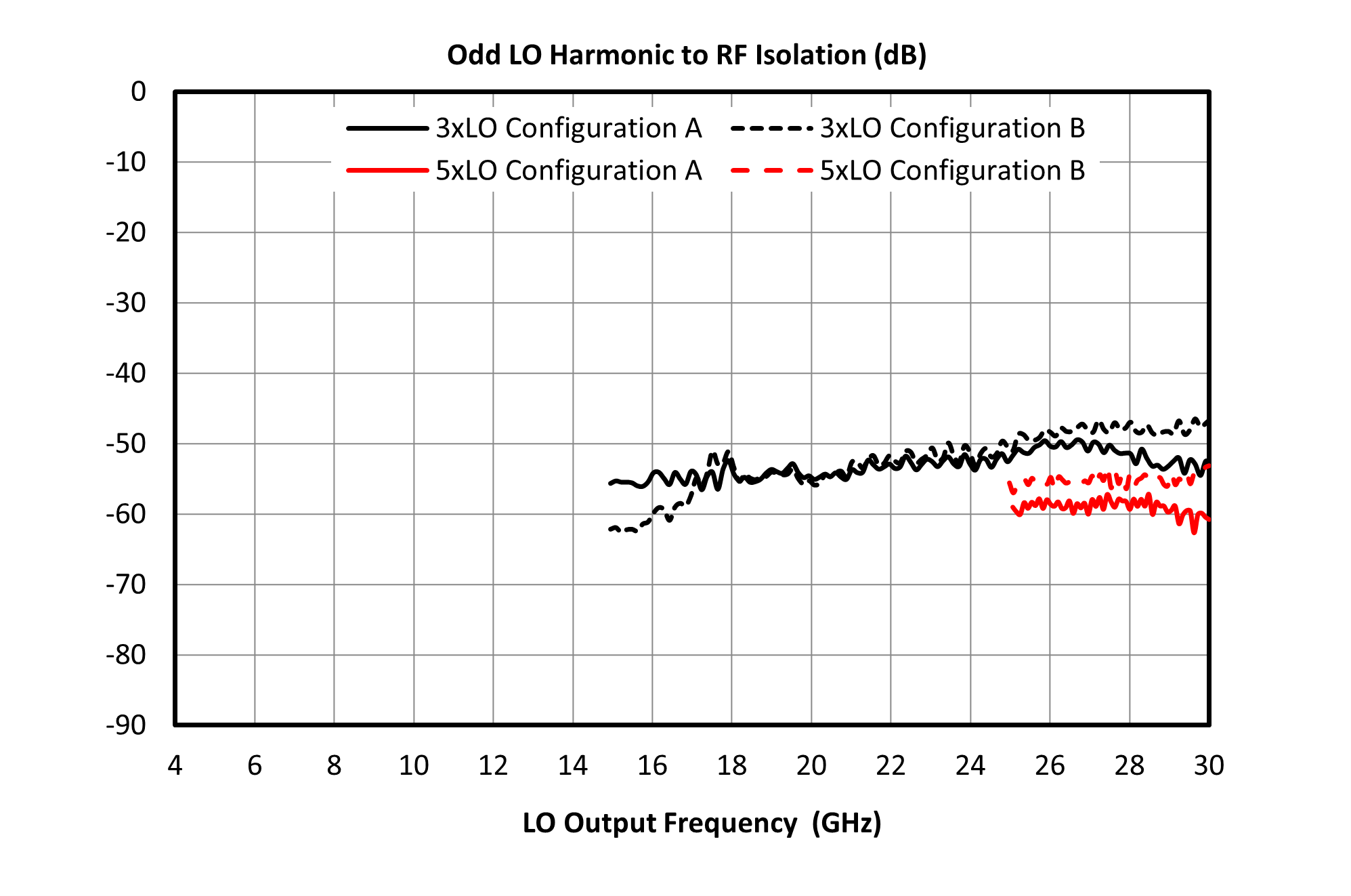

Odd LO Harmonic to RF Isolation (dB) graph for MM2-0530LBH

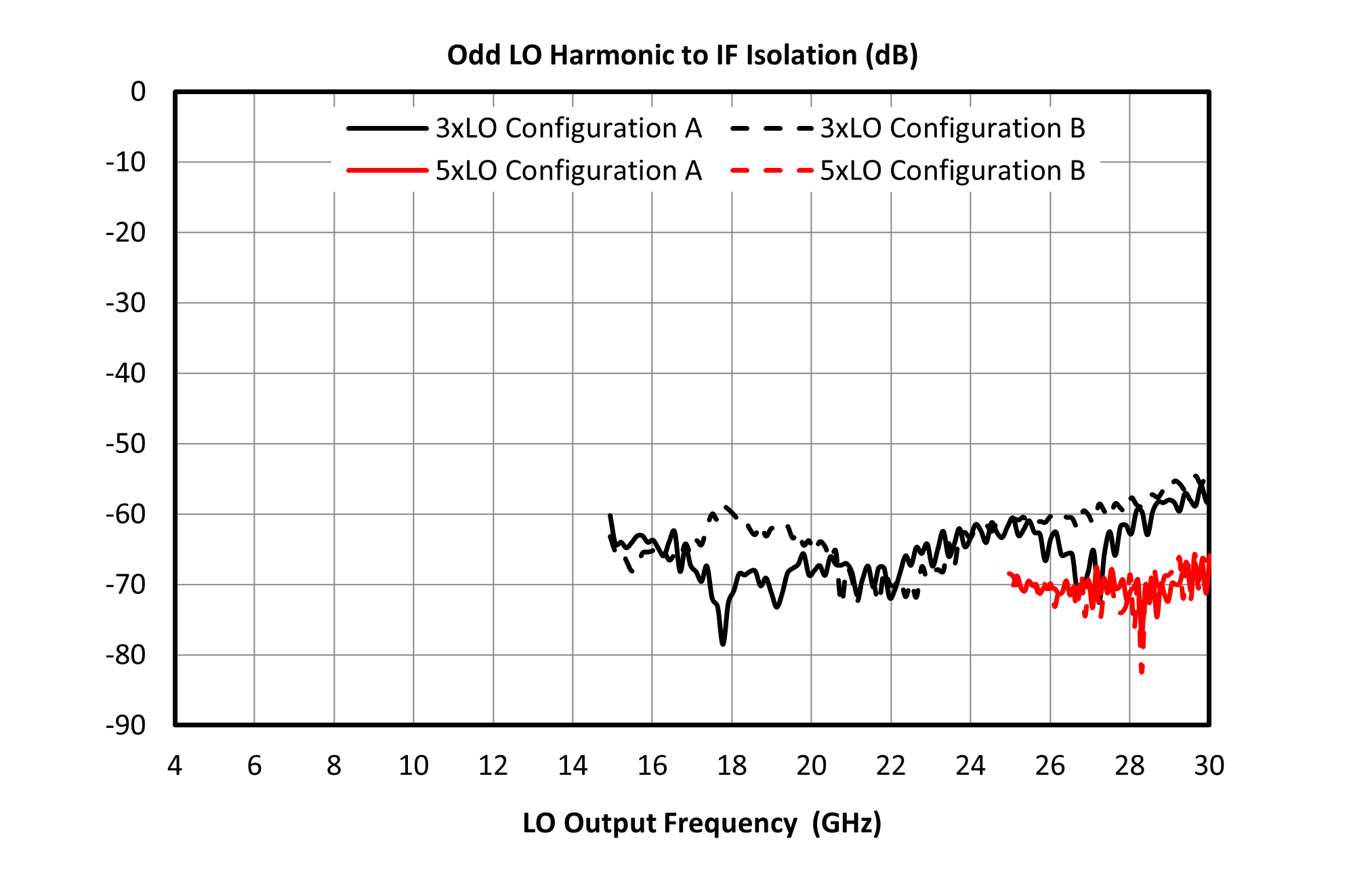

Odd LO Harmonic to IF Isolation (dB) graph for MM2-0530LBH

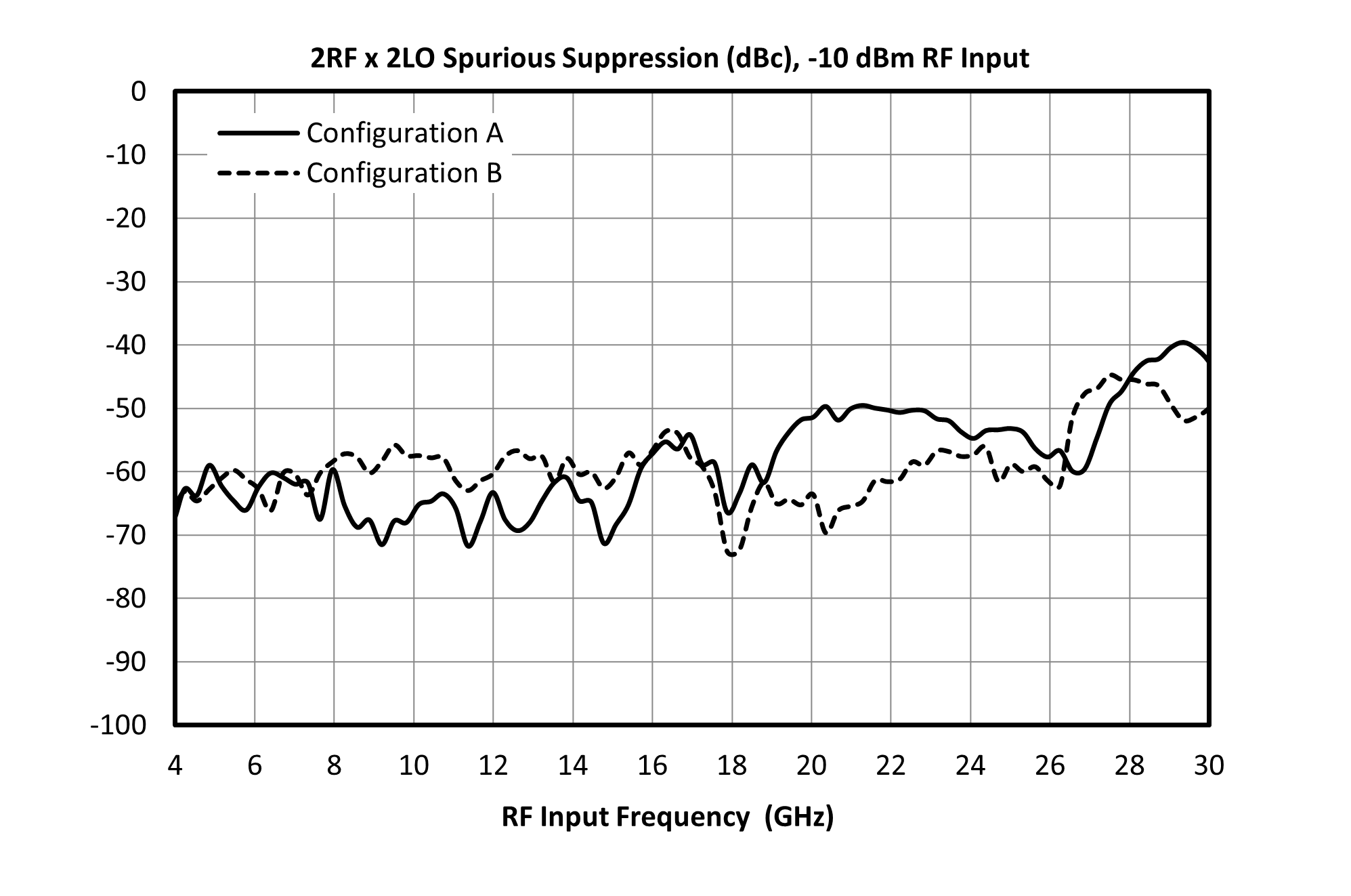

2RF x 2LO Spurious Suppression (dBc) graph for MM2-0530LBH

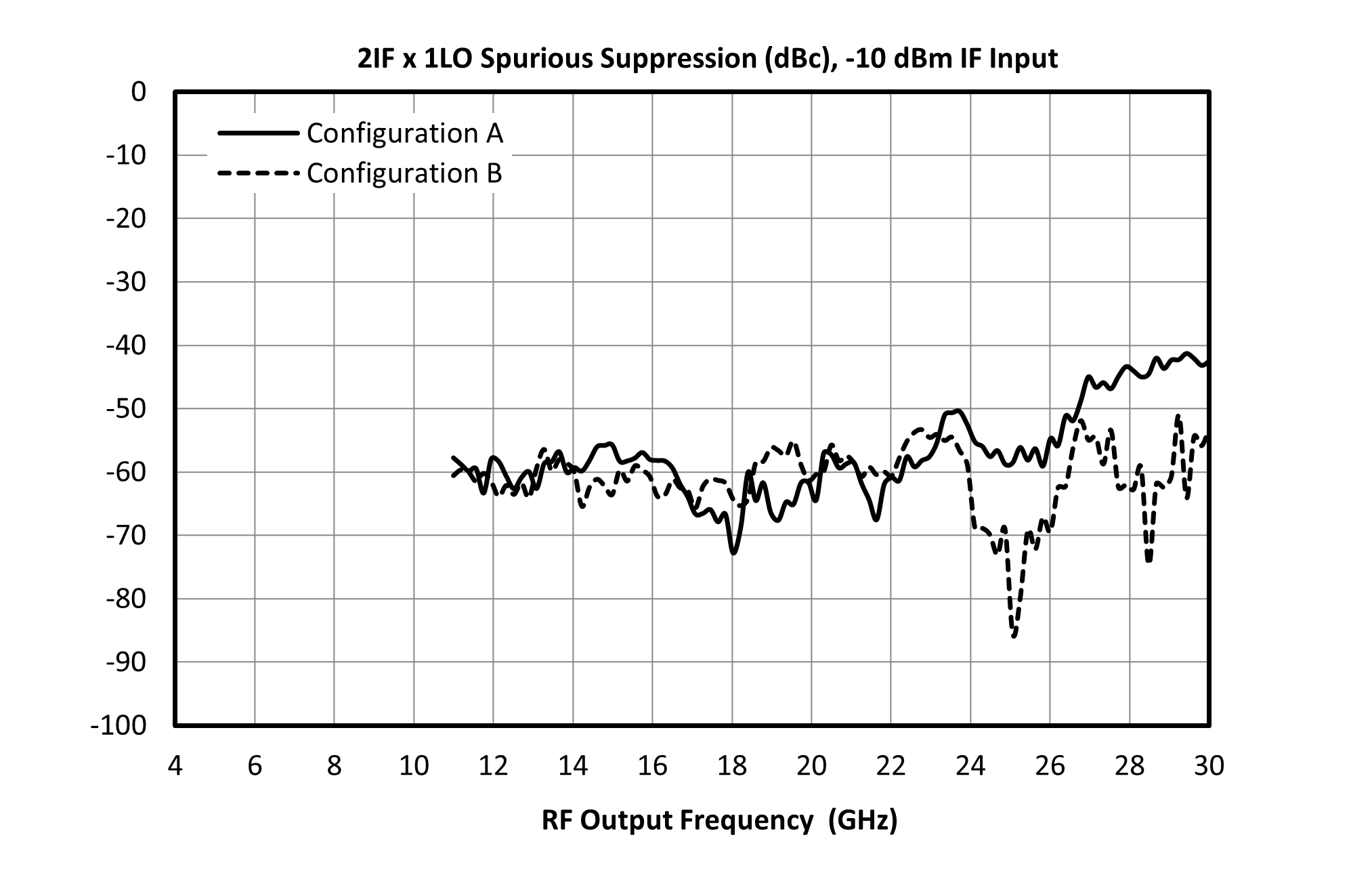

2IF x 1LO Spurious Suppression (dBc) graph for MM2-0530LBH

Rev: - | Copyright © 2026 Marki Microwave LLC.

9

Application Circuit

Application Circuit for MM2-0530LBH

Rev: - | Copyright © 2026 Marki Microwave LLC.

10

Mechanical Data

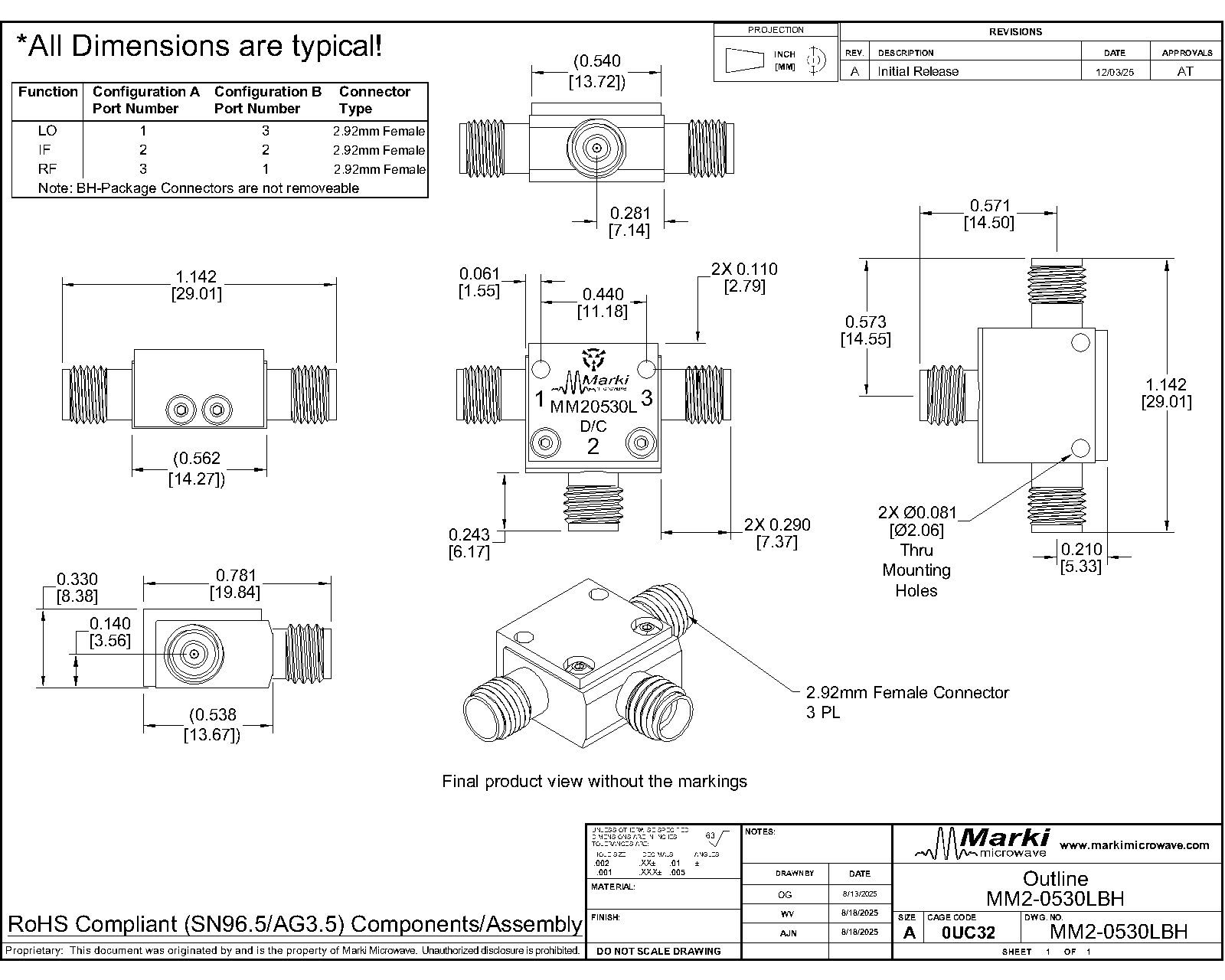

Outline Drawing
