MM1-1886HM

GaAs MMIC mmWave Double Balanced Mixer

The MM1-1886HM is a passive double balanced MMIC mixer. It features excellent 8.5 dB conversion loss, superior isolations and outstanding spurious performance across a broad 18 to 86 GHz RF/LO bandwidth. Optimized for higher LO drive levels, the MM1-1886HM delivers enhanced linearity with a minimum LO drive of +13 dBm. For a lower LO drive option, see MM1-1886LM. The MM1-1886H is available as a wire bondable chip or a connectorized package.

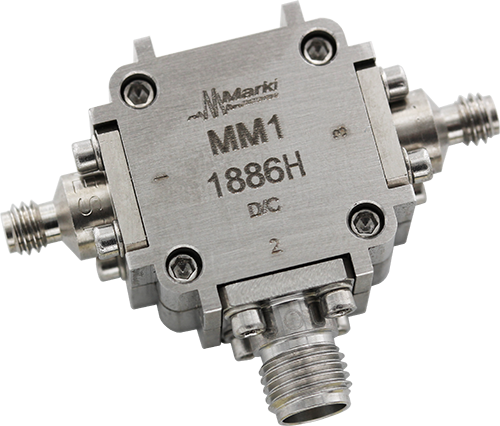

Product Variant : MM1-1886HM
Sorted by: No sorting applied
MM1-1886HM
Request Quote
Double Balanced
188602013See plot8.55021.5-36.5 x 28.5 mmReleased

Technical Resources
