Port Diagram
The MM1-1467H has the input and output ports given in Port Functions. The MM1-1467H can be used in either an up or down conversion.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
MM1-1467H is a GaAs MMIC double balanced mixer with a broad IF bandwidth and low conversion loss. This mixer is ideal for applications which require broad IF bandwidths with operation at mmWave frequencies. The MM1-1467H is available as both wire bondable die and as connectorized modules. The -1 option for die is available for this mixer. Both the -1 and -2 mixers are electrically identically but with mirrored footprints.
Features
- High LO to RF isolation
- Broad IF bands covering critical Ku & K band
- Flat IF response through K band
- High linearity
Applications
- Test and Measurement Equipment
- Fixed RF up converters
- Electronic warfare equipment
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-1467HUB | GaAs MMIC mmWave Tuner Mixer | UB | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-1467HUB | GaAs MMIC mmWave Tuner Mixer | UB | Standard | REACH RoHS | Released | EAR99 |
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2023-10-18 | Electrical Specifications Conversion Loss Limits Updated |
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Port Configuration and Functions
Port Functions
Configuration A
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | UB package ground provided through metal housing and outer coax conductor. |  |
| Port 1 | LO | 1.85F | Port 1 is DC open for the CH and UB packages. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the CH and UB package. |  |
| Port 3 | RF | 1.85F | Port 3 is DC open for the CH and UB packages. | |
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Configuration B
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | UB package ground provided through metal housing and outer coax conductor. | |
| Port 1 | RF | 1.85F | Port 1 is DC open for the CH and UB packages. | |
| Port 2 | IF | SMAF | Port 2 is diode connected for the CH and UB package. | |
| Port 3 | LO | 1.85F | Port 3 is DC open for the CH and UB packages. | |
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Power Handling, at any Port | 27 | dBm |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: UB | 16g |
| Dimensions | - | 33.33 x 25.58 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 11 | - | 20 | dBm |
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized UB package mixer used with a +15 dBm sine wave LO. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 14 - 60 GHz I = 0.091 GHz | - | 7 | 12 | dB |
| Conversion Loss 2 | A | RF/LO = 14 - 67 GHz I = 0.091- 21 GHz | - | 9 | - | dB |
| Conversion Loss | A | RF/LO = 60 - 67 GHz I = 0.091 GHz | - | 7 | 14 | dB |
| Input IP3 | A | RF/LO = 14 - 67 GHz I = 0.091 GHz | - | 17.5 | - | dBm |
| Input P1dB | A | - | - | 9 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 14 - 60 GHz I = 0.091 GHz | - | 8 | 13 | dB |
| Conversion Loss 4 | B | RF/LO = 14 - 67 GHz I = 0.091- 21 GHz | - | 10.5 | - | dB |
| Conversion Loss | B | RF/LO = 60 - 67 GHz I = 0.091 GHz | - | 8 | 15 | dB |
| Input IP3 | B | RF/LO = 14 - 67 GHz I = 0.091 GHz | - | 19.5 | - | dBm |
| Input P1dB | B | - | - | 9 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 21 | GHz |
| LO Frequency Range | - | - | 14 | - | 67 | GHz |
| LO-IF Isolation | - | IF/LO = 14 - 67 GHz | - | 33 | - | dB |
| LO-RF Isolation | - | RF/LO = 14 - 67 GHz | - | 53 | - | dB |
| Noise Figure 5 | - | RF/LO = 14 - 67 GHz I = 0.091- 21 GHz | - | 8.5 | - | dB |
| RF Frequency Range | - | - | 14 | - | 67 | GHz |
| RF-IF Isolation | - | RF/IF = 14 - 67 GHz | - | 48 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 14 - 60 GHz I = 0.091 GHz | - | 7 | 12 | dB |
| Conversion Loss 2 | A | RF/LO = 14 - 67 GHz I = 0.091- 21 GHz | - | 9 | - | dB |
| Conversion Loss | A | RF/LO = 60 - 67 GHz I = 0.091 GHz | - | 7 | 14 | dB |
| Input IP3 | A | RF/LO = 14 - 67 GHz I = 0.091 GHz | - | 17.5 | - | dBm |
| Input P1dB | A | - | - | 9 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 14 - 60 GHz I = 0.091 GHz | - | 8 | 13 | dB |
| Conversion Loss 4 | B | RF/LO = 14 - 67 GHz I = 0.091- 21 GHz | - | 10.5 | - | dB |
| Conversion Loss | B | RF/LO = 60 - 67 GHz I = 0.091 GHz | - | 8 | 15 | dB |
| Input IP3 | B | RF/LO = 14 - 67 GHz I = 0.091 GHz | - | 19.5 | - | dBm |
| Input P1dB | B | - | - | 9 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 21 | GHz |
| LO Frequency Range | - | - | 14 | - | 67 | GHz |
| LO-IF Isolation | - | IF/LO = 14 - 67 GHz | - | 33 | - | dB |
| LO-RF Isolation | - | RF/LO = 14 - 67 GHz | - | 53 | - | dB |
| Noise Figure 5 | - | RF/LO = 14 - 67 GHz I = 0.091- 21 GHz | - | 8.5 | - | dB |
| RF Frequency Range | - | - | 14 | - | 67 | GHz |
| RF-IF Isolation | - | RF/IF = 14 - 67 GHz | - | 48 | - | dB |
[1][2][3][4] Measured as a down converter to a fixed 91 MHz IF. Unless otherwise stated, frequency conversion done using a highside LO.
[5] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Typical Performance Plots
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Typical Performance Plots: IP3
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Typical Performance Plots: LO Harmonic Isolation
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
Typical Performance Plots: Tuner Mixer

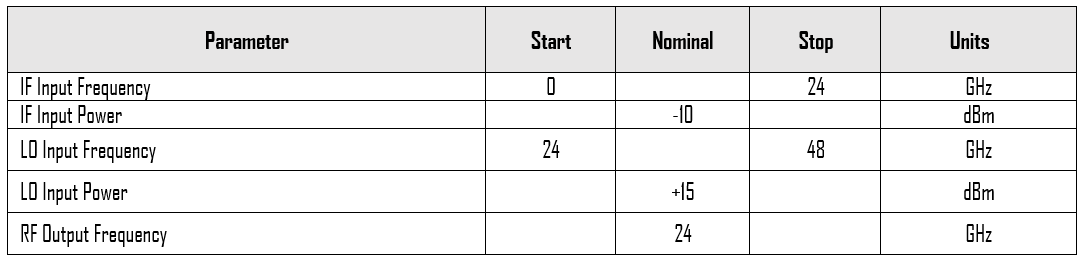

Tuner mixer performance plots are taken with the following test conditions and frequency plan:
MM1-1467HUB
GaAs MMIC mmWave Tuner Mixer
