MM1-0330T is a GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations, and spurious performance across a broad bandwidth. The MM1-0330T works well as both an up and down converter through the K band and beyond. The MM1-0330T is recommended for frequency conversion applications that require high linearity. It is available as both wire bondable die and as a connectorized module.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0330TS | GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MM1-0330TS | GaAs MMIC Double Balanced Mixer | S | Standard | REACH RoHS | Released | EAR99 |
MM1-0330TS
GaAs MMIC Double Balanced Mixer
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2021-09-01 | Datasheet Initial Release |
| A | 2022-10-01 | CL and IP3 at 1W LO Drive |
MM1-0330TS
GaAs MMIC Double Balanced Mixer

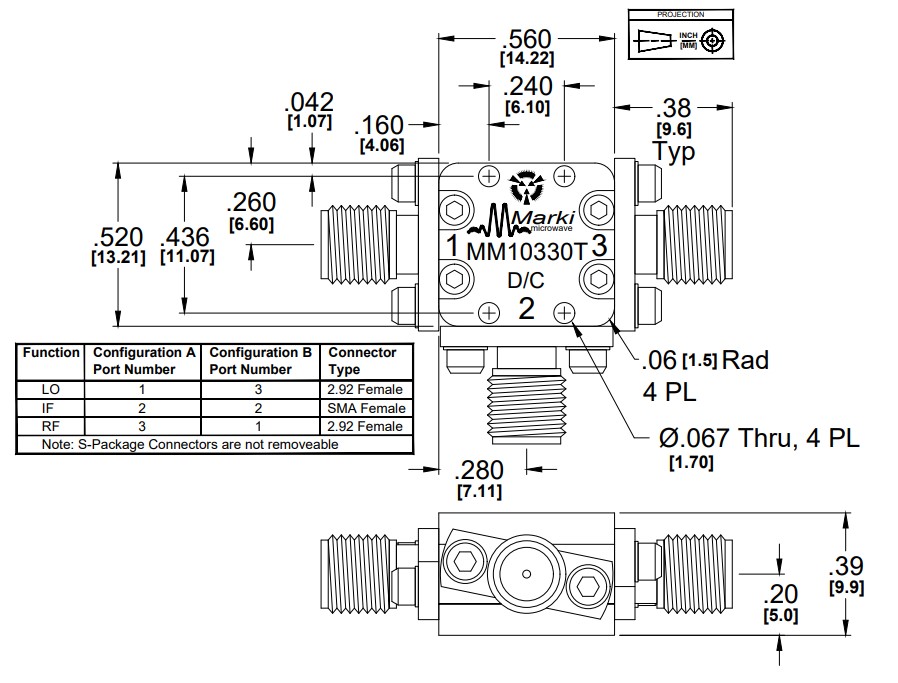

The MM1-0330T has the input and output ports given in Port Functions. The MM1-0330T can be used in either an up or down conversion. For configuration A, input the LO into port 1, use port 3 for the RF, and port 2 for the IF. For configuration B, input the LO into port 3, use port 1 for the RF, and port 2 for the IF.
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | S package ground provided through metal housing and outer coax conductor. |  |
| Port 1 | LO | 2.92F | Port 1 is DC short for the CH and S packages. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the CH and S package. |  |
| Port 3 | RF | 2.92F | Port 3 is DC short for the CH and S packages. | |
MM1-0330TS
GaAs MMIC Double Balanced Mixer
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | S package ground provided through metal housing and outer coax conductor. | |
| Port 1 | RF | 2.92F | Port 1 is DC short for the CH and S packages. | |
| Port 2 | IF | SMAF | Port 2 is diode connected for the CH and S package. | |
| Port 3 | LO | 2.92F | Port 3 is DC short for the CH and S packages. | |
MM1-0330TS
GaAs MMIC Double Balanced Mixer
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 30 | mA |
| Port 2 DC Current | 30 | mA |
| Port 3 DC Current | 30 | mA |
| Power Handling, at any Port | 33 | dBm |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: S | 12g |
| Dimensions | - | 14.22 x 13.21 mm |
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 100 | °C |
| LO Input Power | 20 | - | 27 | dBm |
MM1-0330TS
GaAs MMIC Double Balanced Mixer
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized S package mixer used in the forward direction with a +23 dBm sine wave input using an ADM3-0022PA-H up to 25GHz and a saturated AMM-6702UC above 25GHz. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C. All bare die are 100% DC tested and visually inspected.
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 3 – 30 GHz I = 0.2 – 5 GHz | - | 9 | - | dB |
| Conversion Loss 2 | A | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 7 | 15 | dB |
| Input IP3 | A | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 32 | - | dBm |
| Input P1dB | A | - | - | 15 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 3 – 30 GHz I = 0.2 – 5 GHz | - | 11 | - | dB |
| Conversion Loss 4 | B | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 9 | 15 | dB |
| Input IP3 | B | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 32 | - | dBm |
| Input P1dB | B | - | - | 15 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 5 | GHz |
| LO Frequency Range | - | - | 3 | - | 30 | GHz |
| LO-IF Isolation | - | IF/LO = 3 - 30 GHz | - | 40 | - | dB |
| LO-RF Isolation | - | RF/LO = 3 - 30 GHz | - | 50 | - | dB |
| Noise Figure 5 | - | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 7.5 | - | dB |
| RF Frequency Range | - | - | 3 | - | 30 | GHz |
| RF-IF Isolation | - | RF/IF = 3 - 30 GHz | - | 40 | - | dB |
| Parameter | Port Configuration | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Conversion Loss 1 | A | RF/LO = 3 – 30 GHz I = 0.2 – 5 GHz | - | 9 | - | dB |
| Conversion Loss 2 | A | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 7 | 15 | dB |
| Input IP3 | A | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 32 | - | dBm |
| Input P1dB | A | - | - | 15 | - | dBm |
| Conversion Loss 3 | B | RF/LO = 3 – 30 GHz I = 0.2 – 5 GHz | - | 11 | - | dB |
| Conversion Loss 4 | B | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 9 | 15 | dB |
| Input IP3 | B | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 32 | - | dBm |
| Input P1dB | B | - | - | 15 | - | dBm |
| IF Frequency Range | - | - | 0 | - | 5 | GHz |
| LO Frequency Range | - | - | 3 | - | 30 | GHz |
| LO-IF Isolation | - | IF/LO = 3 - 30 GHz | - | 40 | - | dB |
| LO-RF Isolation | - | RF/LO = 3 - 30 GHz | - | 50 | - | dB |
| Noise Figure 5 | - | RF/LO = 3 - 30 GHz I = DC - 0.2 GHz | - | 7.5 | - | dB |
| RF Frequency Range | - | - | 3 | - | 30 | GHz |
| RF-IF Isolation | - | RF/IF = 3 - 30 GHz | - | 40 | - | dB |
[1][2][3][4] Measured as a down converter to a fixed 91MHz IF.
[5] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.
MM1-0330TS
GaAs MMIC Double Balanced Mixer
Discontinuity in measurements at 25GHz is due to the two LO driver amplifiers used. When the LO is above 25GHz, the LO power drops below the typical +23dBm. Saturated AMM-6702UC bias conditions are always +4V/-0.4V. Input power to the amplifier is a +10dBm sine wave input unless otherwise stated
MM1-0330TS
GaAs MMIC Double Balanced Mixer
MM1-0330TS
GaAs MMIC Double Balanced Mixer
MM1-0330TS
GaAs MMIC Double Balanced Mixer
**Due to difficulty generating a clean swept LO tone at +23dBm, plots of LO Harmonic Isolation are taken at a reduced power level. Performance at +23dBm LO will show improvement
