Port Diagram
END OF LIFE
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
M8 mixers are hybrid assemblies that use a specially balanced technique to feature very low conversion loss and high isolations. M8 mixers have generally been replaced with MM1 mixers with superior performance, repeatability, and availability. M8 mixers are still used in legacy systems and are suitable for laboratory use.
Features
- LO/RF 4.0 to 12.0 GHz
- IF DC to 2.0 GHz
- 5.0 dB Typical Conversion Loss
- 40 dB Typical LO to RF Isolation
- Multi-Octave RF and LO
- Superior Bi-Phase Performance
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M8-0412MS | Double-Balanced 4 - 12 GHz Mixer | S | Standard | Consult Factory | End of Life | EAR99 | MM1-0222LSMM1-0312HS |
| M8-0412HZ | Double-Balanced 4 - 12 GHz Mixer | Z | Standard | Consult Factory | End of Life | EAR99 | MM1-0312HS |
| M8-0412LS | Double-Balanced 4 - 12 GHz Mixer | S | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | MM1-0222LSMM1-0312HS |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M8-0412MS | Double-Balanced 4 - 12 GHz Mixer | S | Standard | Consult Factory | End of Life | EAR99 | MM1-0222LSMM1-0312HS |
| M8-0412HZ | Double-Balanced 4 - 12 GHz Mixer | Z | Standard | Consult Factory | End of Life | EAR99 | MM1-0312HS |
| M8-0412LS | Double-Balanced 4 - 12 GHz Mixer | S | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | MM1-0222LSMM1-0312HS |

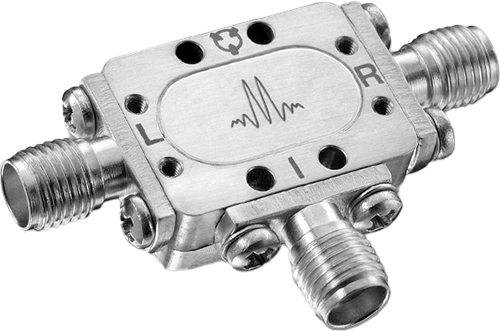

M8-0412HZ
Double-Balanced 4 - 12 GHz Mixer
Table Of Contents
M8-0412HZ
Double-Balanced 4 - 12 GHz Mixer
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | SMAF | Port 1 is DC short for the Z package. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the Z Package. |  |
| Port 3 | RF | SMAF | Port 3 is DC short for the Z Package. | |
M8-0412HZ
Double-Balanced 4 - 12 GHz Mixer
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: Z | 11g |
| Dimensions | - | 14.22 x 13.21 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 16 | - | 19 | - |
M8-0412HZ
Double-Balanced 4 - 12 GHz Mixer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=4-12 GHz IF=1-2 GHz | - | 6.5 | 8 | dB |
| Conversion Loss | LO/RF=4-12 GHz IF=DC-1 GHz | - | 5 | 7 | dB |
| Input IP3 | LO/RF=4-12 GHz H Diode drive level=16-19 dBm | - | 21 | - | dBm |
| Input P1dB | LO/RF=4-12 GHz H Diode drive level=16-19 dBm | - | 11 | - | dBm |
| LO-IF Isolation | LO/RF=4-12 GHz | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=4-12 GHz | 30 | 40 | - | dB |
| RF-IF Isolation | LO/RF=4-12 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 2 | GHz |
| RF Frequency Range | - | 4 | - | 12 | GHz |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=4-12 GHz IF=1-2 GHz | - | 6.5 | 8 | dB |
| Conversion Loss | LO/RF=4-12 GHz IF=DC-1 GHz | - | 5 | 7 | dB |
| Input IP3 | LO/RF=4-12 GHz H Diode drive level=16-19 dBm | - | 21 | - | dBm |
| Input P1dB | LO/RF=4-12 GHz H Diode drive level=16-19 dBm | - | 11 | - | dBm |
| LO-IF Isolation | LO/RF=4-12 GHz | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=4-12 GHz | 30 | 40 | - | dB |
| RF-IF Isolation | LO/RF=4-12 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 2 | GHz |
| RF Frequency Range | - | 4 | - | 12 | GHz |
M8-0412HZ
Double-Balanced 4 - 12 GHz Mixer
Typical Performance Plots
M8-0412HZ
Double-Balanced 4 - 12 GHz Mixer
Mechanical Data
Outline Drawing
