Device Overview

General Description

M4 diplexed IF mixers are hybrid assemblies that combine a low frequency IF (to DC) with a multi-decade bandwidth RF and LO. M4 mixers are commonly used for single tone analyzers (such as antenna test systems) with ultra-broad frequency ranges.

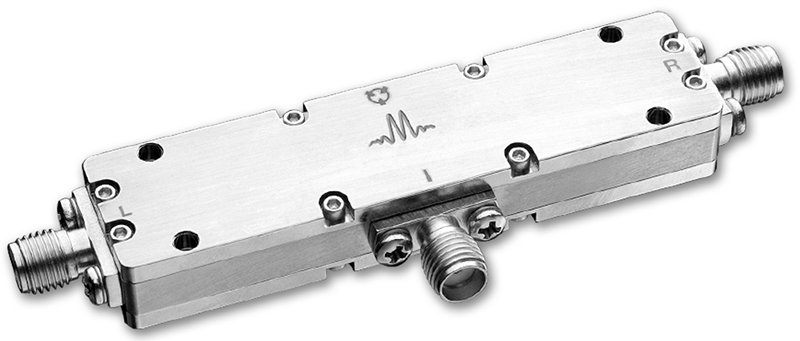

Photo of M4-0040HJ

Features

  • LO/RF 0.5 to 40.0 GHz
  • IF DC to 400 MHz
  • 8.0 dB Typical Conversion Loss
  • 30 dB Typical LO to RF Isolation
  • Super-Broadband RF and LO
  • Available with 2.92 or 2.40 mm Connectors

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M4-0040HJDouble-Balanced 0.5 - 40 MixerJStandardConsult FactoryEnd of LifeEAR99

-

M4-0040LJDouble-Balanced 0.5 - 40 MixerJStandard

Non-RoHS

Not Recommended for New DesignEAR99

-

M4-0040LJVDouble-Balanced 0.5 - 40 MixerJVVStandardConsult FactoryNot Recommended for New DesignEAR99

-

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2007-03-01Datasheet initial Release
A2019-06-01H-Diode Spec Removed

Rev: A | Copyright © 2007, 2019 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for M4-0040HJ

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO SMAFPort 1 is DC short for the J package.Equivalent circuit for the LO
Port 2IF SMAFPort 2 is diode connected for the J Package.Equivalent circuit for the IF
Port 3RF SMAFPort 3 is DC short for the J Package.Equivalent circuit for the RF

Rev: A | Copyright © 2007, 2019 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
WeightPackage name: J43g
Dimensions-66.04 x 16.76 mm
ParameterMinNominalMaxUnit
LO Input Power 16-19-

Rev: A | Copyright © 2007, 2019 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss RF/LO=0.5-40 GHz
IF=DC-400
-813.5dB
Conversion Loss RF/LO=1.0-40 GHz
IF=DC-250
-812dB
Input IP3 RF/LO=0.5-40 GHz
H Diode drive level=19-22 dBm
-24-dBm
Input P1dB RF/LO=0.5-40 GHz
H Diode drive level=19-22 dBm
-14-dBm
RF-IF Isolation RF/LO=0.5-40 GHz
-25-dB
IF Frequency Range -0-0.4GHz
LO-RF Isolation --30-dB
RF Frequency Range -0.5-40GHz

Rev: A | Copyright © 2007, 2019 Marki Microwave LLC.

5

Typical Performance Plots

Conversion Loss (dB) graph for M4-0040HJ
Relative IF Response (dB) graph for M4-0040HJ
LO to RF Isolation (dB) graph for M4-0040HJ
LO to IF Isolation (dB) graph for M4-0040HJ

Rev: A | Copyright © 2007, 2019 Marki Microwave LLC.

6

Mechanical Data

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP

Outline Drawing
