END OF LIFE

Device Overview

General Description

M2 triple balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations. M2 mixers offer ultrabroadband overlapping frequency coverage on all 3 ports. Many M2 mixers have replaced with MM2 mixers with superior performance, repeatability, and availability. M2 mixers suitable for systems where an MM2 mixer is not available.

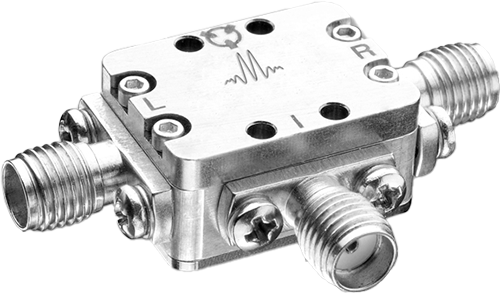

Photo of M2H-0220MP

Features

  • LO/RF 2.0 to 20.0 GHz
  • IF 1.0 to 10.0 GHz
  • 7.0 dB Typical Conversion Loss
  • 27 dB Typical LO to RF Isolation
  • Ultra-Broadband RF, LO, and IF

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M2H-0220LPTriple-Balanced MixersPStandard

Non-RoHS

End of LifeEAR99T3-20GLSMM1-0222LS
M2H-0220MPTriple-Balanced MixersPStandardConsult FactoryEnd of LifeEAR99T3-20GLSMM1-0222LS

Table Of Contents

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO SMAFPort 1 is DC short for the P package.Equivalent circuit for the LO
Port 2IF SMAFPort 2 is diode connected for the P Package.Equivalent circuit for the IF
Port 3RF SMAFPort 3 is DC short for the P Package.Equivalent circuit for the RF

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
WeightPackage name: P18g
Dimensions-20.32 x 14.99 mm
ParameterMinNominalMaxUnit
LO Input Power 13-16-

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=2-20 GHz
IF=1-10 GHz
-8.512dB
Conversion Loss LO/RF=2-20 GHz
IF=2-6 GHz
-710dB
Conversion Loss LO/RF=2-20 GHz
IF=2-8 GHz
-810.5dB
Input IP3 LO/RF=2-20 GHz
LO drive level, M Diode Option=13-16 dBm
-18-dBm
Input P1dB LO/RF=2-20 GHz
LO drive level, M Diode Option=13-16 dBm
-8-dBm
LO-IF Isolation LO/RF=2-20 GHz
-27-dB
LO-RF Isolation LO/RF=2-20 GHz
1527-dB
RF-IF Isolation LO/RF=2-20 GHz
-27-dB
IF Frequency Range -1-10GHz
RF Frequency Range -2-20GHz

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

5

Typical Performance Plots

Conversion Loss (dB) graph for M2H-0220MP
Relative IF Response (dB) graph for M2H-0220MP
LO to RF Isolation (dB) graph for M2H-0220MP
LO to IF Isolation (dB) graph for M2H-0220MP
RF to IF Isolation (dB) graph for M2H-0220MP
IF VSWR graph for M2H-0220MP
RF VSWR graph for M2H-0220MP
LO VSWR graph for M2H-0220MP

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

6

Mechanical Data

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP

Outline Drawing
