NOT RECOMMENDED FOR NEW DESIGN

Device Overview

General Description

M2 triple balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations. M2 mixers offer ultrabroadband overlapping frequency coverage on all 3 ports. Many M2 mixers have replaced with MM2 mixers with superior performance, repeatability, and availability. M2 mixers suitable for systems where an MM2 mixer is not available.

Photo of M2-0026LP

Features

  • LO/RF .01 to 26.5 GHz
  • IF .001 to 6.0 GHz
  • 8.0 dB Typical Conversion Loss
  • Ultra-Broadband RF, LO, and IF

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M2-0026LPTriple-Balanced .01 - 26.5 GHz MixerPStandard

Non-RoHS

Not Recommended for New DesignEAR99T3-20GLS

Table Of Contents

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for M2-0026LP

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
Port 1LO SMAFPort 1 is DC short for the P package.Equivalent circuit for the LO
Port 2IF SMAFPort 2 is diode connected for the P Package.Equivalent circuit for the IF
Port 3RF SMAFPort 3 is DC short for the P Package.Equivalent circuit for the RF

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

3

Specifications

Package Information

ParameterDetailsRating
WeightPackage name: P18g
Dimensions-20.32 x 14.99 mm
ParameterMinNominalMaxUnit
LO Input Power 15-18-

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=0.01-26.5 GHz
IF=0.001-6 GHz
-8-dB
Input IP3 LO/RF=0.01-26.5 GHz
L Diode drive level=15-18 dBm
-15-dBm
Input P1dB LO/RF=0.01-26.5 GHz
L Diode drive level=15-18 dBm
-5-dBm
LO-IF Isolation LO/RF=0.01-26.5 GHz
-30-dB
LO-RF Isolation LO/RF=0.01-26.5 GHz
-30-dB
RF-IF Isolation LO/RF=0.01-26.5 GHz
-30-dB
IF Frequency Range -0.001-6GHz
RF Frequency Range -1-26.5GHz

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

5

Typical Performance Plots

Low-End RF Conversion Loss (dB) graph for M2-0026LP
Conversion Loss (dB) graph for M2-0026LP
Low-End Relative IF Response (dB) graph for M2-0026LP
Relative IF Response (dB) graph for M2-0026LP
LO to RF Isolation (dB) graph for M2-0026LP
LO to IF Isolation (dB) graph for M2-0026LP
RF to IF Isolation (dB) graph for M2-0026LP
IF VSWR graph for M2-0026LP

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

6

RF VSWR graph for M2-0026LP
LO VSWR graph for M2-0026LP

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

7

Mechanical Data

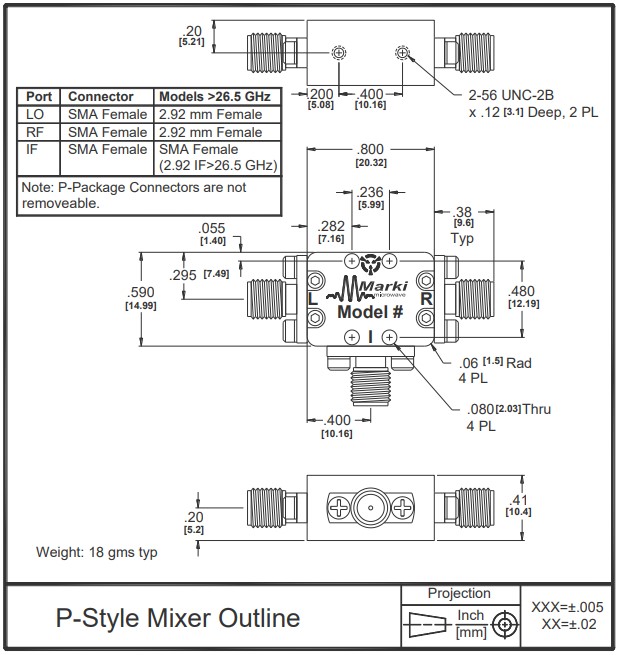

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP

Outline Drawing
