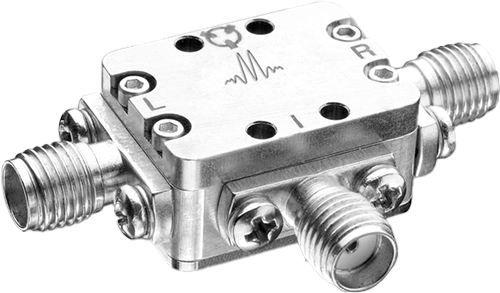

M1B-0618LP_Double-Balanced Mixers Bi-Phase Modulators

END OF LIFE

Device Overview

General Description

The M1B-0618LP is a well balanced double balanced mixer that is particularly well suited as a bi-phase modulator due to low insertion loss, excellent balance, and characterization as a bi-phase modulator.

Features

LO/RF 6.0 to 18.0 GHz
IF DC to 4.0 GHz
5.5 dB Typical Conversion Loss
33 dB Typical LO to RF Isolation
Recommended for Bi-Phase Applications
Broadband RF and LO

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification	Recommended Replacement
M1B-0618LP	Double-Balanced Mixers Bi-Phase Modulators	P	Standard	Consult Factory	End of Life	EAR99	MM1-0320LS
M1B-0618MP	Double-Balanced Mixers Bi-Phase Modulators	P	Standard	Non-RoHS	End of Life	EAR99	MM1-0320LS

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification	Recommended Replacement
M1B-0618LP	Double-Balanced Mixers Bi-Phase Modulators	P	Standard	Consult Factory	End of Life	EAR99	MM1-0320LS
M1B-0618MP	Double-Balanced Mixers Bi-Phase Modulators	P	Standard	Non-RoHS	End of Life	EAR99	MM1-0320LS

Device Overview
Port Configuration and Functions
- Port Functions
Specifications
Mechanical Data
- Outline Drawing
Notes

Port Configuration and Functions

Port Functions

Port	Function	Connector Type	Description
Port 1	LO	SMAF	Port 1 is DC short for the P package.
Port 2	IF	SMAF	Port 2 is diode connected for the P Package.
Port 3	RF	SMAF	Port 3 is DC short for the P Package.

Specifications

Package Information

Parameter	Details	Rating
Weight	Package name: P	18g
Dimensions	-	20.32 x 14.99 mm

Recommended Operating Conditions

Parameter	Min	Nominal	Max	Unit
LO Input Power	7	-	10	-

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF=14-18 GHz IF=2-4 GHz	-	7.5	10	dB
Conversion Loss	LO/RF=14-18 GHz IF=DC-2 GHz	-	6.5	9	dB
Conversion Loss	LO/RF=6-14 GHz IF=2-4 GHz	-	6.5	8	dB
Conversion Loss	LO/RF=6-14 GHz IF=DC-2 GHz	-	5.5	7	dB
IF Frequency Range	-	0	-	4	GHz
Input IP3	LO/RF=6-18 GHz LO drive level, L Diode Option=7-10 dBm	-	12	-	dBm
Input P1dB	LO/RF=6-18 GHz LO drive level, L Diode Option=7-10 dBm	-	2	-	dBm
LO Drive Level	-	7	-	10	dBm
LO-IF Isolation	LO/RF=6-18 GHz	-	30	-	dB
LO-RF Isolation	LO/RF=6-18 GHz	25	33	-	dB
RF Frequency Range	-	6	-	18	GHz
RF-IF Isolation	LO/RF=6-18 GHz	-	25	-	dB
Input IP3	-	-	12	-	dBm
Input P1dB	-	-	2	-	dBm
LO Drive Level	-	7	-	10	dBm

Parameter	Test Conditions	Min	Typ	Max	Unit
Conversion Loss	LO/RF=14-18 GHz IF=2-4 GHz	-	7.5	10	dB
Conversion Loss	LO/RF=14-18 GHz IF=DC-2 GHz	-	6.5	9	dB
Conversion Loss	LO/RF=6-14 GHz IF=2-4 GHz	-	6.5	8	dB
Conversion Loss	LO/RF=6-14 GHz IF=DC-2 GHz	-	5.5	7	dB
IF Frequency Range	-	0	-	4	GHz
Input IP3	LO/RF=6-18 GHz LO drive level, L Diode Option=7-10 dBm	-	12	-	dBm
Input P1dB	LO/RF=6-18 GHz LO drive level, L Diode Option=7-10 dBm	-	2	-	dBm
LO Drive Level	-	7	-	10	dBm
LO-IF Isolation	LO/RF=6-18 GHz	-	30	-	dB
LO-RF Isolation	LO/RF=6-18 GHz	25	33	-	dB
RF Frequency Range	-	6	-	18	GHz
RF-IF Isolation	LO/RF=6-18 GHz	-	25	-	dB
Input IP3	-	-	12	-	dBm
Input P1dB	-	-	2	-	dBm
LO Drive Level	-	7	-	10	dBm

Mechanical Data

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP
