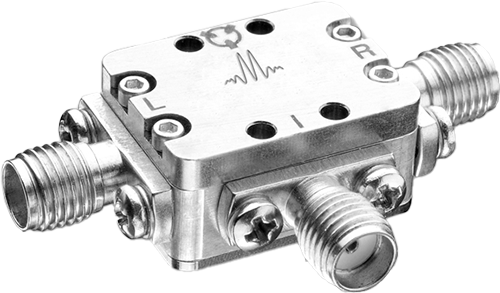

Device Overview
General Description
M1 double balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations and a DC IF response. M1 mixers have generally been replaced with MM1 mixers with superior performance, repeatability, and availability. M1 mixers are still used in legacy systems and are suitable for laboratory use.
Features
- LO/RF 2.0 to 18.0 GHz
- IF DC to 2.0 GHz
- 7.0 dB Typical Conversion Loss
- 35 dB Typical LO to RF Isolation
- Ultra-Broadband LO and RF
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M1-0218NP | Double-Balanced Mixers | P | Standard | Consult Factory | Obsolete | EAR99 | MM1-0222HS |
| M1-0218LP | Double-Balanced Mixers | P | Standard | Consult Factory | End of Life | EAR99 | MM1-0222LS |
| M1-0218MP | Double-Balanced Mixers | P | Standard | Consult Factory | End of Life | EAR99 | MM1-0222HS |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| M1-0218NP | Double-Balanced Mixers | P | Standard | Consult Factory | Obsolete | EAR99 | MM1-0222HS |
| M1-0218LP | Double-Balanced Mixers | P | Standard | Consult Factory | End of Life | EAR99 | MM1-0222LS |
| M1-0218MP | Double-Balanced Mixers | P | Standard | Consult Factory | End of Life | EAR99 | MM1-0222HS |
M1-0218LP
Double-Balanced Mixers
Table Of Contents
M1-0218LP
Double-Balanced Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | LO | SMAF | Port 1 is DC short for the P package. |  |
| Port 2 | IF | SMAF | Port 2 is diode connected for the P Package. |  |
| Port 3 | RF | SMAF | Port 3 is DC short for the P Package. | |
M1-0218LP
Double-Balanced Mixers
Specifications
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 10 | - | 13 | - |
M1-0218LP
Double-Balanced Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=2-18 GHz IF=1-2 GHz | - | 8 | 10 | dB |
| Conversion Loss | LO/RF=2-18 GHz IF=DC-1 GHz | - | 7 | 9 | dB |
| Input IP3 | LO/RF=2-18 GHz LO drive level, L Diode Option=10-13 dBm | - | 13 | - | dBm |
| Input P1dB | LO/RF=2-18 GHz LO drive level, L Diode Option=10-13 dBm | - | 3 | - | dBm |
| LO-IF Isolation | LO/RF=2-18 GHz | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=2-18 GHz | 25 | 35 | - | dB |
| RF-IF Isolation | LO/RF=2-18 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 2 | GHz |
| RF Frequency Range | - | 2 | - | 18 | GHz |
| Parameter | Test Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Conversion Loss | LO/RF=2-18 GHz IF=1-2 GHz | - | 8 | 10 | dB |
| Conversion Loss | LO/RF=2-18 GHz IF=DC-1 GHz | - | 7 | 9 | dB |
| Input IP3 | LO/RF=2-18 GHz LO drive level, L Diode Option=10-13 dBm | - | 13 | - | dBm |
| Input P1dB | LO/RF=2-18 GHz LO drive level, L Diode Option=10-13 dBm | - | 3 | - | dBm |
| LO-IF Isolation | LO/RF=2-18 GHz | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=2-18 GHz | 25 | 35 | - | dB |
| RF-IF Isolation | LO/RF=2-18 GHz | - | 25 | - | dB |
| IF Frequency Range | - | 0 | - | 2 | GHz |
| RF Frequency Range | - | 2 | - | 18 | GHz |
M1-0218LP
Double-Balanced Mixers

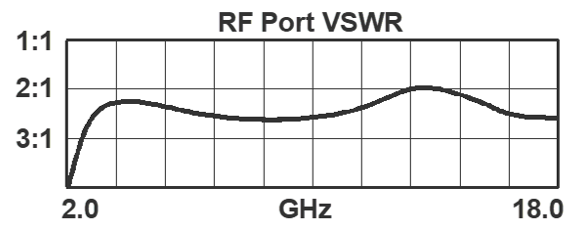

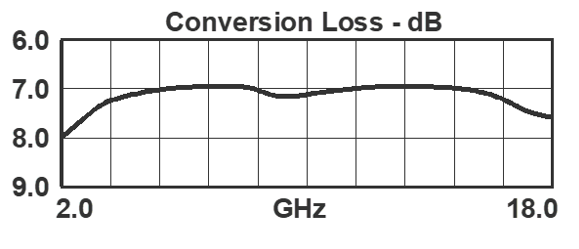

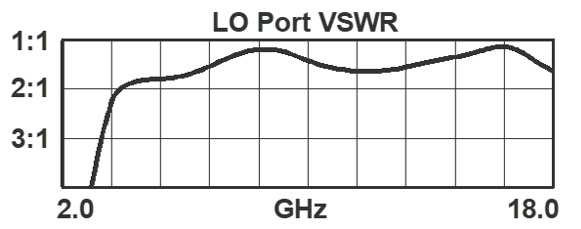

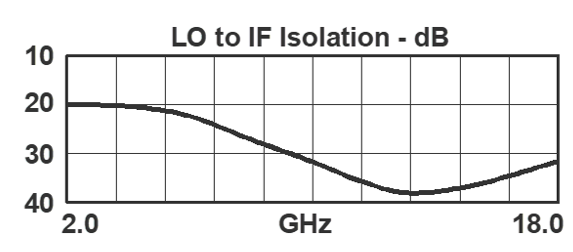

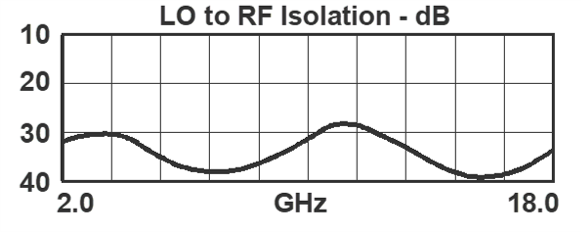

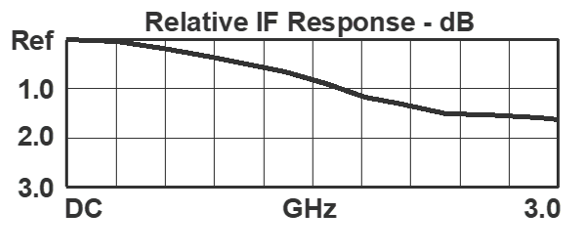

Typical Performance
M1-0218LP
Double-Balanced Mixers
