Device Overview

General Description

M1 double balanced mixers are hybrid assemblies that have been hand-tuned to feature low conversion loss and high isolations and a DC IF response. M1 mixers have generally been replaced with MM1 mixers with superior performance, repeatability, and availability. M1 mixers are still used in legacy systems and are suitable for laboratory use.

Photo of M1-0008LQP

Features

  • LO/RF .01 to 8.0 GHz
  • IF DC to 2.0 GHz
  • 7.5 dB Typical Conversion Loss
  • Ultra-Broadband RF, LO, and IF

Applications

N/A

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport ClassificationRecommended Replacement
M1-0008LQPDouble-Balanced MixersQPStandard

Non-RoHS

End of LifeEAR99T3-12LQP

Table Of Contents

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
IFIF SMAFThe IF port is DC coupled to the diodes. Blocking capacitor is optional.Equivalent circuit for the IF
LOLO SMAFThe LO port is DC coupled to ground and AC matched to 50 Ohms from 10 MHz to 8 GHz. Blocking capacitor is optional.Equivalent circuit for the LO
RFRF SMAFThe RF port is DC coupled to ground and AC matched to 50 Ohms from 10 MHz to 8 GHz. Blocking capacitor is optional.Equivalent circuit for the RF

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
IF DC Current 50mA
LO DC Current 1Amp
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF DC Current 1Amp
RF Power Handling (RF+LO), 100°C 20dBm
RF Power Handling (RF+LO), 25°C 23dBm

Package Information

ParameterDetailsRating
ESD< 250 VoltsHBM Class 0
WeightPackage name: QP15g
Dimensions-15.24 x 13.20 mm
ParameterMinNominalMaxUnit
LO Input Power 10-13-

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.

ParameterTest ConditionsMinTypMaxUnit
Conversion Loss LO/RF=.01-8 GHz
IF=DC-2 GHz
-7.511dB
Input P1dB LO/RF=.01-8 GHz
LO drive level, L Diode Option=10-13 dBm
-4-dBm
IF Frequency Range -0-2GHz
Input IP3 --15-dBm
LO-RF Isolation --40-dB
RF Frequency Range -0.01-8GHz

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

5

Typical Performance Plots

Low-End RF Conversion Loss (dB) graph for M1-0008LQP
Conversion Loss (dB) graph for M1-0008LQP
Relative IF Response (dB) graph for M1-0008LQP
Input IP3 (dBm) graph for M1-0008LQP
RF VSWR graph for M1-0008LQP
LO VSWR graph for M1-0008LQP
IF VSWR graph for M1-0008LQP
RF to IF Isolation (dB) graph for M1-0008LQP

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

6

LO to RF Isolation (dB) graph for M1-0008LQP
LO to IF Isolation (dB) graph for M1-0008LQP
LO Even Harmonic to RF Isolation (dB) graph for M1-0008LQP
LO Even Harmonic to IF Isolation (dB) graph for M1-0008LQP
LO Odd Harmonic to RF Isolation (dB) graph for M1-0008LQP
LO Odd Harmonic to IF Isolation (dB) graph for M1-0008LQP

Rev: - | Copyright © 2022 - 2026 Marki Microwave LLC.

7

Mechanical Data

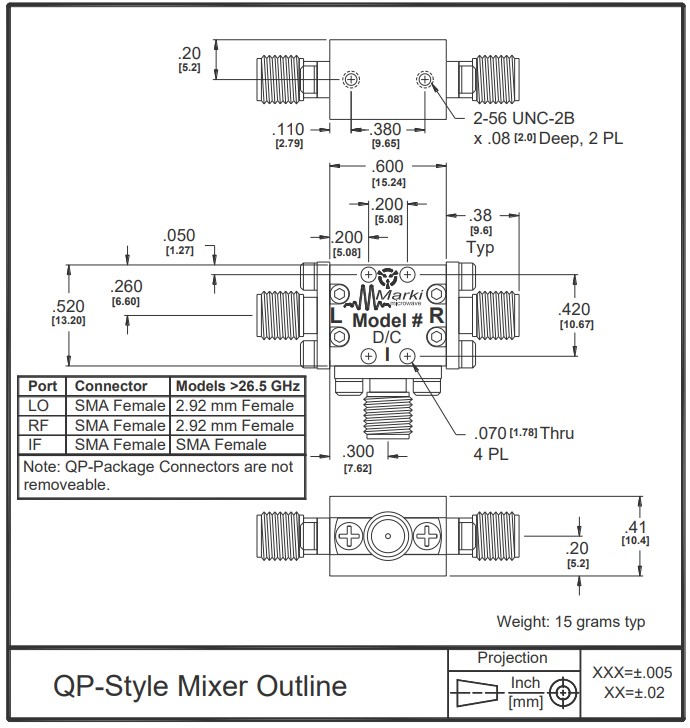

Outline Drawing

Download : Outline 3D Drawing Outline 3D STP

Outline Drawing
