Port Diagram

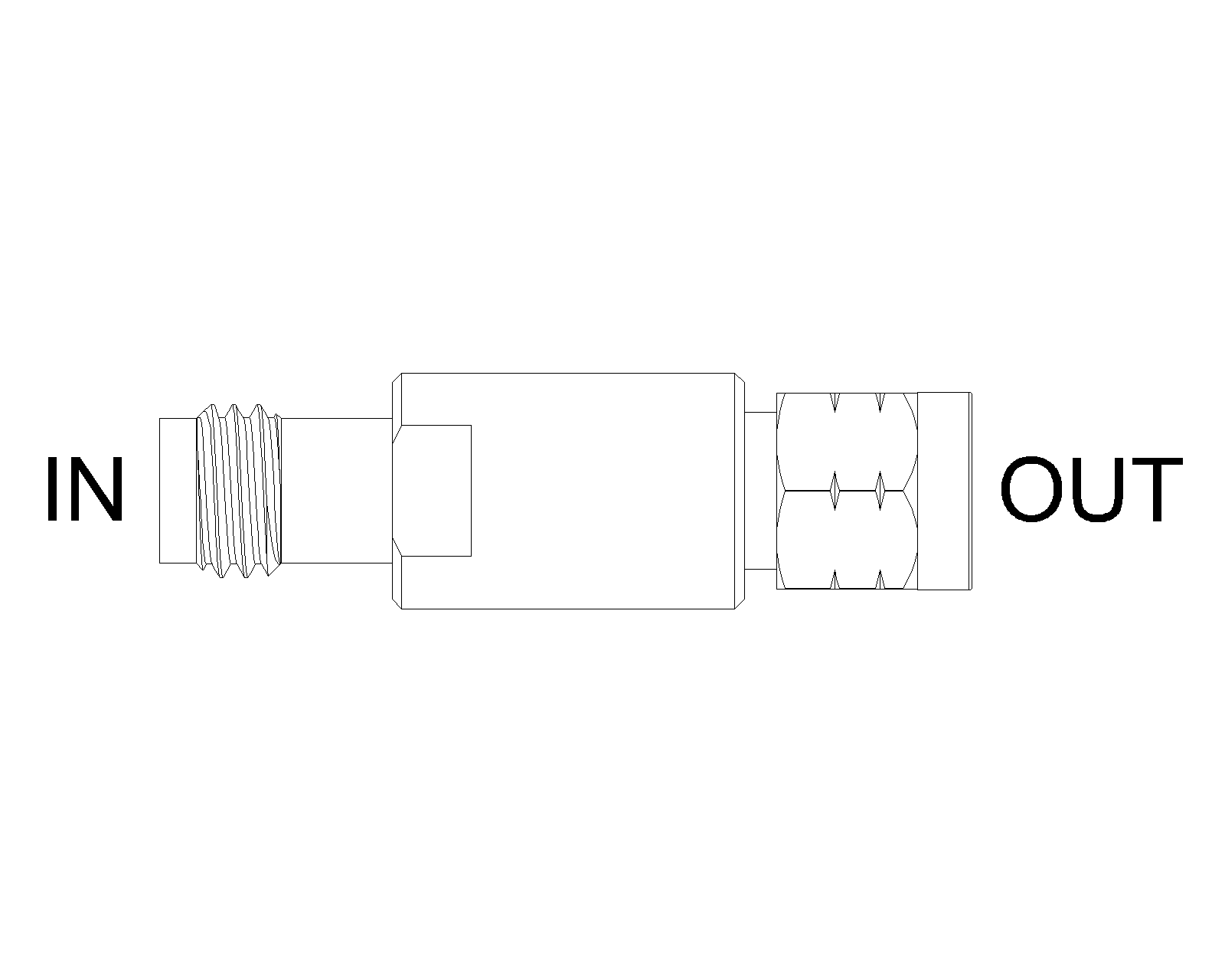

A top-down view of the HLM-67ABH's BH package outline drawing is shown below. The HLM-67ABH has the input and output ports given in Port Functions.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The HLM-67ABH is a wide DC-67 GHz bandwidth GaAs Schottky diode signal limiter featuring high +27 dBm IP3 and high 1 W power handling. It offers low 1.35 dB typical insertion loss and excellent 19 dB typical return loss from DC through V band and has a typical 1 dB compression point of +8 dBm. Its high power handling makes it ideal for protecting sensitive components and for applications requiring high linearity.
Features
- Insertion Loss, 1.2 dB @ 35 GHz Typical
- Power Handling, 1 W CW @ 2 GHz
- Flat Leakage, +7 to +14 dBm Typical
- P1dB, +8 dBm Typical
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| HLM-67ABH | DC - 67 GHz High Frequency Limiter | BH | Standard | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| HLM-67ABH | DC - 67 GHz High Frequency Limiter | BH | Standard | RoHS REACH | Released | EAR99 |
HLM-67ABH
DC - 67 GHz High Frequency Limiter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2026-02-24 | Initial Release |
HLM-67ABH
DC - 67 GHz High Frequency Limiter
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | BH package ground provided through metal housing and outer coax conductor |  |
| IN | Input | 1.85F | IN is the RF input port and is diode connected for the BH package. |  |
| OUT | Output | 1.85M | OUT is the RF output port and is diode connected for the BH package. | |
HLM-67ABH
DC - 67 GHz High Frequency Limiter
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | dB |
| RF Power Handling , Average | 1 | W |
RF Power Handling represents an instantaneous, catastrophic limit and it isn’t derated for frequency, temperature, pulse conditions, or unit to unit variation.
Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Weight | Package name: BH | 10g |
| Dimensions | - | 32.8 x 9.5 mm |
HLM-67ABH
DC - 67 GHz High Frequency Limiter
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH-package limiter unless otherwise specified.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 0 | 67 | - | 1.35 | - | dB |
| Return Loss | - | 0 | 67 | - | 19 | - | dB |
| Flat Leakage | - | 10 | 10 | - | 14 | - | dBm |
| Flat Leakage | - | 20 | 20 | - | 10.5 | - | dBm |
| Flat Leakage | - | 30 | 30 | - | 9.5 | - | dBm |
| Flat Leakage | - | 40 | 40 | - | 8 | - | dBm |
| Flat Leakage | - | 50 | 50 | - | 7 | - | dBm |
| Input IP3 | -5dBm Tone Powers at 1MHz Spacing | 0 | 30 | - | 27 | - | dBm |
| Input IP3 | -5dBm Tone Powers at 1MHz Spacing | 30 | 67 | - | 20 | - | dBm |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | - | 0 | 67 | - | 1.35 | - | dB |
| Return Loss | - | 0 | 67 | - | 19 | - | dB |
| Flat Leakage | - | 10 | 10 | - | 14 | - | dBm |
| Flat Leakage | - | 20 | 20 | - | 10.5 | - | dBm |
| Flat Leakage | - | 30 | 30 | - | 9.5 | - | dBm |
| Flat Leakage | - | 40 | 40 | - | 8 | - | dBm |
| Flat Leakage | - | 50 | 50 | - | 7 | - | dBm |
| Input IP3 | -5dBm Tone Powers at 1MHz Spacing | 0 | 30 | - | 27 | - | dBm |
| Input IP3 | -5dBm Tone Powers at 1MHz Spacing | 30 | 67 | - | 20 | - | dBm |
HLM-67ABH
DC - 67 GHz High Frequency Limiter

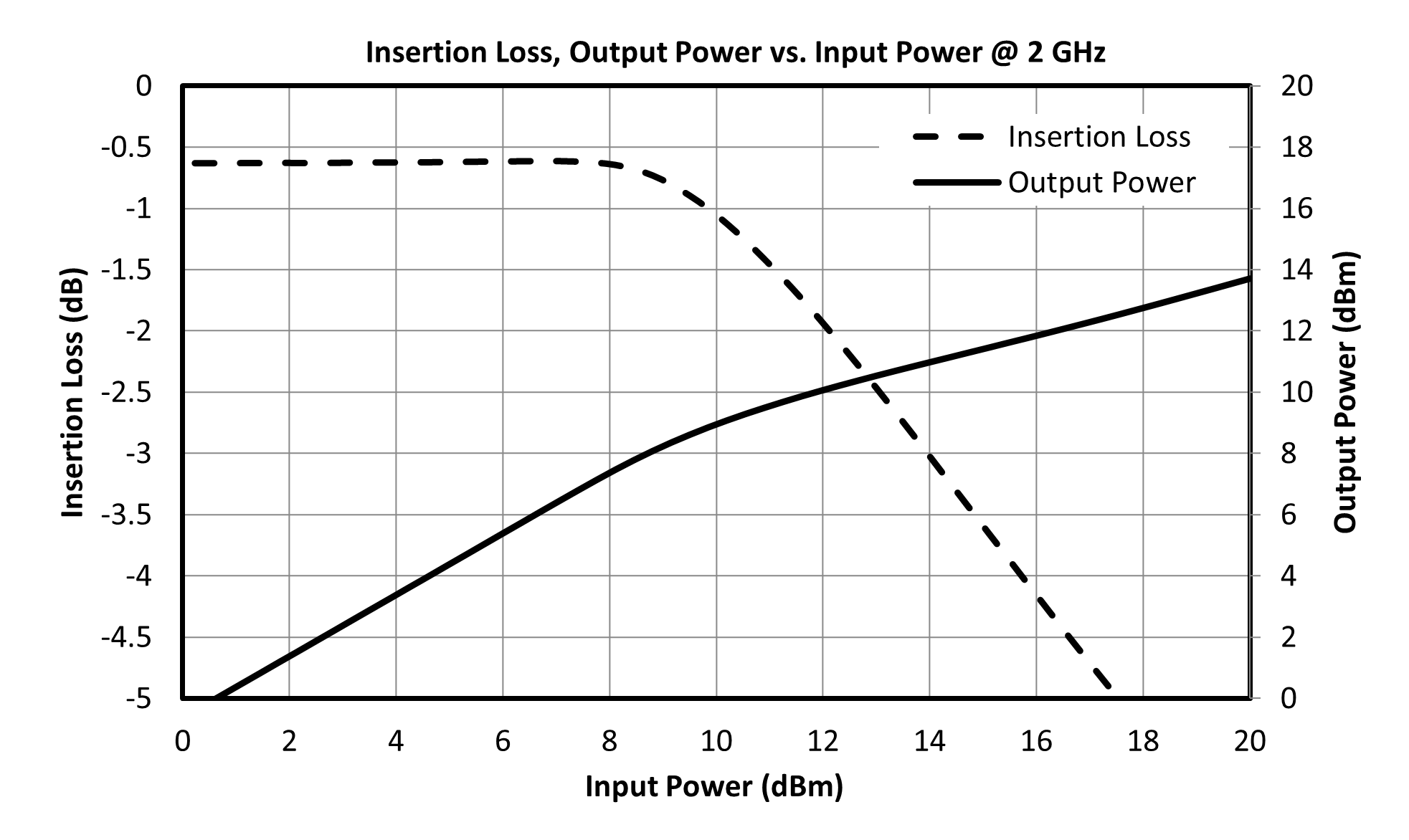

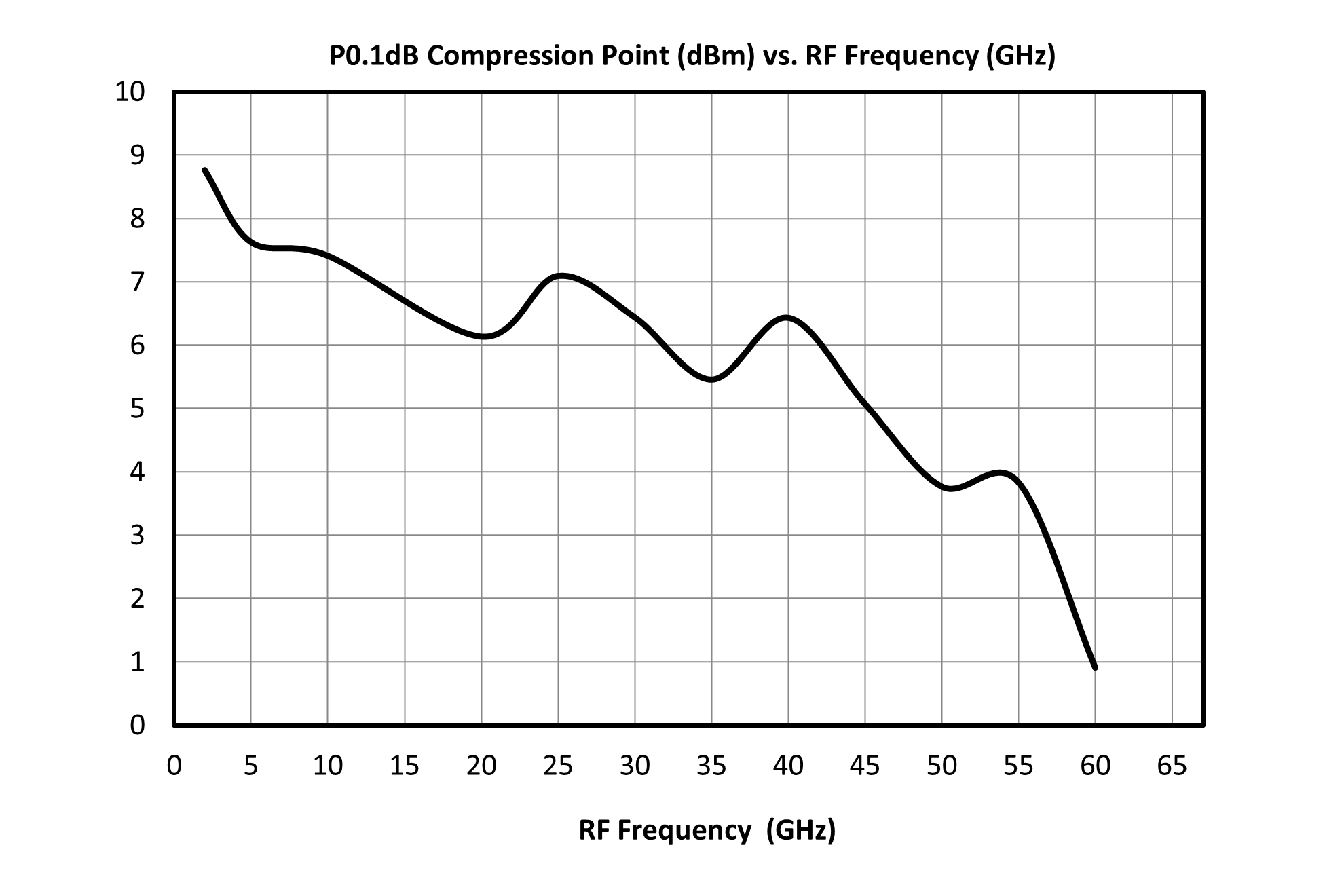

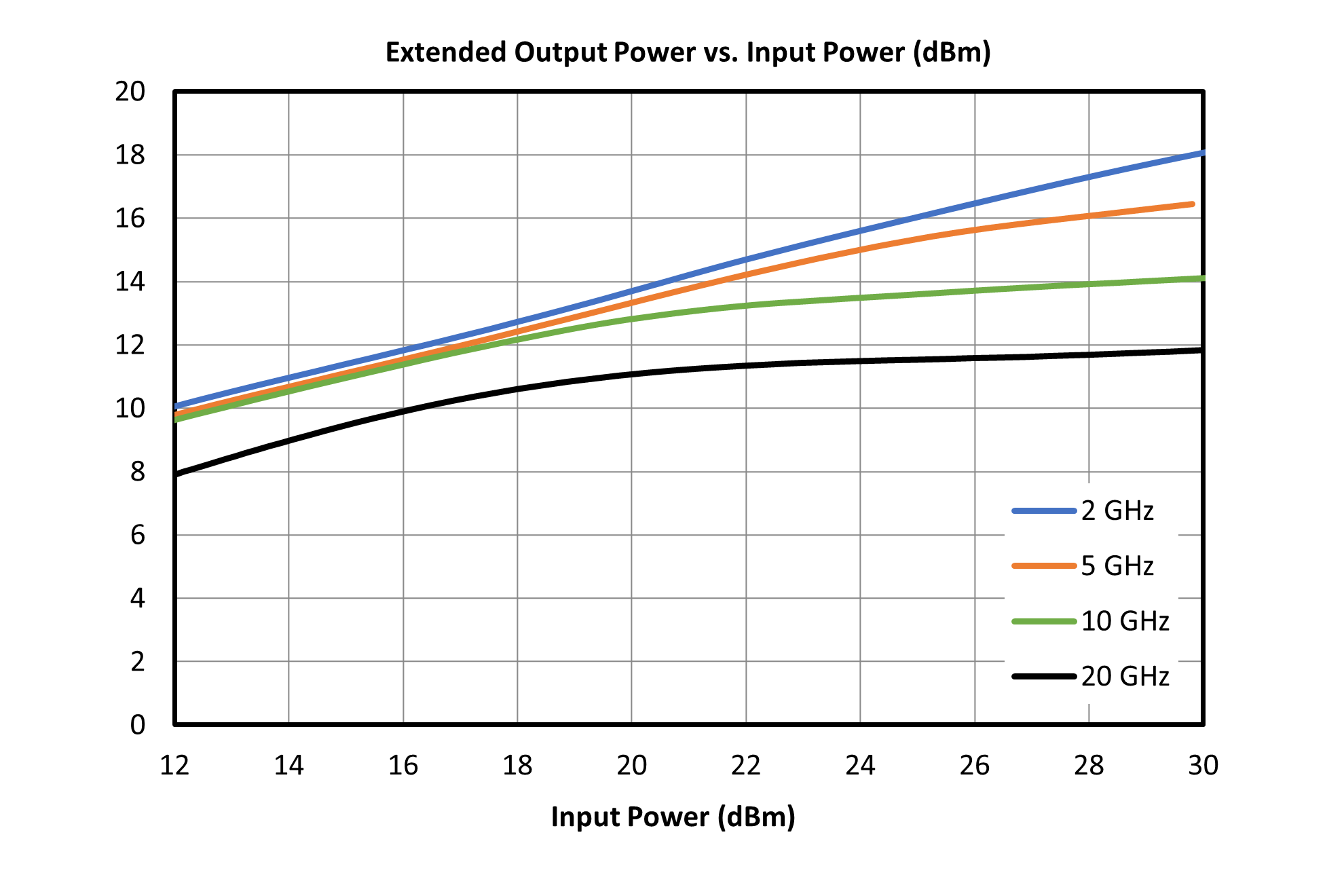

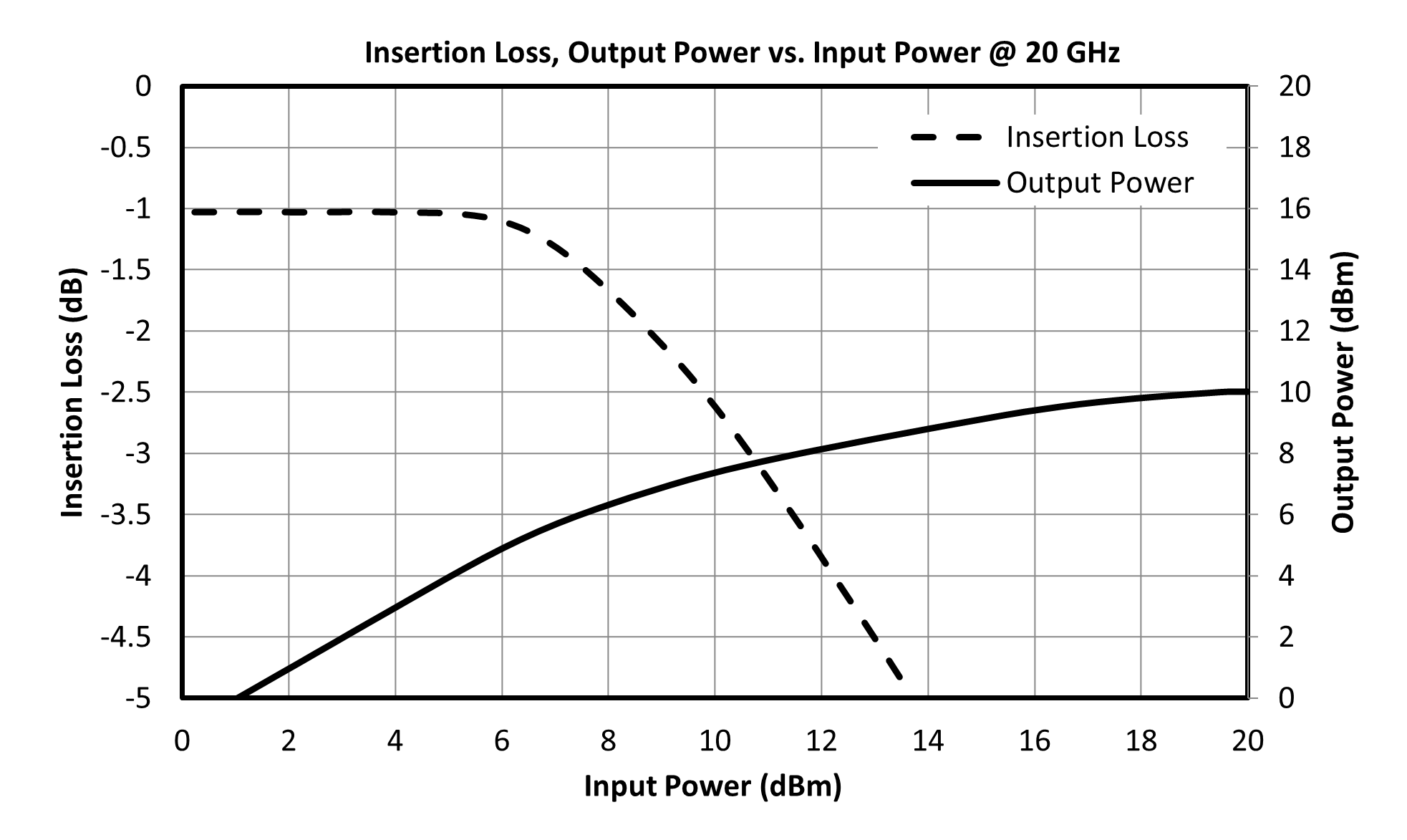

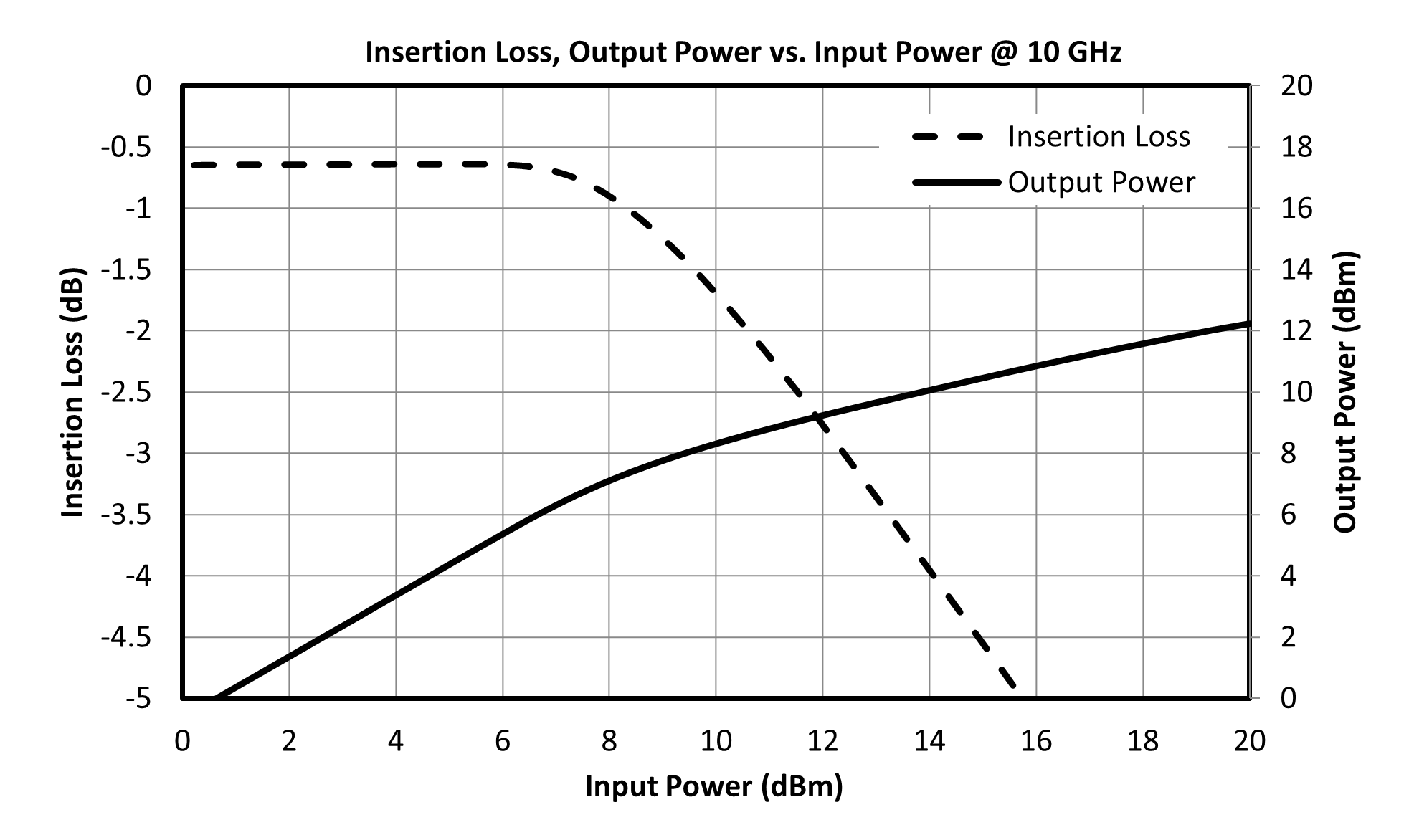

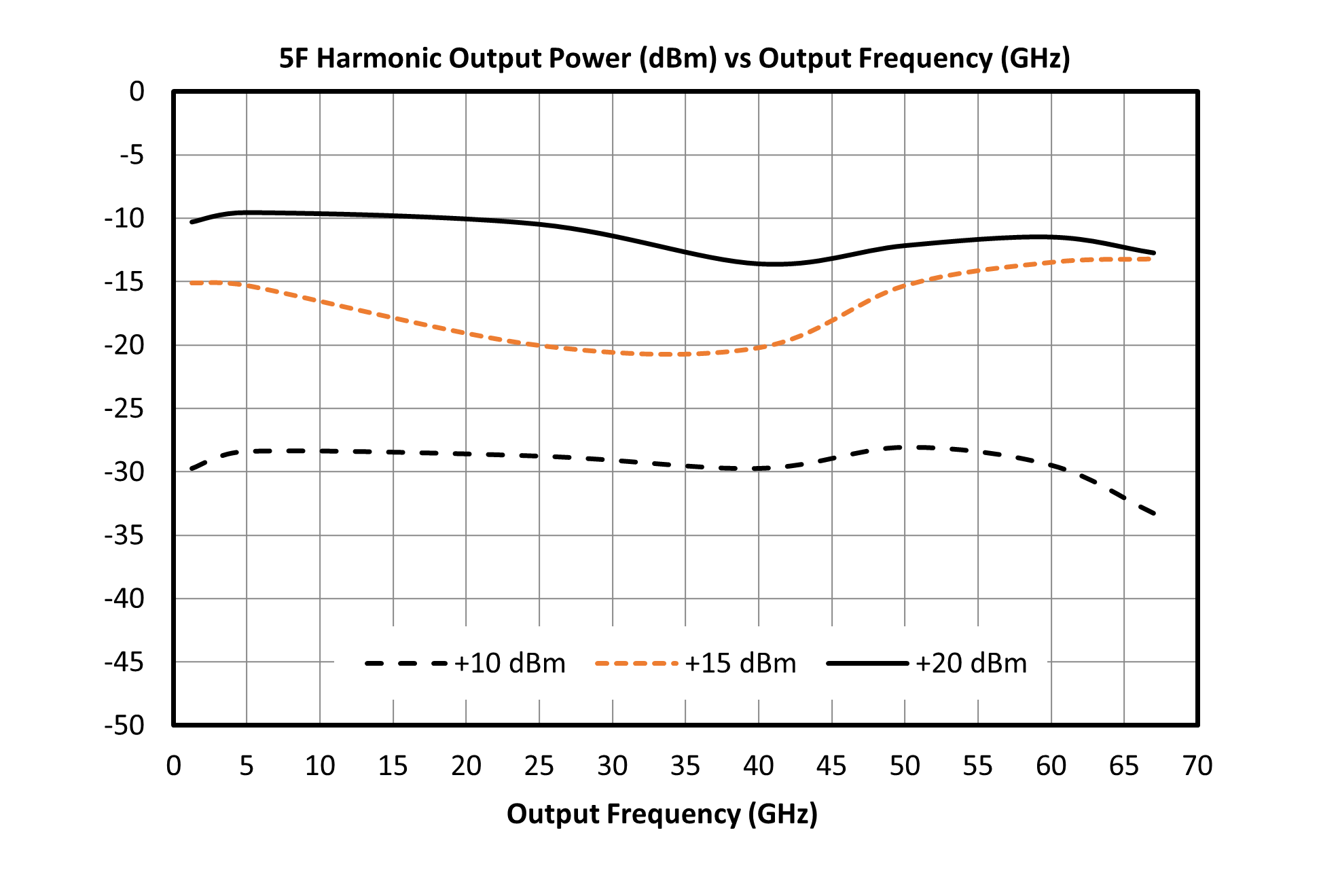

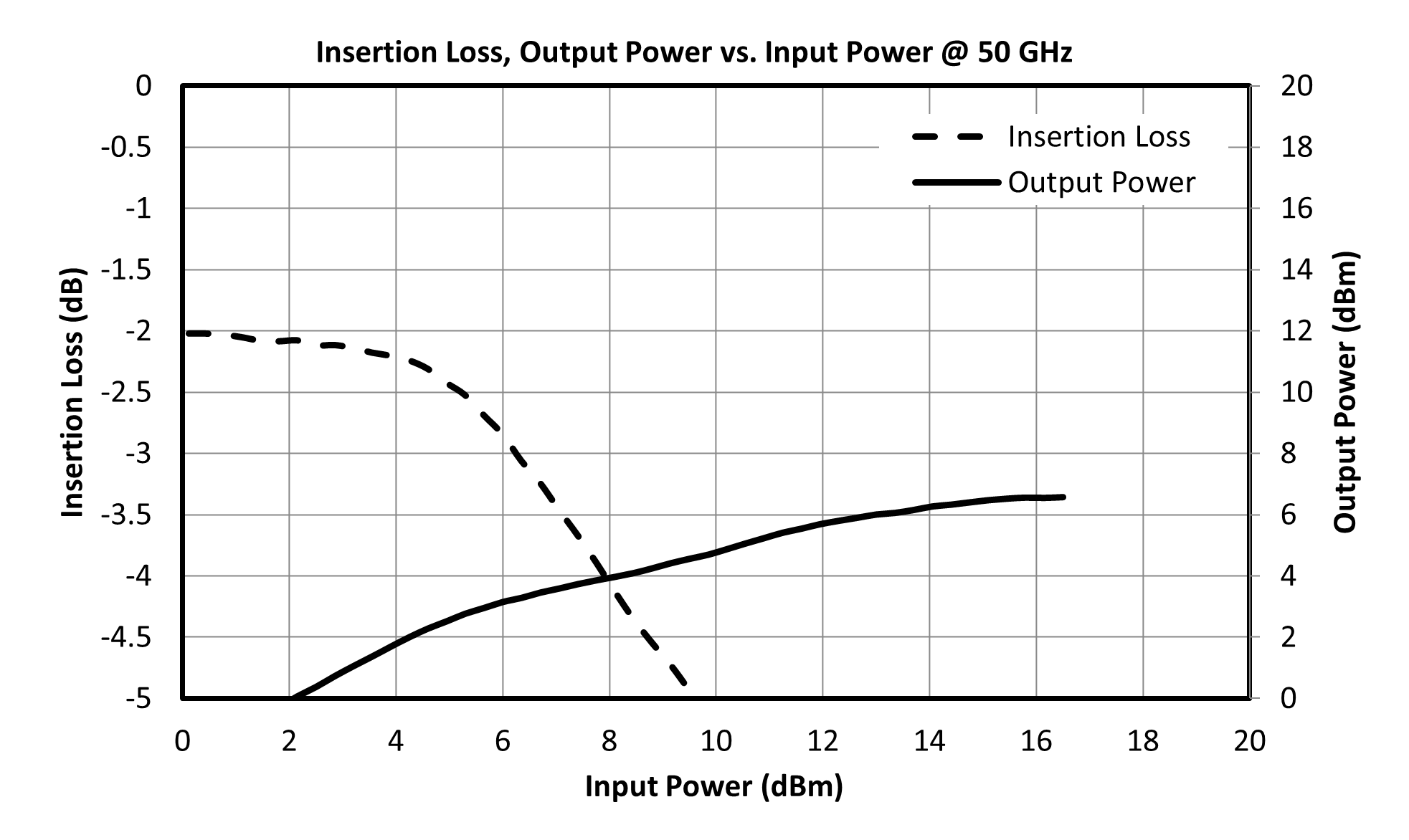

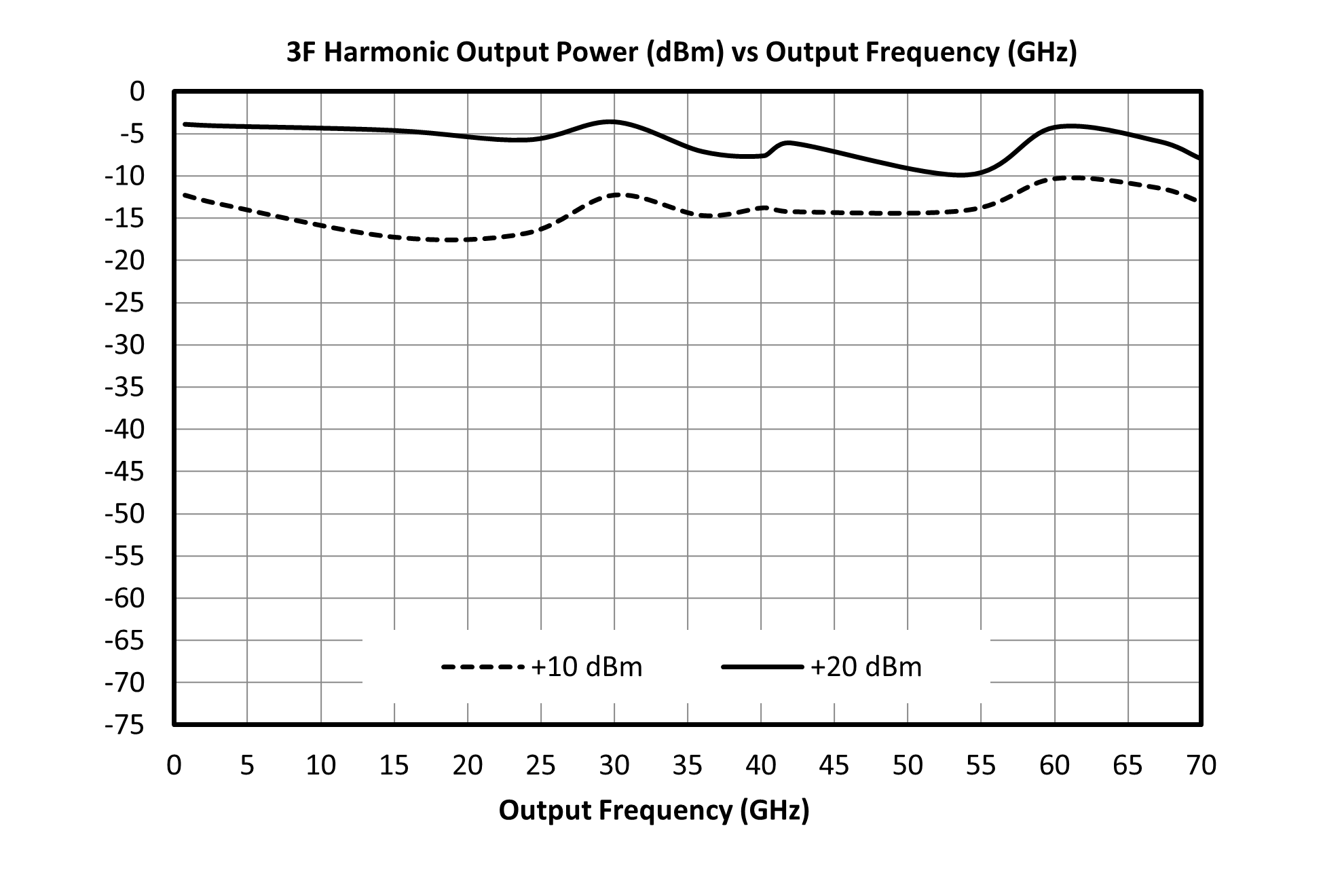

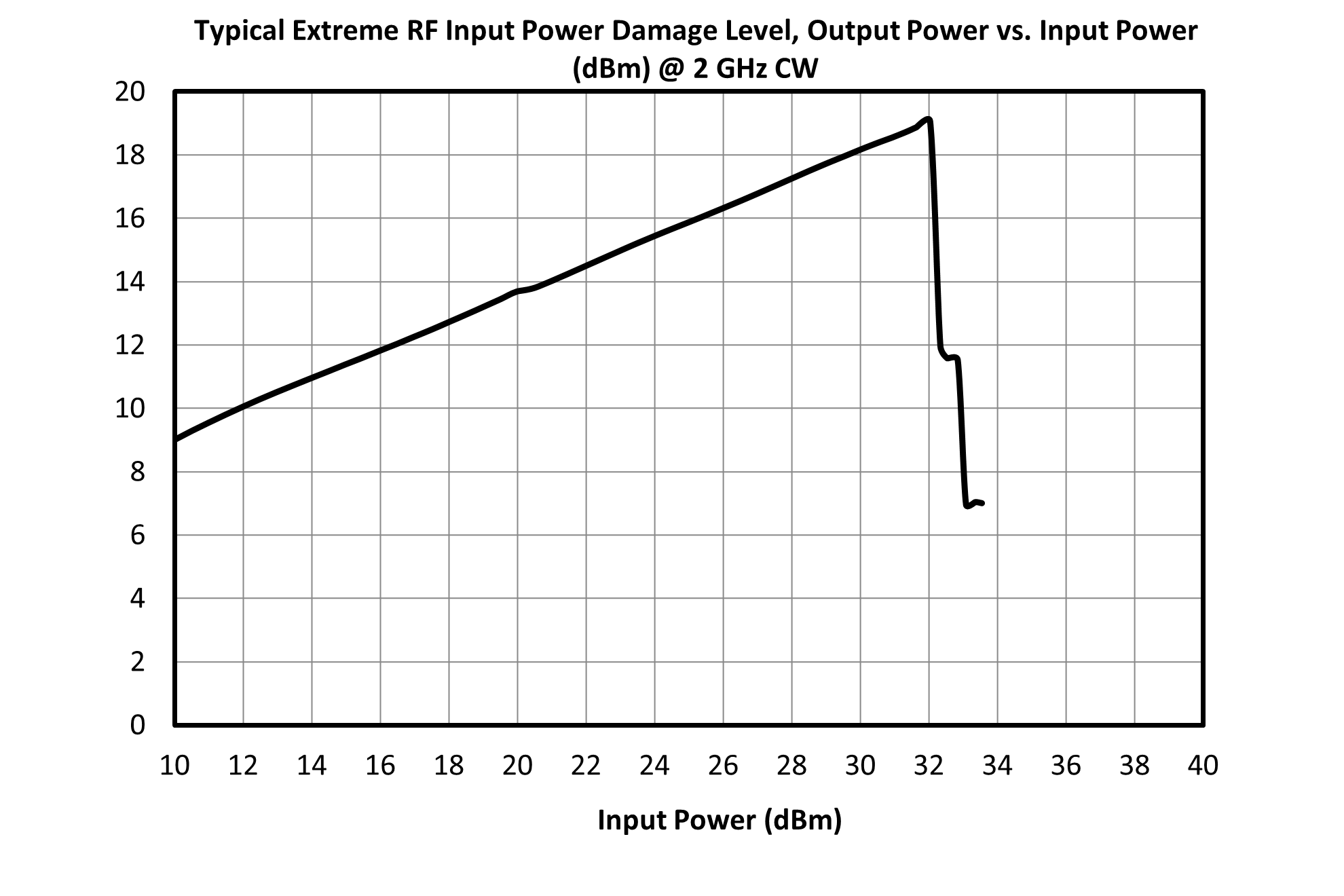

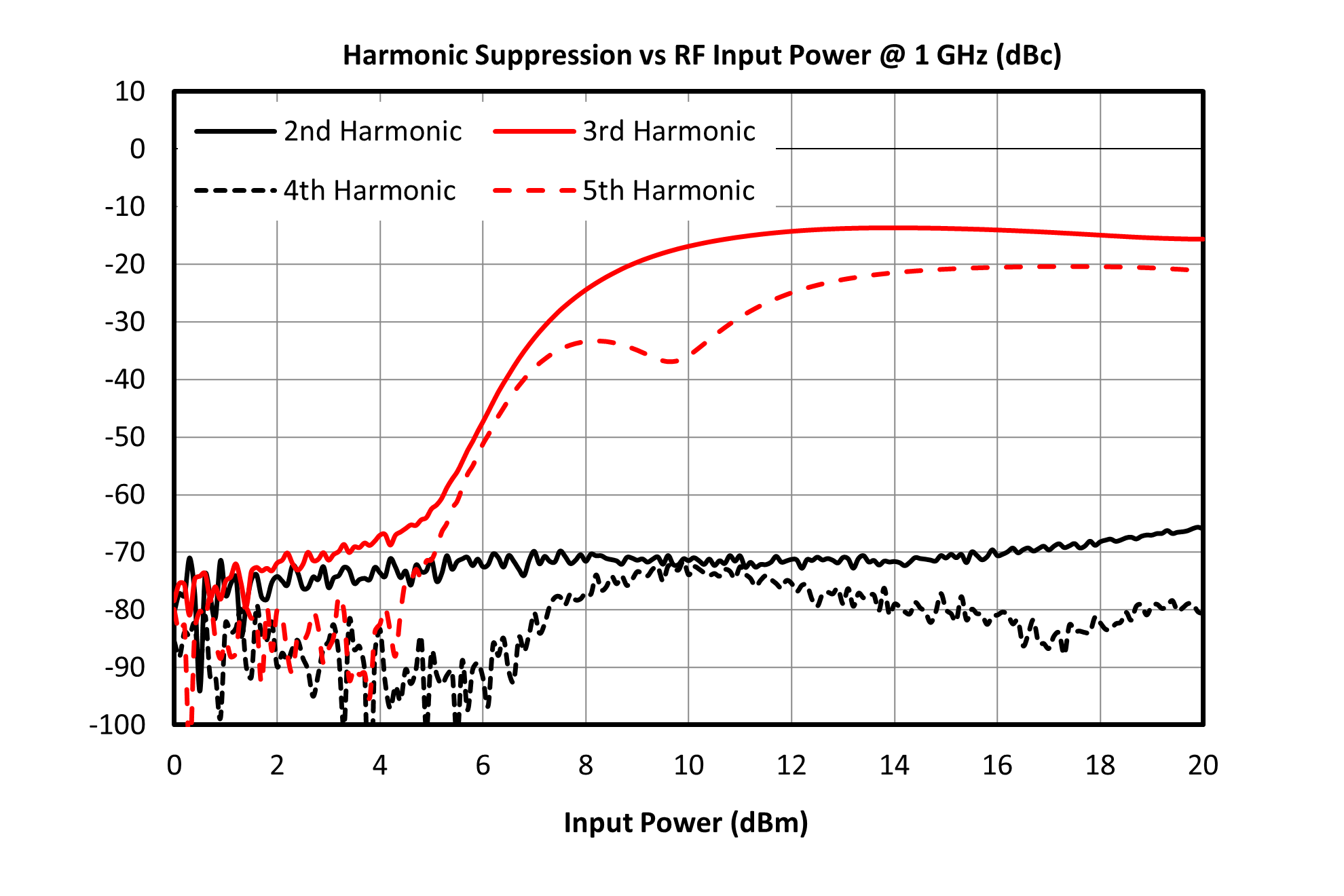

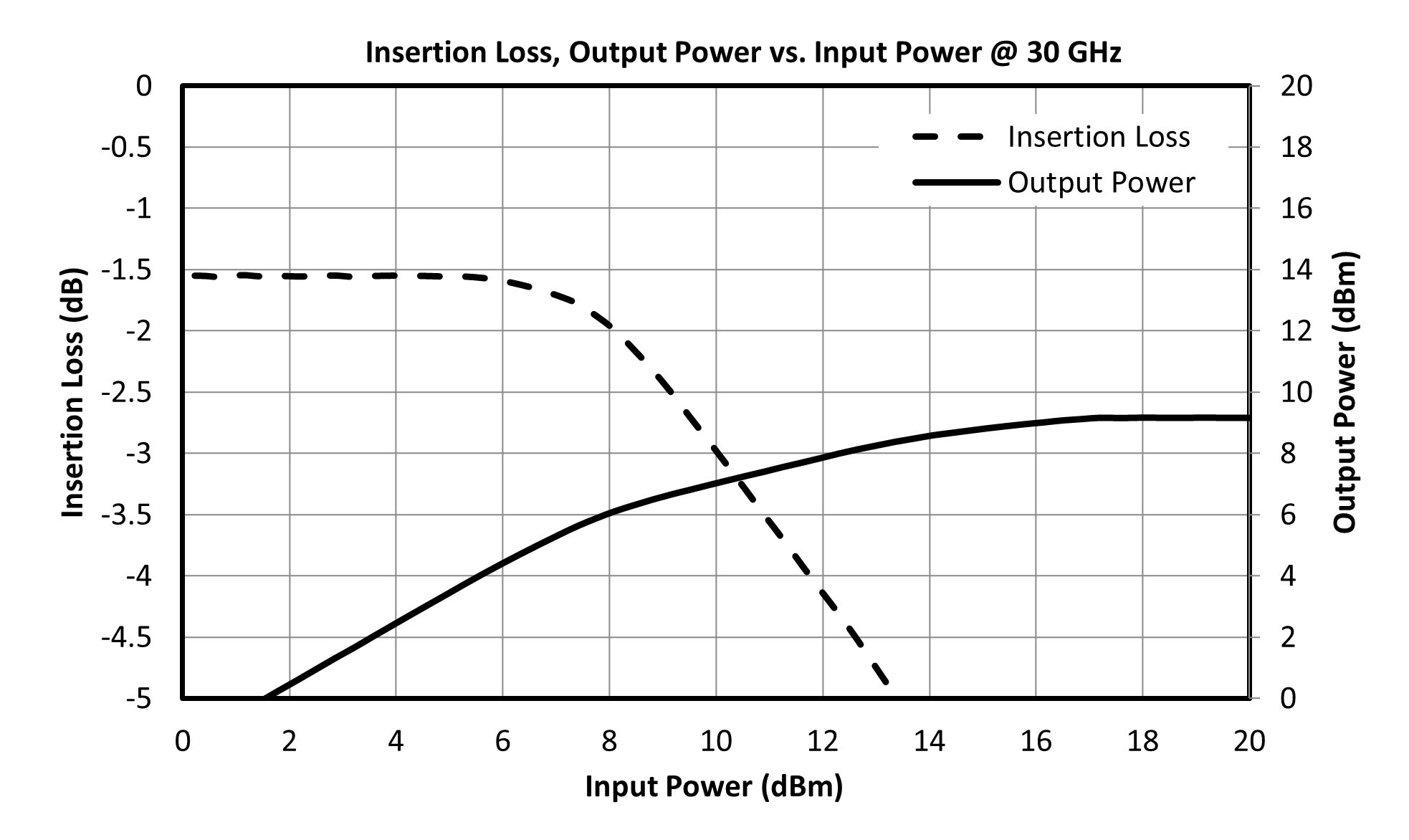

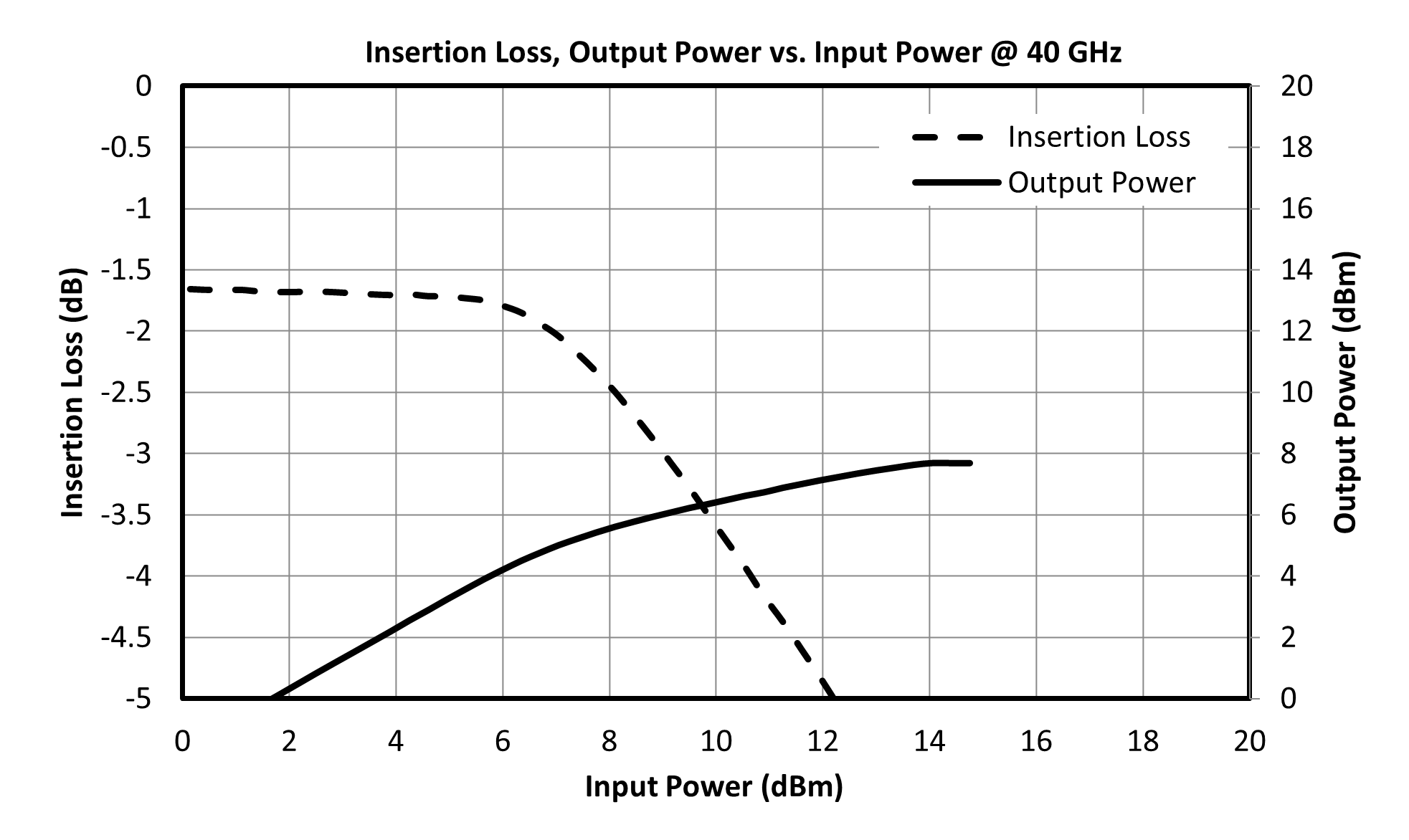

Typical Performance Plots
HLM-67ABH
DC - 67 GHz High Frequency Limiter
HLM-67ABH
DC - 67 GHz High Frequency Limiter
HLM-67ABH
DC - 67 GHz High Frequency Limiter
