The HLM-40ABH is a wide bandwidth GaAs Schottky diode signal limiter featuring high IP3 and medium power handling. It offers low insertion loss and low return loss from DC through Ka band and has a typical 1dB compression point of 9dBm. Its medium power handling makes it ideal for protecting sensitive components and for applications requiring high linearity.

Photo of HLM-40ABH

Features

  • DC to 40 GHz limiter
  • 2W CW Power Handling @ 2 GHz
  • Bullet Housing

Applications

  • RF Transceivers
  • Test and Measurement Equipment
  • SATCOM

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
HLM-40ABHHigh Power 40GHz LimiterBHStandard

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2024-11-14Initial Release

Rev: - | Copyright © 2024 Marki Microwave LLC.

2

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for HLM-40ABH

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
GNDGround -BH package ground is provided through metal housing and outer coax conductor.Equivalent circuit for the Ground
INInput 2.92FThe input port is diode connected for the BH package.Equivalent circuit for the Input
OUTOutput 2.92MThe output port is diode connected for the BH package.Equivalent circuit for the Output

Rev: - | Copyright © 2024 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
Maximum Operating Temperature 100°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature -55°C
Minimum Storage Temperature -65°C
RF Power Handling , Average 12W

RF Power Handling represents an instantaneous, catastrophic limit and it isn’t derated for frequency, temperature, pulse conditions, or unit to unit variation

[1] CW @ 10 GHz, 25°C

Package Information

ParameterDetailsRating
WeightPackage name: BH9.2g
Dimensions-30.1 x 9.5 mm

Rev: - | Copyright © 2024 Marki Microwave LLC.

4

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the connectorized BH-package limiter unless otherwise specified.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Insertion Loss -0 40-0.7-dB
Return Loss -0 40-22-dB
Flat Leakage 2 GHz CW
- --18-dBm
Flat Leakage 6 GHz CW
- --15-dBm
Flat Leakage 12 GHz CW
- --13-dBm
Flat Leakage 18 GHz CW
- --12-dBm
Flat Leakage 20 GHz CW
- --11-dBm
Flat Leakage 30 GHz CW
- --9-dBm
Flat Leakage 40 GHz CW
- --8-dBm
Input IP3 -5dBm Tone Powers at 1MHz Spacing
0 20-35-dBm
Input IP3 -5dBm Tone Powers at 1MHz Spacing
20 40-29-dBm

Rev: - | Copyright © 2024 Marki Microwave LLC.

5

Typical Performance Plots

Flat Leakage vs Input Power 2-18GHz graph for HLM-40ABH
Flat Leakage vs Input Power, 2-18GHz Zoom graph for HLM-40ABH

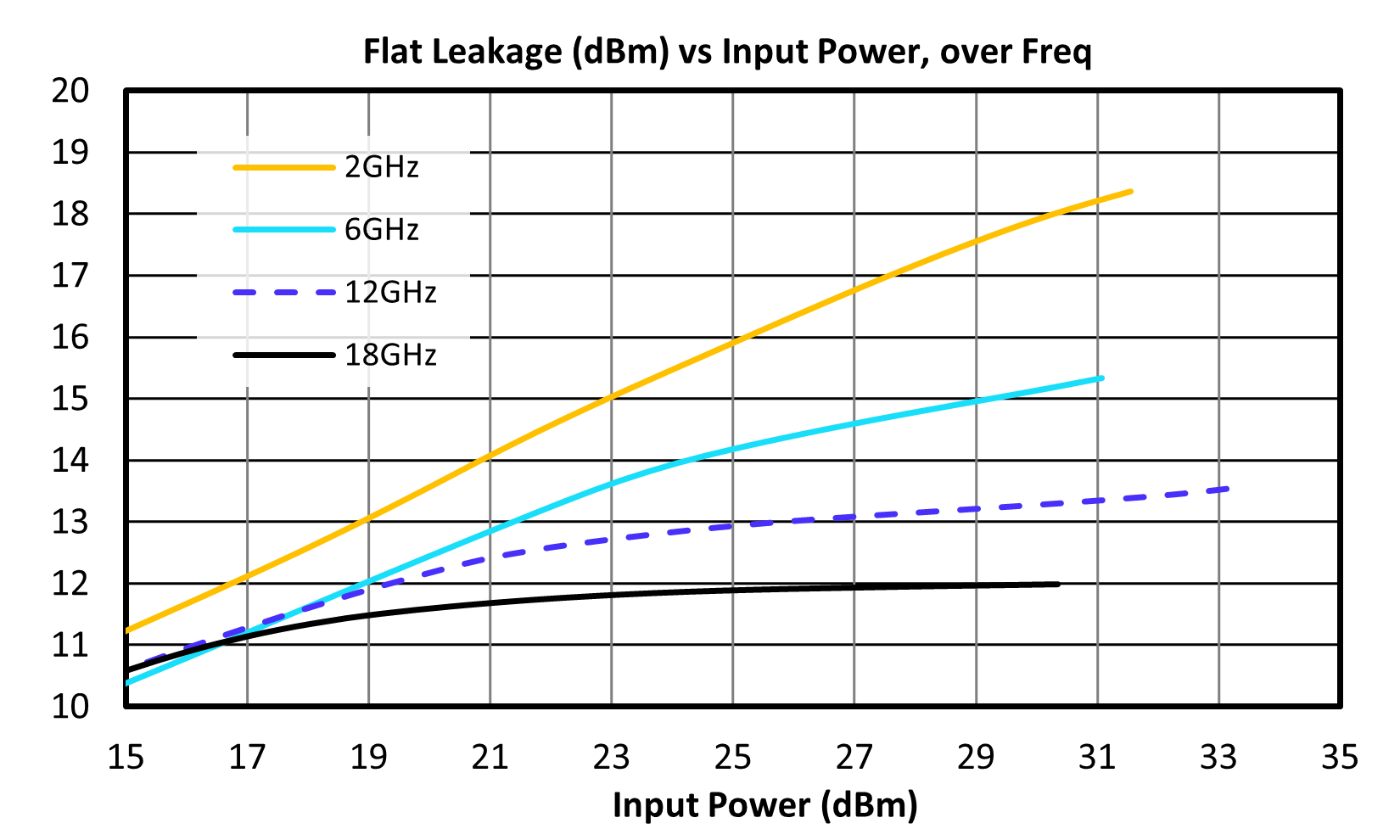

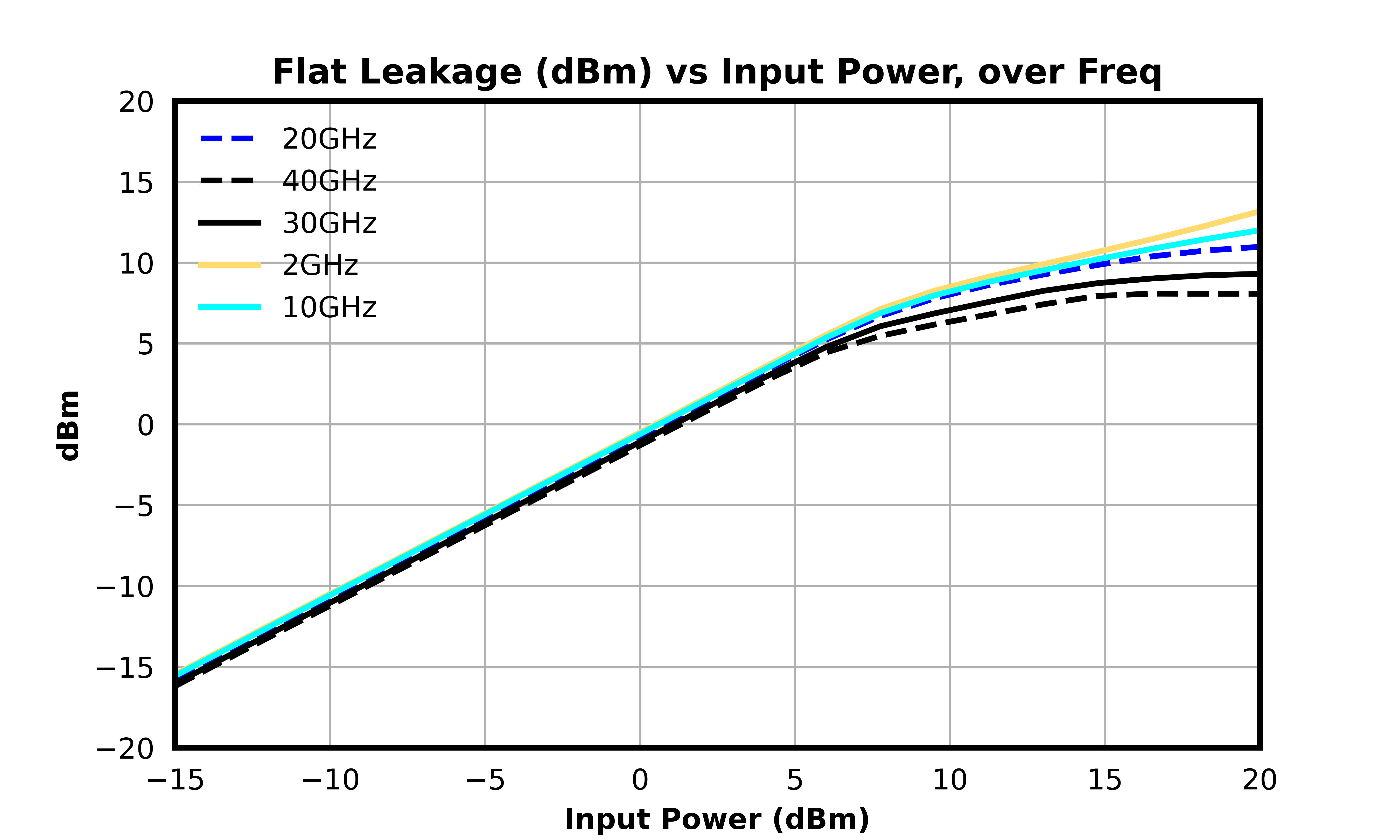

Flat Leakage (dBm) vs Input Power, over Freq graph for HLM-40ABH

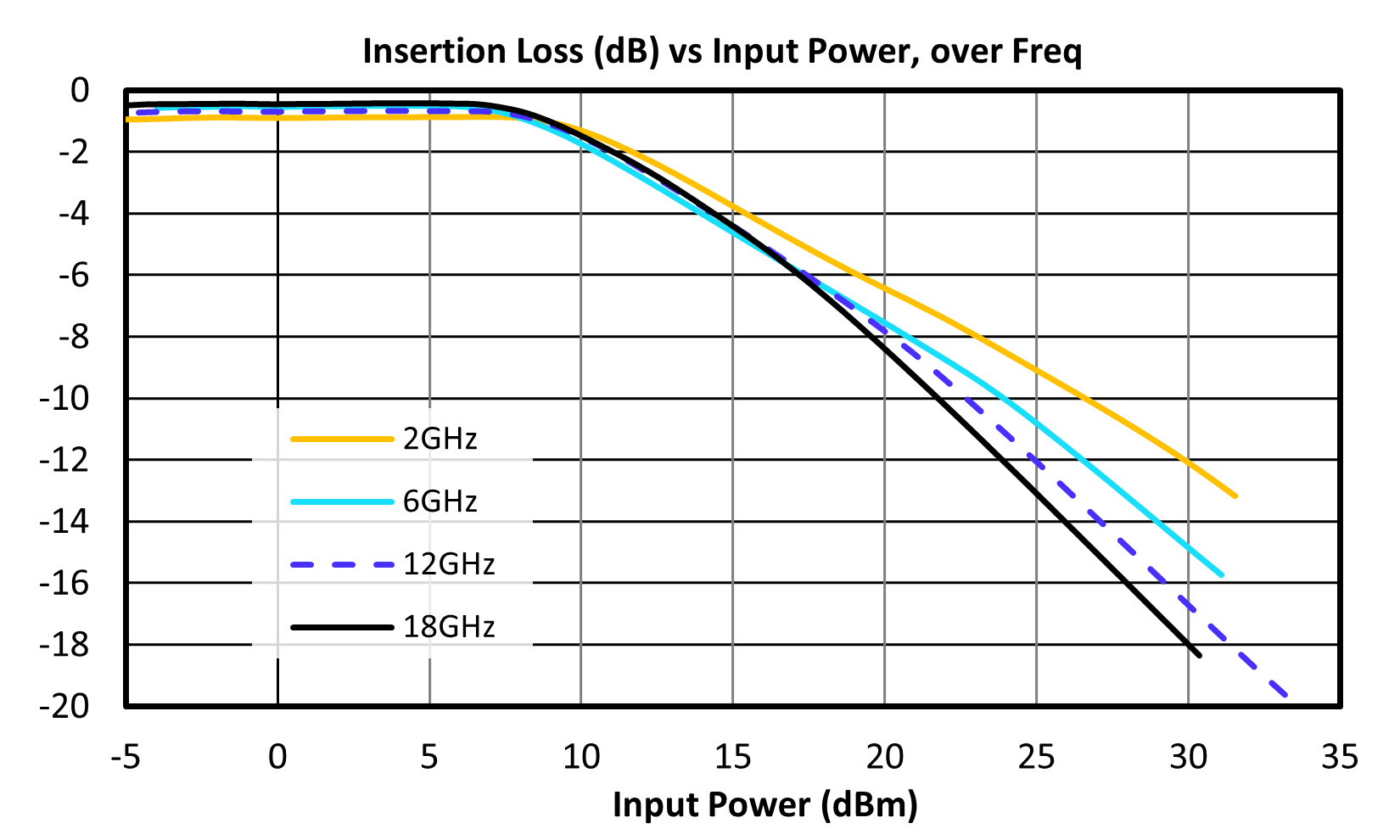

Insertion Loss vs Input Power, 2-18GHz graph for HLM-40ABH

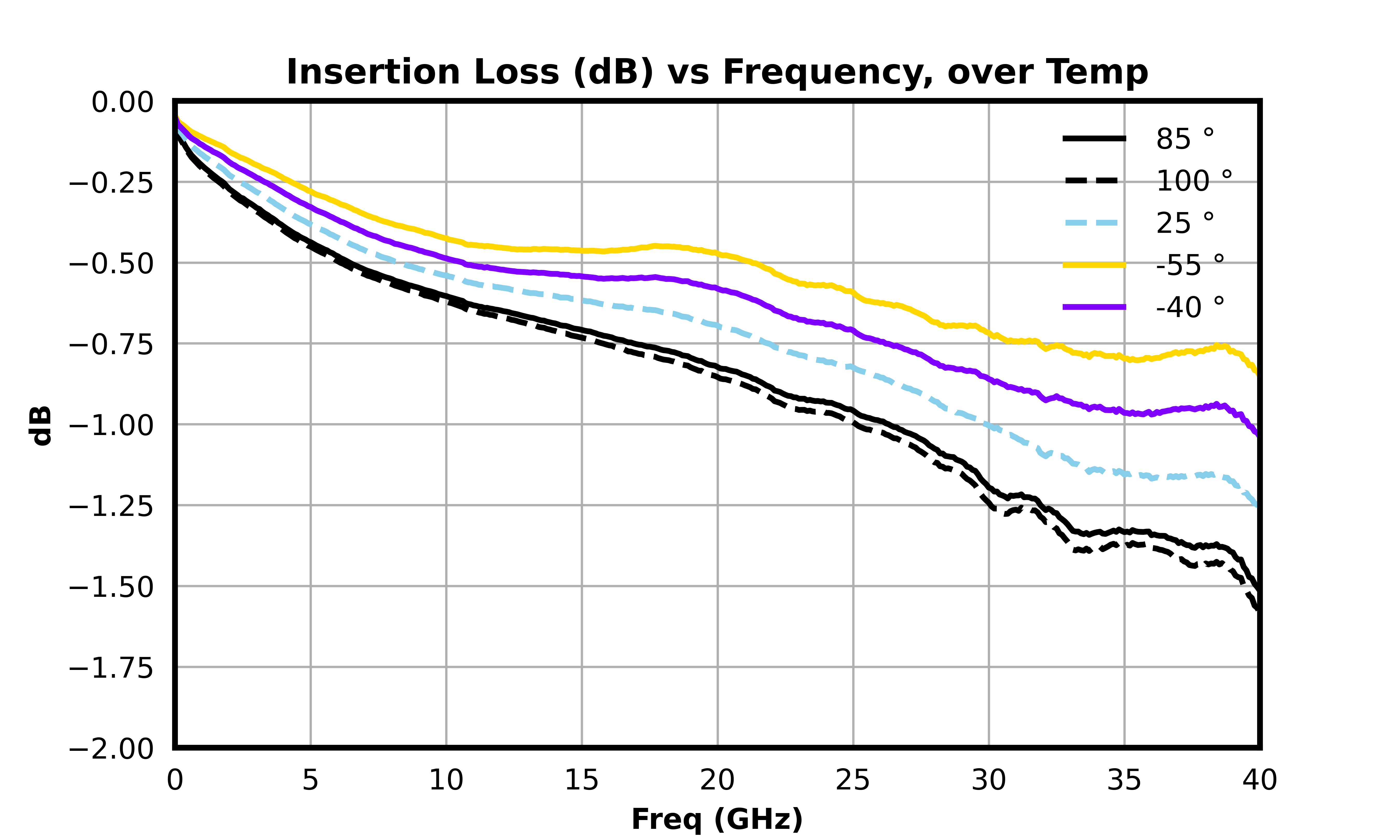

Insertion Loss (dB) vs Frequency, over Temp graph for HLM-40ABH

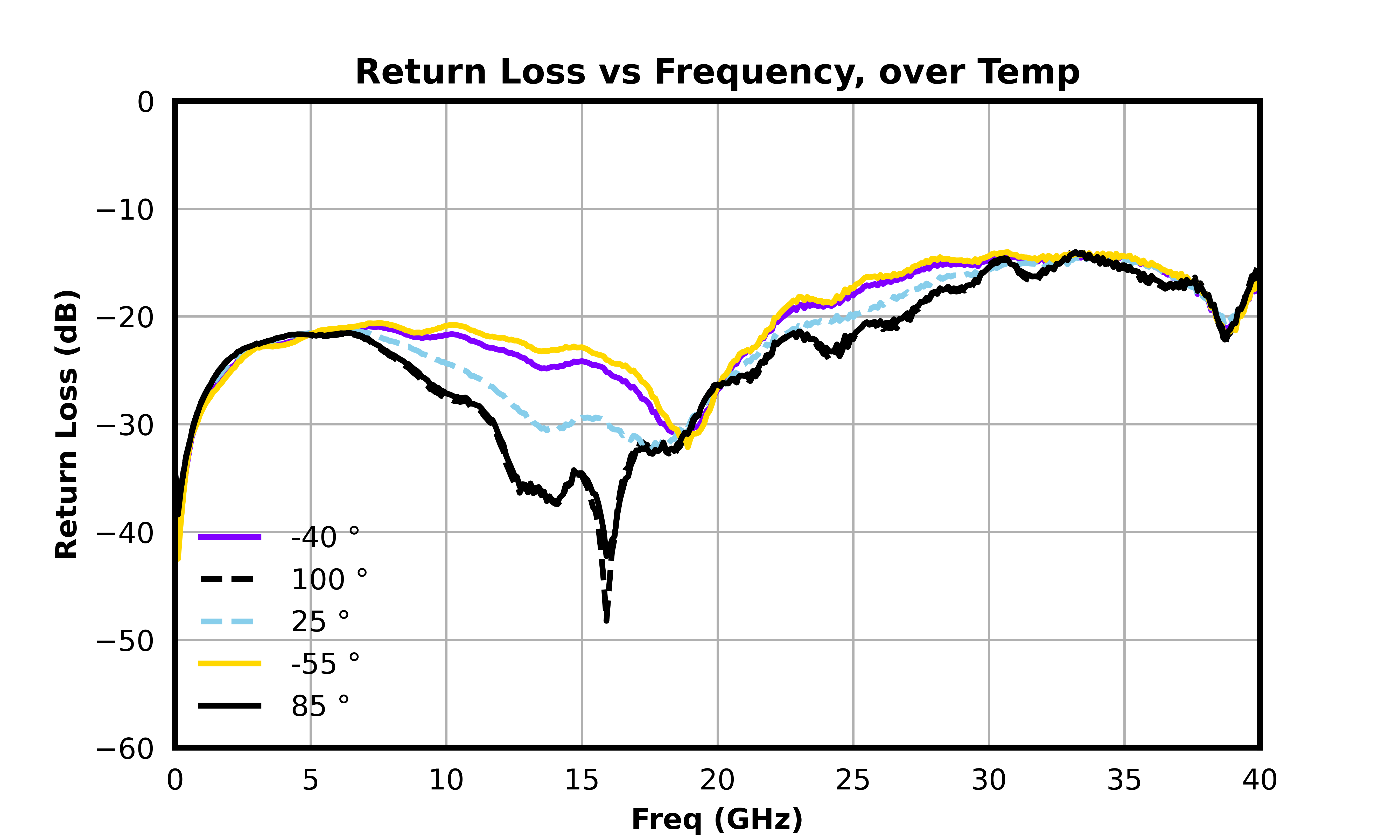

Return Loss vs Frequency, over Temp graph for HLM-40ABH

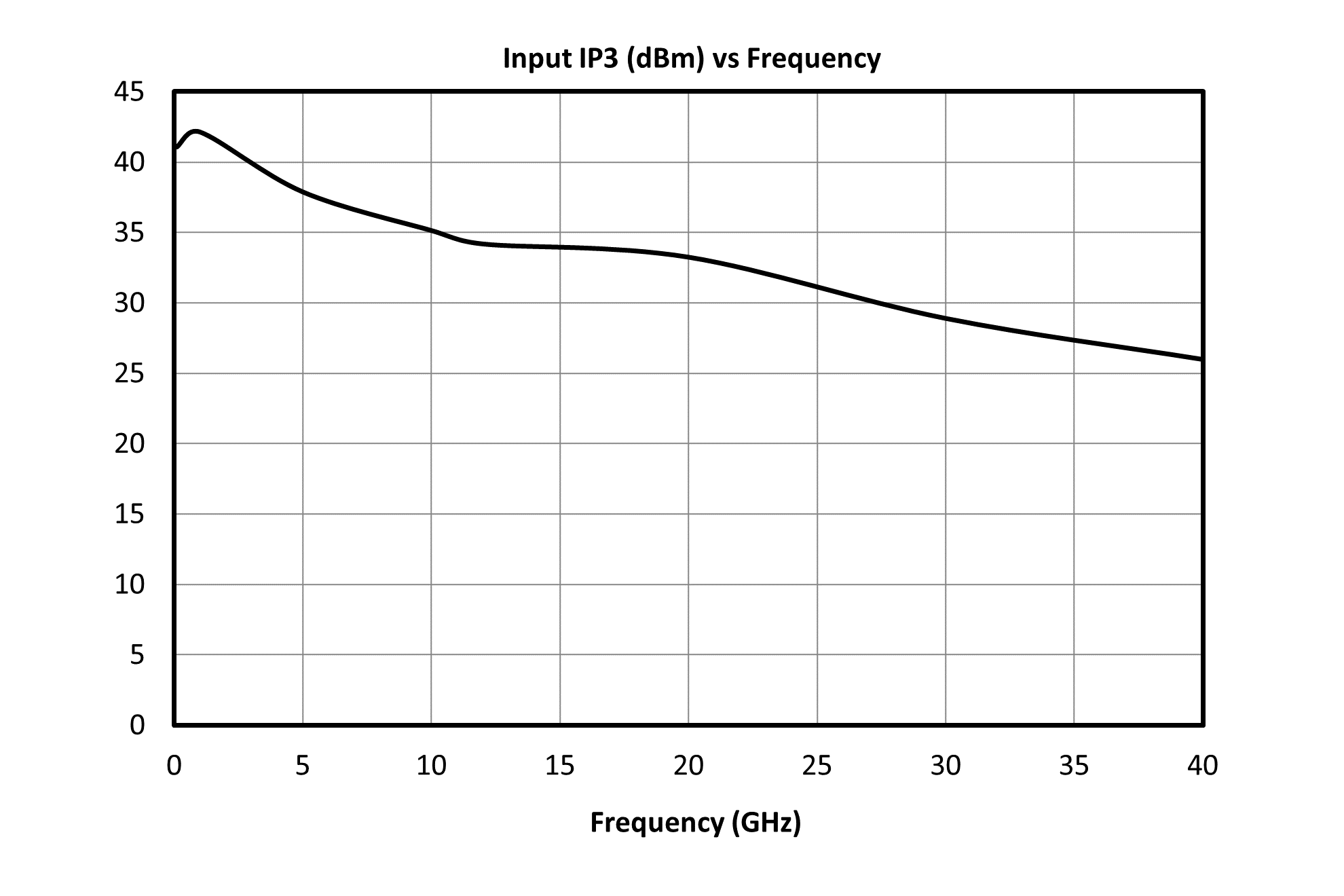

Input IP3 vs Frequency graph for HLM-40ABH

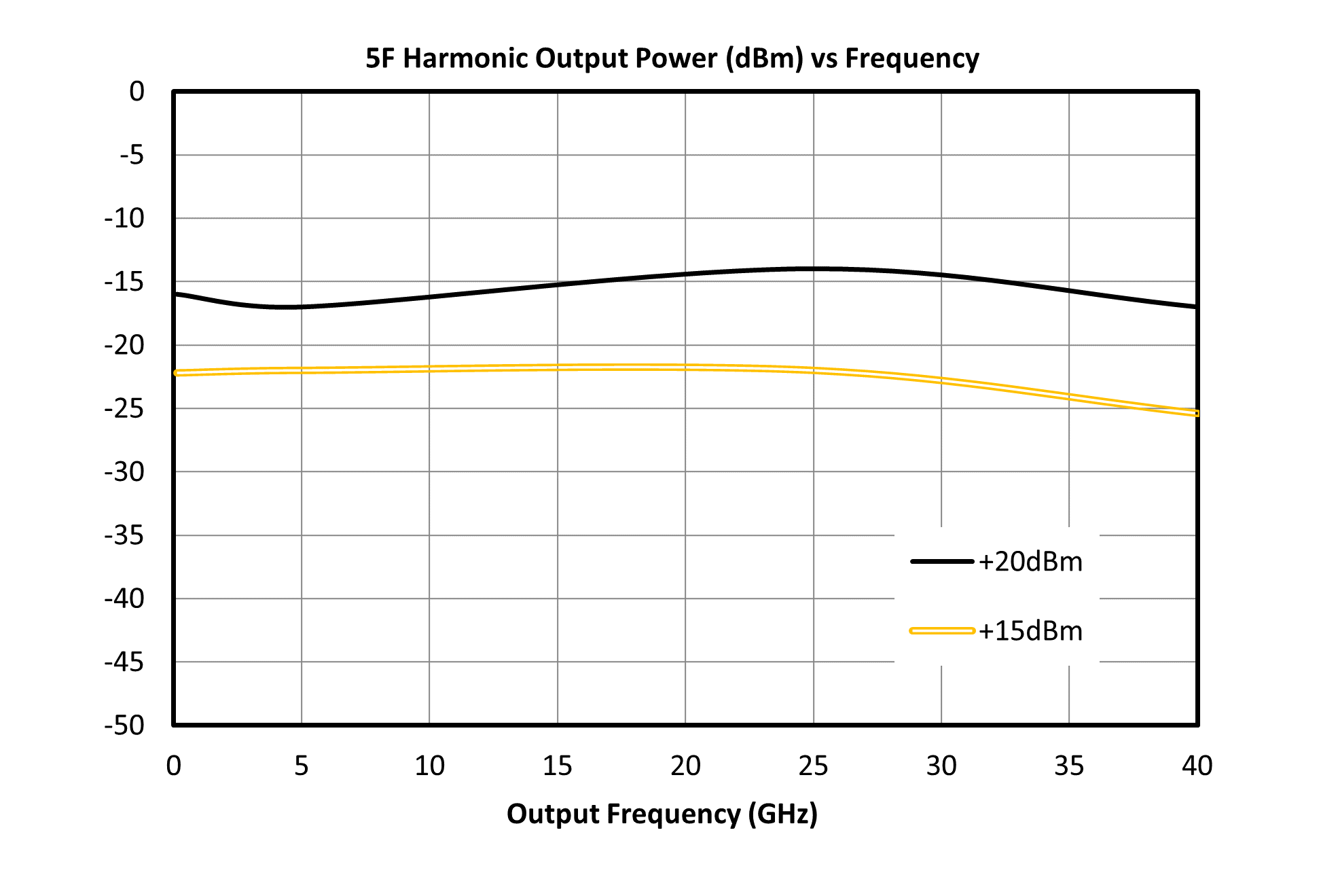

5th Harmonic Suppression vs Frequency graph for HLM-40ABH

Rev: - | Copyright © 2024 Marki Microwave LLC.

6

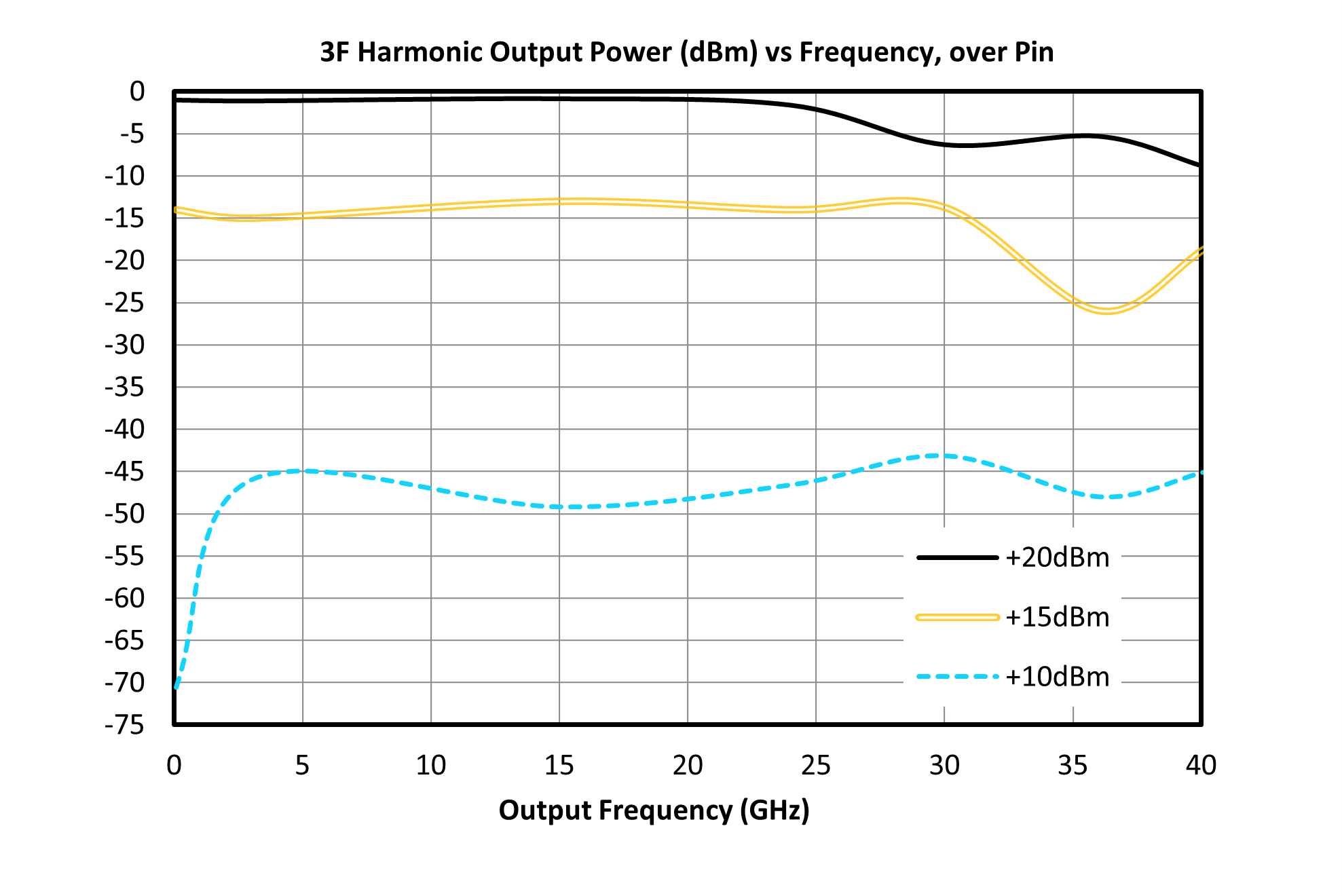

3rd Harmonic Suppression vs Frequency graph for HLM-40ABH

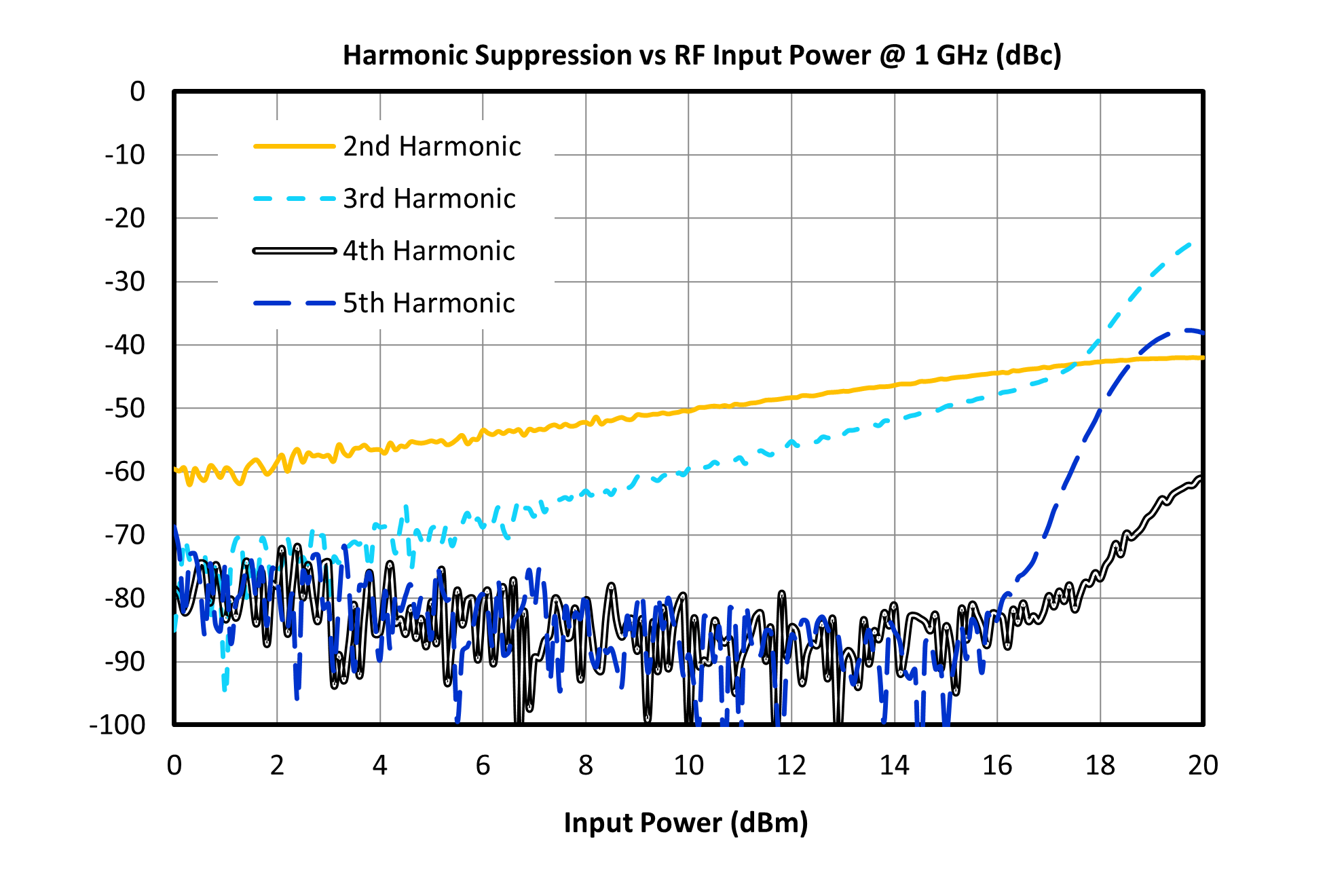

Harmonic Suppression vs Input Power graph for HLM-40ABH

Rev: - | Copyright © 2024 Marki Microwave LLC.

7

Mechanical Data

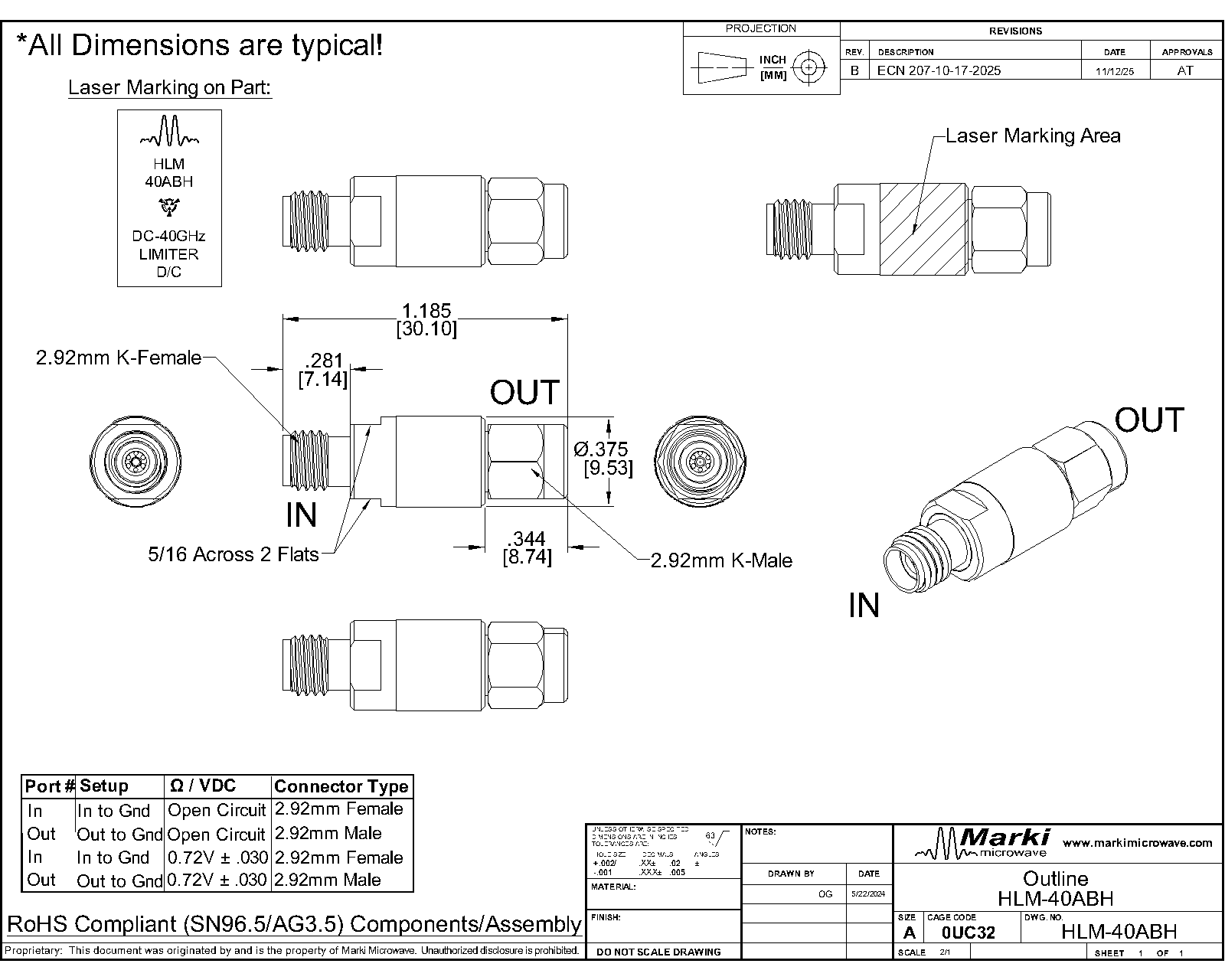

Outline Drawing

Download : Outline 2D Drawing Outline 3D STP

Outline Drawing

Rev: - | Copyright © 2024 Marki Microwave LLC.

8
