MMIQ-40100HM_GaAs MMIC mmWave IQ Mixer

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-40100HM	GaAs MMIC mmWave IQ Mixer	M	Standard	Consult Factory	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MMIQ-40100HM	GaAs MMIC mmWave IQ Mixer	M	Standard	Consult Factory	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2022-05-01	Datasheet Pre-Release

Port Configuration and Functions

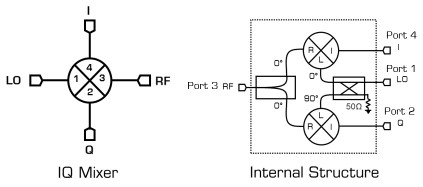

Port Diagram

The mixer may be operated as either a downconverter or an upconverter. Use of the RF or I/Q as the input or output port will depend on the application.

Diagram of the port configuration for MMIQ-40100HM

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	M package ground taken through metal housing.
Port 1	LO Input	1.0F	Port 1 is DC open for the CH and M packages.
Port 2	Q Input / Output	2.92F	Port 2 is diode coupled and AC matched to 50Ω over the specified Q port frequency range.
Port 3	RF Input / Output	1.0F	Port 3 is DC open for the CH and M packages.
Port 4	I Input / Output	2.92F	Port 4 is diode coupled and AC matched to 50Ω over the specified I port frequency range.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
Power Handling, at any Port	30	dBm

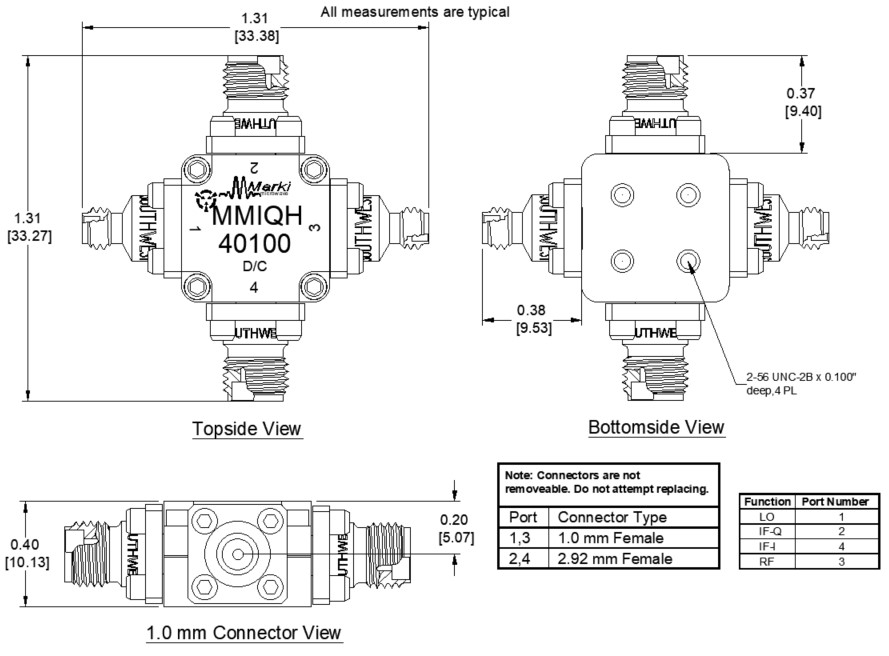

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: M	23.5g
Dimensions	-	33.38 x 33.27 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-55	25	100	°C
LO Input Power	17	-	-	dBm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for a down conversion application with a sine wave LO input. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 40 - 100 GHz I = DC - 0.2 GHz	40	100	-	12	-	dB
IF Frequency Range	-	-	-	0	-	20	GHz
Image Rejection ²	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	30	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 40 - 100 GHz I+Q = DC - 0.2 GHz	40	100	-	10	-	dB
LO Frequency Range	-	-	-	40	-	100	GHz
Noise Figure ³	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	10	-	dB
Q (Port 4) Frequency Range	-	-	-	0	-	20	GHz
RF Frequency Range	-	-	-	40	-	100	GHz

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Conversion Loss ¹	RF/LO = 40 - 100 GHz I = DC - 0.2 GHz	40	100	-	12	-	dB
IF Frequency Range	-	-	-	0	-	20	GHz
Image Rejection ²	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	30	-	dBc
Image Reject/Single Sideband Conversion Loss	RF/LO = 40 - 100 GHz I+Q = DC - 0.2 GHz	40	100	-	10	-	dB
LO Frequency Range	-	-	-	40	-	100	GHz
Noise Figure ³	RF/LO = 40 - 100 GHz I+Q = DC – 0.2 GHz	40	100	-	10	-	dB
Q (Port 4) Frequency Range	-	-	-	0	-	20	GHz
RF Frequency Range	-	-	-	40	-	100	GHz

^[1] Measured as an I/Q down converter (i.e., I and Q powers are not combined)

^[2] Image Rejection and Single sideband performance plots are defined by the upper sideband (USB) or lower sideband (LSB) with respect to the LO signal. Plots are defined by which sideband is selected by the external IF quadrature hybrid.

^[3] Mixer Noise Figure typically measures within 0.5 dB of conversion loss for IF frequencies greater than 5 MHz.

Typical Performance Plots

I output means that the IF output signal is measured at the I port of the mixer and the Q port is loaded. Q output means the IF output signal is measured at the Q port of the mixer while the I port is loaded.
