Device Overview
General Description
The IRW-0618 is an image reject mixer that performs single sided downconversion, or "image reject" conversion, and offers excellent image rejection across broad bandwidths. This broadband mixer spans 6 to 18 GHz on the RF and LO ports with an IF from 4 to 210 MHz. IR series mixers have generally been replaced with MMIQ mixers with superior performance, repeatability, and availability. IR series mixers are still used in legacy systems and are suitable for laboratory use.
Features
- LO/RF 6.0 to 18.0 GHz
- IF 4 to 210 MHz
- 10 dB Typical Conversion Loss
- 35 dB Typical LO to RF Isolation
- 23 dB Typical Image Rejection
- Connectorized
- Ultra-Broadband IF
Applications
N/A

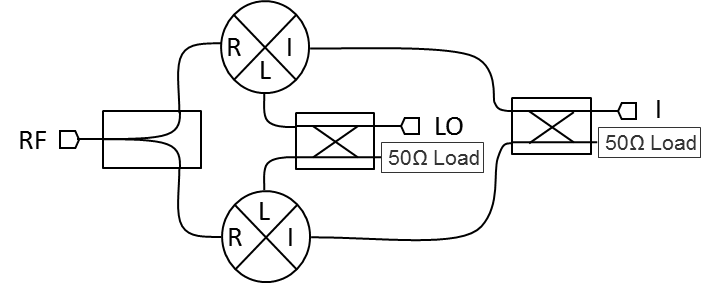

Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| IRW-0618LXW-1 | Image Reject Double-Balanced 6 - 18 GHz Mixer | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IRW-0618MXW-1 | Image Reject Double-Balanced 6 - 18 GHz Mixer | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IRW-0618LXW-2 | Image Reject Double-Balanced Mixers | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IRW-0618MXW-2 | Image Reject Double-Balanced Mixers | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| IRW-0618LXW-1 | Image Reject Double-Balanced 6 - 18 GHz Mixer | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IRW-0618MXW-1 | Image Reject Double-Balanced 6 - 18 GHz Mixer | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IRW-0618LXW-2 | Image Reject Double-Balanced Mixers | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IRW-0618MXW-2 | Image Reject Double-Balanced Mixers | XW | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2024-11-01 | Updated according to ECN#24097. Electrical spec table and outline drawing updated. |
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | XW package ground taken through metal housing. |  |
| I | I Input / Output | SMAF | I port is diode coupled and AC matched to 50Ω over the specified I port frequency range. | - |
| LO | LO Input | SMAF | LO port is DC short and AC matched to 50Ω over the specified LO frequency range. |  |
| RF | RF Input / Output | SMAF | RF port is DC short and AC matched to 50Ω over the specified RF frequency range. | |
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: XW | 40g |
| Dimensions | - | 20.32 x 20.32 mm |
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 10 | - | 13 | - |
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Conversion Loss | LO/RF=6-18 GHz IF=0.004-0.21 GHz | 6 | 18 | - | 10 | 14 | dB |
| Image Rejection | LO/RF=6-18 GHz IF=0.004-0.21 GHz | 6 | 18 | - | 23 | - | dB |
| Input IP3 | LO/RF=6-18 GHz L Diode drive level=10-13 dBm | 6 | 18 | - | 14 | - | dBm |
| Input P1dB | LO/RF=6-18 GHz L Diode drive level=10-13 dBm | 6 | 18 | - | 4 | - | dBm |
| LO-IF Isolation | LO/RF=8-18 GHz | 8 | 18 | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=8-18 GHz | 8 | 18 | 25 | 35 | - | dB |
| RF-IF Isolation | LO/RF=8-18 GHz | 8 | 18 | - | 25 | - | dB |
| IF Frequency Range | - | - | - | 0.004 | - | 0.21 | GHz |
| RF Frequency Range | - | - | - | 6 | - | 18 | GHz |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Conversion Loss | LO/RF=6-18 GHz IF=0.004-0.21 GHz | 6 | 18 | - | 10 | 14 | dB |
| Image Rejection | LO/RF=6-18 GHz IF=0.004-0.21 GHz | 6 | 18 | - | 23 | - | dB |
| Input IP3 | LO/RF=6-18 GHz L Diode drive level=10-13 dBm | 6 | 18 | - | 14 | - | dBm |
| Input P1dB | LO/RF=6-18 GHz L Diode drive level=10-13 dBm | 6 | 18 | - | 4 | - | dBm |
| LO-IF Isolation | LO/RF=8-18 GHz | 8 | 18 | - | 25 | - | dB |
| LO-RF Isolation | LO/RF=8-18 GHz | 8 | 18 | 25 | 35 | - | dB |
| RF-IF Isolation | LO/RF=8-18 GHz | 8 | 18 | - | 25 | - | dB |
| IF Frequency Range | - | - | - | 0.004 | - | 0.21 | GHz |
| RF Frequency Range | - | - | - | 6 | - | 18 | GHz |
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
Typical Performance Plots
IRW-0618LXW-1
Image Reject Double-Balanced 6 - 18 GHz Mixer
