Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: MP | 30g |
| Dimensions | - | 26.92 x 32 mm |
NOT RECOMMENDED FOR NEW DESIGN
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The IQ-1545 is a passive IQ mixer. This broadband mixer spans 1.5 to 4.5 GHz on the RF and LO ports with an IF from DC to 500 MHz. Up to 25 dB of image rejection is available due to the excellent phase and amplitude balance of its LO quadrature hybrid. IQ series mixers have generally been replaced with MMIQ mixers with superior performance, repeatability, and availability. IQ series mixers are still used in legacy systems and are suitable for laboratory use.
Features
- LO/RF 1.5 to 4.5 GHz
- IF DC to 500 MHz
- 5.5 dB Typical Conversion Loss
- 43 dB Typical LO to RF Isolation
- 3 degree Typ Quadrature Phase Deviation
- .3 dB Typical Amplitude Deviation
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| IQ-1545LMP | Quadrature-IF Double-Balanced Mixers | MP | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| IQ-1545LMP | Quadrature-IF Double-Balanced Mixers | MP | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
IQ-1545LMP
Quadrature-IF Double-Balanced Mixers
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Mechanical Data
- Notes
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2023-02-01 | Updated Outline Drawing |
| B | 2023-10-30 | Updated Electrical Specifications to clarify that testing is performed as an image reject mixer with a 20-200 MHz IF Hybrid. Updated production test minimum specifications. |
IQ-1545LMP
Quadrature-IF Double-Balanced Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | MP package ground taken through metal housing. |  |
| I | I Input / Output | SMAF | I port is diode coupled and AC matched to 50Ω over the specified I port frequency range. |  |
| LO | LO Input | SMAF | LO port is DC short and AC matched to 50Ω over the specified LO frequency range. |  |
| Q | Q Input / Output | SMAF | Q port is diode coupled and AC matched to 50Ω over the specified Q port frequency range. | |
| RF | RF Input / Output | SMAF | RF port is DC short and AC matched to 50Ω over the specified RF frequency range. | |
IQ-1545LMP
Quadrature-IF Double-Balanced Mixers
Specifications
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 10 | - | 13 | - |
IQ-1545LMP
Quadrature-IF Double-Balanced Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system. All specifications measured as an image reject mixer with a 20-200 MHz IF Hybrid.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | - | 0.3 | - | dB |
| Conversion Loss | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | - | 5.5 | 10 | dB |
| Image Rejection | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | 14 | 25 | - | dB |
| Input IP3 | LO/RF=1.5-4.5 GHz LO drive level, L Diode Option=10-13 dBm | 1.5 | 4.5 | - | 14 | - | dBm |
| Input P1dB | LO/RF=1.5-4.5 GHz LO drive level, L Diode Option=10-13 dBm | 1.5 | 4.5 | - | 4 | - | dBm |
| LO-IF Isolation | LO/RF=1.5-4.5 GHz | 1.5 | 4.5 | - | 30 | - | dB |
| LO-RF Isolation | LO/RF=1.5-4.5 GHz | 1.5 | 4.5 | 32 | 43 | - | dB |
| Phase Balance | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | - | 3 | - | ° |
| RF-IF Isolation | LO/RF=1.5-4.5 GHz | 1.5 | 4.5 | - | 30 | - | dB |
| IF Frequency Range | - | - | - | 0 | - | 0.5 | GHz |
| RF Frequency Range | - | - | - | 1.5 | - | 4.5 | GHz |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | - | 0.3 | - | dB |
| Conversion Loss | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | - | 5.5 | 10 | dB |
| Image Rejection | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | 14 | 25 | - | dB |
| Input IP3 | LO/RF=1.5-4.5 GHz LO drive level, L Diode Option=10-13 dBm | 1.5 | 4.5 | - | 14 | - | dBm |
| Input P1dB | LO/RF=1.5-4.5 GHz LO drive level, L Diode Option=10-13 dBm | 1.5 | 4.5 | - | 4 | - | dBm |
| LO-IF Isolation | LO/RF=1.5-4.5 GHz | 1.5 | 4.5 | - | 30 | - | dB |
| LO-RF Isolation | LO/RF=1.5-4.5 GHz | 1.5 | 4.5 | 32 | 43 | - | dB |
| Phase Balance | LO/RF=1.5-4.5 GHz IF=DC-0.5 GHz | 1.5 | 4.5 | - | 3 | - | ° |
| RF-IF Isolation | LO/RF=1.5-4.5 GHz | 1.5 | 4.5 | - | 30 | - | dB |
| IF Frequency Range | - | - | - | 0 | - | 0.5 | GHz |
| RF Frequency Range | - | - | - | 1.5 | - | 4.5 | GHz |
IQ-1545LMP
Quadrature-IF Double-Balanced Mixers

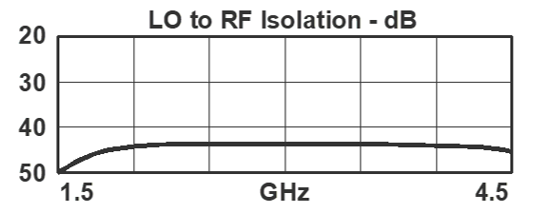

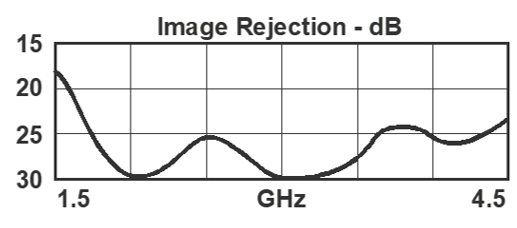

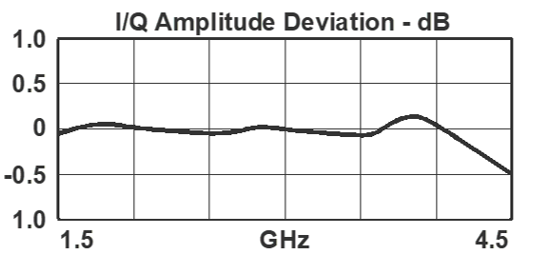

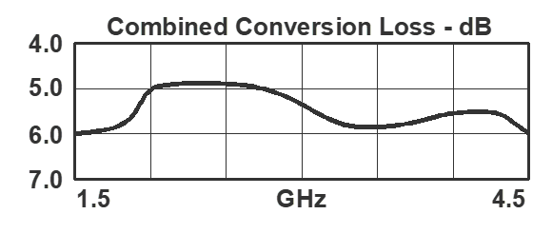

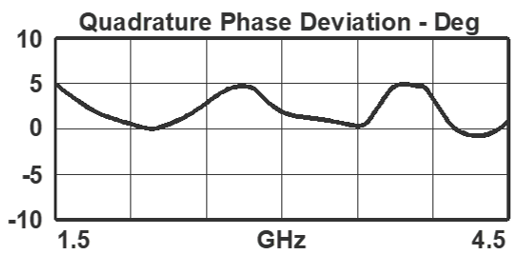

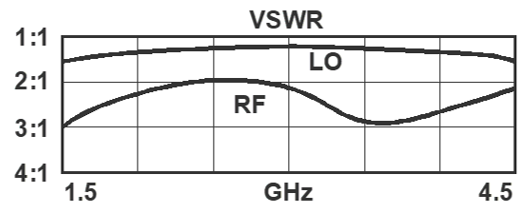

Typical Performance Plots
