Device Overview
General Description

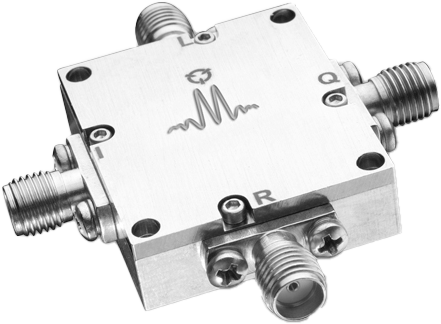

The IQ-0307 is a passive IQ mixer. This broadband mixer spans 3 to 7 GHz on the RF and LO ports with an IF from DC to 500 MHz. Up to 23 dB of image rejection is available due to the excellent phase and amplitude balance of its LO quadrature hybrid. IQ series mixers have generally been replaced with MMIQ mixers with superior performance, repeatability, and availability. IQ series mixers are still used in legacy systems and are suitable for laboratory use.
Features
- LO/RF 3.0 to 7.0 GHz
- IF DC to 500 MHz
- 5.5 dB Typical Conversion Loss
- 30 dB Typical LO to RF Isolation
- 3 degree Typ Quadrature Phase Deviation
- .3 dB Typical Amplitude Deviation
Applications
N/A
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| IQ-0307LXP | Quadrature-If Double-Balanced Mixers | XP | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IQ-0307MXP | Quadrature-If Double-Balanced Mixers | XP | Standard | Non-RoHS | End of Life | EAR99 | MMIQ-0218LXPC |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification | Recommended Replacement |
|---|---|---|---|---|---|---|---|
| IQ-0307LXP | Quadrature-If Double-Balanced Mixers | XP | Standard | Non-RoHS | Not Recommended for New Design | EAR99 | - |
| IQ-0307MXP | Quadrature-If Double-Balanced Mixers | XP | Standard | Non-RoHS | End of Life | EAR99 | MMIQ-0218LXPC |
IQ-0307MXP
Quadrature-If Double-Balanced Mixers
Table Of Contents
IQ-0307MXP
Quadrature-If Double-Balanced Mixers
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | XP package ground taken through metal housing. |  |
| I | I Input / Output | SMAF | I port is diode coupled and AC matched to 50Ω over the specified I port frequency range. |  |
| LO | LO Input | SMAF | LO port is DC short and AC matched to 50Ω over the specified LO frequency range. |  |
| Q | Q Input / Output | SMAF | Q port is diode coupled and AC matched to 50Ω over the specified Q port frequency range. | |
| RF | RF Input / Output | SMAF | RF port is DC short and AC matched to 50Ω over the specified RF frequency range. | |
IQ-0307MXP
Quadrature-If Double-Balanced Mixers
Specifications
Recommended Operating Conditions
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| LO Input Power | 13 | - | 16 | - |
IQ-0307MXP
Quadrature-If Double-Balanced Mixers
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50-Ohm system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | - | 0.3 | - | dB |
| Conversion Loss | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | - | 5.8 | 8 | dB |
| Conversion Loss | LO/RF=4-7 GHz IF=DC-.5 GHz | 4 | 7 | - | 5.5 | 7 | dB |
| Image Rejection | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | 18 | 23 | - | dB |
| Input IP3 | LO/RF=3-7 GHz LO drive level, M Diode Option=13-16 dBm | 3 | 7 | - | 16 | - | dBm |
| Input P1dB | LO/RF=3-7 GHz LO drive level, M Diode Option=13-16 dBm | 3 | 7 | - | 6 | - | dBm |
| LO-IF Isolation | LO/RF=3-7 GHz | 3 | 7 | - | 20 | - | dB |
| LO-RF Isolation | LO/RF=3-7 GHz | 3 | 7 | 22 | 30 | - | dB |
| Phase Balance | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | - | 3 | - | ° |
| RF-IF Isolation | LO/RF=3-7 GHz | 3 | 7 | - | 20 | - | dB |
| IF Frequency Range | - | - | - | 0 | - | 0.5 | GHz |
| RF Frequency Range | - | - | - | 3 | - | 7 | GHz |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | - | 0.3 | - | dB |
| Conversion Loss | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | - | 5.8 | 8 | dB |
| Conversion Loss | LO/RF=4-7 GHz IF=DC-.5 GHz | 4 | 7 | - | 5.5 | 7 | dB |
| Image Rejection | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | 18 | 23 | - | dB |
| Input IP3 | LO/RF=3-7 GHz LO drive level, M Diode Option=13-16 dBm | 3 | 7 | - | 16 | - | dBm |
| Input P1dB | LO/RF=3-7 GHz LO drive level, M Diode Option=13-16 dBm | 3 | 7 | - | 6 | - | dBm |
| LO-IF Isolation | LO/RF=3-7 GHz | 3 | 7 | - | 20 | - | dB |
| LO-RF Isolation | LO/RF=3-7 GHz | 3 | 7 | 22 | 30 | - | dB |
| Phase Balance | LO/RF=3-7 GHz IF=DC-.5 GHz | 3 | 7 | - | 3 | - | ° |
| RF-IF Isolation | LO/RF=3-7 GHz | 3 | 7 | - | 20 | - | dB |
| IF Frequency Range | - | - | - | 0 | - | 0.5 | GHz |
| RF Frequency Range | - | - | - | 3 | - | 7 | GHz |
