MFBP-00040BH_Passive GaAs MMIC 1.6 – 6.8 GHz Bandpass Filter

Device Overview

General Description

The MFBP-00040BH MMIC bandpass filter is an ideal solution for small form factor, high rejection filtering. The MFBP-00040BH features a 1.56-6.67 GHz 1 dBc passband, 1.3 dB center frequency insertion loss and 27 dB return loss. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFBP-00040BH is available in a connectorized bullet housing. The bullet housing package is suitable for packaging our catalog two port bare die passive products such as other filters in our portfolio. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Download s-parameters here

Features

27 dB Return Loss
1.3 dB Insertion Loss @ Fc
High Stop Band Suppression
Wide Stop Band with Fast Roll-Off
Connectorized Bullet Housing

Applications

N/A

Functional Block Diagram

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MFBP-00040BH	Passive GaAs MMIC 1.6 – 6.8 GHz Bandpass Filter	BH	Standard	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MFBP-00040BH

Passive GaAs MMIC 1.6 – 6.8 GHz Bandpass Filter

Standard

REACH

RoHS

Released

EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MFBP-00040BH	Passive GaAs MMIC 1.6 – 6.8 GHz Bandpass Filter	BH	Standard	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Revision History
Specifications
Mechanical Data

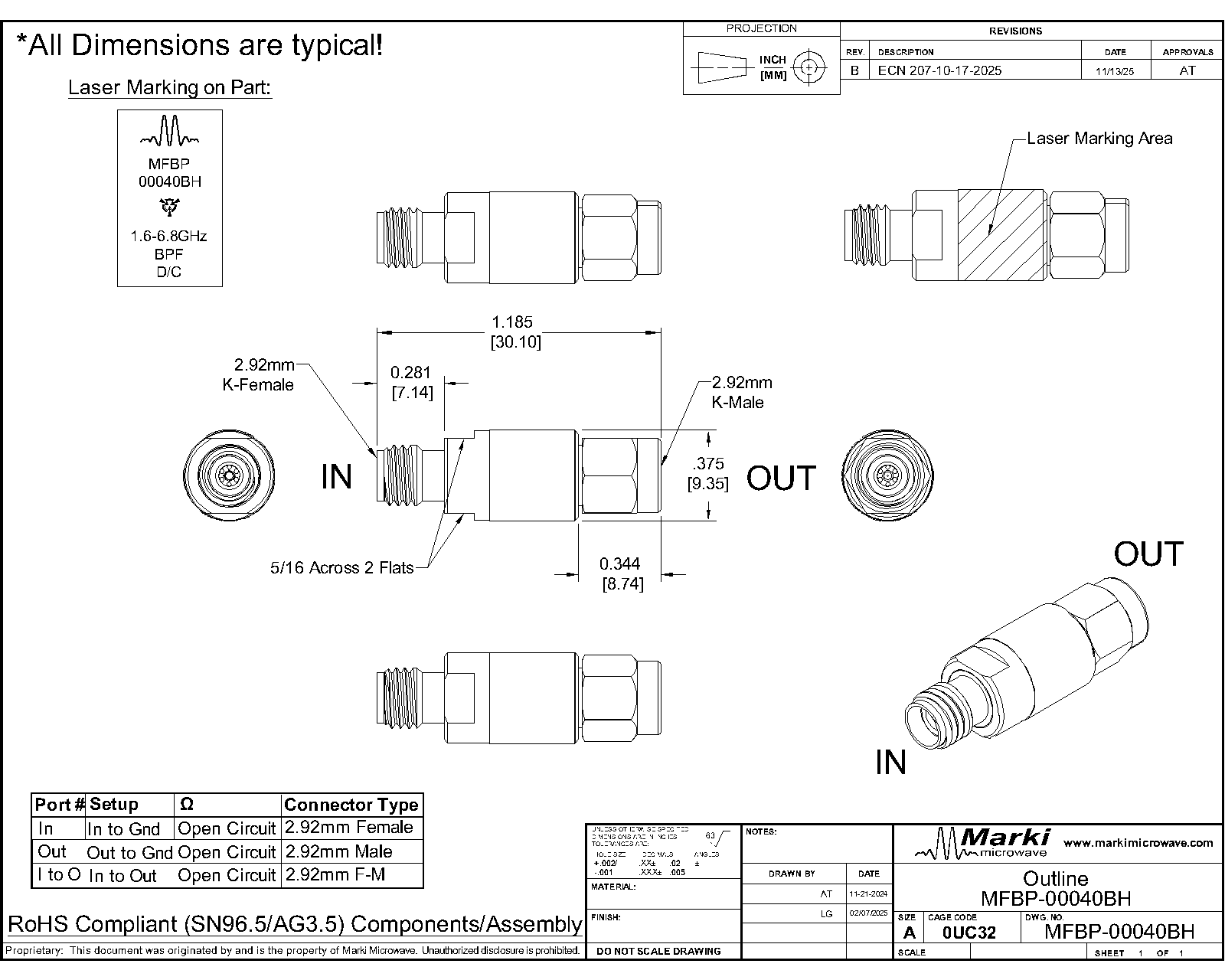

- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2025-04-07	Initial Release

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for MFBP-00040BH

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	Ground for the BH package is provided through the metal housing and outer coax conductor.
Port 1	Input/Output	2.92F	Port 1 is DC open to ground for the BH package.
Port 2	Input/Output	2.92M	Port 2 is DC open to ground for the BH package.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C

Package Information

Parameter	Details	Rating
Weight	Package name: BH	9.2g
Dimensions	-	30.1 x 9.5 mm

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits are guaranteed at TA=+25°C.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband	25°C	1.56	6.67	-	-	-	GHz
30 dBc Rejection Point	25°C	0.91	8.52	-	-	-	GHz
3 dBc Passband	25°C	1.31	7.47	-	-	-	GHz
Center Freq	25°C	-	-	-	3.23	-	GHz

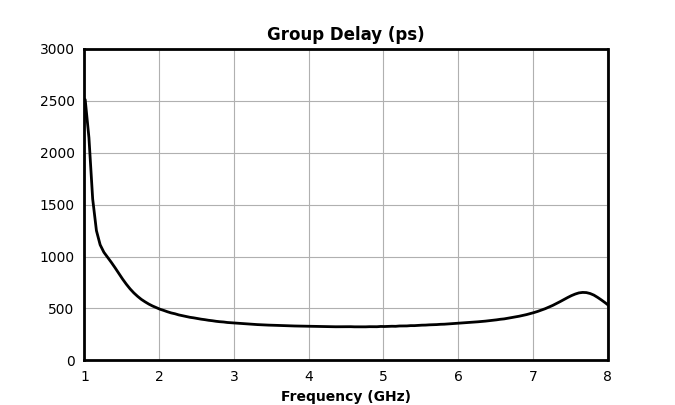

Group Delay	25°C	-	-	-	349	-	ps
Impedance	25°C	-	-	-	50	-	Ω

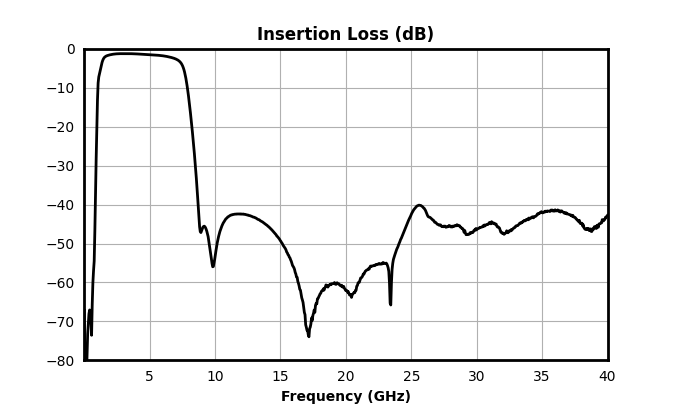

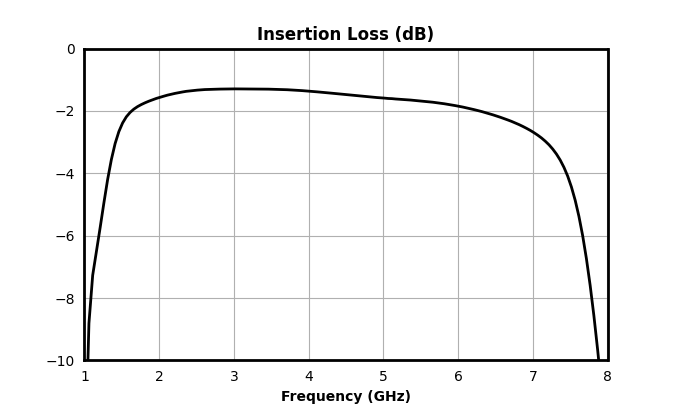

Insertion Loss @ fc	25°C	-	-	-	1.3	-	dB

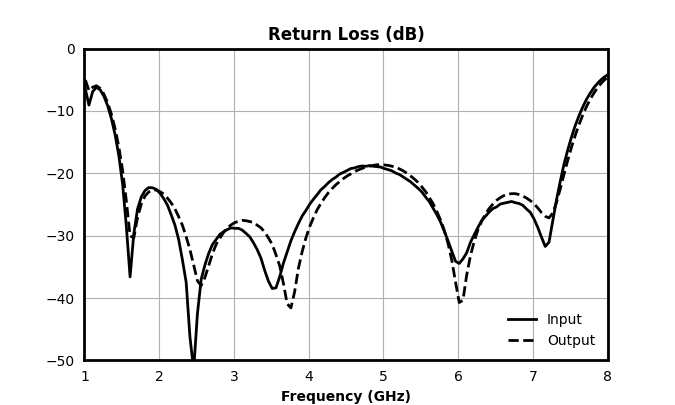

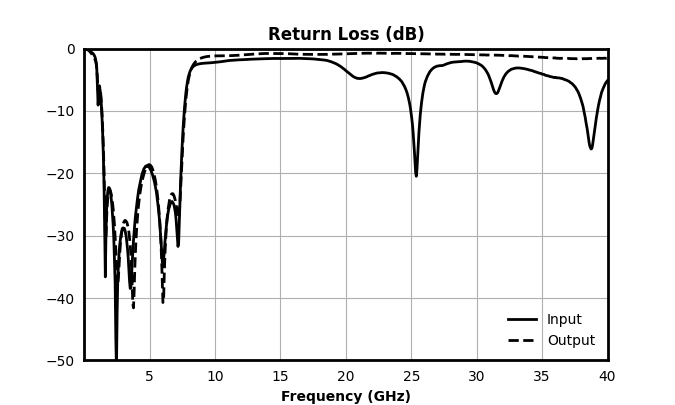

Passband Return Loss	25°C	-	-	-	27	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband	25°C	1.56	6.67	-	-	-	GHz
30 dBc Rejection Point	25°C	0.91	8.52	-	-	-	GHz
3 dBc Passband	25°C	1.31	7.47	-	-	-	GHz
Center Freq	25°C	-	-	-	3.23	-	GHz
Group Delay	25°C	-	-	-	349	-	ps
Impedance	25°C	-	-	-	50	-	Ω
Insertion Loss @ fc	25°C	-	-	-	1.3	-	dB
Passband Return Loss	25°C	-	-	-	27	-	dB
