Device Overview
General Description
This general purpose high pass filter offers high stop band suppression and low insertion loss in the passband. These filters can be used to eliminate unwanted side bands during up-conversion or for removing spurious interference and noise. Filters with customized frequency cutoff, usable passband and stopband rejection are available upon customer request.
Features
- Low Insertion Loss
- High Stop Band Attenuation
- Compact Size
- User defined options available
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- RF Transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| FH-1700 | 17 GHz Highpass Filter | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| FH-1700 | 17 GHz Highpass Filter | Standard | REACH RoHS | Released | EAR99 |
FH-1700
17 GHz Highpass Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2016-09-19 | Datasheet Initial Release |
FH-1700
17 GHz Highpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input/Output | 2.92F | Port 1 is DC open to Port 2 and GND. GND is provided through the case and RF connectors. |  |
| Port 2 | Input/Output | 2.92F | Port 2 is DC open to Port 1 and GND. GND is provided through the case and RF connectors. | |
FH-1700
17 GHz Highpass Filter
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Input Power | 20 | W |

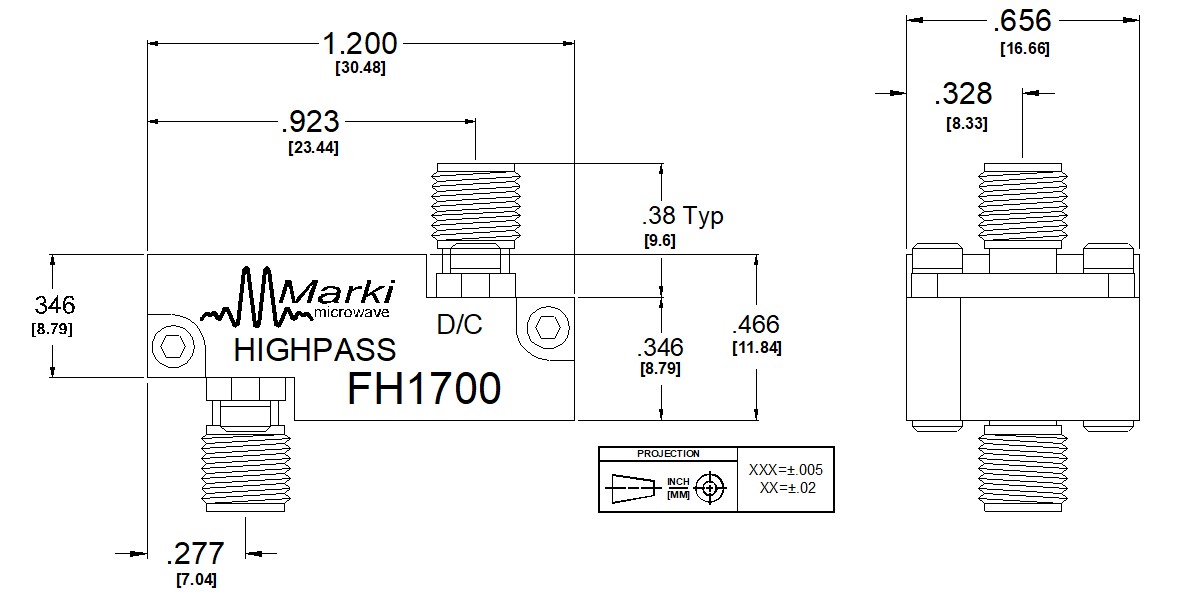

Package Information
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 30.48 x 11.84 mm |
FH-1700
17 GHz Highpass Filter
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband 1 | Temp = 25°C | 16.76 | - | - | - | - | GHz |
| 3 dBc Passband 2 | Temp = 25°C | 16.51 | - | - | - | - | GHz |
| 30 dBc Rejection Point 3 | Temp = 25°C | 14.31 | - | - | - | - | GHz |
| Center Freq 4 | Temp = 25°C | - | - | - | 28.38 | - | GHz |
| Insertion Loss @ fc 5 | Temp = 25°C | - | - | - | 0.8 | - | dB |
| Passband Return Loss 6 | Temp = 25°C | - | - | - | 13 | - | dB |
| Group Delay 7 | Temp = 25°C | - | - | - | 176 | - | ps |
| Stopband Suppression | 25°C | 11.5 | 11.5 | 40 | 50 | - | dB |
| Stopband Suppression | 25°C | 14 | 14 | 25 | 30 | - | dB |
| Stopband Suppression | 25°C | 0 | 6 | 70 | 80 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband 1 | Temp = 25°C | 16.76 | - | - | - | - | GHz |
| 3 dBc Passband 2 | Temp = 25°C | 16.51 | - | - | - | - | GHz |
| 30 dBc Rejection Point 3 | Temp = 25°C | 14.31 | - | - | - | - | GHz |
| Center Freq 4 | Temp = 25°C | - | - | - | 28.38 | - | GHz |
| Insertion Loss @ fc 5 | Temp = 25°C | - | - | - | 0.8 | - | dB |
| Passband Return Loss 6 | Temp = 25°C | - | - | - | 13 | - | dB |
| Group Delay 7 | Temp = 25°C | - | - | - | 176 | - | ps |
| Stopband Suppression | 25°C | 11.5 | 11.5 | 40 | 50 | - | dB |
| Stopband Suppression | 25°C | 14 | 14 | 25 | 30 | - | dB |
| Stopband Suppression | 25°C | 0 | 6 | 70 | 80 | - | dB |
[1][2][3][4][5][6][7] No
FH-1700
17 GHz Highpass Filter

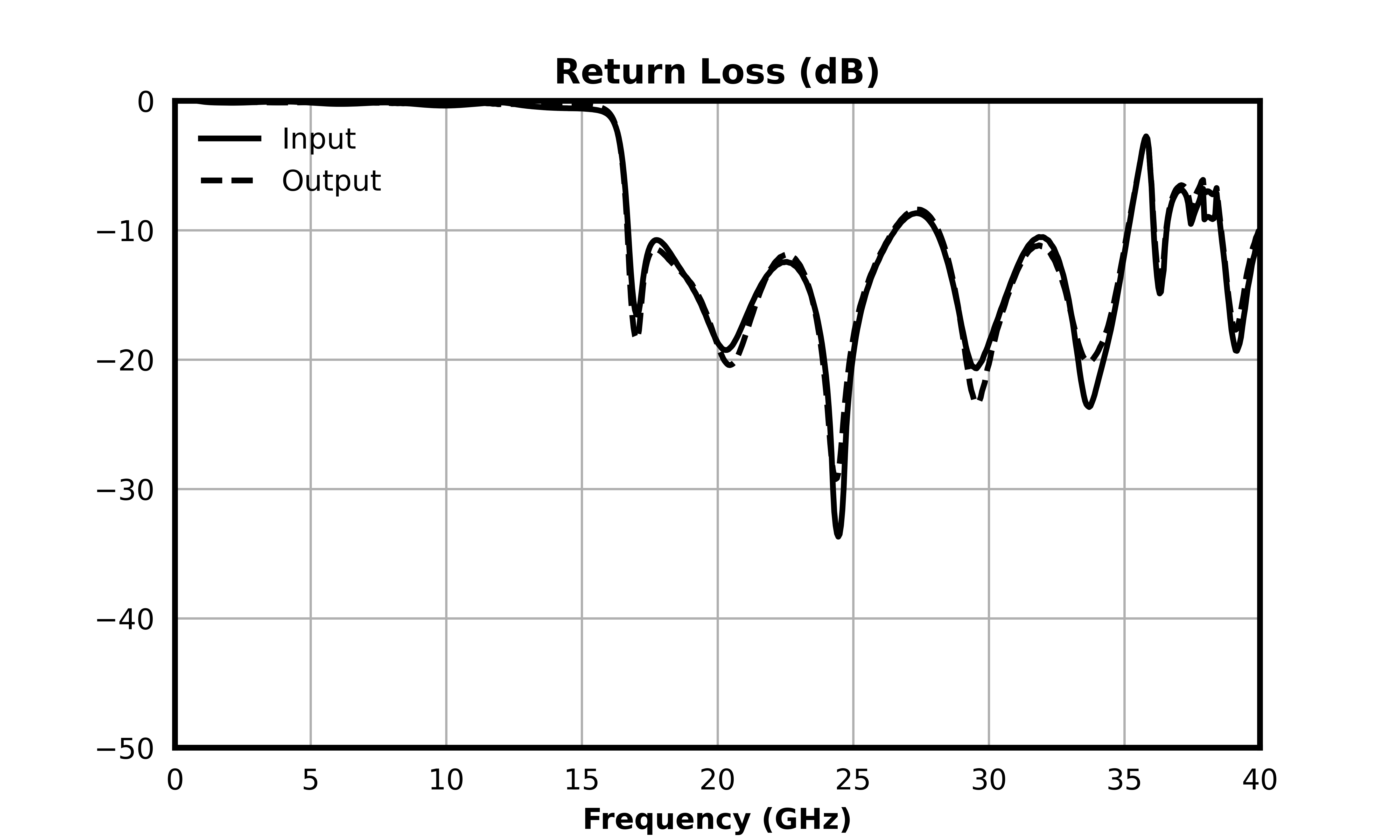

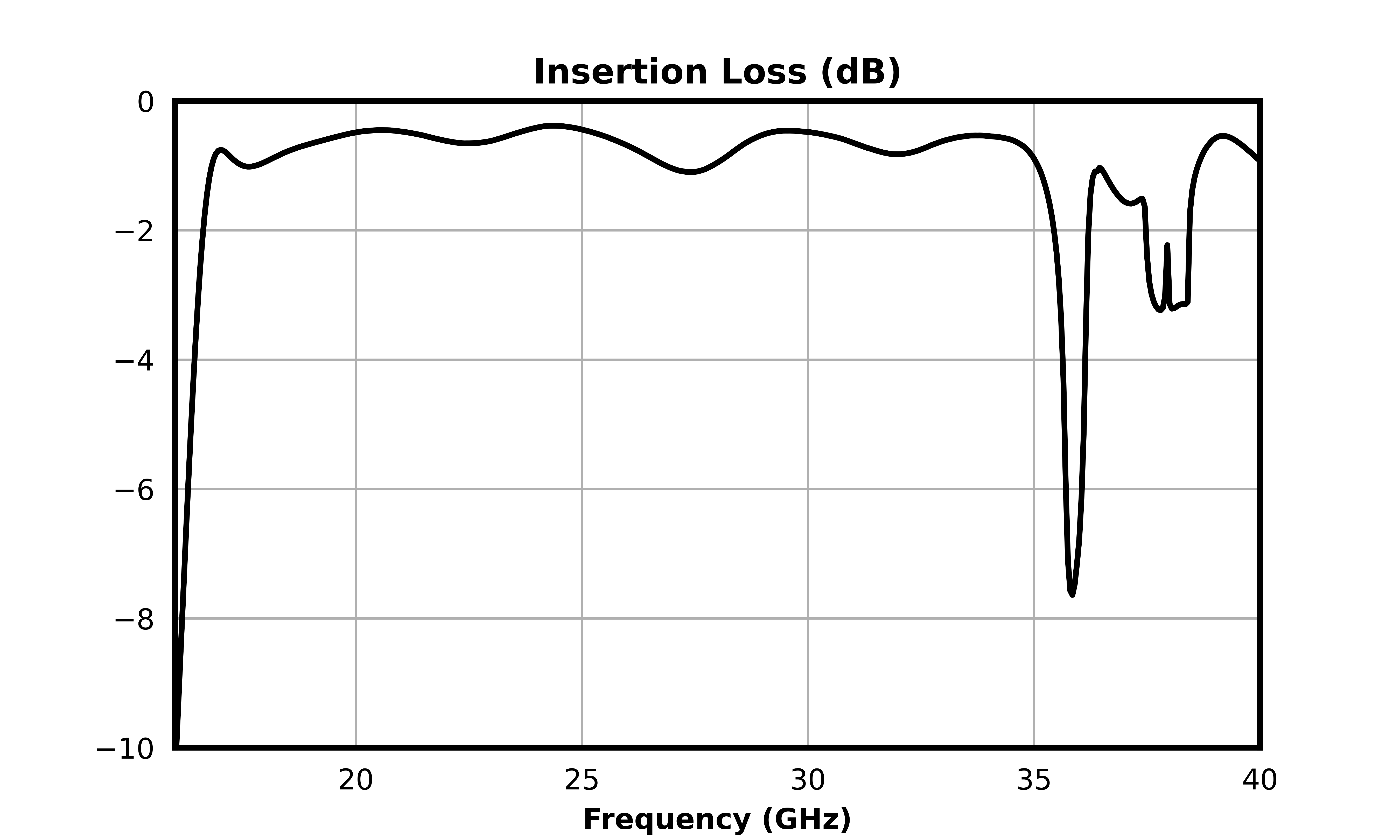

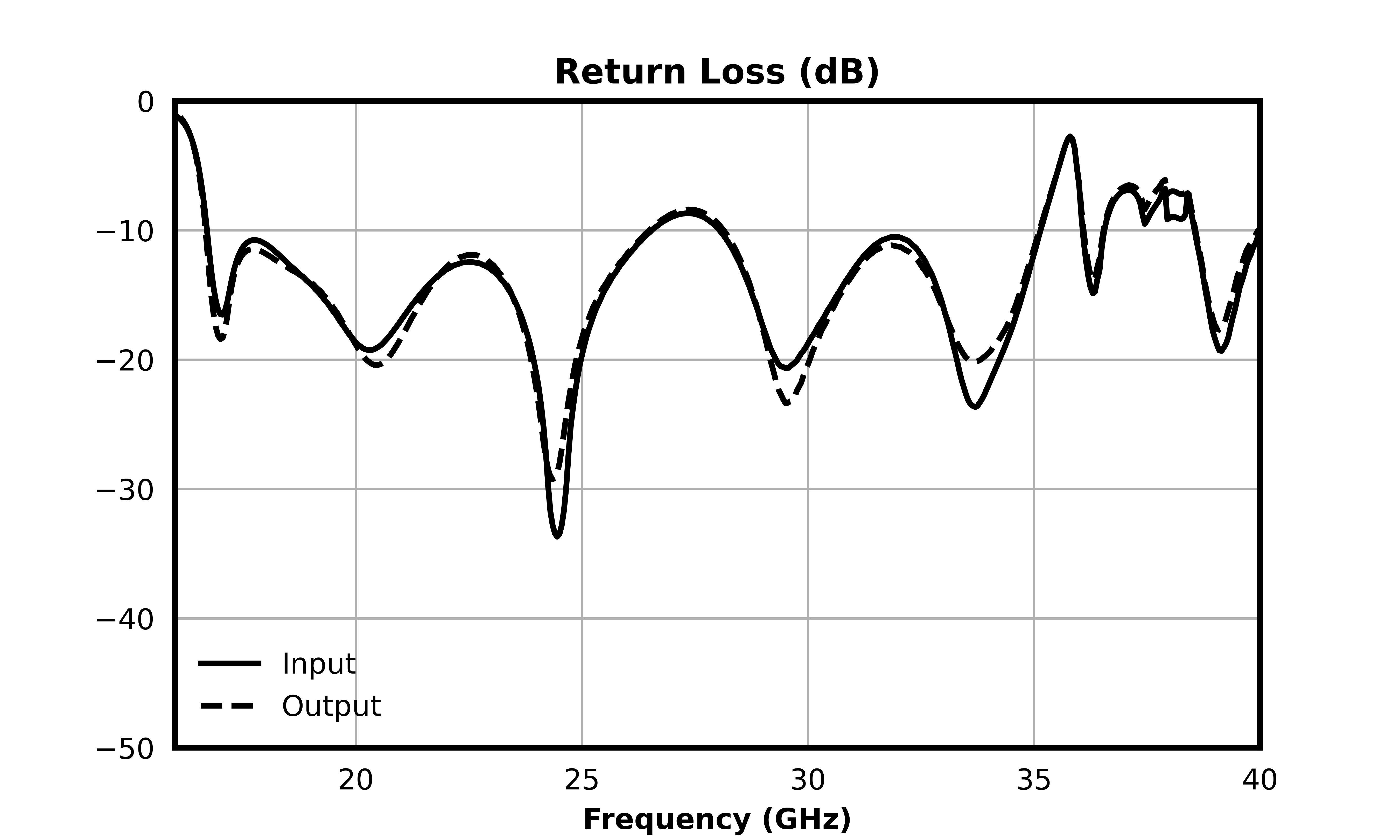

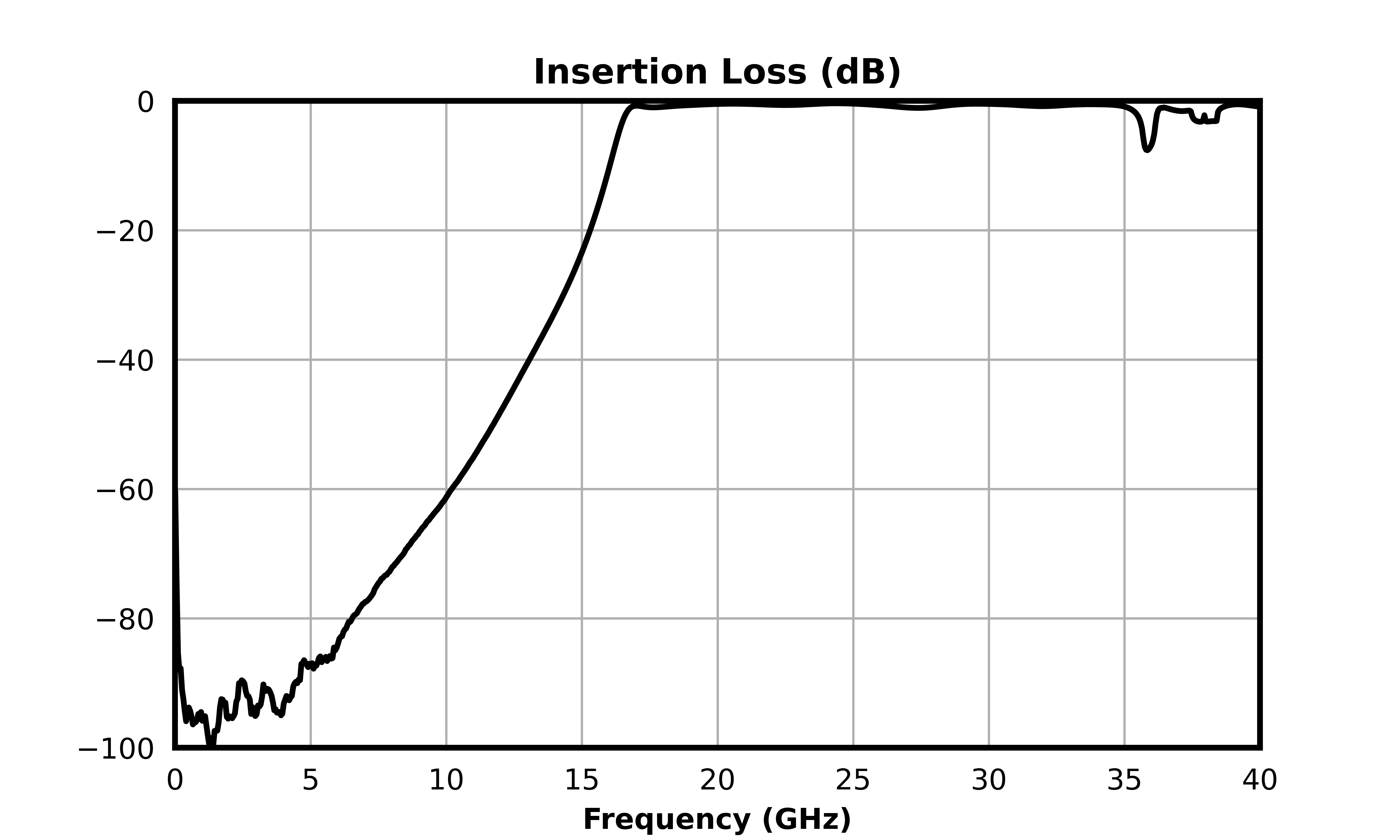

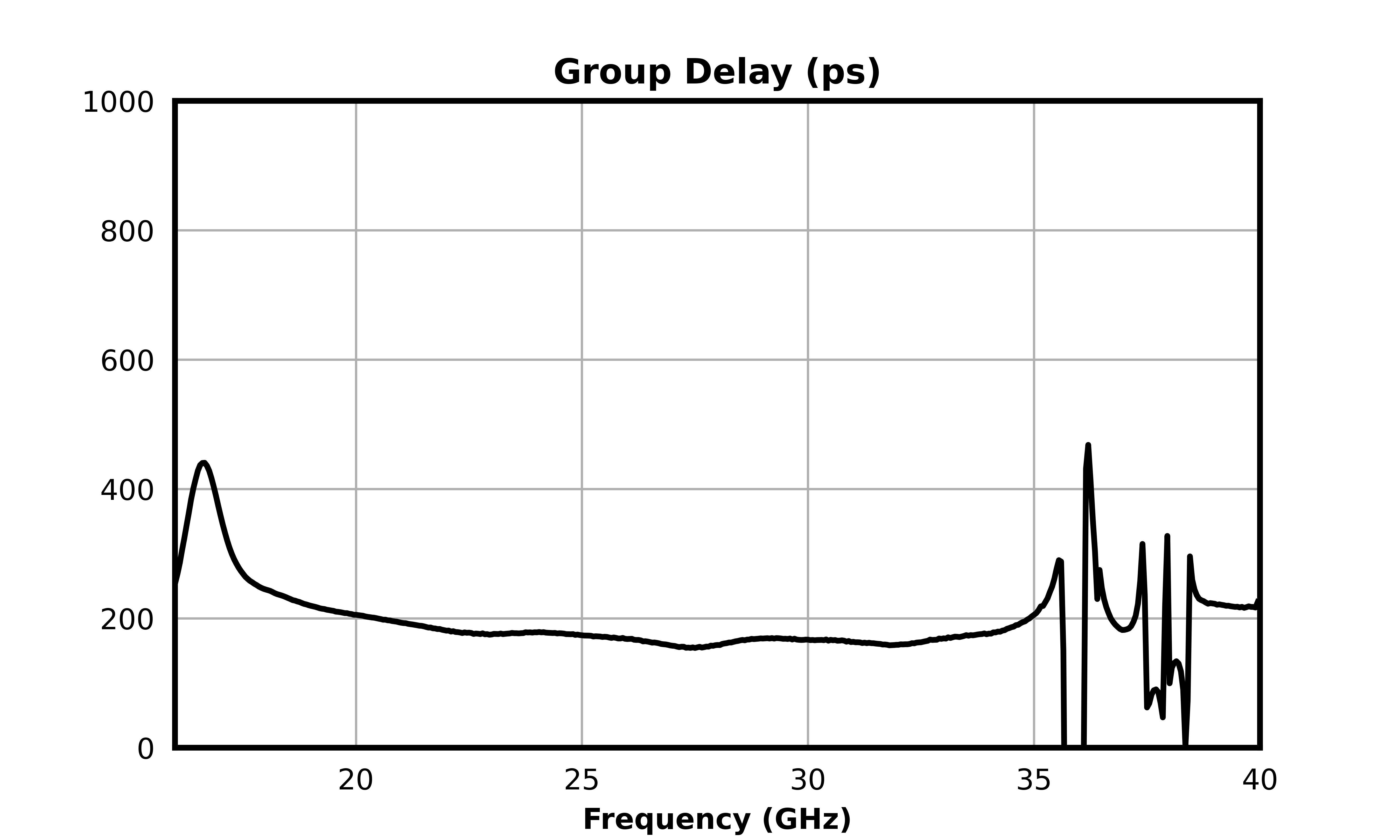

Typical Performance Plot
.png)
.png)
.png)
.png)
.png)
