FB-1215_12.15 GHz Bandpass Filter

Device Overview

General Description

The FB series bandpass filters are CAD-optimized microstrip filter designs built on a low-loss substrate. These filters feature low insertion loss, excellent return loss and are suitable for high rejection filtering.

Download s-parameters here

Features

Low Insertion Loss
Excellent Return Loss
High Stop Band Suppression
Wide Stop Band
Sharp Roll-Off

Applications

Test and Measurement Equipment
SATCOM
Radar
RF Transceivers

Functional Block Diagram

Part Ordering Options

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
FB-1215	12.15 GHz Bandpass Filter	Standard	Non-RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
Revision History
Specifications
Mechanical Data
- Outline Drawing

Revision History

Revision Code	Revision Date	Comment
-	2012-06-06	Datasheet Initial Release

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
RF Power Handling	1	W

Package Information

Parameter	Details	Rating
Weight	-	22g
Dimensions	-	27.94 X 18.80 mm

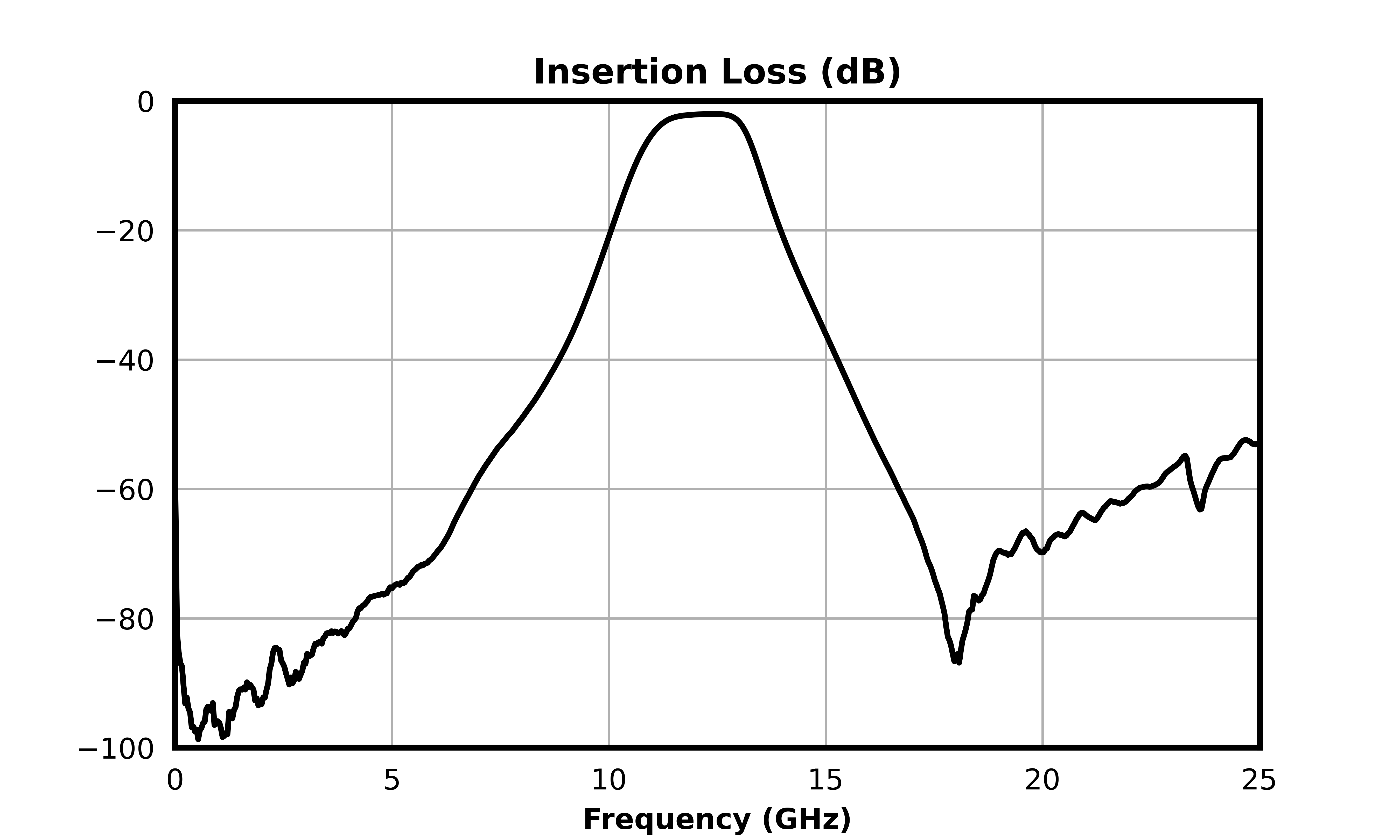

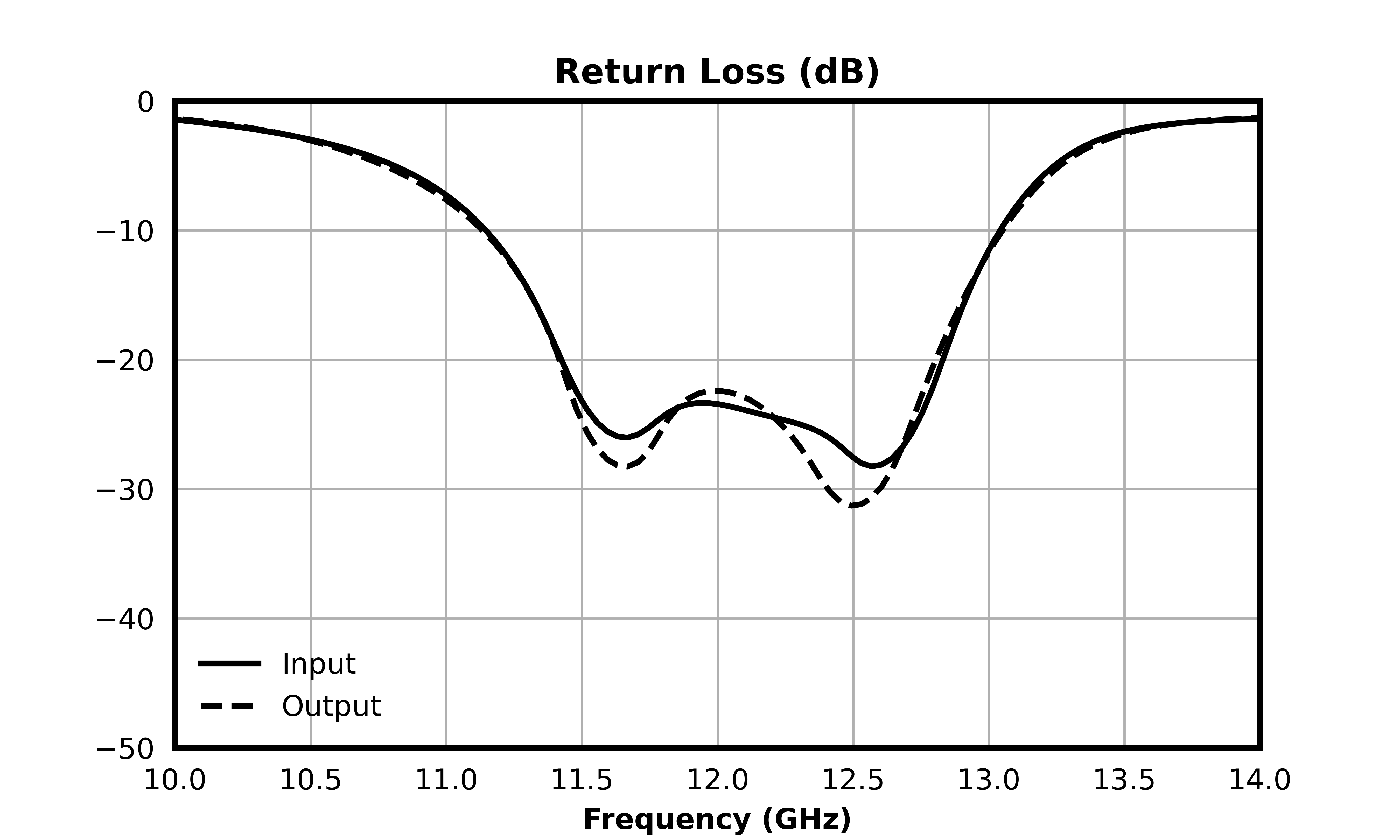

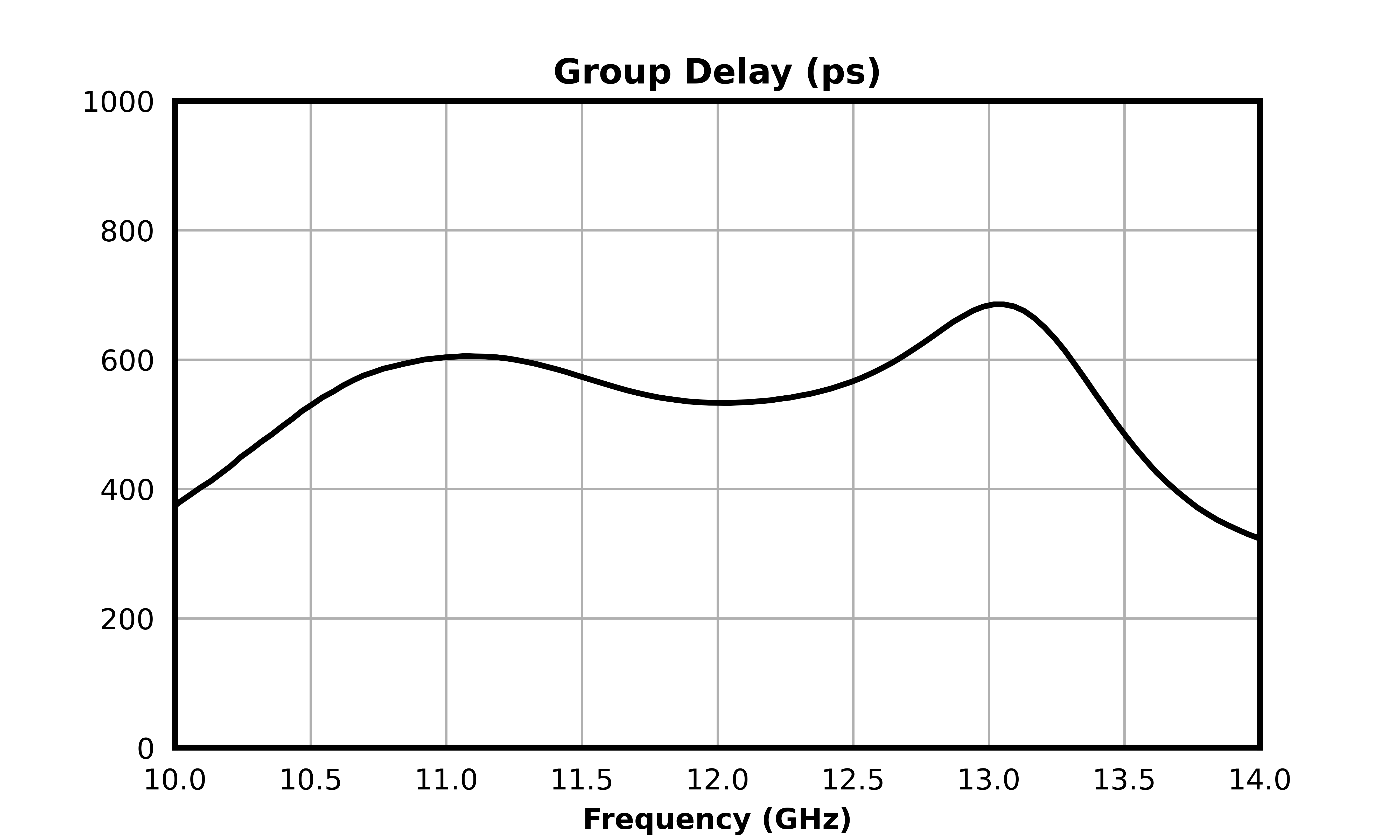

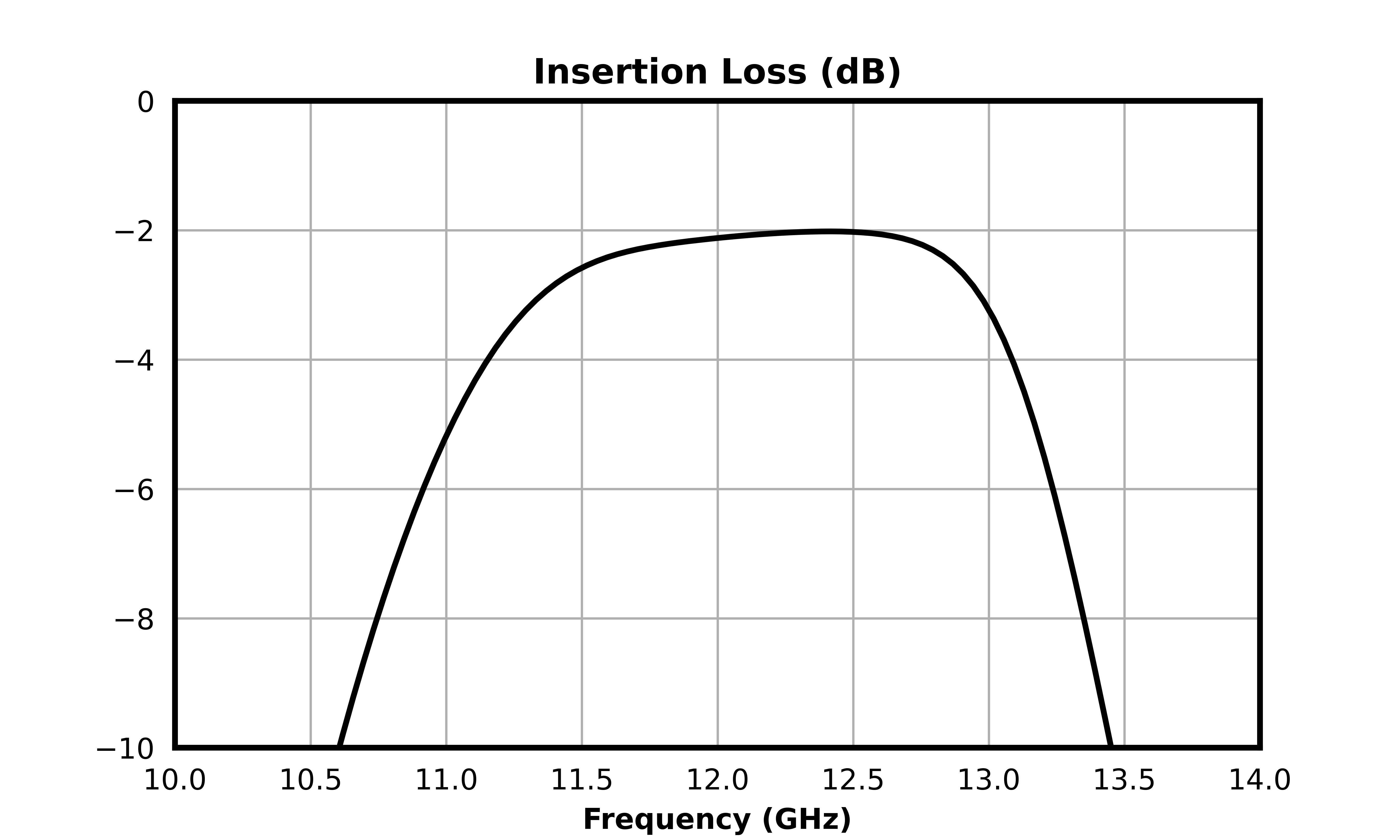

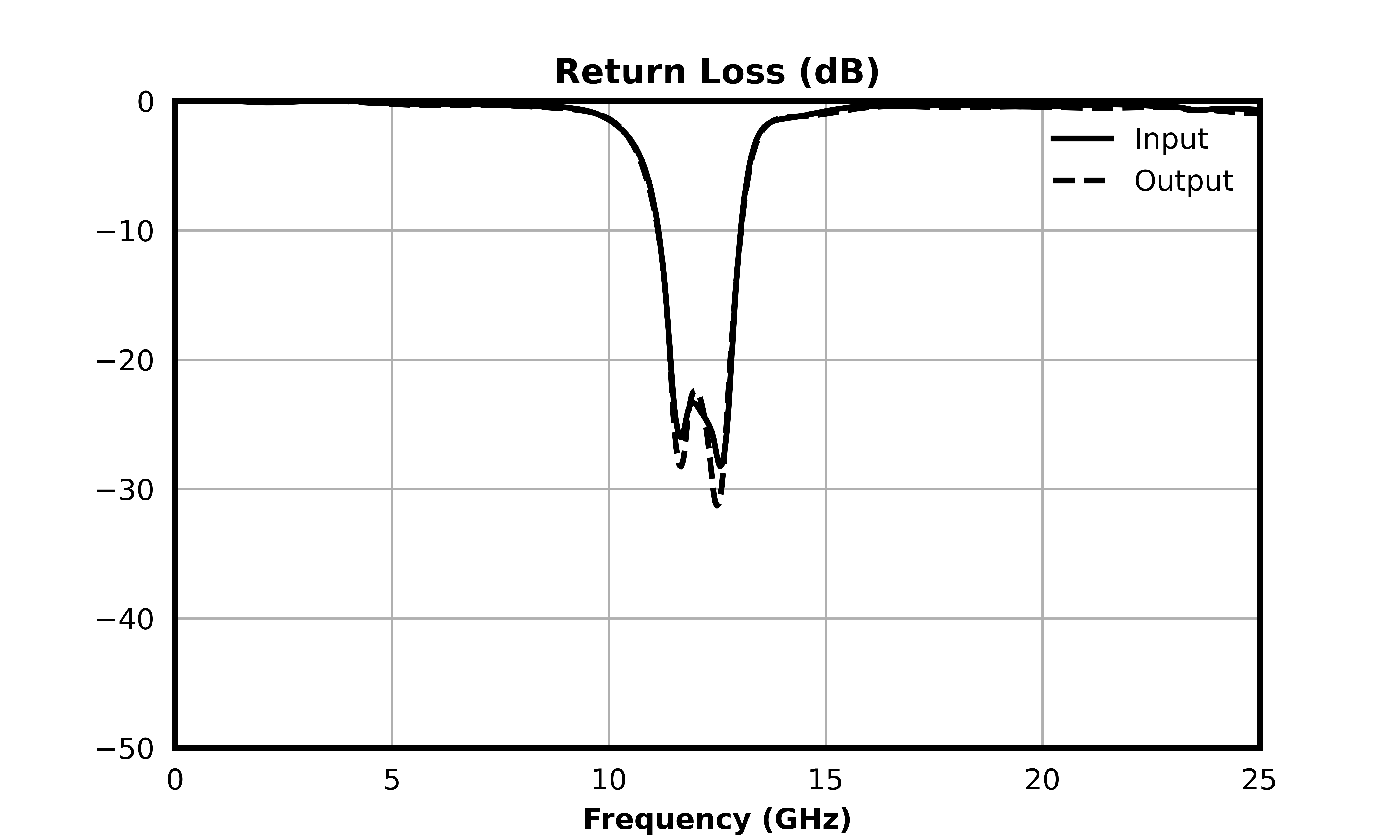

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband ¹	Temp = 25°C	11.37	12.94	-	-	-	GHz
3 dBc Passband ²	Temp = 25°C	11.03	13.17	-	-	-	GHz
30 dBc Rejection Point ³	Temp = 25°C	9.42	14.71	-	-	-	GHz
Center Freq ⁴	Temp = 25°C	-	-	-	12.13	-	GHz
Insertion Loss @ fc ⁵	Temp = 25°C	-	-	-	2.1	-	dB
Passband Return Loss ⁶	Temp = 25°C	-	-	-	25	-	dB
Group Delay ⁷	Temp = 25°C	-	-	-	557	-	ps
Impedance ⁸	Temp = 25°C	-	-	-	50	-	Ω
Center Freq	25°C	-	-	-	12.15	-	GHz
Passband	25°C	-	-	11.3	-	13	GHz
Passband Return Loss	25°C	11.3	13	10	15	-	dB
Stopband Suppression	25°C	9.5	15	25	30	-	dB
Stopband Suppression	25°C	8	16.6	40	50	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc Passband ¹	Temp = 25°C	11.37	12.94	-	-	-	GHz
3 dBc Passband ²	Temp = 25°C	11.03	13.17	-	-	-	GHz
30 dBc Rejection Point ³	Temp = 25°C	9.42	14.71	-	-	-	GHz
Center Freq ⁴	Temp = 25°C	-	-	-	12.13	-	GHz
Insertion Loss @ fc ⁵	Temp = 25°C	-	-	-	2.1	-	dB
Passband Return Loss ⁶	Temp = 25°C	-	-	-	25	-	dB
Group Delay ⁷	Temp = 25°C	-	-	-	557	-	ps
Impedance ⁸	Temp = 25°C	-	-	-	50	-	Ω
Center Freq	25°C	-	-	-	12.15	-	GHz
Passband	25°C	-	-	11.3	-	13	GHz
Passband Return Loss	25°C	11.3	13	10	15	-	dB
Stopband Suppression	25°C	9.5	15	25	30	-	dB
Stopband Suppression	25°C	8	16.6	40	50	-	dB
