Device Overview
General Description
The FB series bandpass filters are CAD-optimized microstrip filter designs built on a low-loss substrate. These filters feature low insertion loss, excellent return loss and are suitable for high rejection filtering.
Features
- Low Insertion Loss
- Excellent Return Loss
- High Stop Band Suppression
- Wide Stop Band
- Sharp Roll-Off
Applications
- Test and Measurement Equipment
- SATCOM
- Radar
- RF Transceivers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| FB-0785 | 7.85 GHz Bandpass Filter | Standard | Non-RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| FB-0785 | 7.85 GHz Bandpass Filter | Standard | Non-RoHS | Released | EAR99 |
FB-0785
7.85 GHz Bandpass Filter
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2012-09-26 | Datasheet Initial Release |
FB-0785
7.85 GHz Bandpass Filter
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Input/Output | SMAF | Port 1 is DC open to Port 2 and GND. GND is provided through the case and RF connectors. |  |
| Port 2 | Input/Output | SMAF | Port 2 is DC open to Port 1 and GND. GND is provided through the case and RF connectors. | |
FB-0785
7.85 GHz Bandpass Filter
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 1 | W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 33g |
| Dimensions | - | 43.18 x 18.8 mm |
FB-0785
7.85 GHz Bandpass Filter
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 7.29 | 8.49 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 7.29 | 8.49 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 6.63 | 9.15 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 7.87 | - | GHz |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 1.9 | 3.0 | dB |
| Passband Return Loss | Temp = 25°C | - | - | 10 | 14 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 994 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Stopband Suppression | 25°C | 6.3 | 9.4 | 25 | - | 30 | dB |
| Stopband Suppression | Configuration A, 25°C
| 5.5 | 10.2 | 40 | - | 50 | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc Passband | Temp = 25°C | 7.29 | 8.49 | - | - | - | GHz |
| 3 dBc Passband | Temp = 25°C | 7.29 | 8.49 | - | - | - | GHz |
| 30 dBc Rejection Point | Temp = 25°C | 6.63 | 9.15 | - | - | - | GHz |
| Center Freq | Temp = 25°C | - | - | - | 7.87 | - | GHz |
| Insertion Loss @ fc | Temp = 25°C | - | - | - | 1.9 | 3.0 | dB |
| Passband Return Loss | Temp = 25°C | - | - | 10 | 14 | - | dB |
| Group Delay | Temp = 25°C | - | - | - | 994 | - | ps |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Stopband Suppression | 25°C | 6.3 | 9.4 | 25 | - | 30 | dB |
| Stopband Suppression | Configuration A, 25°C
| 5.5 | 10.2 | 40 | - | 50 | dB |
FB-0785
7.85 GHz Bandpass Filter
Typical Performance Plots
FB-0785
7.85 GHz Bandpass Filter

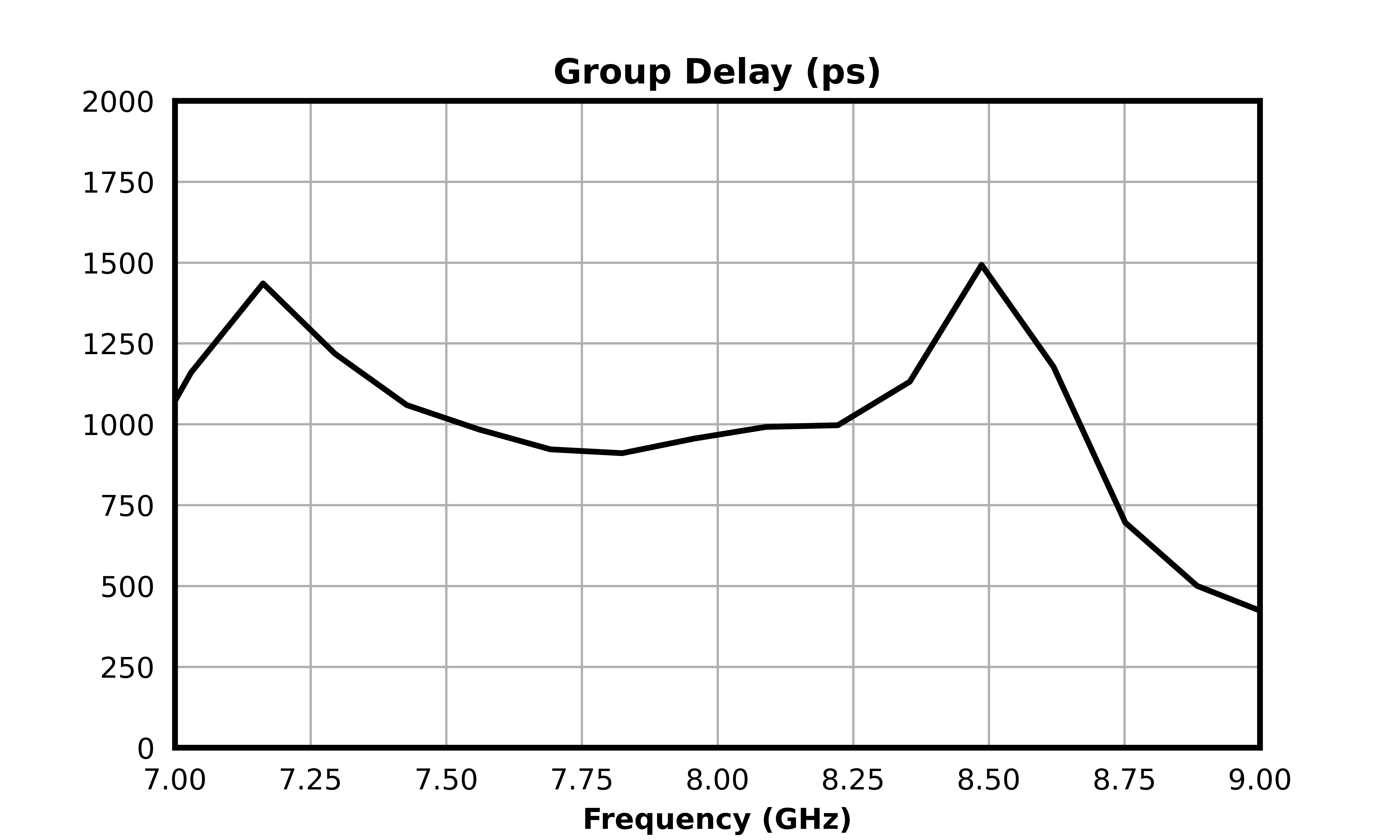

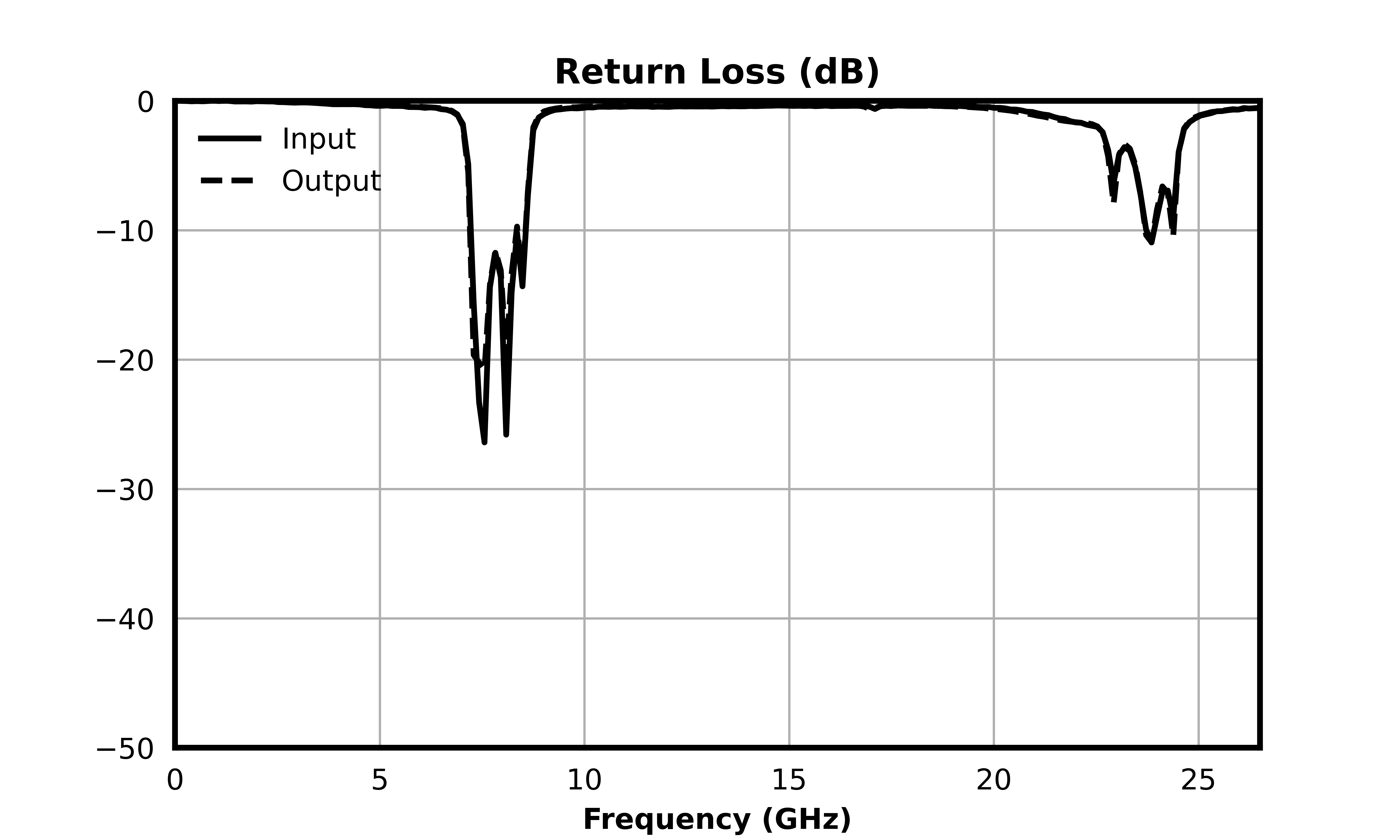

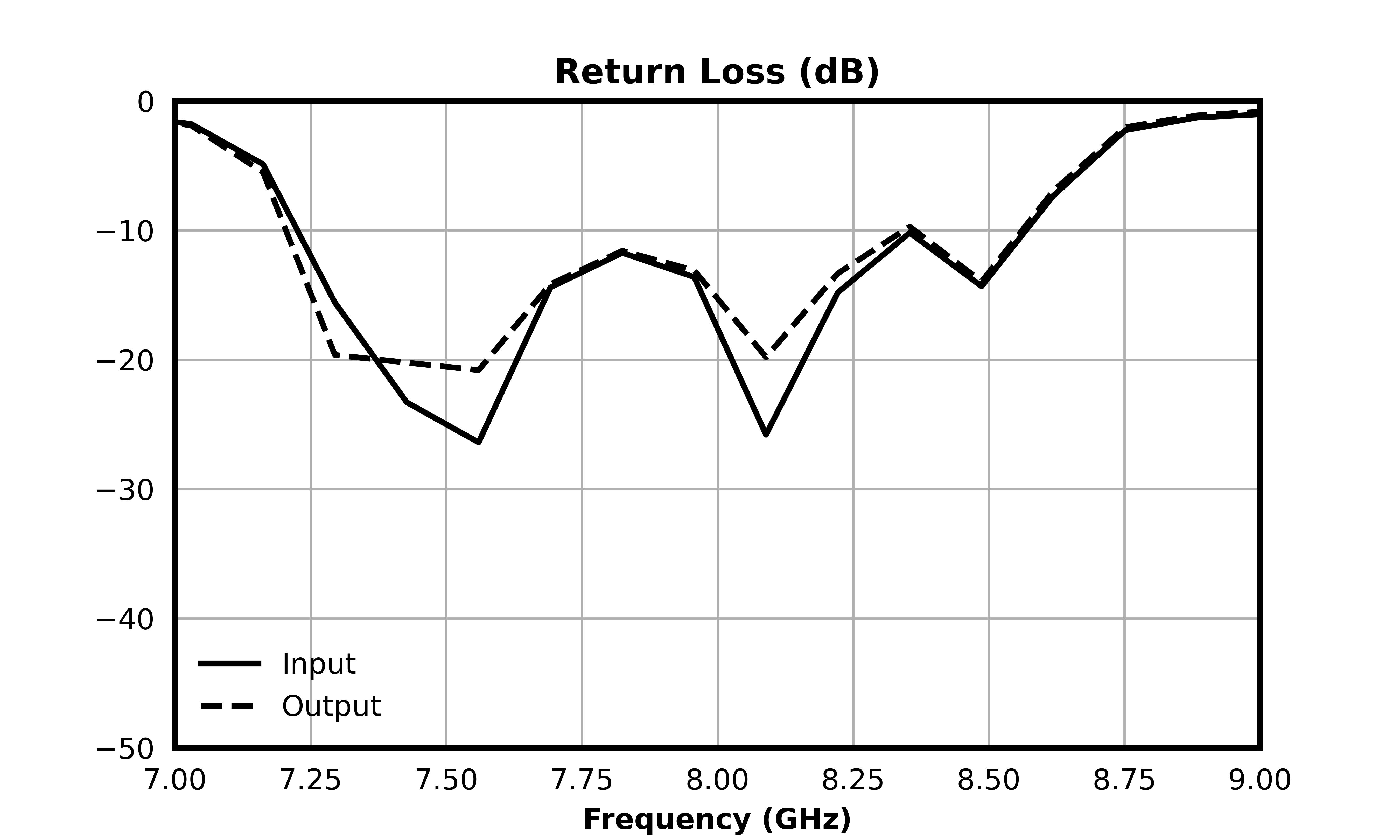

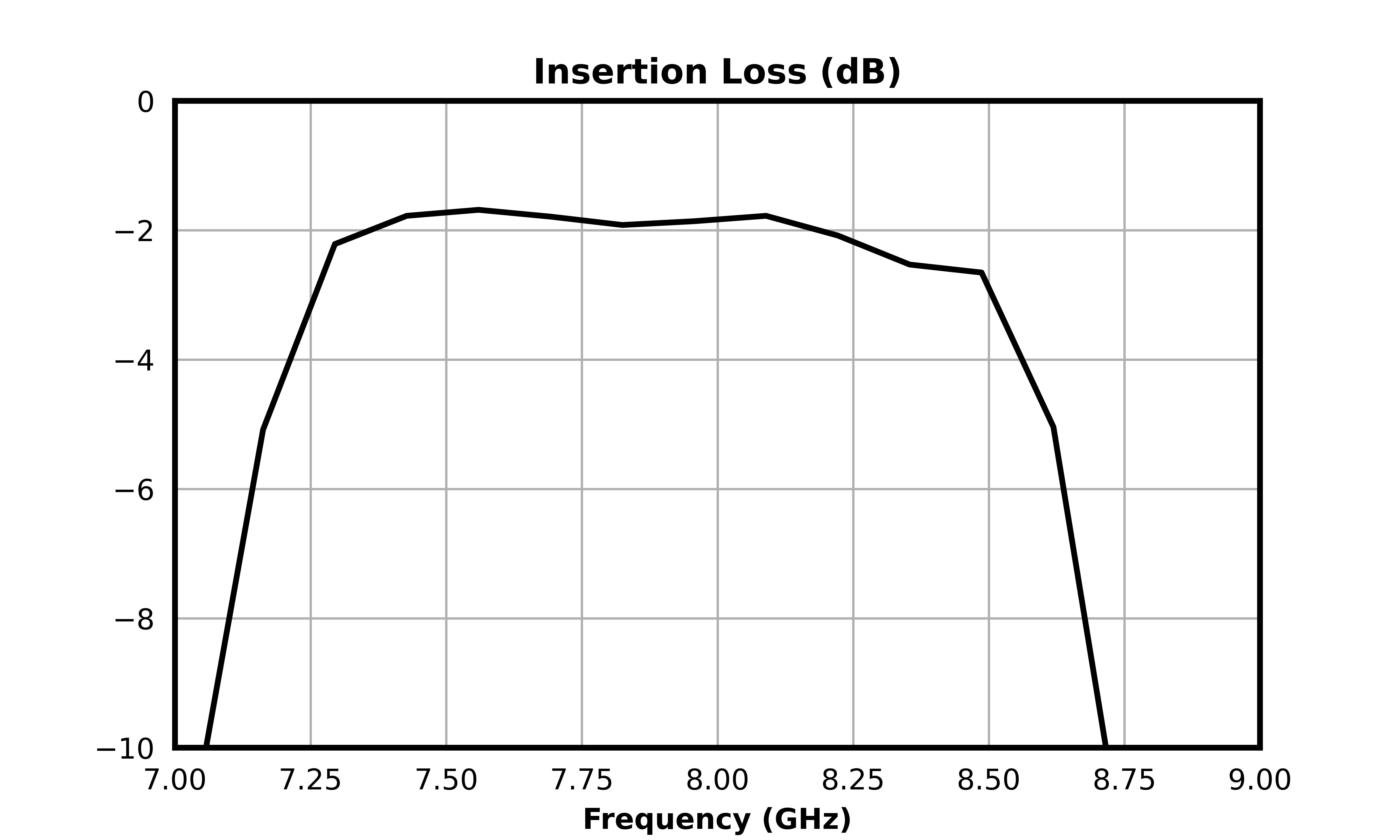

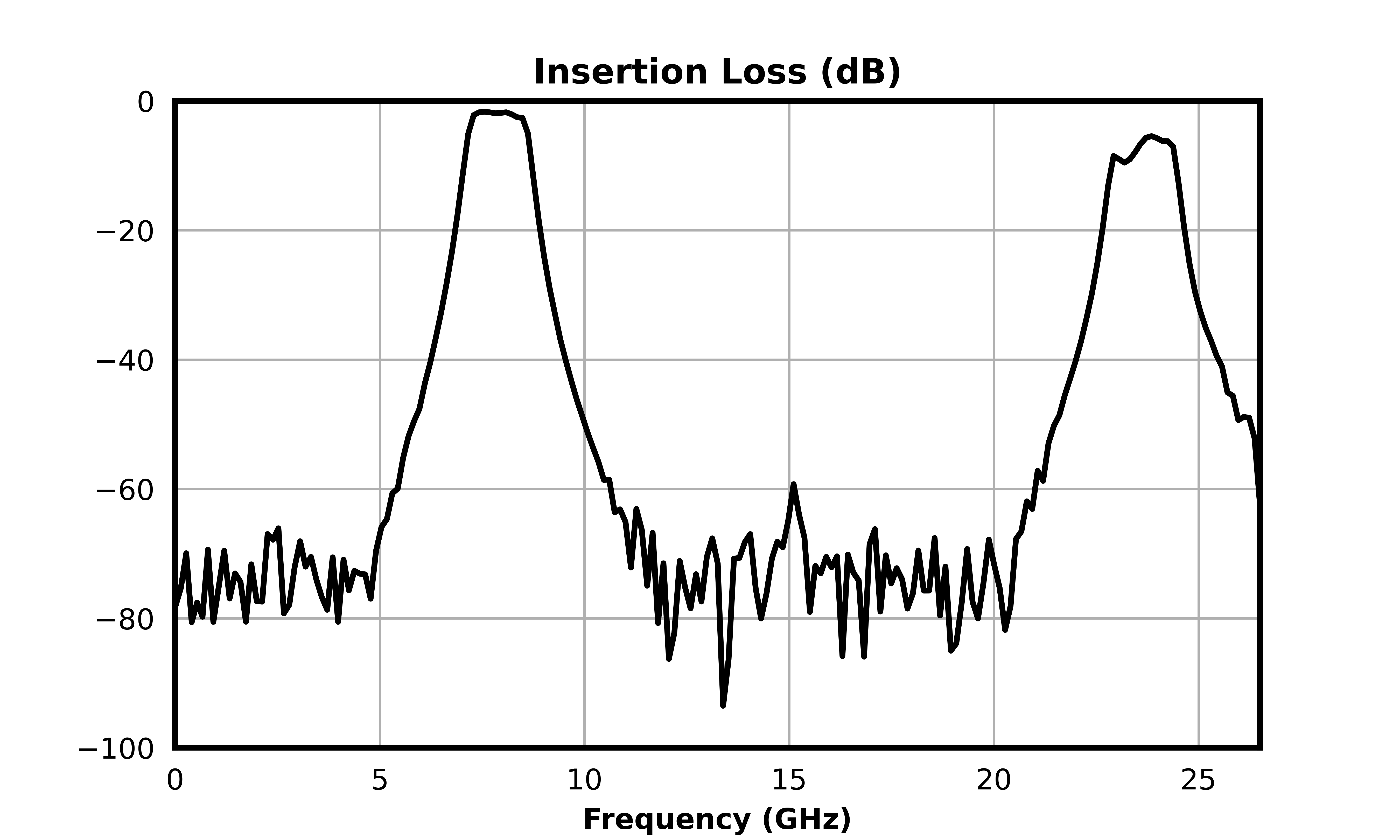

Typical Performance Plot
.png)
.png)
.png)
.png)
.png)
