MEQ6-60ABH
Passive GaAs MMIC DC-60 GHz 6dB Equalizer
The MEQ6-60ABH passive MMIC equalizer is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. This equalizer provides 4 dB positive slope equalization from DC to 60 GHz with a DC attenuation value of 6 dB and a 50-ohm match maintained over the entire operating range. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor. Contact the factory for connectorized versions of our other MEQ products.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 60 | GHz |
| Return Loss | 24 | dB |
| Insertion Loss | 2.1 | dB |
| Insertion Loss at DC | 5.9 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ6-60ABH | Passive GaAs MMIC DC-60 GHz 6dB Equalizer | BH | - | REACH RoHS | Released | EAR99 |
.png)
.png)
.png)
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a BH package with a sine wave input applied to port 1.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 60 | - | - | - | GHz |
| Insertion Loss at DC | Configuration A, Temp = 25°C | 0 | 0 | - | 5.9 | - | dB |

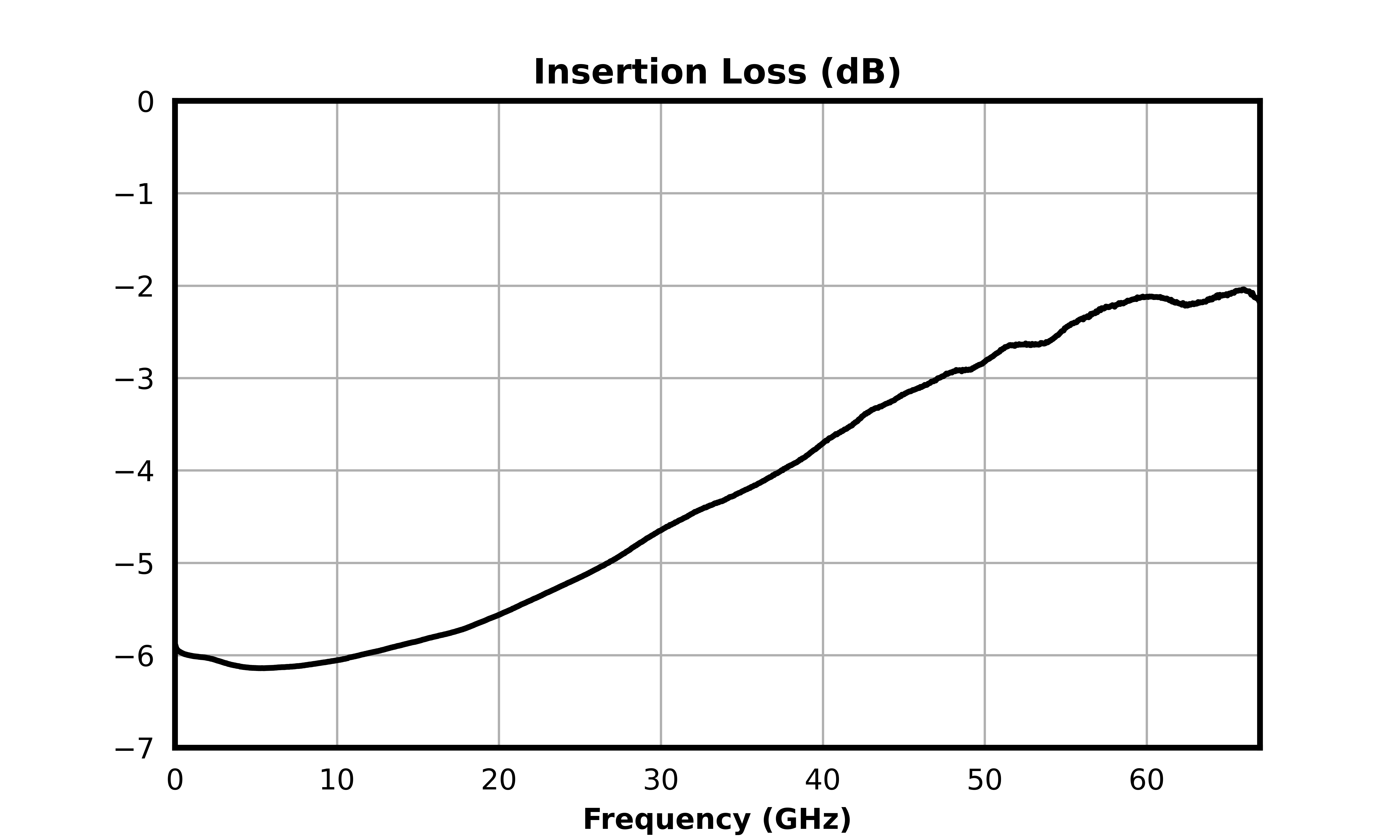

| Insertion Loss | Configuration A, Temp = 25°C | 30 | 30 | - | 4.7 | - | dB |
| Insertion Loss | Configuration A, Temp = 25°C | 60 | 60 | - | 2.1 | - | dB |
| Equalization Value | Configuration A, Temp = 25°C | 0 | 60 | - | 4.0 | - | dB |

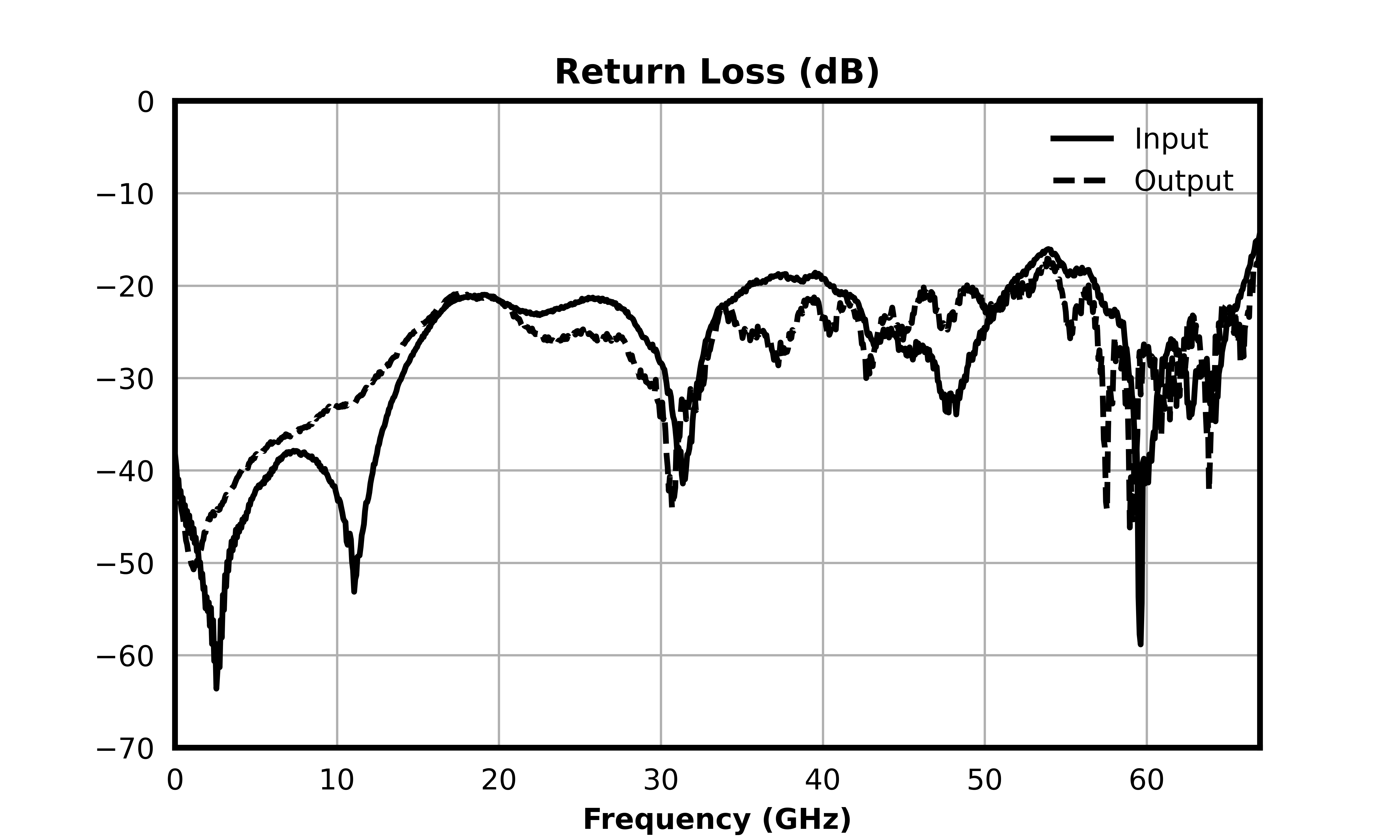

| Return Loss | Configuration A, Temp = 25°C | 0 | 60 | - | 24 | - | dB |

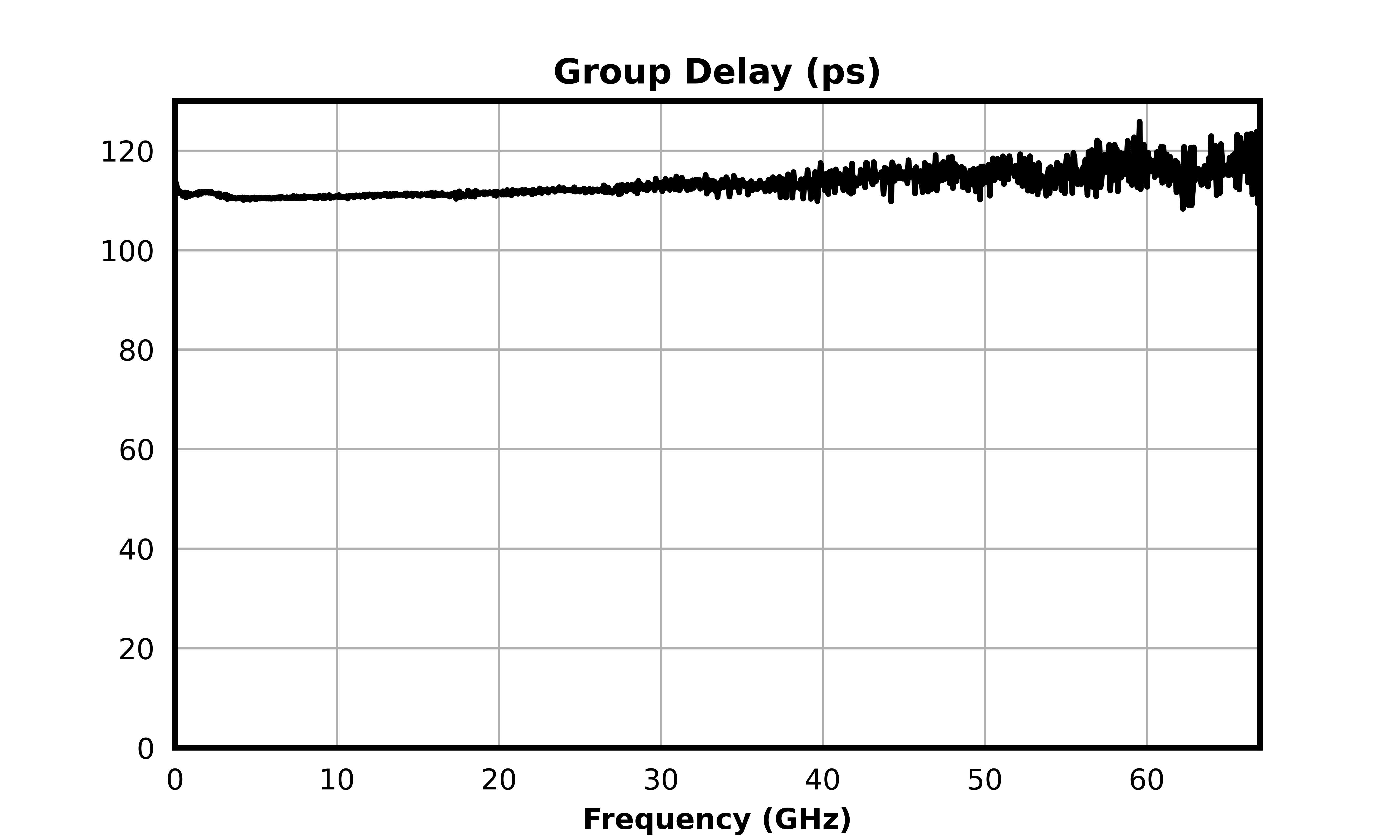

| Group Delay | Configuration A, Temp = 25°C | 0 | 60 | - | 112 | - | ps |
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 15 | mA |
| Port 2 DC Current | 15 | mA |
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 32.8 x 9.5 mm |
The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | BH package ground is provided through metal housing and outer coax conductor. |  |
| Port 1 | Input/Output | 1.85F | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Port 2 | Input/Output | 1.85M | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |

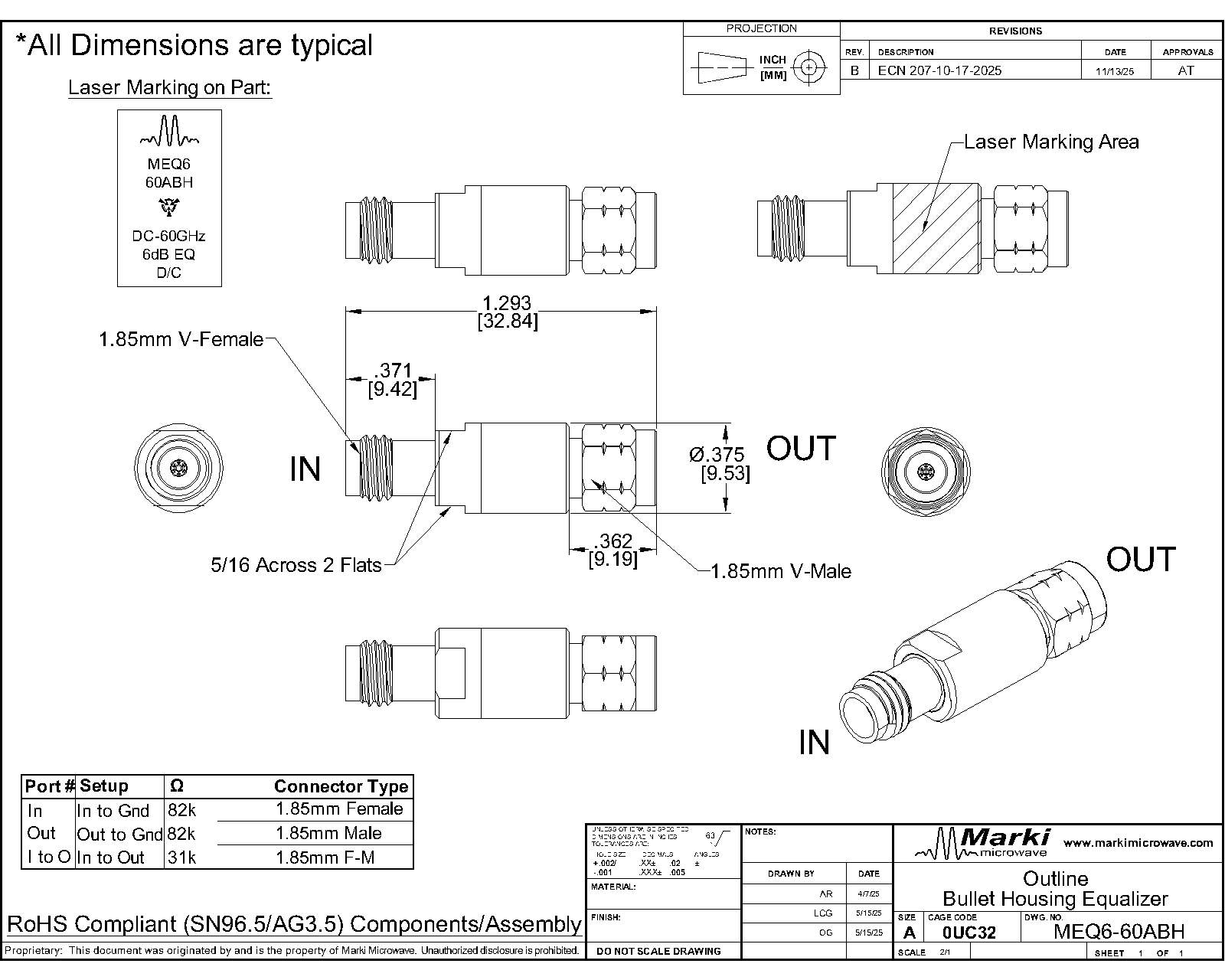

Download : Outline 2D Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-06-13 | Initial Release |
