Port Diagram
The MEQ equalizers are symmetrical allowing Port 1 or Port 2 to be used as the input.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The MEQ4-60ABH passive MMIC equalizer is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. This equalizer provides 2.6 dB positive slope equalization from DC to 60 GHz with a DC attenuation value of 4 dB and a 50-ohm match maintained over the entire operating range. GaAs MMIC technology provides consistent unit-to-unit performance in a small, low cost form factor. Contact the factory for connectorized versions of our other MEQ products.
Features
- DC attenuation of 3.9 dB
- Typical Insertion Loss of 1.6 dB at 60 GHz
- Typical 25 dB Return Loss over the entire band
Applications
- RF Transceivers
- High-Speed Data
- Telecom
- Cable Loss Compensation
- Amplifier Compensation
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ4-60ABH | Passive GaAs MMIC DC-60 GHz 4 dB Equalizer | BH | - | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| MEQ4-60ABH | Passive GaAs MMIC DC-60 GHz 4 dB Equalizer | BH | - | REACH RoHS | Released | EAR99 |
MEQ4-60ABH
Passive GaAs MMIC DC-60 GHz 4 dB Equalizer
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-06-13 | Initial Release |
MEQ4-60ABH
Passive GaAs MMIC DC-60 GHz 4 dB Equalizer
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | BH package ground is provided through metal housing and outer coax conductor. |  |
| Port 1 | Input/Output | 1.85F | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Port 2 | Input/Output | 1.85M | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
MEQ4-60ABH
Passive GaAs MMIC DC-60 GHz 4 dB Equalizer
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| Port 1 DC Current | 10 | mA |
| Port 2 DC Current | 10 | mA |

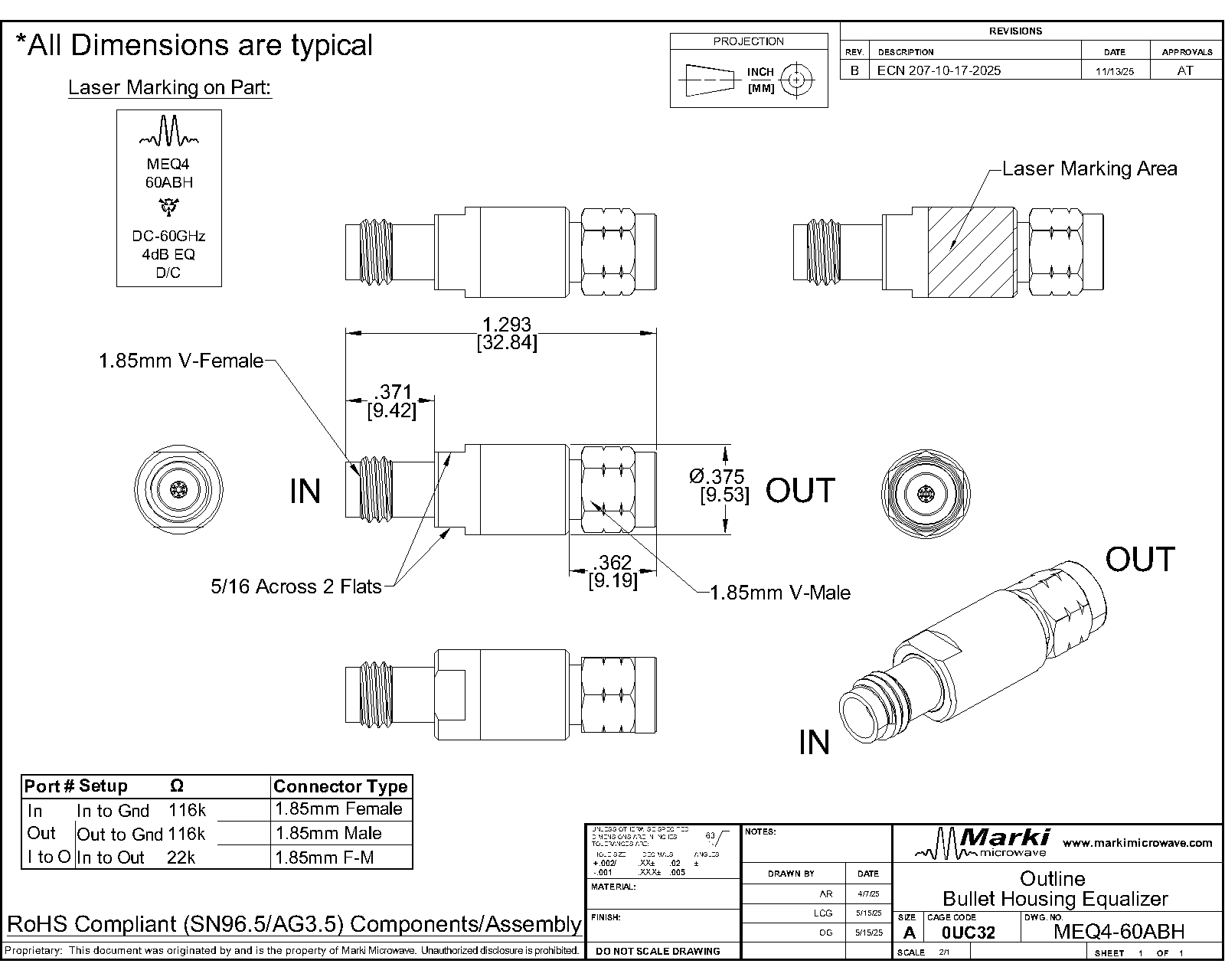

Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | 250 to < 500 Volts | HBM Class 1A |
| Dimensions | - | 32.8 x 9.5 mm |
MEQ4-60ABH
Passive GaAs MMIC DC-60 GHz 4 dB Equalizer
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the equalizer in a BH package with a sine wave input applied to port 1.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss at DC | Temp = 25°C | 0 | 0 | - | 3.9 | - | dB |
| Insertion Loss | Temp = 25°C | 30 | 30 | - | 3.5 | - | dB |
| Insertion Loss | Temp = 25°C | 60 | 60 | - | 1.6 | - | dB |
| Equalization Value 1 | Temp = 25°C | 0 | 60 | - | 2.6 | - | dB |
| Return Loss | Temp = 25°C | 0 | 60 | - | 25 | - | dB |
| Group Delay | Temp = 25°C | 0 | 60 | - | 113 | - | ps |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss at DC | Temp = 25°C | 0 | 0 | - | 3.9 | - | dB |
| Insertion Loss | Temp = 25°C | 30 | 30 | - | 3.5 | - | dB |
| Insertion Loss | Temp = 25°C | 60 | 60 | - | 1.6 | - | dB |
| Equalization Value 1 | Temp = 25°C | 0 | 60 | - | 2.6 | - | dB |
| Return Loss | Temp = 25°C | 0 | 60 | - | 25 | - | dB |
| Group Delay | Temp = 25°C | 0 | 60 | - | 113 | - | ps |
[1] Equalization Value = Max Insertion Loss - Min Insertion Loss
MEQ4-60ABH
Passive GaAs MMIC DC-60 GHz 4 dB Equalizer

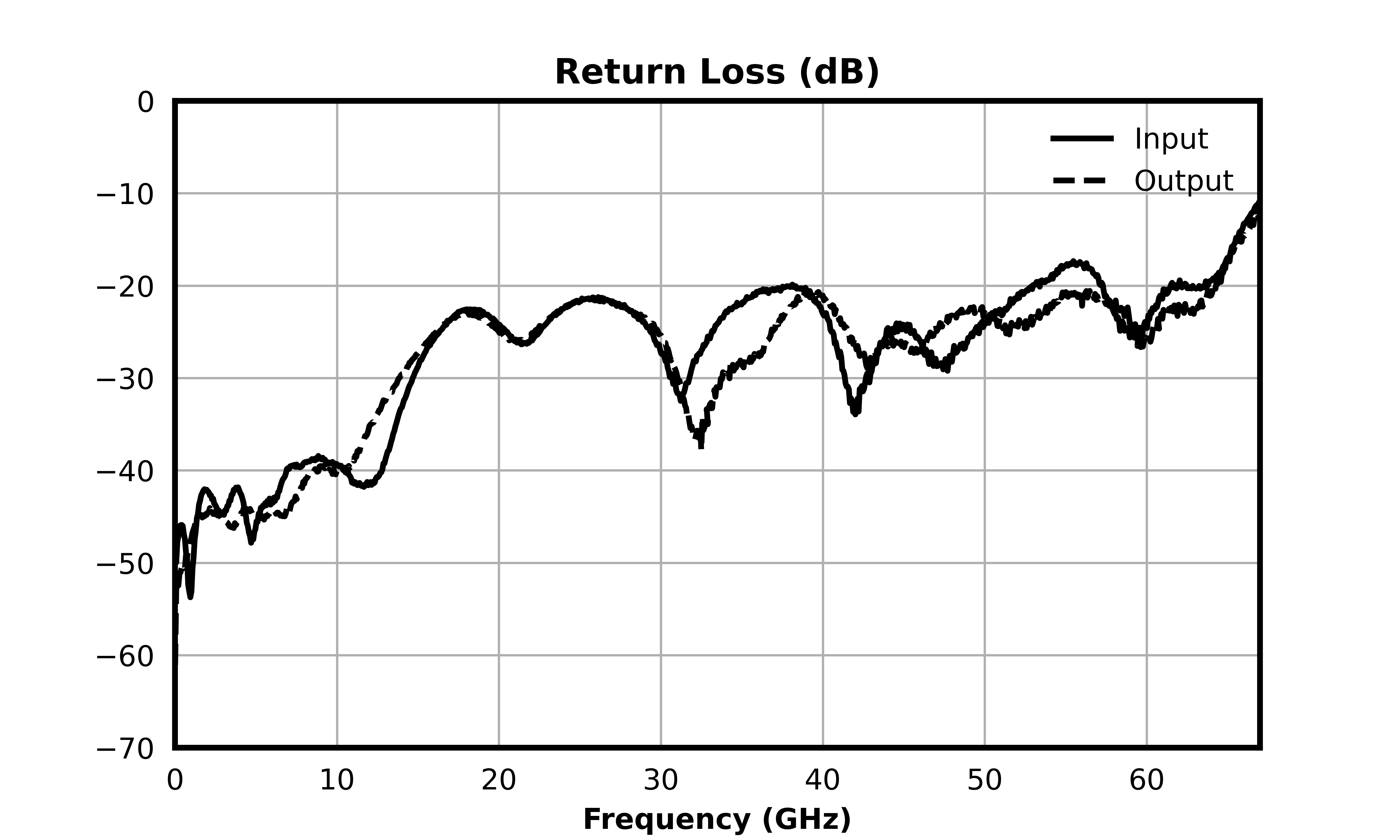

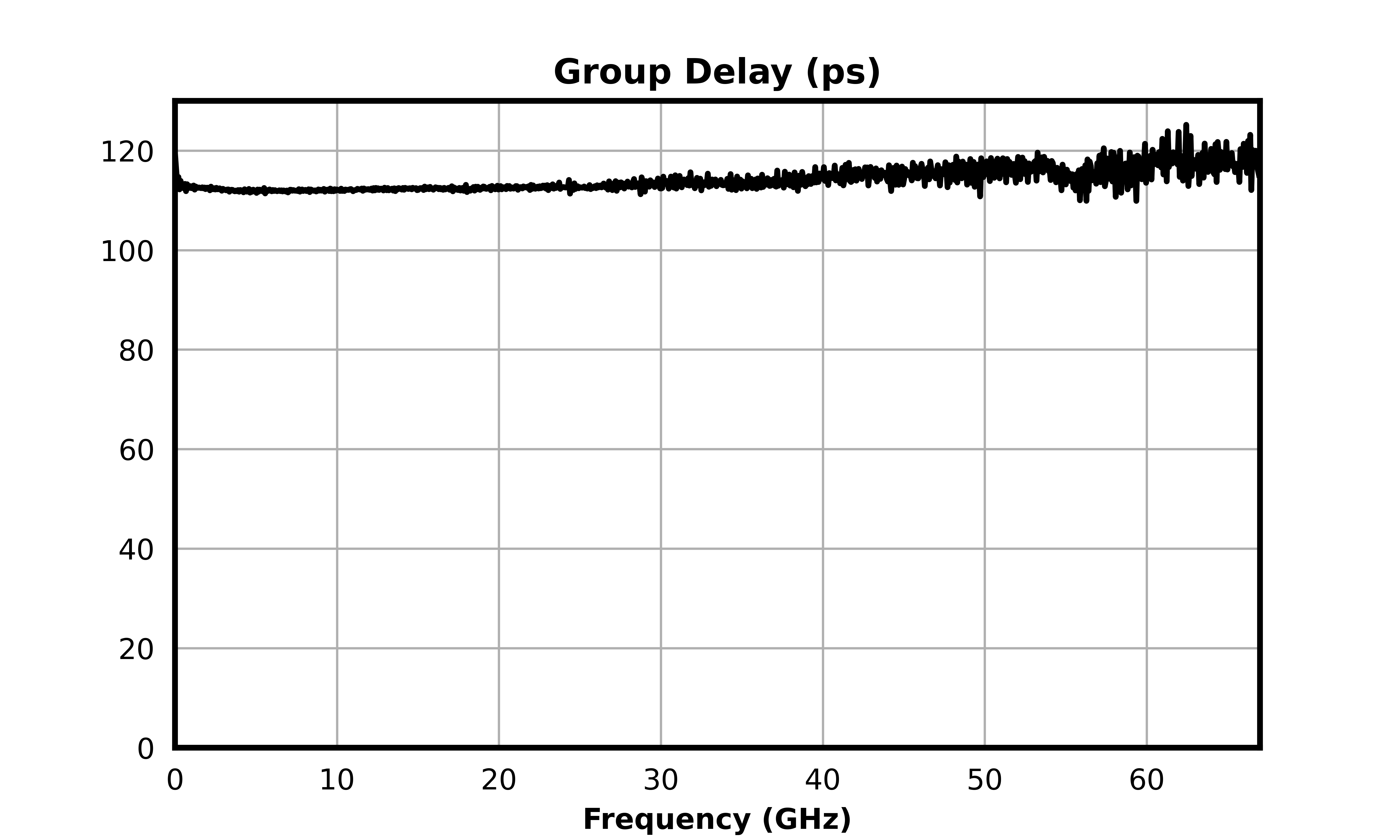

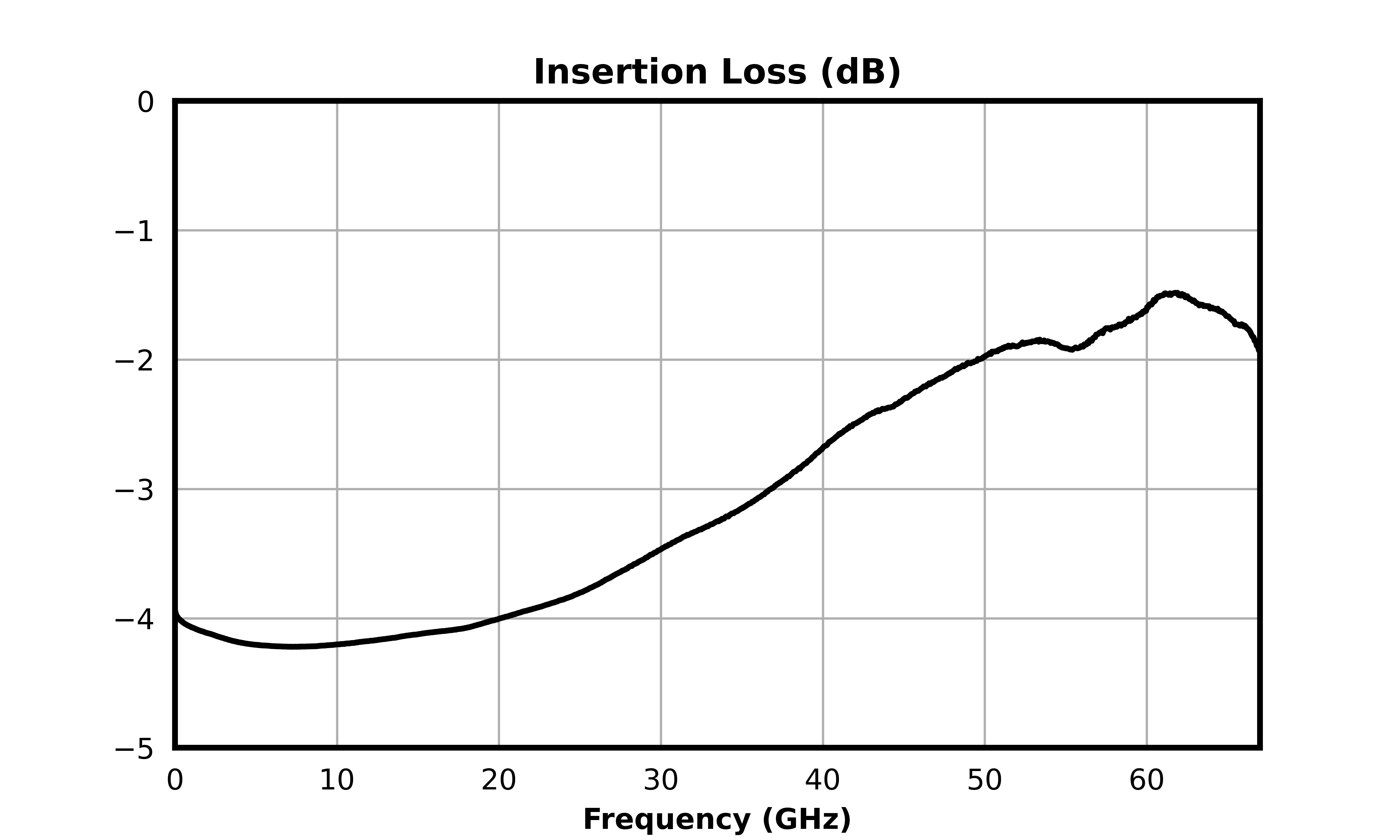

Typical Performance Plot
.png)
.png)
.png)
MEQ4-60ABH
Passive GaAs MMIC DC-60 GHz 4 dB Equalizer
