EQ3-26
Equalizer (26 Gb/s)
The EQ3-26 passive equalizer is an ideal solution for compensating for low pass filtering effects in RF/microwave and high speed digital systems. This equalizer provides positive slope from DC to 26.5 GHz with a DC attenuation value of 3 dB and a 50-ohm match maintained over the entire operating range.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 26.5 | GHz |
| Return Loss | 20 | dB |
| Insertion Loss | 0.8 | dB |
| Insertion Loss at DC | 3 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| EQ3-26 | Equalizer (26 Gb/s) | Standard | Non-RoHS | Released | EAR99 |
Oscilloscope measurements of the EQ3-26 with a 28 Gb/s PRBS pattern. Bit pattern is measured with a 2⁷-1 PRBS input. Eye diagrams are taken with a 2³¹-1 PRBS input. The "Input Data Pattern" figure is uncorrelated with the other patterns due to the additional cable length.
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 26.5 | - | - | - | GHz |
| Insertion Loss | - | 6 | 6 | - | 1.2 | - | dB |
| Insertion Loss | - | 26 | 26 | - | 0.8 | - | dB |
| Insertion Loss at DC | - | 0 | 0 | - | 3 | - | dB |
| Risetime/Falltime 1 | - | 0 | 26.5 | - | 14 | - | ps |
| Return Loss | - | 0 | 26.5 | - | 20 | - | dB |
[1] Specified as 20%/80%.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 0.25 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 9g |
| Dimensions | - | 11.94 x 11.94 mm |
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Pad | Ground | - | Ground provided through metal housing and outer coax conductor. |  |
| Port 1 | Input/Output | SMAF | Port 1 is DC connected to ground through a resistor. DC block is required if voltage present. |  |
| Port 2 | Input/Output | SMAF | Port 2 is DC connected to ground through a resistor. DC block is required if voltage present. |  |

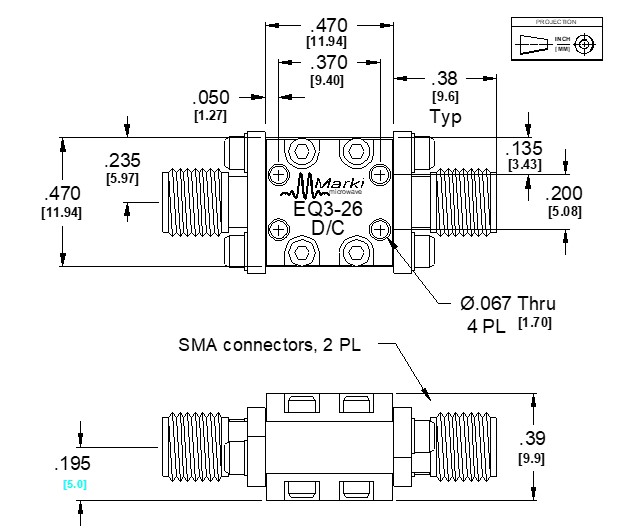

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2016-09-12 | Initial Date Release |
