The CE16-0220T is a next generation broadband 2GHz to 20GHz, 16dB directional coupler from the Marki Elite Series. Conductive paint is applied to all Elite Series products to reduce EMI/RFI leakage and susceptibility. The CE16-0220T offers the best directivity, return loss, and coupling accuracy available on the market. Available as a three port directional coupler with included 50Ω termination on the isolated port, the CE16-0220T is an exceptional choice for broadband return loss measurements, power leveling, and signal monitoring applications. Sophisticated neural network design techniques combined with deep circuit knowledge and triplate stripline construction allow the Marki Elite Series of Couplers to provide superior performance to all other directional couplers available.
N/A
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| CE16-0220T | Elite 2 - 20 GHz Directional Coupler | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| CE16-0220T | Elite 2 - 20 GHz Directional Coupler | Standard | REACH RoHS | Released | EAR99 |
CE16-0220T
Elite 2 - 20 GHz Directional Coupler
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2022-04-01 | Datasheet Initial Release |
CE16-0220T
Elite 2 - 20 GHz Directional Coupler

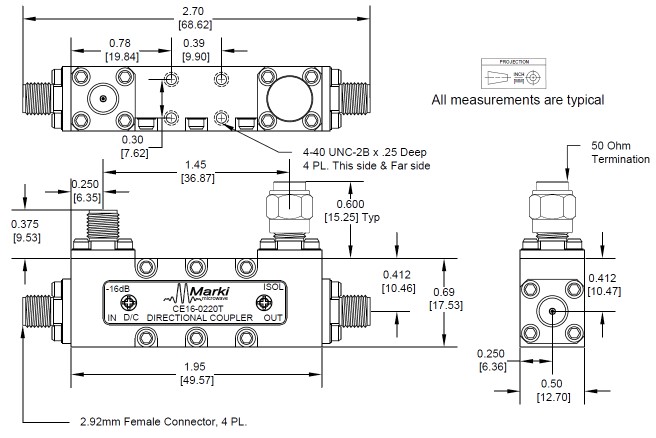

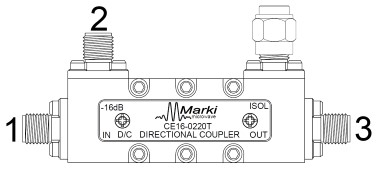

A side view of the CE16-0220T package outline drawing is shown below. The CE16-0220T has input and output ports given in Port Functions. The CE16-0220T can be used in the forward direction by configuring the coupler with the input signal into port 1, using port 2 for coupled port, and port 3 for output port.
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | Forward Power Input and Reflected Power Output | 2.92F | The input port is DC short to the output port and open coupled port. |  |
| Port 2 | Coupled | 2.92F | The coupled port is DC open to the input and output ports. | |
| Port 3 | Forward Power Output And Reflected Power Input | 2.92F | The output port is DC short to the input port and open coupled port. | |
CE16-0220T
Elite 2 - 20 GHz Directional Coupler
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 20 | W |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Minimum Storage Temperature | -65 | °C |
| Maximum Storage Temperature | 125 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Dimensions | - | 49.57 × 17.53 mm |
CE16-0220T
Elite 2 - 20 GHz Directional Coupler
The electrical specifications apply at TA=+25°C in a 50Ω system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness 1 | - | 2 | 20 | - | 0.1 | 0.35 | dB |
| Coupling Loss 2 | - | 2 | 20 | 0.1 | 0.11 | 0.12 | dB |
| Directivity | - | 2 | 20 | 20 | 30 | - | dB |
| Direct Line Insertion Loss | - | 0 | 20 | - | 0.4 | 0.9 | dB |
| Excess Insertion Loss (dB) 3 | - | 0 | 20 | - | 0.3 | 0.78 | dB |
| IL Corrected Directivity 4 | - | 2 | 20 | 21 | 32 | - | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Maximum Coupling Deviation | - | 2 | 20 | - | 0.45 | 0.9 | dB |
| Mean Coupling | - | 2 | 20 | 15.5 | 16 | 16.5 | dB |
| Return Loss | - | 0 | 20 | 20 | 30 | - | dB |
| VSWR | - | 0 | 20 | - | 1.07 | 1.22 |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Flatness 1 | - | 2 | 20 | - | 0.1 | 0.35 | dB |
| Coupling Loss 2 | - | 2 | 20 | 0.1 | 0.11 | 0.12 | dB |
| Directivity | - | 2 | 20 | 20 | 30 | - | dB |
| Direct Line Insertion Loss | - | 0 | 20 | - | 0.4 | 0.9 | dB |
| Excess Insertion Loss (dB) 3 | - | 0 | 20 | - | 0.3 | 0.78 | dB |
| IL Corrected Directivity 4 | - | 2 | 20 | 21 | 32 | - | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Maximum Coupling Deviation | - | 2 | 20 | - | 0.45 | 0.9 | dB |
| Mean Coupling | - | 2 | 20 | 15.5 | 16 | 16.5 | dB |
| Return Loss | - | 0 | 20 | 20 | 30 | - | dB |
| VSWR | - | 0 | 20 | - | 1.07 | 1.22 |
[1] Amplitude Flatness = Median value of ABS(Measured Coupling Power – Average Coupling Factor).
[2] Coupling loss based on average coupling factor.
[3] Excess Insertion Loss = (Input Port to Output Port Insertion Loss) – Coupling Loss.
[4] IL Corrected Directivity = Directivity + Insertion Loss.
