CD10-0114

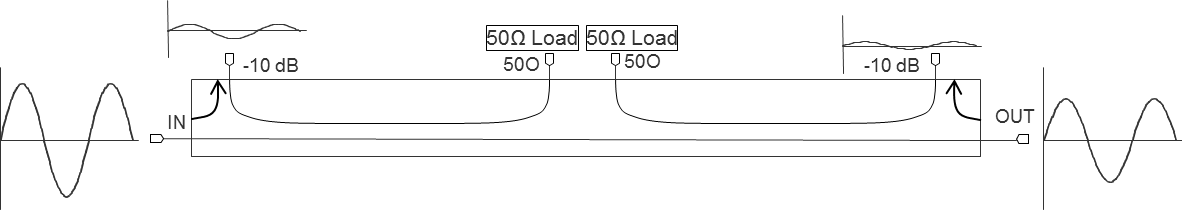

DUAL DIRECTIONAL COUPLER
The CD10-0114 is a broadband, high directivity 0.8-14.7 GHz, 10 dB dual directional coupler. The multisection tri-plate stripline design exhibits excellent coupling flatness and VSWR at all ports. Applications include reflectometry (return loss) measurements, level monitoring, etc. Custom designs are also available, contact the factory for details.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.8 to 14.7 | GHz |
| RF Power Handling | 50 | W |
| Directivity | 23 | dB |
| Mean Coupling | 10 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| CD10-0114 | DUAL DIRECTIONAL COUPLER | Standard | Non-RoHS | Released | EAR99 |
Specifications guaranteed when operated in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.8 | 14.7 | - | - | - | GHz |
| Amplitude Flatness 1 | - | 0.8 | 14.7 | - | 0.6 | 1.75 | dB |
| Directivity | - | 0.8 | 12 | 20 | 23 | - | dB |
| Directivity | - | 12 | 14.7 | 15 | 18 | - | dB |
| Direct Line Insertion Loss | DC-14.7 | - | - | - | - | 3 | dB |
| Mean Coupling | - | 0.8 | 14.7 | - | 10 | - | dB |
| VSWR | - | 0.8 | 14.7 | - | 1.17 | 1.34 | - |
[1] Deviation from average coupling.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 50 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 132g |
| Dimensions | - | 212.3 × 13.97 mm |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
