Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 1 | W |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The CBR16-0003 offers the highest directivity of any standalone 3 GHz bridge coupler on the market. It provides an extremely high degree of measurement accuracy for forward power measurements, and can also be used to measure VSWR/return loss (see Directivity and VSWR Measurement App Note). The flat coupling ratio, high directivity, and broadband performance to 200 kHz make the CBR16-0003 an excellent ‘black box’ coupler for everyday lab use.
Features
- Broadband Performance
- High Directivity
- Low VSWR
- Excellent Coupling Flatness
- Compact Size and Lightweight
Applications
N/A

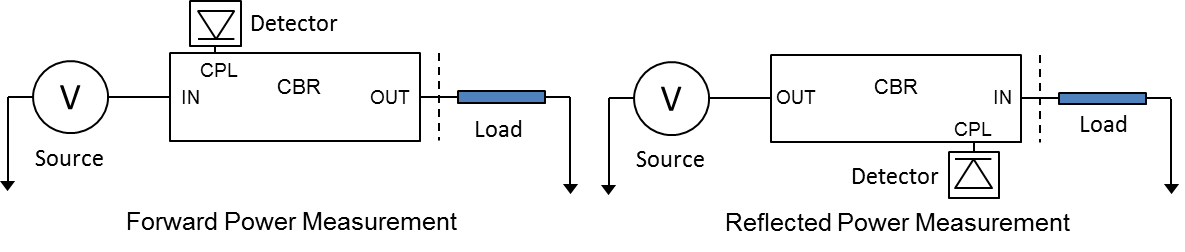

Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| CBR16-0003 | High Directivity Bridge Coupler | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| CBR16-0003 | High Directivity Bridge Coupler | Standard | REACH RoHS | Released | EAR99 |
CBR16-0003
High Directivity Bridge Coupler
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2019-06-06 | Initial Date Release |
CBR16-0003
High Directivity Bridge Coupler
Specifications
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 30g |
| Dimensions | - | 43.18 x 17.53 mm |
CBR16-0003
High Directivity Bridge Coupler
Electrical Specifications
Specifications guaranteed when operated in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Directivity | - | 0.8 | 3 | 30 | 40 | - | dB |
| Directivity | - | 0.0002 | 0.8 | - | 25 | - | dB |
| Direct Line Insertion Loss | - | 0.0002 | 3 | - | - | 2.2 | dB |
| Mean Coupling | - | 0.0002 | 3 | - | 16 | - | dB |
| VSWR | - | 0.0002 | 3 | - | 1.1 | 1.4 |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Directivity | - | 0.8 | 3 | 30 | 40 | - | dB |
| Directivity | - | 0.0002 | 0.8 | - | 25 | - | dB |
| Direct Line Insertion Loss | - | 0.0002 | 3 | - | - | 2.2 | dB |
| Mean Coupling | - | 0.0002 | 3 | - | 16 | - | dB |
| VSWR | - | 0.0002 | 3 | - | 1.1 | 1.4 |
CBR16-0003
High Directivity Bridge Coupler
Typical Performance Plots
CBR16-0003
High Directivity Bridge Coupler
