CA-40_AIR-LINE DIRECTIONAL COUPLER

General Description

The CA-40 is a low loss directional coupler capable of operation to 40 GHz. This coupler features a unique air-line construction that simultaneously enables extremely low loss, minimal return loss, and outstanding directivity throughout the entire frequency range to 40 GHz. This coupler can be used for low loss and high power applications. The useable operating frequencies extend below 1 GHz for applications where calibration of the frequency response is available.

Download s-parameters here

Features

Low Insertion Loss and VSWR
Broadband Performance
High Directivity
Compact Size and Lightweight

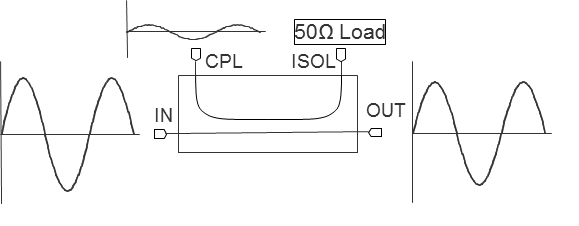

Functional Block Diagram

Download PDF

Electrical Performance Summary

Parameter	Typ	Unit
Frequency Range	1 to 40	GHz
RF Power Handling	20	W
Directivity	24	dB
Mean Coupling	27	dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
CA-40	AIR-LINE DIRECTIONAL COUPLER	Standard	REACH RoHS	Released	EAR99

Part Number

Description

Connectors

Green Status

Product Lifecycle

Export Classification

CA-40

AIR-LINE DIRECTIONAL COUPLER

Standard

REACH

RoHS

Released

EAR99

Device Overview
Specifications
Mechanical Data
- Outline Drawing

Typical Performance

Direct line insertion loss graph for CA-40

Typical port return loss graph for CA-40

Specifications

Electrical Specifications

Specifications guaranteed when operated in a 50Ω system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Frequency Range	-	1	40	-	-	-	GHz
Directivity	-	1	15	18	24	-	dB
Directivity	-	15	40	13	18	-	dB
Direct Line Insertion Loss	DC to 20 GHz	-	-	-	0.3	0.6	dB
Direct Line Insertion Loss	-	20	40	-	0.5	1	dB
Mean Coupling	-	20	40	32	27	25	dB
Mean Coupling	-	1	1	-	53	-	dB
VSWR	-	1	15	-	1.1	1.4	-
VSWR	-	15	40	-	1.3	1.6	-

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
RF Power Handling	20	W

Package Information

Parameter	Details	Rating
Weight	-	36g
Dimensions	-	30.48 x 30.48 mm

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
