CA-18
AIR-LINE DIRECTIONAL COUPLER

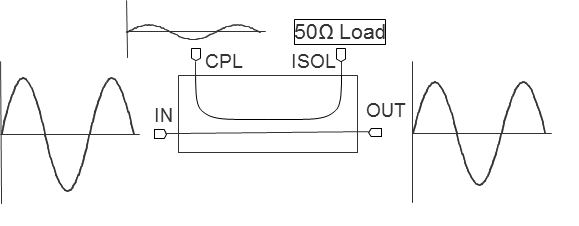

The CA-18 is a high power type N-connectorized bidirectional coupler capable of operation to 18 GHz. This coupler features a unique air-line construction that simultaneously enables extremely low loss and high directivity. This coupler can be used for low loss and high power applications. The useable operating frequencies extend below 1 GHz for applications where calibration of the frequency response is available.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 1 to 18 | GHz |
| RF Power Handling | 200 | W |
| Directivity | 22 | dB |
| Mean Coupling | 30 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| CA-18 | AIR-LINE DIRECTIONAL COUPLER | Standard | REACH RoHS | Released | EAR99 |
Specifications guaranteed when operated in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 1 | 18 | - | - | - | GHz |
| Directivity | - | 14 | 18 | 12 | 16 | - | dB |
| Directivity | - | 1 | 14 | 15 | 22 | - | dB |
| Direct Line Insertion Loss | DC - 12 GHz | - | - | - | 0.2 | 0.4 | dB |
| Direct Line Insertion Loss | - | 12 | 18 | - | 0.35 | 0.7 | dB |
| Mean Coupling | - | 1 | 1 | - | 50 | - | dB |
| Mean Coupling | - | 18 | 18 | - | 30 | - | dB |
| VSWR | - | 5 | 18 | - | 1.4 | - | - |
| VSWR | - | 1 | 5 | - | 1.2 | 1.35 | - |
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -55 | °C |
| RF Power Handling | 200 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 215g |
| Dimensions | - | 50.8 × 42.67 mm |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
