C17-0R518
DIRECTIONAL COUPLER

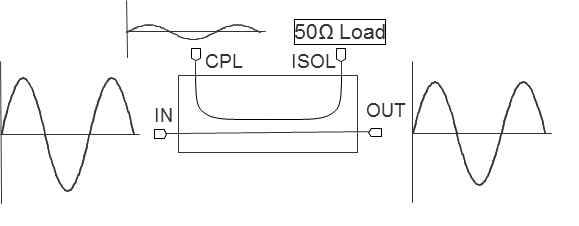

The C17-0R518 is a high power, broadband bidirectional coupler capable of operation to 18 GHz. The multisection stripline design exhibits excellent coupling flatness and VSWR at all ports. This coupler is available with SMA and APC-7 connector option.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.5 to 18 | GHz |
| RF Power Handling | 60 | W |
| Directivity | 18 | dB |
| Mean Coupling | 17 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C17-0R518 | DIRECTIONAL COUPLER | Standard | REACH RoHS | Released | EAR99 |
The electrical specifications apply at TA=+25°C in a 50Ω system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.5 | 18 | - | - | - | GHz |
| Weight 1 | - | - | - | - | 600 | - | g |
| Amplitude Flatness 2 | - | 0.5 | 18 | - | 0.6 | 1.2 | dB |
| Directivity | - | 15 | 18 | 9 | - | - | dB |
| Directivity | - | 15 | 18 | 10 | 14 | - | dB |
| Directivity | - | 0.5 | 15 | 13 | 18 | - | dB |
| Directivity | - | 0.5 | 15 | 10 | - | - | dB |
| Direct Line Insertion Loss | - | 0.5 | 18 | - | - | 1.7 | dB |
| Direct Line Insertion Loss 3 | - | 0.5 | 18 | - | - | 1.8 | dB |
| Direct Line Insertion Loss | - | 0.5 | 0.5 | - | 0.17 | - | dB |
| Direct Line Insertion Loss | - | 12 | 12 | - | 0.64 | - | dB |
| Direct Line Insertion Loss | - | 18 | 18 | - | 1 | - | dB |
| Mean Coupling | - | 0.5 | 18 | - | 17 | - | dB |
| VSWR | - | 15 | 18 | - | 1.45 | - | - |
| VSWR | - | 0.5 | 15 | - | 1.35 | 1.58 | - |
| VSWR | - | 0.5 | 15 | - | - | 2 | - |
[1] Weight listed is for SMA connectorized package. Each APC-7 connector is an additional 50 grams.
[2] Deviation from average coupling.
[3] Max and min values given for SMA (APC-7) connectors.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 60 | W |
| Minimum Storage Temperature | -65 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 600g |

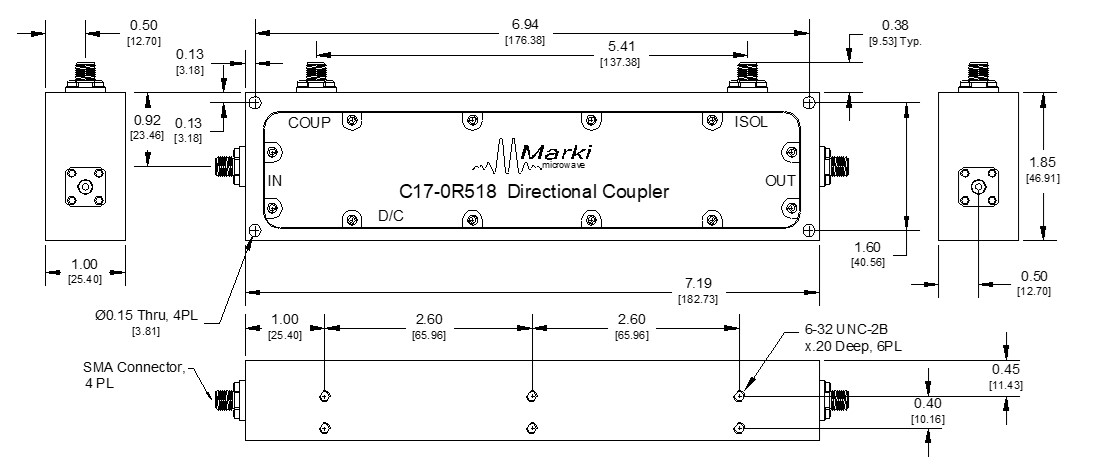

| Dimensions | - | 182.73 x 46.91mm |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
| Revision Code | Revision Date | Comment |
|---|---|---|
| A | 2021-02-01 | Specs table update |
