C09-0R430
DIRECTIONAL COUPLER
The C09-0R430 is a broadband 0.45-30 GHz, 9 dB directional coupler. The multisection tri-plate stripline design exhibits excellent coupling flatness and VSWR at all ports. Custom designs are also available; contact the factory for details
· Ultra Broadband Performance
· Excellent Coupling Flatness
· High Directivity
· Low VSWR
· RoHS Compliant
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.45 to 30 | GHz |
| RF Power Handling | 20 | W |
| Directivity | 20 | dB |
| Mean Coupling | 9 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C09-0R430 | DIRECTIONAL COUPLER | Standard | Non-RoHS | Released | EAR99 |
The electrical specifications apply at TA=+25°C in a 50Ω system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.45 | 30 | - | - | - | GHz |
| Amplitude Flatness 1 | - | 0.45 | 30 | - | 0.7 | 1.4 | dB |
| Directivity | - | 0.45 | 18 | 15 | 20 | - | dB |
| Directivity | - | 18 | 30 | 12 | 16 | - | dB |
| Direct Line Insertion Loss | DC-30GHz | - | - | - | 1.3 | 2.6 | dB |
| Mean Coupling | - | 0.45 | 30 | - | 9 | - | dB |
| VSWR | DC-18GHz | - | - | - | 1.15 | 1.45 | - |
| VSWR | - | 18 | 30 | - | 1.3 | 1.8 | - |
[1] Deviation from average coupling.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 20 | W |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Minimum Storage Temperature | -65 | °C |
| Maximum Storage Temperature | 125 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 90g |
| Dimensions | - | 142.24 x 13.97 mm |

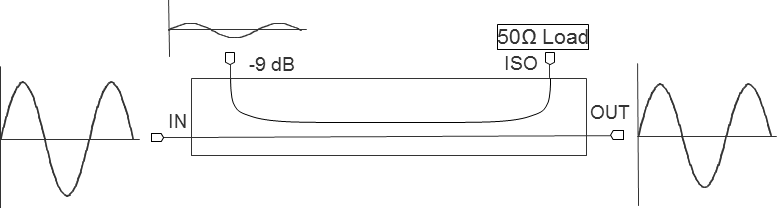

| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| -9dB | -9dB Coupled Output | 2.92F | -9dB coupled output port. | - |
| IN | RF Input | 2.92F | Coupler RF input port. | - |
| ISOL | Isolated | 2.92F | Coupler isolated port. | - |
| OUT | RF Output | 2.92F | Coupler through RF output port. | - |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
| Revision Code | Revision Date | Comment |
|---|---|---|
| B | 2020-04-01 | Updated Direct Line IL specs |
