| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 2 to 65 | GHz |
| RF Power Handling | 3 | W |
| Directivity | 15 | dB |
| Mean Coupling | 12 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
C-0265
DIRECTIONAL COUPLER
General Description
The C-0265 is a 2 to 65 GHz ultra-broadband coupler featuring low insertion loss and excellent return losses in a compact connectorized package.
Features
- Low Insertion Loss
- Broadband Performance
- Compact Size and Lightweight

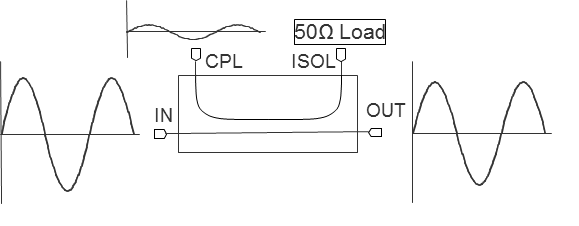

Functional Block Diagram
Electrical Performance Summary
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| C-0265 | DIRECTIONAL COUPLER | Standard | REACH RoHS | Released | EAR99 |
Table Of Contents
Typical Performance
Specifications
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 2 | 65 | - | - | - | GHz |
| Directivity | - | 2 | 25 | - | 15 | - | dB |
| Directivity | - | 25 | 65 | - | 10 | - | dB |
| Direct Line Insertion Loss | - | 0 | 25 | - | 0.3 | 0.6 | dB |
| Direct Line Insertion Loss | - | 25 | 65 | - | 0.7 | 1.4 | dB |
| Mean Coupling | 2 GHz | - | - | - | 35 | - | dB |
| Mean Coupling | 65 GHz | - | - | - | 12 | - | dB |
| VSWR | - | 25 | 65 | - | 1.65 | - | - |
| VSWR | - | 2 | 25 | - | 1.25 | 1.55 | - |
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 3 | W |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Minimum Storage Temperature | -65 | °C |
| Maximum Storage Temperature | 125 | °C |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 15g |
| Dimensions | - | 7.87 x 7.87 mm |
Mechanical Data
Outline Drawing
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| H | 2020-04-01 | Updated Direct Line IL specs |
