MDPX-0609BH_Passive MMIC DC-6 / 9-26.5 GHz Diplexer/Reflectionless Filter

General Description

The MDPX-0609BH is a broadband passive MMIC diplexer, a combination high pass and loss pass filter, capable of multiplexing low frequency DC to 6 GHz and high frequency 9 to 26.5 GHz signals. It can also be used as a reflectionless high pass or low pass filter when terminated with an external 50 Ohm load. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-0609 is available as a 2.92mm connectorized module and as wire bondable die. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.

Download s-parameters here

Features

Crossover Frequency, 7.9 GHz
Low Passband Insertion Loss, < 1dB Typical
High Stop Band Suppression, > 45 dB Typical
Reflectionless Filter
RoHS Compliant

Functional Block Diagram

Download PDF

Electrical Performance Summary

Parameter	Typ	Unit
30 dBc Low Pass Rejection Point	9.36	GHz
1 dBc High Passband	9.26	GHz
Cross Over Frequency	7.91	GHz
30 dBc High Pass Rejection Point	3.96	GHz
1 dBc Low Passband	4.76	GHz

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
MDPX-0609BH	Passive MMIC DC-6 / 9-26.5 GHz Diplexer/Reflectionless Filter	BH	-	REACH RoHS	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

MDPX-0609BH

Passive MMIC DC-6 / 9-26.5 GHz Diplexer/Reflectionless Filter

REACH

RoHS

Released

EAR99

Device Overview
Specifications
Port Configuration and Functions
- Port Diagram
- Port Functions
Mechanical Data
- Outline Drawing
Revision History
Notes

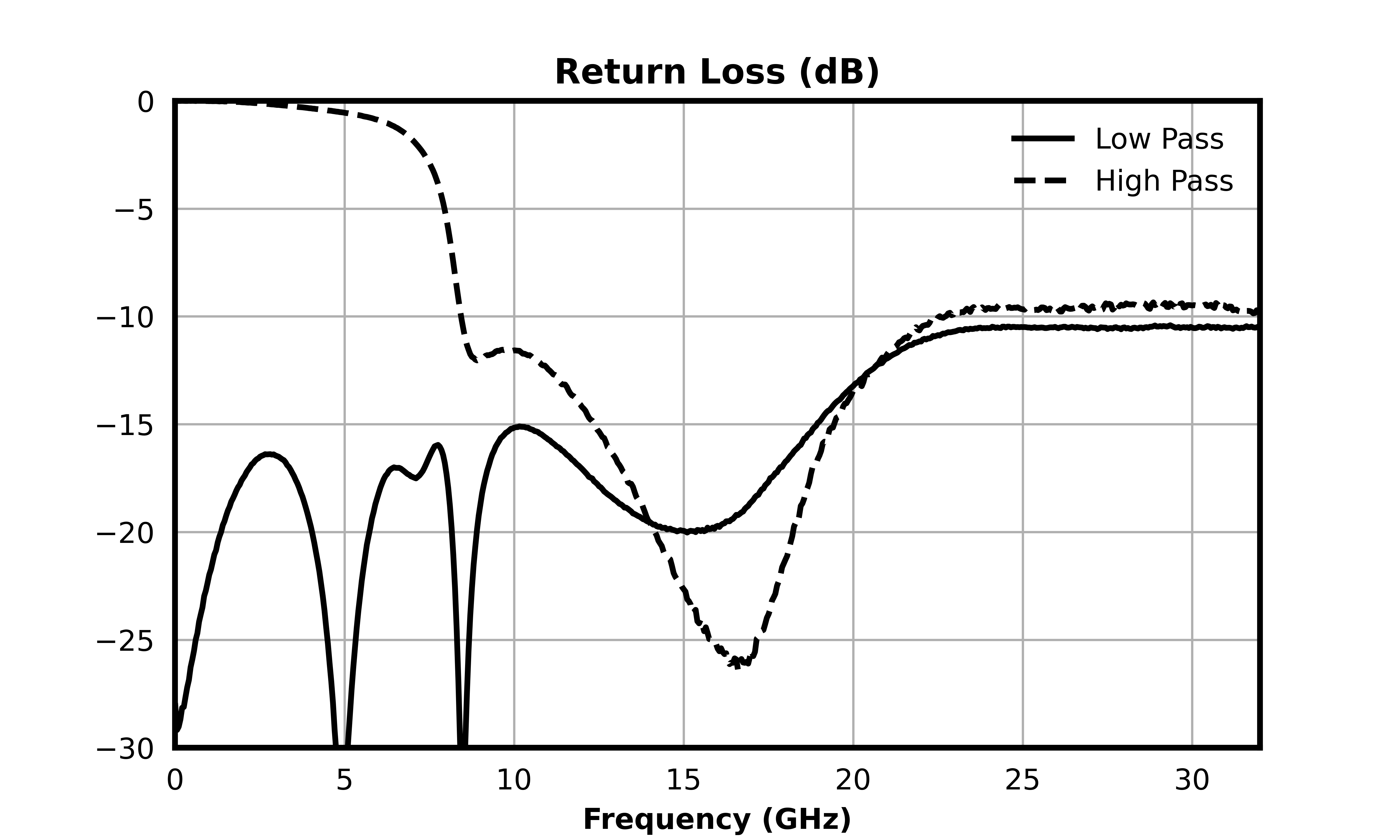

Typical Performance Plot

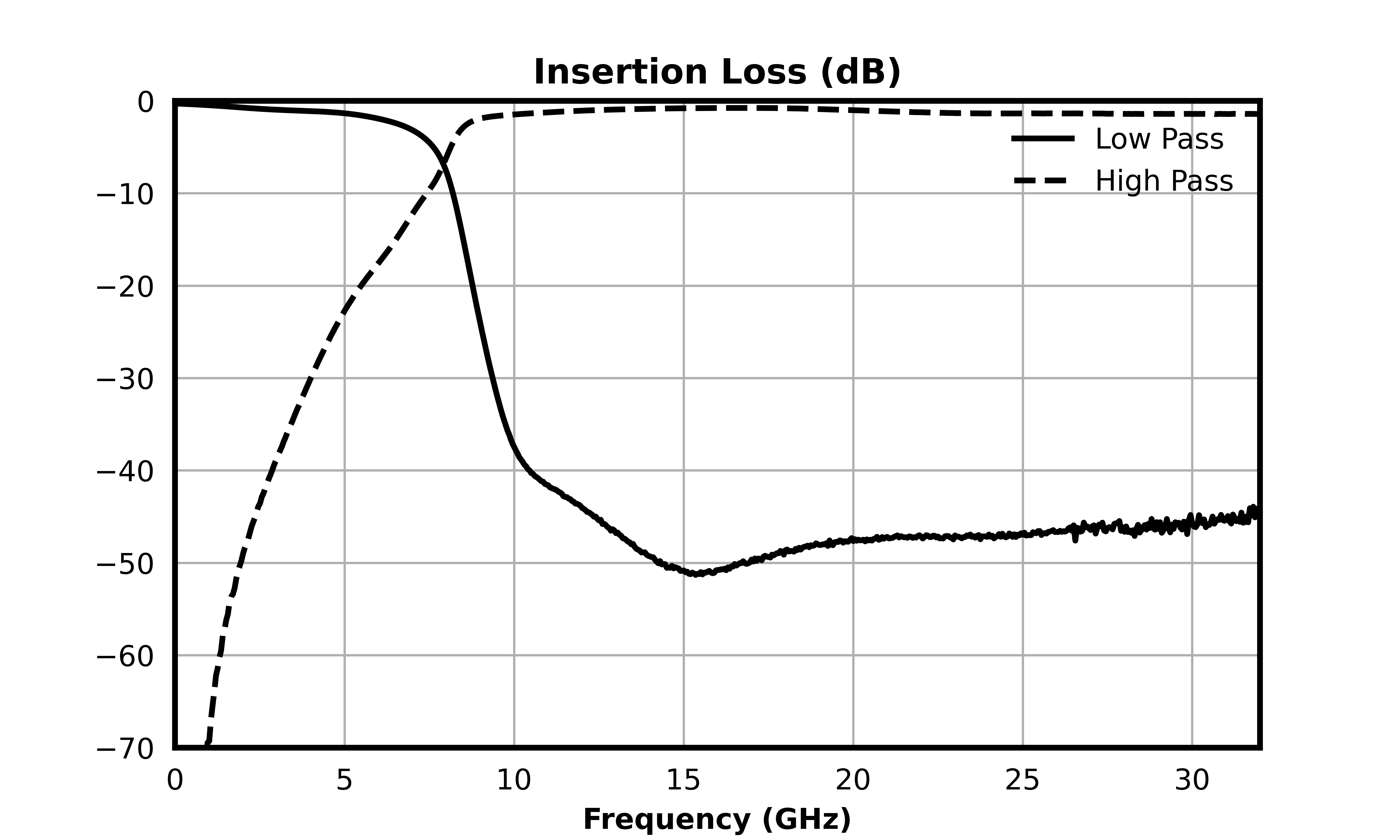

Insertion Loss (dB) graph for MDPX-0609BH

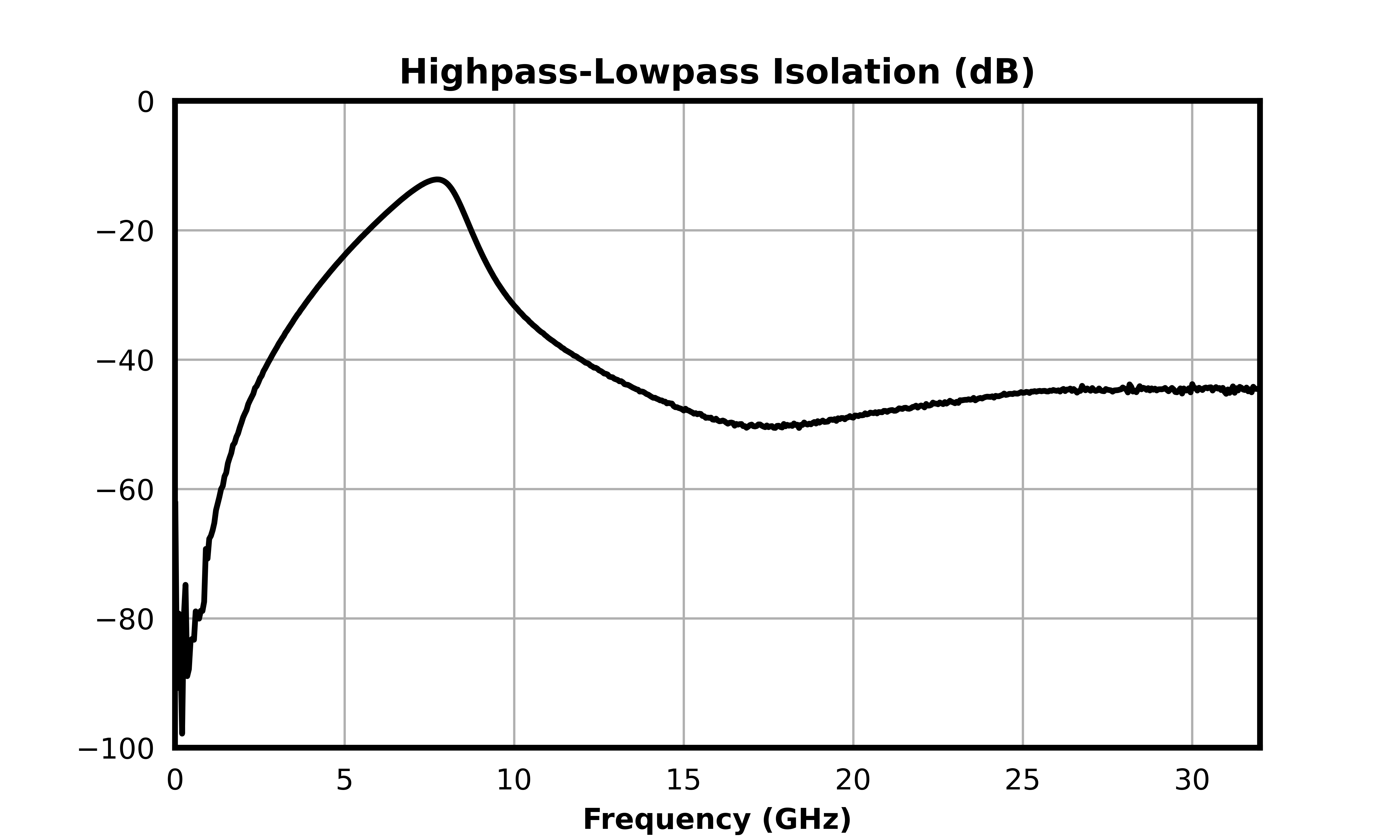

Highpass-Lowpass Isolation (dB) graph for MDPX-0609BH

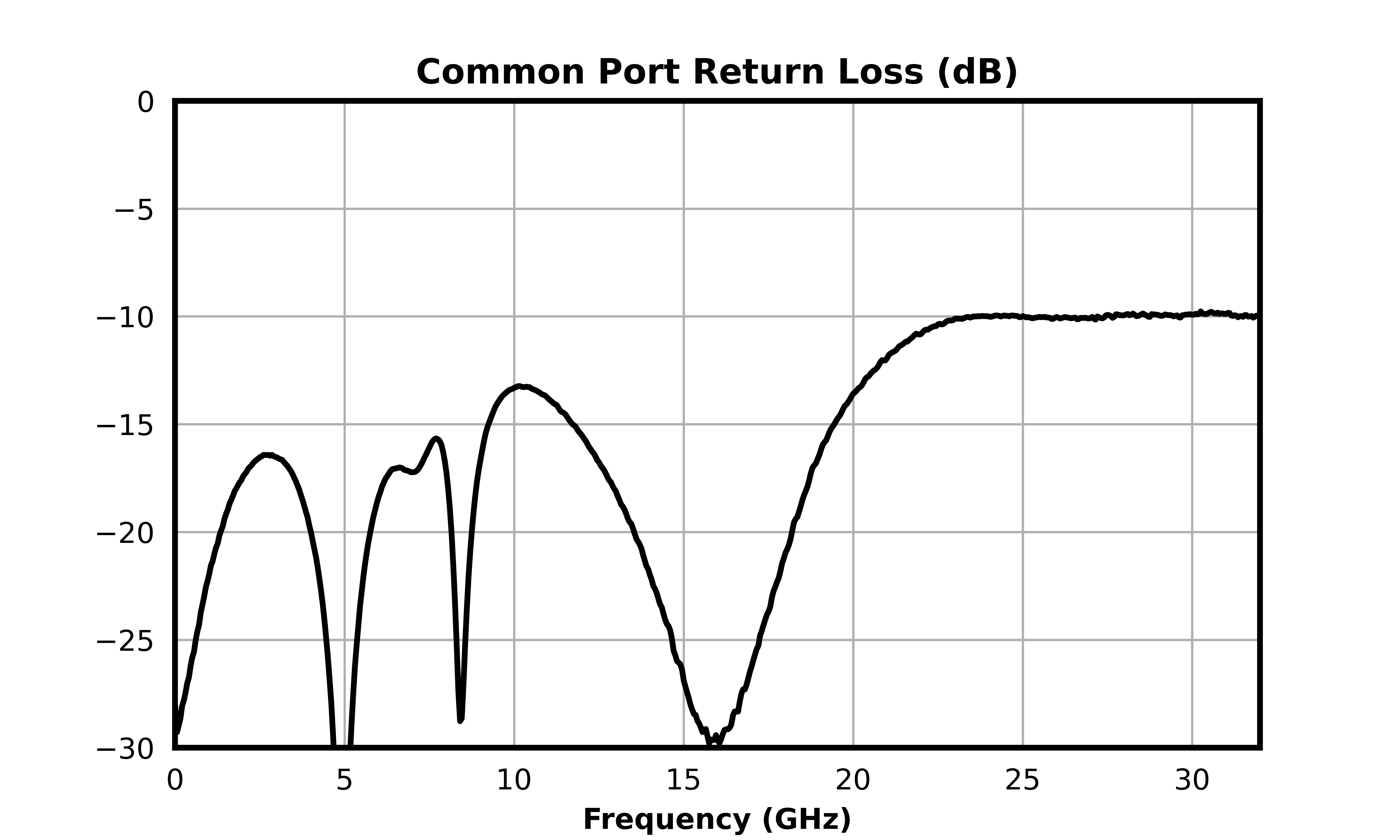

Common Port Return Loss (dB) graph for MDPX-0609BH

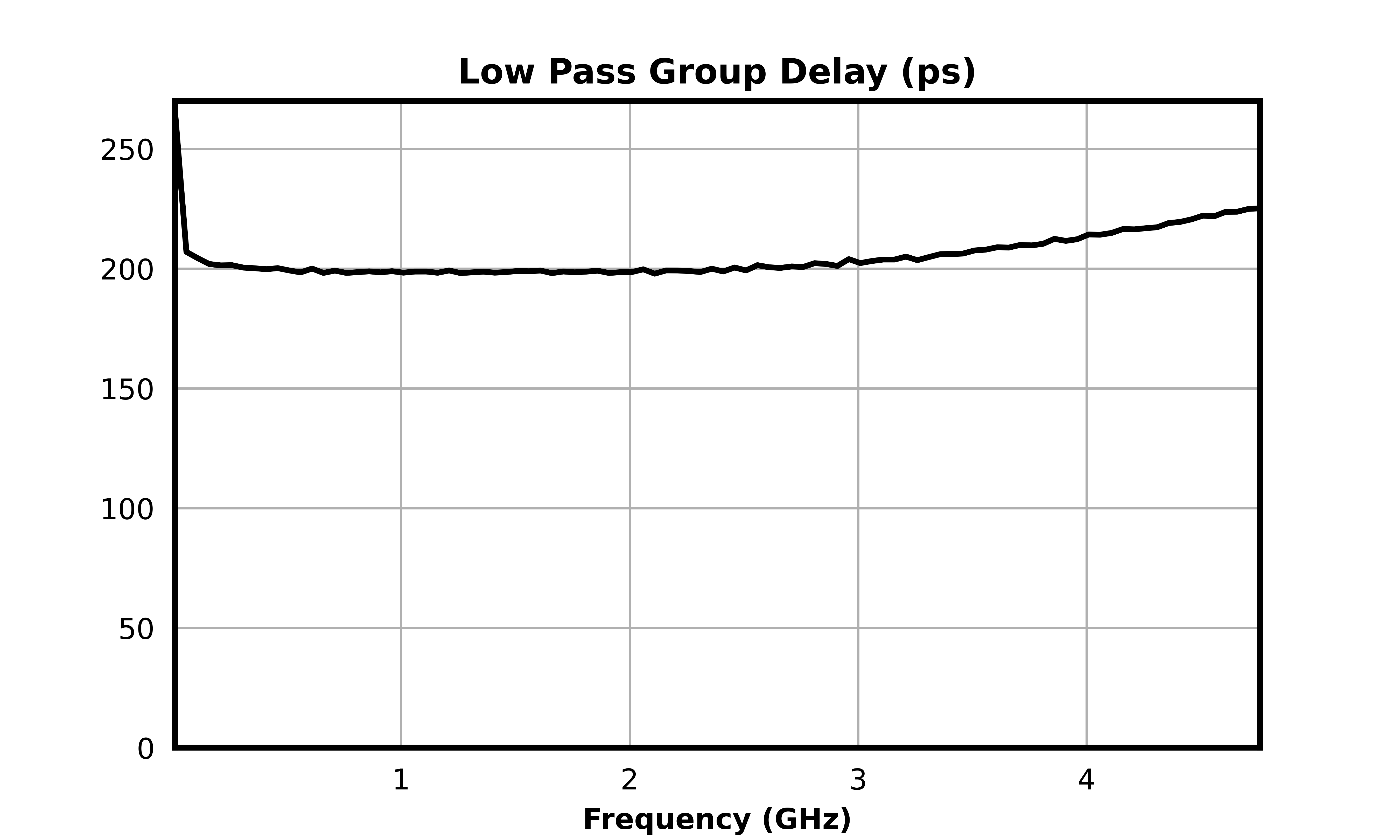

Low Pass Group Delay (ps) graph for MDPX-0609BH

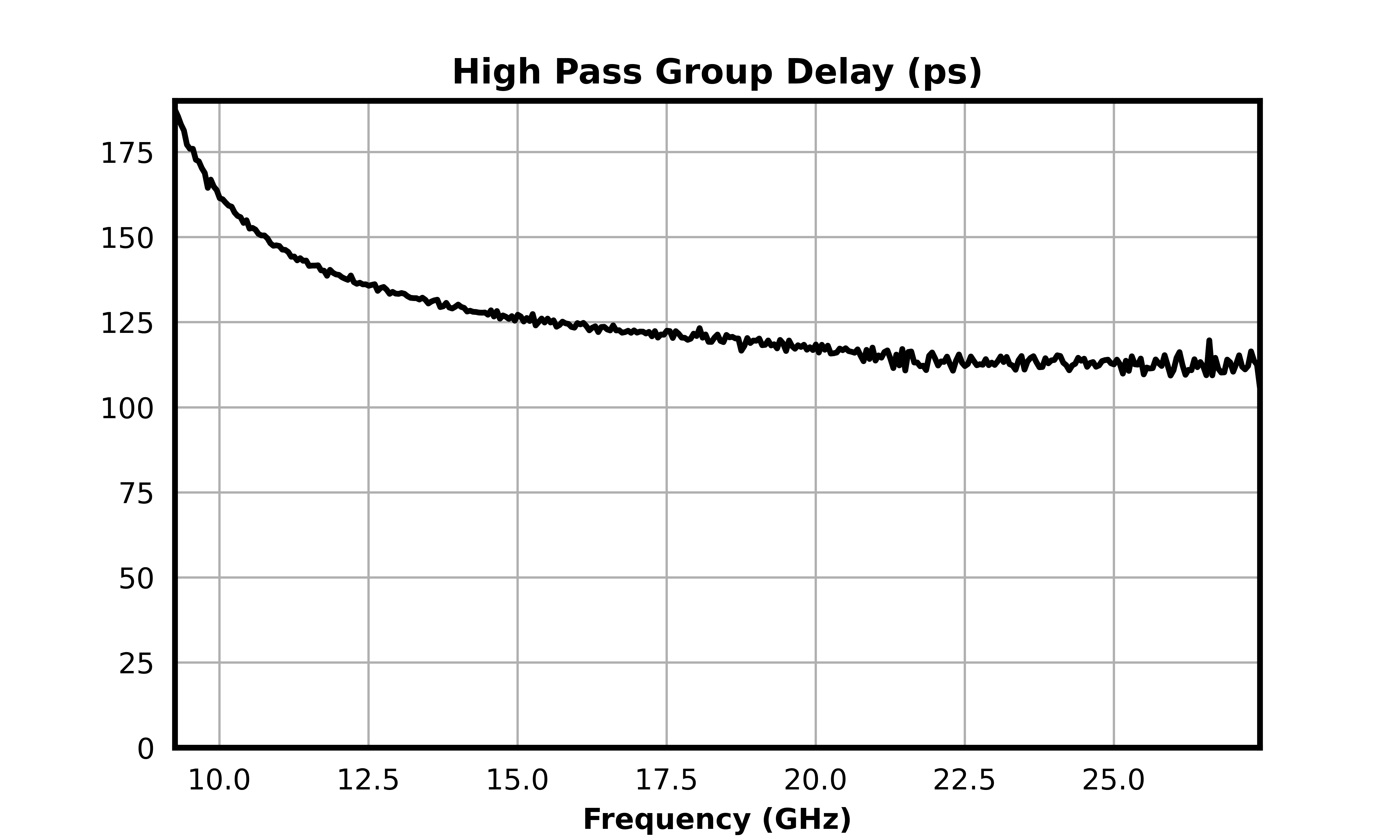

High Pass Group Delay (ps) graph for MDPX-0609BH

Specifications

Electrical Specifications

Specifications guaranteed +25°C for BH package, measured in a 50Ω system.

Parameter	Port Configuration	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
1 dBc High Passband	A	Temp = 25°C	9.26	-	-	-	-	GHz
3 dBc High Passband	A	Temp = 25°C	8.36	-	-	-	-	GHz
30 dBc High Pass Rejection Point	A	Temp = 25°C	3.96	-	-	-	-	GHz
High Pass Filter, Pass Band Return Loss	A	Temp = 25°C	-	-	-	13	-	dB
High Pass Isolation	A	Temp = 25°C	-	-	-	44	-	dB
High Pass Group Delay	A	Temp = 25°C	-	-	-	120	-	ps
1 dBc Low Passband	A	Temp = 25°C	-	4.76	-	-	-	GHz
3 dBc Low Passband	A	Temp = 25°C	-	7.06	-	-	-	GHz
30 dBc Low Pass Rejection Point	A	Temp = 25°C	-	9.36	-	-	-	GHz
Low Pass Filter, Pass Band Return Loss	A	Temp = 25°C	-	-	-	19	-	dB
Low Pass Isolation	A	Temp = 25°C	-	-	-	26	-	dB
Low Pass Group Delay	A	Temp = 25°C	-	-	-	200	-	ps
Crossover Isolation	A	Temp = 25°C	-	-	-	13	-	dB
Cross Over Frequency	A	Temp = 25°C	-	-	-	7.91	-	GHz
Common Port Return Loss	A	Temp = 25°C	-	-	-	18	-	dB
Impedance	A	Temp = 25°C	-	-	-	50	-	Ω

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	100	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C

Package Information

Parameter	Details	Rating
Weight	Package name: BH	12g
Dimensions	-	29.01 x 19.84 mm

Port Configuration and Functions

Port Diagram

The MDPX-0609BH can be used as a Diplexer, reflectionless LPF, or reflectionless HPF depending on the configuration of each port which can be seen below in the Configuration Array.

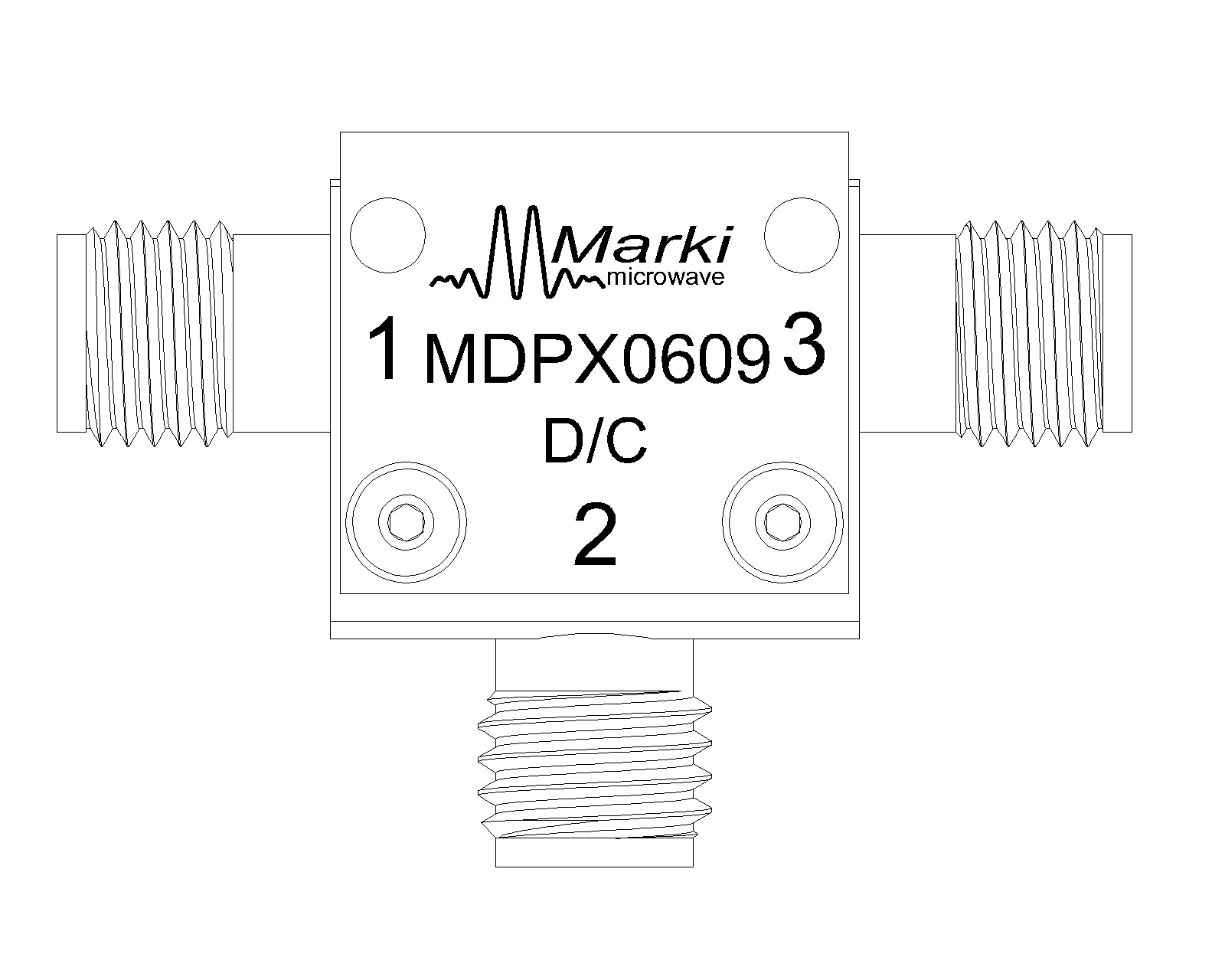

Diagram of the port configuration for MDPX-0609BH

Port Functions

Configuration A

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground provided through metal housing and outer coax conductor.
Port 1	Input/Common	2.92F	Port 1 is DC short to Port 3 and open to Port 2 and ground.
Port 2	RF High Band	2.92F	Port 2 is DC open to all other ports and ground.
Port 3	RF Low Band	2.92F	Port 3 is DC short to Port 1 and open to Port 2.

Configuration B

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground provided through metal housing and outer coax conductor.
Port 1	RF Low Band	2.92F	Port 1 is DC short to Port 3 and open to Port 2 and ground.
Port 2	Terminated	2.92F	Port 2 is DC open to all other ports and ground. For reflectionless LPF, this port can be left open or terminated for this configuration.
Port 3	Input/Common	2.92F	Port 3 is DC short to Port 1 and open to Port 2.

Configuration C

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground provided through metal housing and outer coax conductor.
Port 1	Input/Common	2.92F	Port 1 is DC short to Port 3 and open to Port 2 and ground.
Port 2	Terminated	2.92F	Port 2 is DC open to all other ports and ground.
Port 3	RF Low Band	2.92F	Port 3 is DC short to Port 1 and open to Port 2.

Configuration D

Port	Function	Connector Type	Description
GND	Ground	-	BH package ground provided through metal housing and outer coax conductor.
Port 1	Input/Common	2.92F	Port 1 is DC short to Port 3 and open to Port 2 and ground.
Port 2	RF High Band	2.92F	Port 2 is DC open to all other ports and ground.
Port 3	Terminated	2.92F	Port 3 is DC short to Port 1 and open to Port 2.

Mechanical Data

Outline Drawing

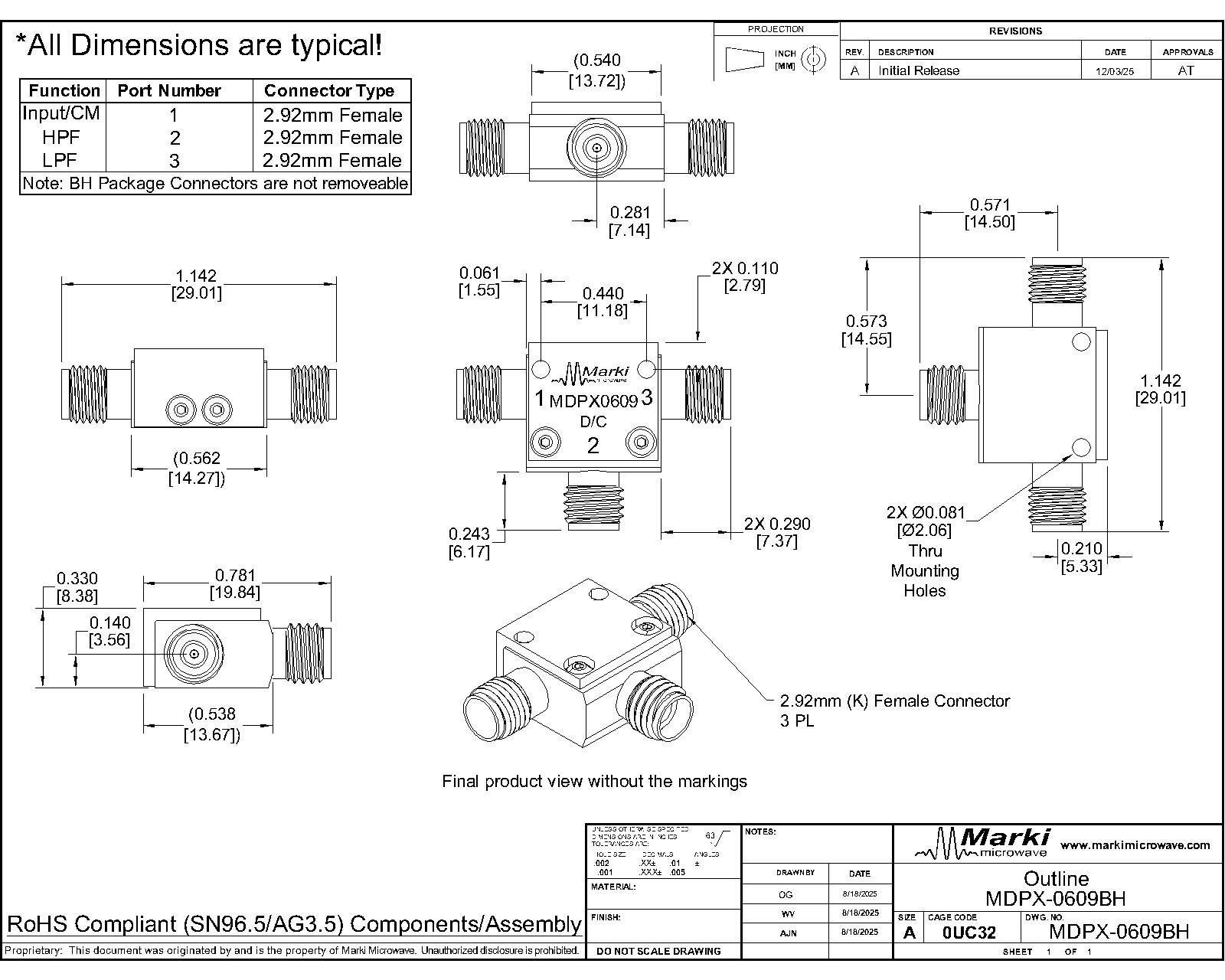

Download : Outline 2D Drawing

Revision History

Revision Code	Revision Date	Comment
-	2026-06-04	Initial Release

Notes

DATA SHEET NOTES:

Group delay calculated using wrapped phase response.
Specifications are subject to change without notice. Contact Marki Microwave for the most recent specifications and data sheets.
Catalog circuits are continually improved. Configuration control requires custom model numbers and specifications.

Note: Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
