DPX-9516
Broadband Diplexer 16 - 32 Ghz

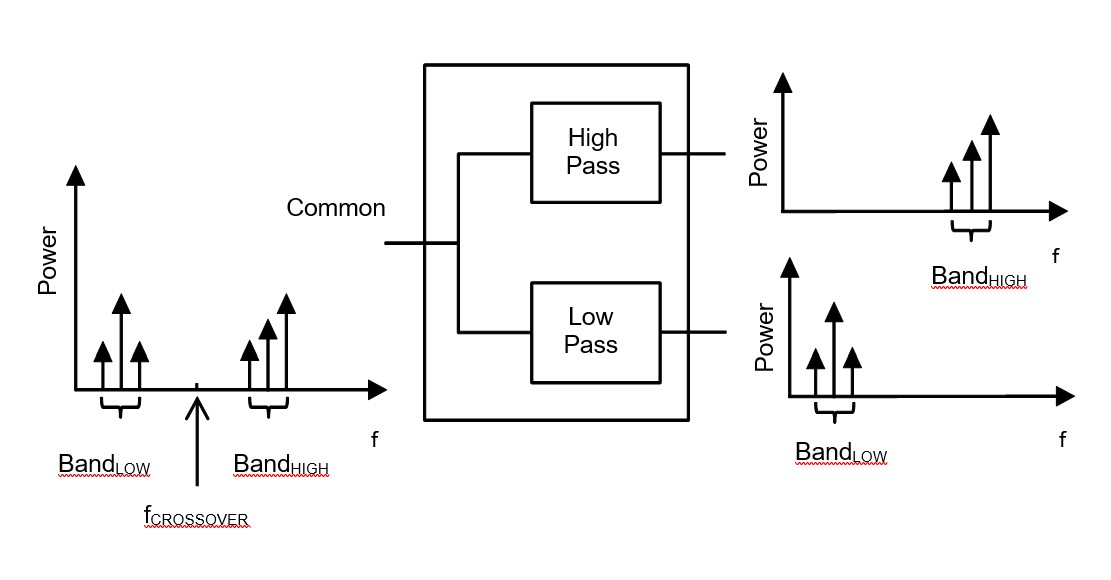

The DPX-9516 is a broadband low pass/high pass diplexer capable of multiplexing low frequency (DC-9.5 GHz) and high frequency (16-32 GHz) signals. The novel design offers extremely low insertion loss for both the low pass and high pass channels. The DPX-9516 is an excellent solution for applications such as high frequency/baseband signal routing (especially following a broadband high frequency mixing stage), low loss power splitting/combination and general-purpose lab use.
| Parameter | Typ | Unit |
|---|---|---|
| 30 dBc Low Pass Rejection Point | 30 | dB |
| 1 dBc High Passband | 15.71 | GHz |
| Crossover Frequency | 32.99 | GHz |
| 30 dBc High Pass Rejection Point | 24.37 | GHz |
| 1 dBc Low Passband | 32.99 | GHz |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| DPX-9516 | Broadband Diplexer 16 - 32 Ghz | Standard | Non-RoHS | Released | EAR99 |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| 1 dBc High Passband 1 | Temp = 25°C | - | - | 15.71 | - | - | GHz |
| 3 dBc High Passband 2 | Temp = 25°C | - | - | 24.37 | - | - | GHz |
| 30 dBc High Pass Rejection Point 3 | Temp = 25°C | - | - | 24.37 | - | - | GHz |
| High Passband Return Loss 4 | Temp = 25°C | - | - | - | 20 | - | dB |
| High Pass Group Delay 5 | Temp = 25°C | - | - | - | 155 | - | ps |
| 1 dBc Low Passband 6 | Temp = 25°C | - | - | - | - | 32.99 | GHz |
| 3 dBc Low Passband 7 | Temp = 25°C | - | - | - | - | 32.99 | GHz |
| 30 dBc Low Pass Rejection Point 8 | Temp = 25°C | - | - | - | - | 32.99 | GHz |
| Low Passband Return Loss 9 | Temp = 25°C | - | - | - | 2 | - | dB |
| Low Pass Isolation 10 | Temp = 25°C | - | - | - | 24 | - | dB |
| Low Pass Group Delay 11 | Temp = 25°C | - | - | - | 324 | - | ps |
| Crossover Frequency 12 | Temp = 25°C | - | - | - | 32.99 | - | GHz |
| Common Port Return Loss 13 | Temp = 25°C | - | - | - | 20 | - | dB |
| Impedance 14 | Temp = 25°C | - | - | - | 50 | - | Ω |
| 1 dBc High Passband | - | - | - | 16 | - | 32 | GHz |
| 1 dBc Low Passband | - | - | - | 0 | - | 9.5 | GHz |
| 30 dBc Low Pass Rejection Point | - | 0 | 9.5 | 25 | 30 | - | dB |
| Common Port Return Loss | - | 16 | 32 | 8 | 13 | - | dB |
| Common Port Return Loss | - | 0 | 8.5 | 13 | 17 | - | dB |
| High Pass Filter, Pass Band Insertion Loss | - | 16 | 32 | - | 1.5 | - | dB |
| High Pass Filter, Pass Band Return Loss | - | 18 | 32 | 8 | 13 | - | dB |
| Impedance | - | - | - | - | 50 | - | Ω |
| Isolation | - | 0 | 9.5 | 25 | 30 | - | dB |
| Isolation | - | 16 | 32 | 30 | 40 | - | dB |
| Low Pass Filter, Pass Band Insertion Loss | - | 0 | 9.5 | - | 1.5 | - | dB |
| Low Pass Filter, Pass Band Return Loss | - | 0 | 8.5 | 13 | 17 | - | dB |
| Low Pass Filter, Stop Band Rejection | - | 16 | 32 | 30 | 45 | - | dB |
| RF Power | - | - | - | - | - | 1 | W |
[1][2][3][4][5][6][7][8][9][10][11][12][13][14] No
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 35g |
| Dimensions | - | 16.51 x 26.04 mm |
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | RF High Band | 2.92F | Port 1 is DC open to Port 2 and Port 3. |  |
| Port 2 | Common/Input | 2.92F | Port 2 is DC open to Port 1 and short to Port 3. |  |
| Port 3 | RF Low Band | 2.92F | Port 3 is DC open to Port 1 and short to Port 2. | |
Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2014-04-15 | Datasheet Initial Release |
