The BTN2-0050 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BTN2-0050 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors. The extremely low cutoff and resonance free operation makes the BTN2-0050 suitable for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BTN2-0050 | High Power Bias Tee | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BTN2-0050 | High Power Bias Tee | Standard | REACH RoHS | Released | EAR99 |
BTN2-0050
High Power Bias Tee
| Revision Code | Revision Date | Comment |
|---|---|---|
| C | 2020-10-01 | Added Performance Plots vs Bias Current |
BTN2-0050
High Power Bias Tee
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Common | RF+DC | 2.4M | This port is DC blocked to the RF port and DC connected to the DC port trough an internal RF choke. |  |
| DC | DC | - | This port is internally connected to an RF choke which is DC connected to the RF+DC port and DC blocked to the RF port. | |
| RF | RF | 2.4F | This port is internally DC blocked to the RF+DC and DC ports. | |
BTN2-0050
High Power Bias Tee
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 2 | A |
| DC Voltage | 50 | V |
| Maximum Storage Temperature | 125 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 5 | W |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Minimum Operating Temperature | -55 | °C |
| Maximum Operating Temperature | 100 | °C |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 10g |

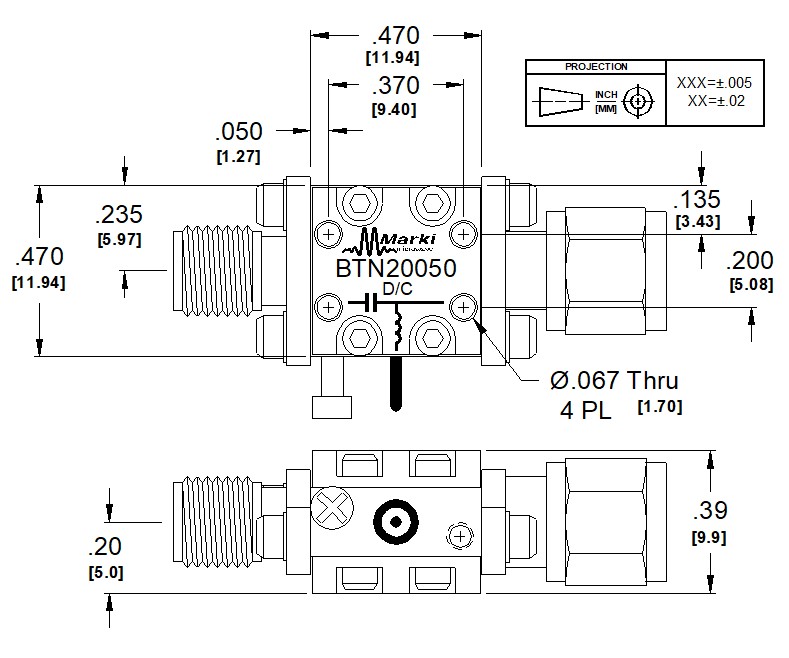

| Dimensions | - | 11.94 x 11.94 mm |
BTN2-0050
High Power Bias Tee
Specifications guaranteed at +25C, measured in a 50-Ohm system
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Capacitance | - | - | - | - | 100 | - | nF |
| DC Port Isolation | - | 0.003 | 1 | - | 50 | - | dB |
| DC Port Isolation | - | 1 | 50 | - | 30 | - | dB |
| DC Resistance | - | - | - | - | 0.3 | - | Ω |
| Inductance | - | - | - | - | 4.7 | - | μH |
| Insertion Loss | - | 0.003 | 0.01 | - | 2 | - | dB |
| Insertion Loss | - | 0.01 | 50 | - | 1.5 | 2.5 | dB |
| Return Loss | - | 0.003 | 50 | - | 13 | - | dB |
| Risetime/Falltime 1 | - | - | - | - | 10 | - | ps |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Capacitance | - | - | - | - | 100 | - | nF |
| DC Port Isolation | - | 0.003 | 1 | - | 50 | - | dB |
| DC Port Isolation | - | 1 | 50 | - | 30 | - | dB |
| DC Resistance | - | - | - | - | 0.3 | - | Ω |
| Inductance | - | - | - | - | 4.7 | - | μH |
| Insertion Loss | - | 0.003 | 0.01 | - | 2 | - | dB |
| Insertion Loss | - | 0.01 | 50 | - | 1.5 | 2.5 | dB |
| Return Loss | - | 0.003 | 50 | - | 13 | - | dB |
| Risetime/Falltime 1 | - | - | - | - | 10 | - | ps |
[1] Specified as 90%/10%. Calculated from 𝜏bt2 = (𝜏out2 - 𝜏in2)
BTN2-0050
High Power Bias Tee
BTN2-0050
High Power Bias Tee
BTN2-0050
High Power Bias Tee
Oscilloscope measurements of the BTN2-0050 with a 10Gb/s PRBS pattern. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the bias tee.
