BTN2-0026_High Power Bias Tee

General Description

The BTN2-0026 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BTN2-0026 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors. The extremely low cutoff and resonance free operation makes the BTN2-0026 suitable for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Features

Broadband: 3 MHz to 26.5 GHz
Low Insertion Loss
High Power
Non-Resonant
Compact Size

Functional Block Diagram

Download PDF

Electrical Performance Summary

Parameter	Typ	Unit
Frequency Range	0.003 to 26.5	GHz
DC Current	2	A
DC Voltage	50	V
Insertion Loss	1	dB
DC Port Isolation	50	dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
BTN2-0026	High Power Bias Tee	Standard	REACH RoHS	Released	EAR99

Part Number

Description

Connectors

Green Status

Product Lifecycle

Export Classification

BTN2-0026

High Power Bias Tee

Standard

REACH

RoHS

Released

EAR99

Typical Performance Plots

RF insertion loss (dB) graph for BTN2-0026

RFC Return Loss vs Temperature graph for BTN2-0026

Low frequency RF response graph for BTN2-0026

Low frequency isolation graph for BTN2-0026

Performance over temperature graph for BTN2-0026

Typical Performance vs Bias Current at Low frequencies

Insertion Loss vs Bias Current graph for BTN2-0026

Common Return Loss vs Bias Current graph for BTN2-0026

RF Return Loss vs Bias Current graph for BTN2-0026

Time Domain Performance Plots

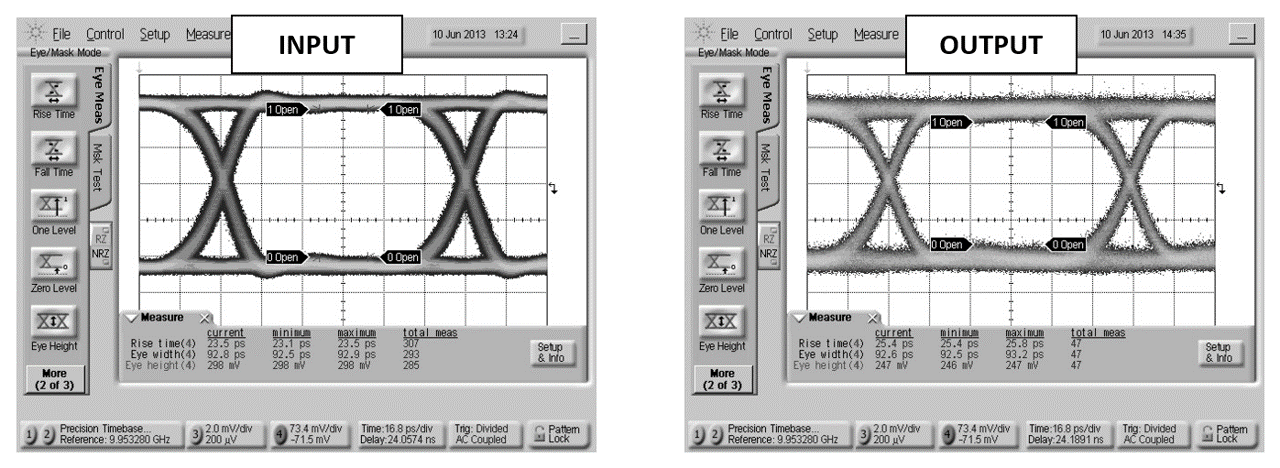

Oscilloscope measurements of the BTN2-0026 with a 10Gb/s PRBS pattern. Eye diagrams are taken with a 2³¹-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the bias tee.

Oscilloscope measurements of the BTN2-0026 with a 10Gb/s PRBS pattern. graph for BTN2-0026

Specifications

Electrical Specifications

Specifications guaranteed at +25C, measured in a 50-Ohm system

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Frequency Range	-	0.003	26.5	-	-	-	GHz
Capacitance	-	-	-	-	100	-	nF
DC Port Isolation	-	0.003	1	-	50	-	dB
DC Port Isolation	-	1	26.5	-	30	-	dB
DC Resistance	-	-	-	-	0.3	-	Ω
Inductance	-	-	-	-	4.7	-	μH
Insertion Loss	-	0.003	0.01	-	2	-	dB
Insertion Loss	-	0.01	26.5	-	1	2	dB
Return Loss	-	0.003	26.5	-	14	-	dB
Risetime/Falltime ¹	-	-	-	-	10	-	ps

^[1] Specified as 90%/10%. Calculated from 𝜏_bt² = (𝜏_out² - 𝜏_in²)

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
DC Current	2	A
DC Voltage	50	V
Maximum Storage Temperature	125	°C
Minimum Storage Temperature	-65	°C
RF Power Handling	10	W
Minimum Operating Temperature	-55	°C
Maximum Operating Temperature for MTTF > 1E6 hours	100	°C

Package Information

Parameter	Details	Rating
Weight	-	10g
Dimensions	-	11.94 x 11.94 mm

Port Functions

Port	Function	Connector Type	Description
Common	RF+DC	-	This port is DC blocked to the RF port and DC connected to the DC port through an internal RF choke.
DC	DC	-	This port is internally connected to an RF choke which is DC connected to the RF+DC port and DC blocked to the RF port.
RF	RF	SMAF	This port is internally DC blocked to the RF+DC and DC ports.

Operation

Application Information

Bt N2 0026 App Ckt

Example Schematics of a) Broadband Microwave Amplifier Biasing, b) Laser/LED Biasing for Data Communication and c) Mach-Zender Modulator Biasing for Data Communication

Mechanical Data

Outline Drawing

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP

Revision History

Revision Code	Revision Date	Comment
C	2020-10-01	Added performance plots vs Bias Current
