Device Overview

General Description

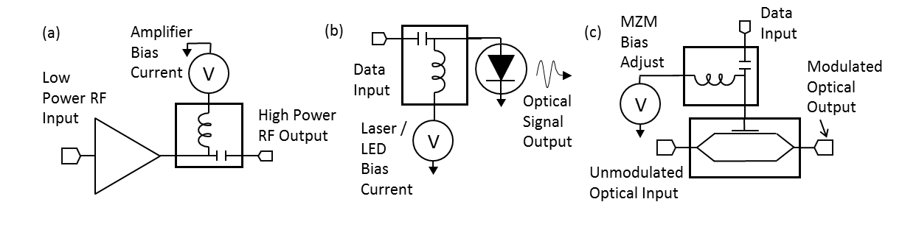

The BTN2-0018 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BTN2-0018 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors. The extremely low cutoff and resonance free operation makes the BTN2-0018 suitable for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Photo of BTN2-0018

Features

  • Broadband: 3 MHz to 18 GHz
  • Low Insertion Loss
  • High Power
  • Non-Resonant
  • Compact Size

Applications

  • Test and Measurement Equipment

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionConnectorsGreen StatusProduct LifecycleExport Classification
BTN2-0018High Power Bias TeeStandard

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
C2020-10-01Added Performance Plots vs Bias Current

Rev: C | Copyright © 2020 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
CommonRF+DC SMAMThis port is DC blocked to the RF port and DC connected to the DC port trough an internal RF chokeEquivalent circuit for the RF+DC
DCDC -This port is internally connected to an RF choke which is DC connected to the RF+DC port and DC blocked to the RF port.Equivalent circuit for the DC
RFRF SMAFThis port is internally DC blocked to the RF+DC and DC ports.Equivalent circuit for the RF

Rev: C | Copyright © 2020 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
DC Current 2A
DC Voltage 50V
Maximum Storage Temperature 125°C
Minimum Storage Temperature -65°C
RF Power Handling 10W
Minimum Operating Temperature -55°C
Maximum Operating Temperature 100°C

Package Information

ParameterDetailsRating
Weight-10g
Dimensions-11.94 x 11.94 mm

Rev: C | Copyright © 2020 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed at +25C, measured in a 50-Ohm system

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Capacitance -- --100-nF
DC Port Isolation -0.003 1-50-dB
DC Port Isolation -1 18-30-dB
DC Resistance -- --0.3-Ω
Inductance -- --4.7-μH
Insertion Loss -0.003 0.01-2-dB
Insertion Loss -0.01 18-0.71.5dB
Return Loss -0.003 18-16-dB
Risetime/Falltime 1-- --10-ps

[1] Specified as 90%/10%. Calculated from 𝜏bt2 = (𝜏out2 - 𝜏in2)

Rev: C | Copyright © 2020 Marki Microwave LLC.

5

Typical Performance

RF insertion loss (dB) graph for BTN2-0018
Return Loss graph for BTN2-0018
Low frequency RF response graph for BTN2-0018
Low frequency isolation graph for BTN2-0018
DC-RF isolation graph for BTN2-0018
Near DC isolation graph for BTN2-0018
Group Delay graph for BTN2-0018
Performance over temperature graph for BTN2-0018

Rev: C | Copyright © 2020 Marki Microwave LLC.

6

Typical Performance vs Bias Current at Low frequencies

Insertion Loss vs Bias Current graph for BTN2-0018
Common Return Loss vs Bias Current graph for BTN2-0018
RF Return Loss vs Bias Current graph for BTN2-0018

Rev: C | Copyright © 2020 Marki Microwave LLC.

7

Time Domain Plots

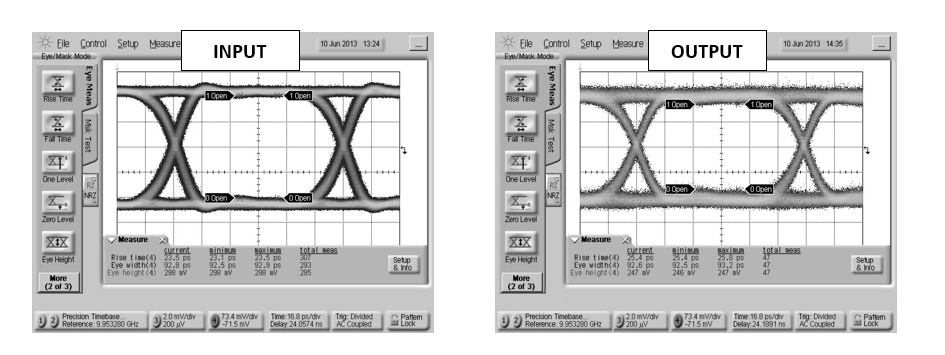

Oscilloscope measurements of the BTN2-0018 with a 10Gb/s PRBS pattern. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the bias tee.

Oscilloscope measurements of the BTN2-0018 with a 10Gb/s PRBS pattern. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the bias tee.  graph for BTN2-0018

Rev: C | Copyright © 2020 Marki Microwave LLC.

8

Mechanical Data

Rev: C | Copyright © 2020 Marki Microwave LLC.
