Device Overview

General Description

The BT-0025 is constructed using a custom-made, resonance-free conical inductor to achieve extremely broadband performance. By minimizing the overall inductor size and using proprietary packaging techniques, the BT-0025 is a superior option in terms of performance, reliability and ease-of-use when compared to cumbersome self-made bias tees employing off-the-shelf conical inductors. The extremely low cutoff and resonance free operation makes the BT-0025 suitable for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Photo of BT-0025

Features

  • Broadband: 40 kHz to 25 GHz
  • Low Insertion Loss
  • Non-Resonant
  • Compact Size

Applications

  • Test and Measurement Equipment

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionConnectorsGreen StatusProduct LifecycleExport Classification
BT-0025Bias TeeStandard

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
A2019-09-01RoHS Compliant Assembly

Rev: A | Copyright © 2019 Marki Microwave LLC.

2

Port Configuration and Functions

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
CommonRF+DC SMAFThis port is DC blocked to the RF port and DC connected to the DC port through an internal RF choke.Equivalent circuit for the RF+DC
DCDC -This port is internally connected to an RF choke which is DC connected to the RF+DC port and DC blocked to the RF port.Equivalent circuit for the DC
RFRF SMAFThis port is internally DC blocked to the RF+DC and DC ports.Equivalent circuit for the RF

Rev: A | Copyright © 2019 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

ParameterMaximum RatingUnit
DC Current 0.5A
DC Voltage 30V
Maximum Storage Temperature 125°C
Minimum Storage Temperature -65°C
RF Power Handling 1W

Package Information

ParameterDetailsRating
Weight-10g
Dimensions-11.94 x 11.94 mm

Rev: A | Copyright © 2019 Marki Microwave LLC.

4

Electrical Specifications

Specifications guaranteed at +25C, measured in a 50-Ohm system

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Capacitance -0.00004 25-1.1-μF
DC Port Isolation -0.00004 25-35-dB
DC Resistance -0.00004 25-6-Ω
Inductance -0.00004 25-1000-μH
Insertion Loss -0.00004 25-0.81.8dB
Return Loss -0.00004 25-16-dB
Risetime/Falltime 1-0.00004 25-11-ps

[1] Specified as 90%/10%. Calculated from 𝜏bt2 = (𝜏out2 - 𝜏in2)

Rev: A | Copyright © 2019 Marki Microwave LLC.

5

Typical Performance Plots

Band 3 Insertion Loss (dB) graph for BT-0025
Return Loss graph for BT-0025
Low frequency RF response graph for BT-0025
Low frequency isolation graph for BT-0025
DC-RF isolation graph for BT-0025
Near DC isolation graph for BT-0025
Group Delay graph for BT-0025
Performance over temperature graph for BT-0025

Rev: A | Copyright © 2019 Marki Microwave LLC.

6

Time Domain Performance Plots

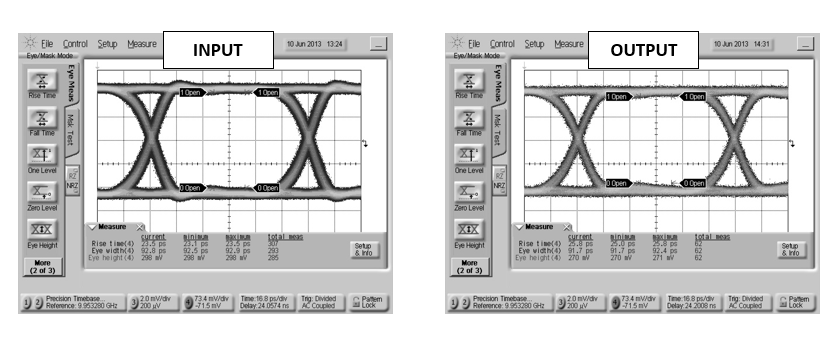

Oscilloscope measurements of the BT-0025 with a 10Gb/s PRBS pattern. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the bias tee.

Oscilloscope measurements of the BT-0025 with a 10Gb/s PRBS pattern graph for BT-0025

Rev: A | Copyright © 2019 Marki Microwave LLC.

7

Mechanical Data

Rev: A | Copyright © 2019 Marki Microwave LLC.
