BAL-0050_Broadband Isolation Balun (300KHz to 50 GHz)

Device Overview

General Description

The BAL-0050 is a broadband balun, featuring high isolation and is hand-tuned for optimal phase and amplitude balance over a 300 kHz to 50 GHz bandwidth. It serves as an excellent choice for analog to digital converters, balanced receivers, baseband digital modulations, and signal integrity enhancement.

Features

• 300 kHz to 50 GHz Balun (Balanced to Unbalanced Transformer)
• 2:1 Transformer (50 Ω unbalanced, 100 Ω differential/50 Ω balanced port)
• Termination insensitive: Particularly suited to testing poorly matched or non 50 Ω devices or for extending 2 port VNAs for differential testing

Applications

Analog to Digital Converters
Balanced Receivers
Baseband Digital Modulation
Signal Integrity

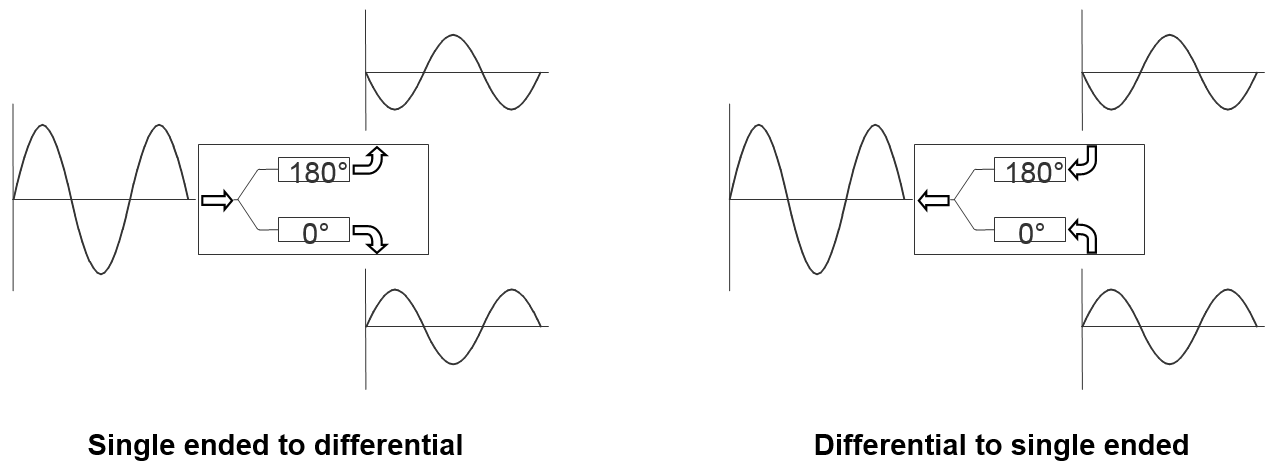

Functional Block Diagram

Part Ordering Options

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
BAL-0050	Broadband Isolation Balun (300KHz to 50 GHz)	Standard	REACH RoHS	Released	EAR99

Part Number

Description

Connectors

Green Status

Product Lifecycle

Export Classification

BAL-0050

Broadband Isolation Balun (300KHz to 50 GHz)

Standard

REACH

RoHS

Released

EAR99

Part Number	Description	Connectors	Green Status	Product Lifecycle	Export Classification
BAL-0050	Broadband Isolation Balun (300KHz to 50 GHz)	Standard	REACH RoHS	Released	EAR99

Device Overview
Port Configuration and Functions
- Port Diagram
- Port Functions
Specifications
Mechanical Data
- Outline Drawing

Port Configuration and Functions

Port Diagram

Diagram of the port configuration for BAL-0050

Port Functions

Port	Function	Connector Type	Description
0° Port (Balanced)	0° Port	2.4F	The 0 port is DC connected to the common port through a resistor and to ground through a resistor.
180° Port (Balanced)	180° Port	2.4F	The 180 port is DC shorted to ground.
Common Port (Unbalanced)	RF Input	2.4F	The common port is DC connected to the 0 port through a resistor and to ground through a resistor.

Specifications

Absolute Maximum Ratings

Parameter	Maximum Rating	Unit
RF Power Handling	1	W

Package Information

Parameter	Details	Rating
Weight	-	125g
Dimensions	-	91.44 x 27.94 mm

Electrical Specifications

Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	-	0.0003	50	-	0.7	1.4	dB
Common Mode Rejection	-	0.0003	50	20	28	-	dB
Group Delay	-	0.0003	50	-	520	-	ps
Impedance Ratio	-	-	-	-	2:1	-
Insertion Loss as a Mode Converter	-	0.0003	35	-	3	6	dB
Insertion Loss as a Mode Converter	-	35	50	-	7	-	dB
Isolation	-	1	50	-	25	-	dB
Nominal Phase Shift	-	0.0003	50	-	180	-	°
Phase Balance	-	0.0003	50	-	4	10	°
Risetime/Falltime ¹	-	0.0003	50	-	5	-	ps
RMS Group Delay Ripple	-	0.0003	50	-	8	-	ps
VSWR (Common)	-	0.0003	50	-	1.5	-
VSWR (Output)	-	0.0003	50	-	1.6	-

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Amplitude Balance	-	0.0003	50	-	0.7	1.4	dB
Common Mode Rejection	-	0.0003	50	20	28	-	dB
Group Delay	-	0.0003	50	-	520	-	ps
Impedance Ratio	-	-	-	-	2:1	-
Insertion Loss as a Mode Converter	-	0.0003	35	-	3	6	dB
Insertion Loss as a Mode Converter	-	35	50	-	7	-	dB
Isolation	-	1	50	-	25	-	dB
Nominal Phase Shift	-	0.0003	50	-	180	-	°
Phase Balance	-	0.0003	50	-	4	10	°
Risetime/Falltime ¹	-	0.0003	50	-	5	-	ps
RMS Group Delay Ripple	-	0.0003	50	-	8	-	ps
VSWR (Common)	-	0.0003	50	-	1.5	-
VSWR (Output)	-	0.0003	50	-	1.6	-

^[1] Default is 2.40 mm female connectors. Consult factory for other connector options.

Typical Performance

Amplitude Balance (dB) graph for BAL-0050

Phase Balance (degree) graph for BAL-0050

Common Mode Rejection (dB) graph for BAL-0050

Differential Group Delay (ps) graph for BAL-0050

Band 1 Group Delay (ps) graph for BAL-0050

Low Frequency Insertion Loss (dB) graph for BAL-0050

Time Domain Plot

Low frequency 1MHz square wave input graph for BAL-0050

Low frequency oscilloscope measurement of a 1MHz square wave input. Blue is 0° port output, pink is 180° port output. Note the amplitude divergence due to slight high pass roll off near DC. graph for BAL-0050

Oscilloscope measurements of the BAL-0026 with a 50 Gb/s PRBS pattern in single ended-to-differential mode. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the balun (<300 kHz). graph for BAL-0050

Oscilloscope measurements of the BAL-0050 with a 40 Gb/s PRBS pattern. Bit pattern is measured with a 27-1 PRBS input demonstrating extremely good pulse fidelity for both differential-to-single ended and single ended to differential mode conversions. Apparent baseline wander in differential-to-single ended is due to low pass filtering by test cables. graph for BAL-0050

Mixed Mode Scattering Parameters
