BAL-0010
BROADBAND BALUN
The BAL-0010 is a broadband balun, hand-tuned for optimal phase and amplitude balance over a 200 kHz to 10 GHz bandwidth. It serves as an excellent choice for analog to digital converters, balanced receivers, baseband digital modulations, and signal integrity enhancement.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0.0002 to 10 | GHz |
| Insertion Loss as a Mode Converter | 5 | dB |
| Phase Balance | 2 | ° |
| Amplitude Balance | 0.2 | dB |
| Impedance Ratio | 2:1 | - |
| Common Mode Rejection | 35 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BAL-0010 | BROADBAND BALUN | Standard | REACH RoHS | Released | EAR99 |
Three port scattering parameters measured as three single-ended 50Ω ports showing relationship between any two ports. For example: S21 and S31, often referred to as insertion loss of a balun, is the output response on ports 2 and 3 with an input stimulus on port 1.

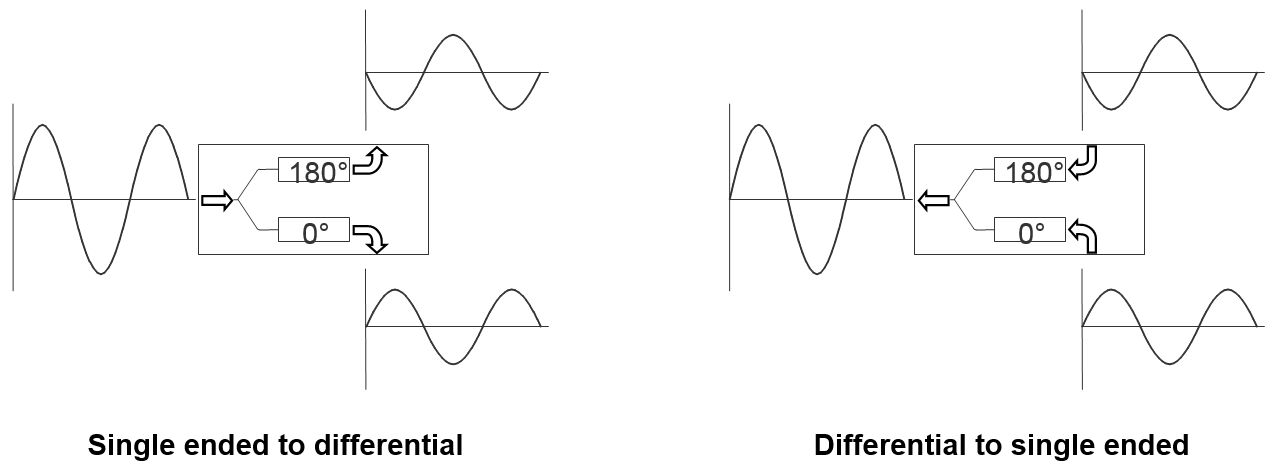

Mixed mode scattering parameters are used to characterize differential circuits. For baluns, this means that the 0° and 180° ports become a single 100Ω differential port and the common port remains the same 50Ω common port. The two-port s-parameters of the balun are then characterized based on differential (d), common mode (c), or single-ended (s) signals. For example: S12ds is the differential output response given a single ended input.
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0.0002 | 10 | - | - | - | GHz |
| Amplitude Balance | - | 0.0002 | 10 | - | 0.2 | 0.6 | dB |
| Common Mode Rejection | - | 0.0002 | 10 | 25 | 35 | - | dB |
| Impedance Ratio | - | - | - | - | 2:1 | - | - |
| Insertion Loss as a Mode Converter | - | 0.0002 | 10 | - | 5 | 6.5 | dB |
| Isolation | - | 0.0002 | 10 | - | 9 | - | dB |
| Nominal Phase Shift | - | 0.0002 | 10 | - | 180 | - | ° |
| Phase Balance | - | 0.0002 | 10 | - | 2 | 6 | ° |
| Risetime/Falltime 1 | - | 0.0002 | 10 | - | 20 | - | ps |
| VSWR (Input) | - | 0.0002 | 10 | - | 1.45 | - | - |
| VSWR (Output) | - | 0.0002 | 10 | - | 1.8 | - | - |
[1] Specified as 90%/10%.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 1 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 32g |
| Dimensions | - | 66.04 x 16.76 mm |
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| 180° Port (Balanced) | 180° Port | SMAF | The 180 (degree) port is DC short to ground. |  |
| Common Port / In (Unbalanced) | RF Input | SMAF | The common port is DC short to ground. |  |
| Out 1 / 0° Port (Balanced) | 0° Port | SMAF | The 0 (degree) port is DC short to ground. | |

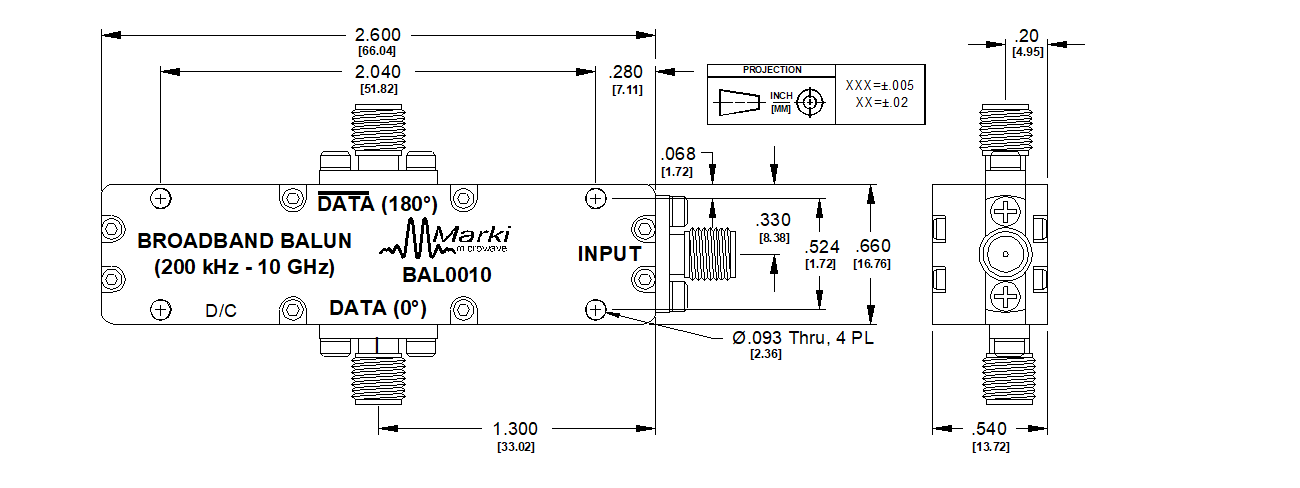

Download : Outline 2D Drawing Outline 3D Drawing Outline 3D STP
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2011-01-01 | Datasheet initial Release |
| A | 2014-01-01 | Typical Performance plots added |
| B | 2019-10-01 | Mixed Mode Scattering Parameters added |
| C | 2019-11-01 | RoHS Compliant assembly |
| D | 2020-07-01 | Specs Table update |
| E | 2020-10-01 | Specs Table update |
