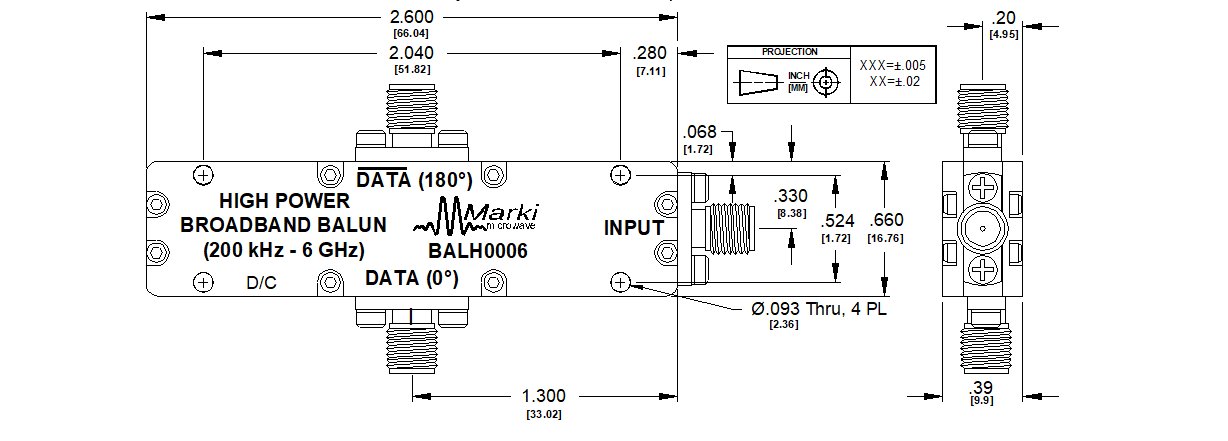

Port Diagram
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The BAL-0006 is a broadband balun, hand-tuned for optimal phase and amplitude balance over a 200 kHz to 6 GHz bandwidth. It serves as an excellent choice for analog to digital converters, balanced receivers, baseband digital modulations, and signal integrity enhancement.
Features
- 2:1 Impedance Ratio
- 200 kHz to 6 GHz Balun (Balanced to Unbalanced Transformer)
- Matched 50 Ohm Impedance on Input and Output Ports
- Tuned for Optimal Phase/Amplitude Balance
Applications
- Analog to Digital Converters
- Balanced Receivers
- Baseband Digital Modulation
- Signal Integrity

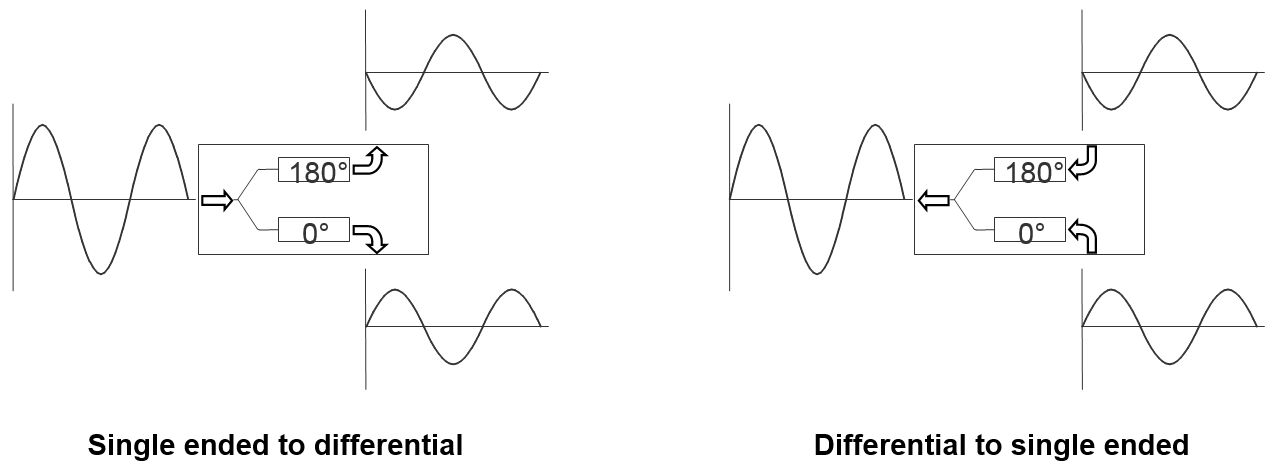

Functional Block Diagram
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BAL-0006 | BROADBAND BALUN (200 kHz to 6 GHz) | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| BAL-0006 | BROADBAND BALUN (200 kHz to 6 GHz) | Standard | REACH RoHS | Released | EAR99 |
BAL-0006
BROADBAND BALUN (200 kHz to 6 GHz)
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2011-01-01 | Datasheet initial Release |
| A | 2014-01-01 | Typical Performance plots added |
| B | 2019-10-01 | Mixed Mode Scattering Parameters added |
| C | 2019-11-01 | RoHS Compliant assembly |
| D | 2020-07-01 | Specs Table Update |
| E | 2020-10-01 | Specs Table Update |
BAL-0006
BROADBAND BALUN (200 kHz to 6 GHz)
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Common Port / In (Unbalanced) | RF Input | SMAF | The common port is DC short to ground. |  |
| Out 1 / 0° Port (Balanced) | 0° Port | SMAF | The 0 port is DC short to ground. | |
| Out 2 / 180° Port (Balanced) | 180° Port | SMAF | The 180 port is DC short to ground. | |
BAL-0006
BROADBAND BALUN (200 kHz to 6 GHz)
Specifications
Absolute Maximum Ratings
| Parameter | Maximum Rating | Unit |
|---|---|---|
| RF Power Handling | 1 | W |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | - | 27g |
| Dimensions | - | 66.04 x 16.76 mm |
BAL-0006
BROADBAND BALUN (200 kHz to 6 GHz)
Electrical Specifications
Specifications guaranteed from -55 to +100°C, measured in a 50Ω system.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 0.0002 | 6 | - | 0.05 | 0.5 | dB |
| Common Mode Rejection | - | 0.0002 | 6 | 30 | 40 | - | dB |
| Impedance Ratio | - | - | - | - | 2:1 | - | |
| Insertion Loss as a Mode Converter | - | 0.0002 | 6 | - | 4.5 | 6 | dB |
| Isolation | - | 0.0002 | 6 | - | 9 | - | dB |
| Nominal Phase Shift | - | 0.0002 | 6 | - | 180 | - | ° |
| Phase Balance | - | 0.0002 | 6 | - | 1 | 5 | ° |
| Risetime/Falltime 1 | - | 0.0002 | 6 | - | 40 | - | ps |
| VSWR (Input) | - | 0.0002 | 6 | - | 1.35 | - | |
| VSWR (Output) | - | 0.0002 | 6 | - | 1.7 | - |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Amplitude Balance | - | 0.0002 | 6 | - | 0.05 | 0.5 | dB |
| Common Mode Rejection | - | 0.0002 | 6 | 30 | 40 | - | dB |
| Impedance Ratio | - | - | - | - | 2:1 | - | |
| Insertion Loss as a Mode Converter | - | 0.0002 | 6 | - | 4.5 | 6 | dB |
| Isolation | - | 0.0002 | 6 | - | 9 | - | dB |
| Nominal Phase Shift | - | 0.0002 | 6 | - | 180 | - | ° |
| Phase Balance | - | 0.0002 | 6 | - | 1 | 5 | ° |
| Risetime/Falltime 1 | - | 0.0002 | 6 | - | 40 | - | ps |
| VSWR (Input) | - | 0.0002 | 6 | - | 1.35 | - | |
| VSWR (Output) | - | 0.0002 | 6 | - | 1.7 | - |
[1] Specified as 90%/10%. Calculated from Tau_balun^2 = (Tau_out^2 – Tau_in^2)
BAL-0006
BROADBAND BALUN (200 kHz to 6 GHz)
Time Domain Performance Plots
Oscilloscope measurements of the BAL-0006 with a 5 Gb/s PRBS pattern.Bit pattern is measured with a 27-1 PRBS input demonstrating extremely good pulse fidelity for both inverted and non-inverted output. Eye diagrams are taken with a 231-1 PRBS input demonstrating minimal eye distortion/closure afforded by the extremely low frequency operation of the balun (<200 kHz).
