ATN15-0040BH_Passive GaAs MMIC DC - 40 GHz 15 dB Attenuator

General Description

The ATN15-0040BH is a GaAs MMIC attenuator in an inline connectorized bullet housing package. The ATN15-0040BH provides a nominal 15.2 dB attenuation over a DC to 40 GHz operating range. The attenuator delivers accurate, repeatable performance with an excellent 27 dB return loss for test and measurement, and system level applications. GaAs MMIC technology provides consistent unit-to-unit performance. A 50-ohm match is maintained over the entire operating frequency range.

Download s-parameters here

Features

Operating Range, DC to 40 GHz
Attenuation, 15.2 dB Typical
Return Loss, 27 dB Typical
Compact Inline Bullet Housing

Functional Block Diagram

Download PDF

Electrical Performance Summary

Parameter	Typ	Unit
Frequency Range	0 to 40	GHz
Attenuation	15.2	dB
Return Loss	27	dB
Attenuation Flatness	0.5	dB

Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.

Part Ordering Options

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
ATN15-0040BH	Passive GaAs MMIC DC - 40 GHz 15 dB Attenuator	BH	Standard	RoHS REACH	Released	EAR99

Part Number

Description

Package

Connectors

Green Status

Product Lifecycle

Export Classification

ATN15-0040BH

Passive GaAs MMIC DC - 40 GHz 15 dB Attenuator

Standard

RoHS

REACH

Released

EAR99

Device Overview
Specifications
Port Configuration and Functions
- Port Diagram
- Port Functions
Mechanical Data
- Outline Drawing
Revision History

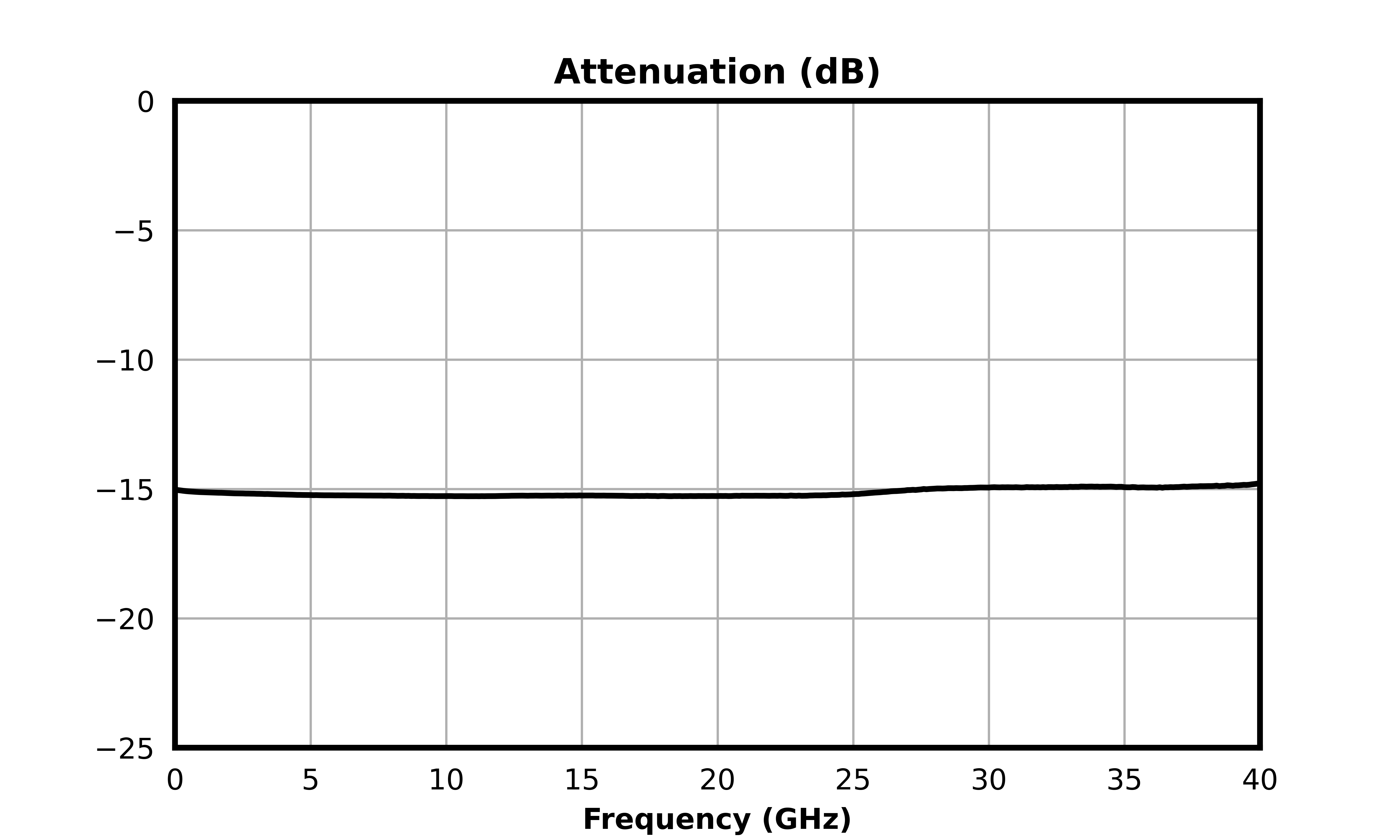

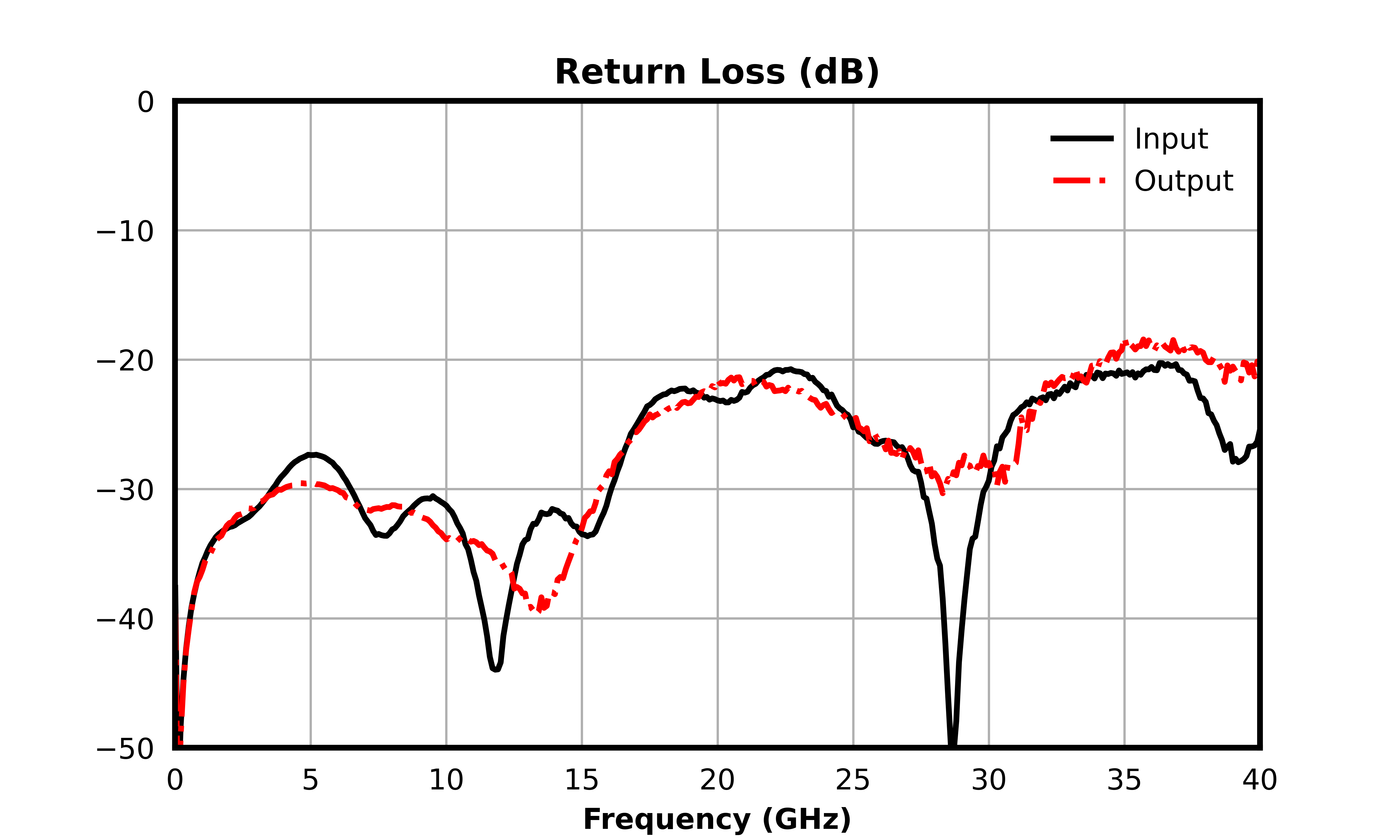

Typical Performance Plot

Specifications

Electrical Specifications

The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a BH connectorized package with a sine wave input applied to the input port.

Parameter	Test Conditions	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Frequency Range	-	40	-	-	-	GHz
Attenuation	Configuration A, Temp = 25°C	40	-	15.2	-	dB
Return Loss	Configuration A, Temp = 25°C	40	-	27	-	dB
Attenuation Flatness ¹	Configuration A, Temp = 25°C	40	-	0.5	-	dB

^[1] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.

Parameter	Maximum Rating	Unit
DC Current	100	mA
Maximum Operating Temperature	100	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature	-55	°C
Minimum Storage Temperature	-65	°C
RF Power Handling	2	W

Power Handling measured with instantaneous CW of 2 GHz.

Package Information

Parameter	Details	Rating
ESD	250 to < 500 Volts	HBM Class 1A
Weight	Package name: BH	9.2g
Dimensions	-	30.1 x 9.5 mm

Port Configuration and Functions

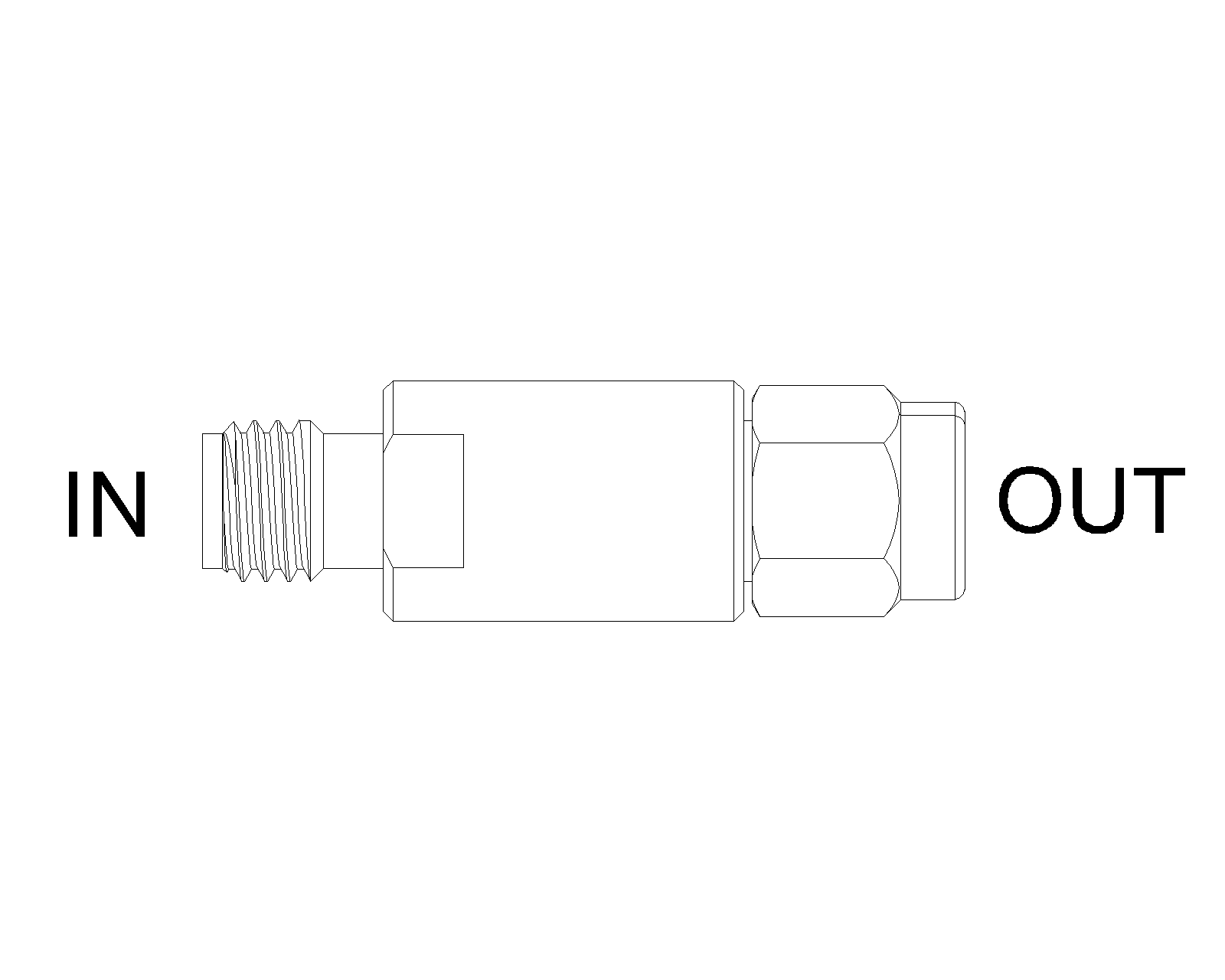

Port Diagram

Diagram of the port configuration for ATN15-0040BH

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	Ground for the BH package is provided through the metal housing and outer coax conductor.
IN	Input/Output	2.92F	IN and OUT are DC connected to each other and ground through a T-network of resistors.
OUT	Input/Output	2.92M	IN and OUT are DC connected to each other and ground through a T-network of resistors.

Mechanical Data

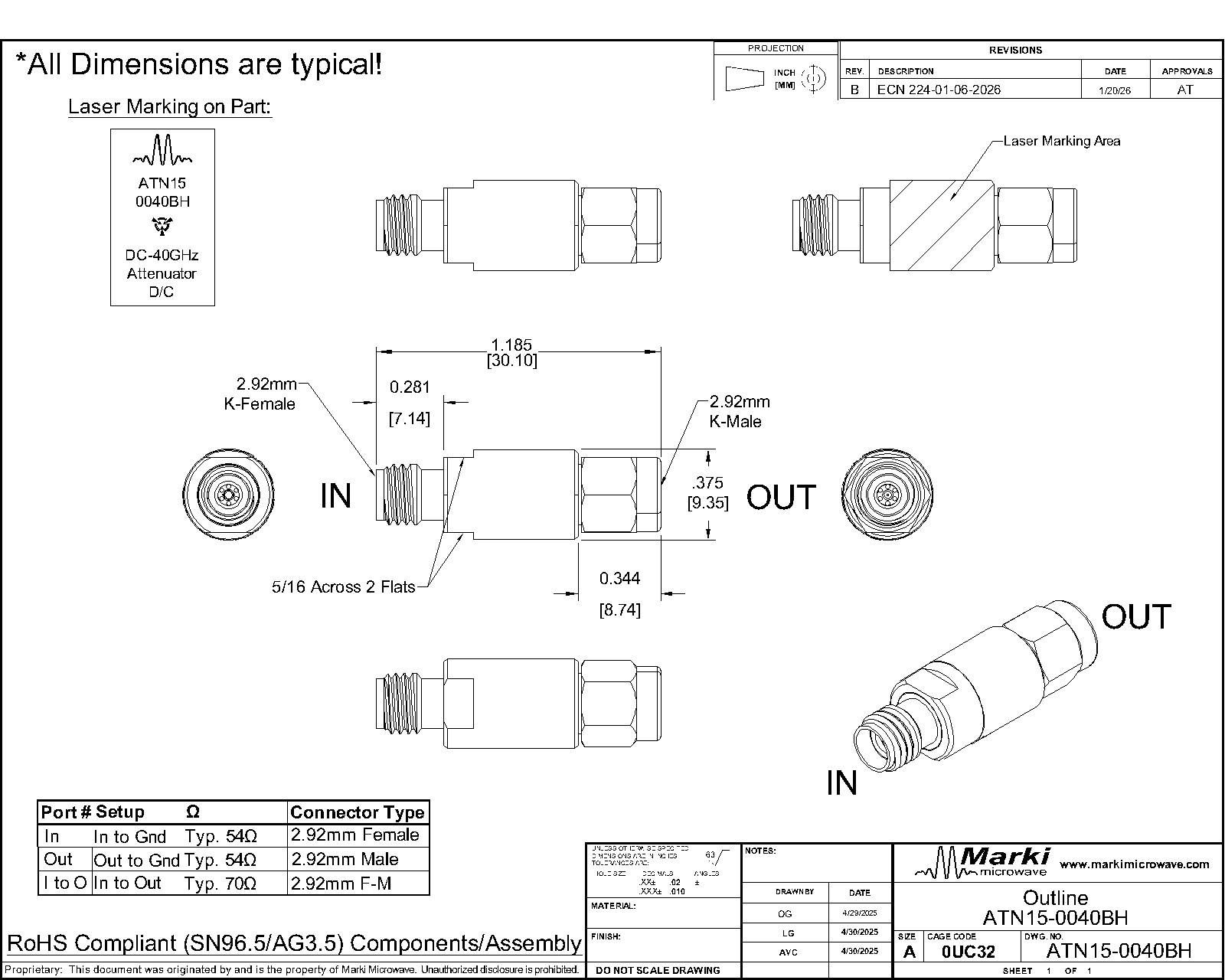

Outline Drawing

Download : Outline 2D Drawing

Revision History

Revision Code	Revision Date	Comment
-	2026-03-20	Initial Release
