Port Diagram

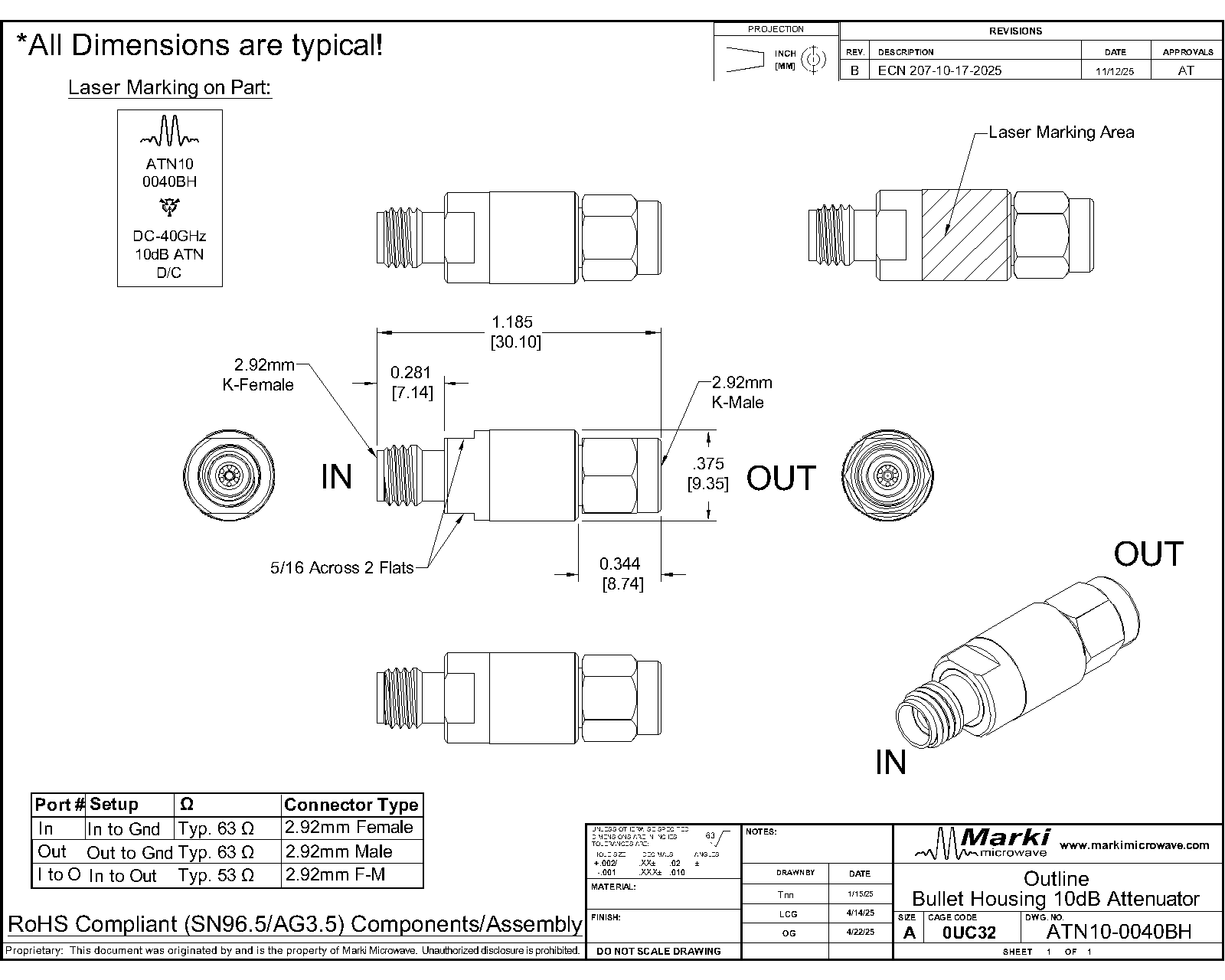

The package outline drawing is shown below.
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The ATN10-0040BH is a GaAs MMIC attenuator in an inline connectorized bullet housing package. The ATN10-0040BH provides a nominal 10.6 dB attenuation over a DC to 40 GHz operating range. The attenuator delivers accurate, repeatable performance with an excellent 29 dB return loss for test and measurement, and system level applications. GaAs MMIC technology provides consistent unit-to-unit performance. A 50-ohm match is maintained over the entire operating frequency range.
Features
- Operating Range, DC to 40 GHz
- Attenuation, 10.6 dB Typical
- Return Loss, 29 dB Typical
- Inline Bullet Housing
Applications
- 5G
- Test Equipment
- Precision Characterization
- Airborne Applications
- Amplitude Matching
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| ATN10-0040BH | Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator | BH | - | RoHS REACH | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| ATN10-0040BH | Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator | BH | - | RoHS REACH | Released | EAR99 |
ATN10-0040BH
Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2025-06-04 | Initial Release |
ATN10-0040BH
Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | Ground for the BH package is provided through the metal housing and outer coax conductor. |  |
| IN | Input/Output | 2.92F | IN and OUT are DC connected to each other and ground through a T-network of resistors. |  |
| OUT | Input/Output | 2.92M | IN and OUT are DC connected to each other and ground through a T-network of resistors. | |
ATN10-0040BH
Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 100 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 2 | W |
Power Handling measured with instantaneous CW of 2 GHz.
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: BH | 9.2g |
| Dimensions | - | 30.1 x 9.5 mm |
ATN10-0040BH
Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a BH connectorized package with a sine wave input applied to the input port.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 0 | 40 | - | 10.6 | - | dB |
| Return Loss | Temp = 25°C | 0 | 40 | - | 28 | - | dB |
| Attenuation Flatness 1 | Temp = 25°C | 0 | 40 | - | 0.9 | - | dB |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Attenuation | Temp = 25°C | 0 | 40 | - | 10.6 | - | dB |
| Return Loss | Temp = 25°C | 0 | 40 | - | 28 | - | dB |
| Attenuation Flatness 1 | Temp = 25°C | 0 | 40 | - | 0.9 | - | dB |
| Impedance | Temp = 25°C | - | - | - | 50 | - | Ω |
[1] Attenuation Flatness = Max(Insertion Loss) - Min(Insertion Loss)
ATN10-0040BH
Passive GaAs MMIC DC - 40 GHz 10 dB Attenuator

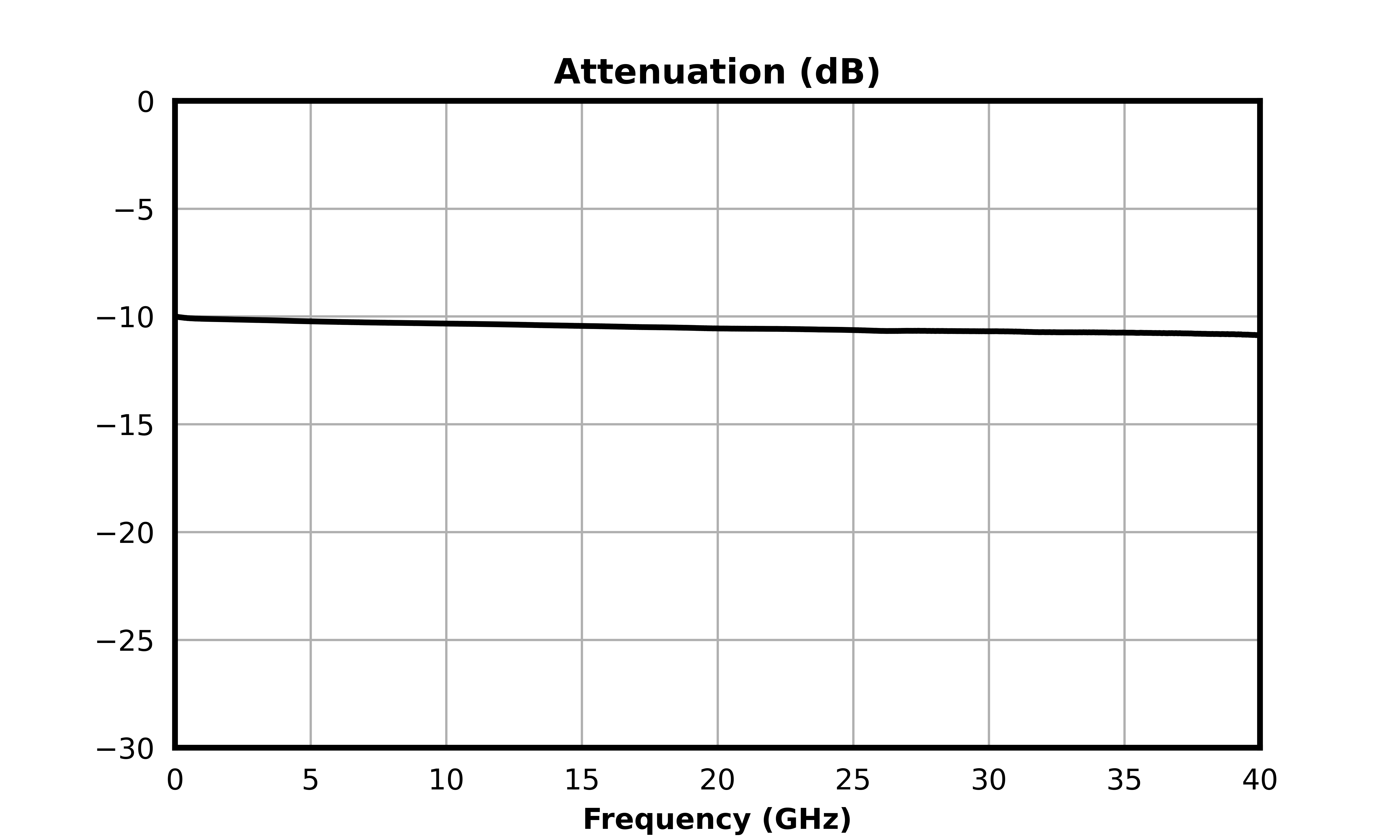

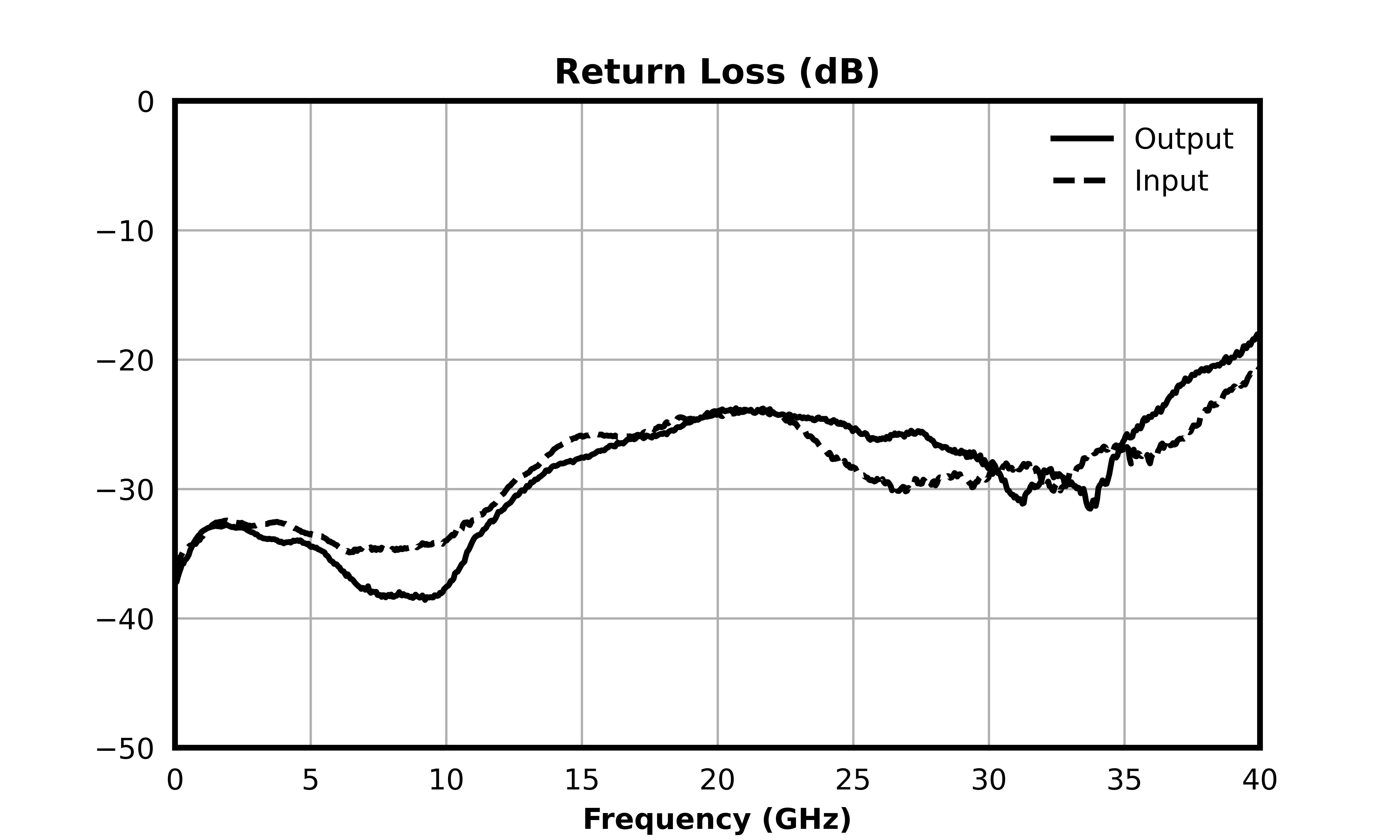

Typical Performance Plot
.png)
.png)
