ATN06-0040BH
Passive GaAs MMIC DC - 40 GHz 6 dB Attenuator
The ATN06-0040BH is a GaAs MMIC attenuator in an inline connectorized bullet housing package. The ATN06-0040BH provides a nominal 6.5 dB attenuation over a DC to 40 GHz operating range. The attenuator delivers accurate, repeatable performance with an excellent 30 dB return loss for test and measurement, and system level applications. GaAs MMIC technology provides consistent unit-to-unit performance. A 50-ohm match is maintained over the entire operating frequency range.
| Parameter | Typ | Unit |
|---|---|---|
| Frequency Range | 0 to 40 | GHz |
| Attenuation | 6.45 | dB |
| Return Loss | 30 | dB |
| Attenuation Flatness | 0.45 | dB |
Summary only – refer to the Electrical Specifications, Absolute Maximum Ratings, and Recommended Operating Range tables for complete details.
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| ATN06-0040BH | Passive GaAs MMIC DC - 40 GHz 6 dB Attenuator | BH | - | RoHS REACH | Released | EAR99 |

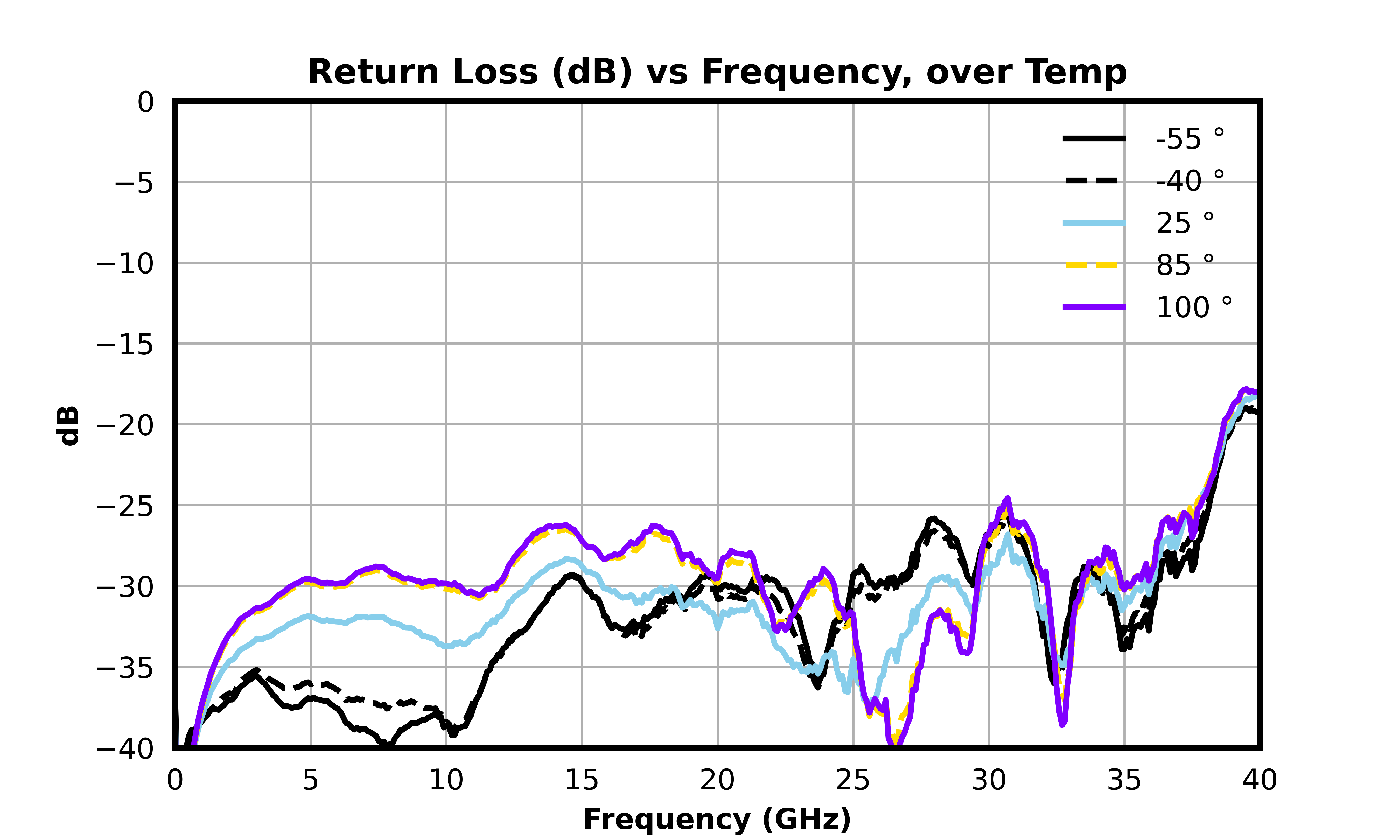

%20vs%20Frequency,%20over%20Temp.png)

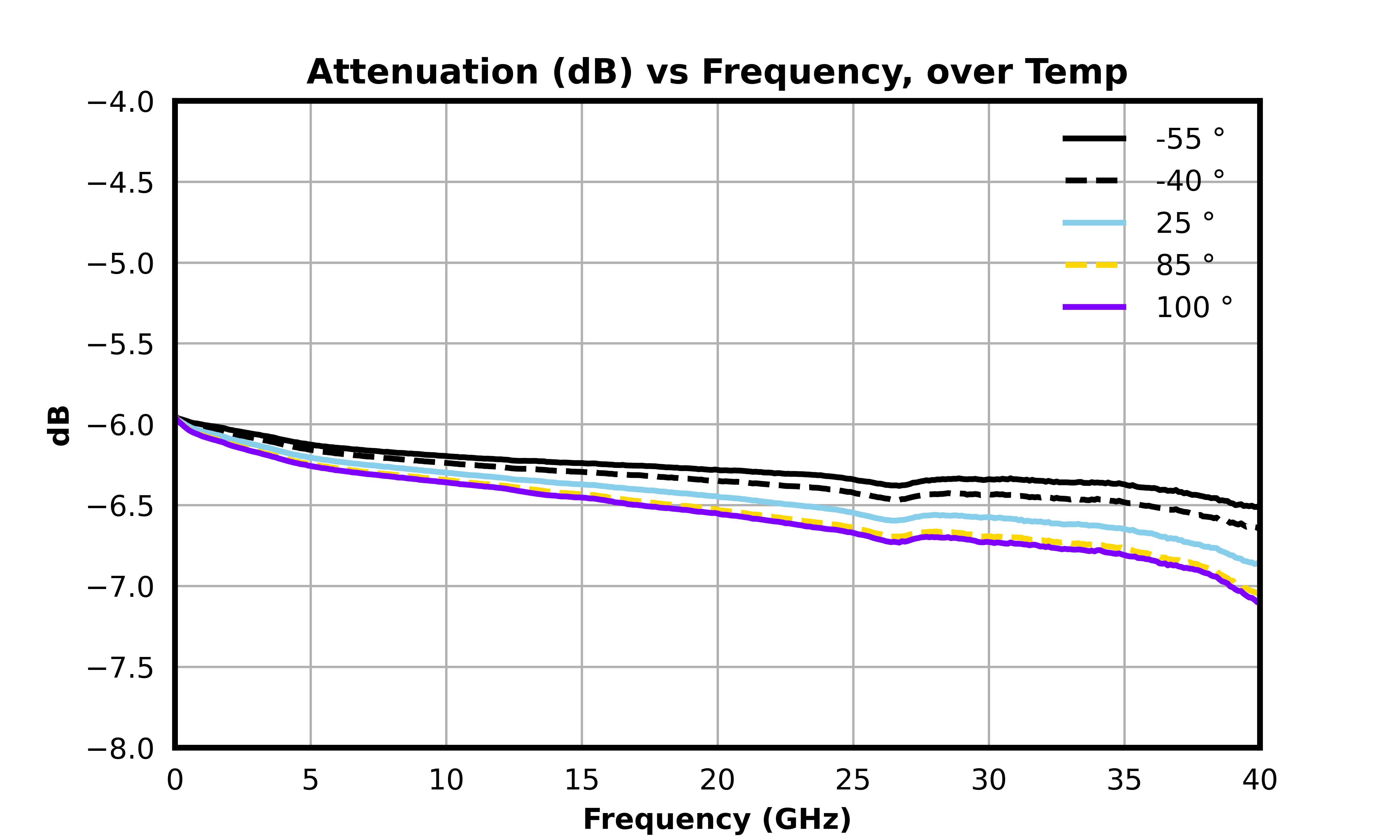

%20vs%20Frequency,%20over%20Temp.png)
The electrical specifications apply at TA=+25°C in a 50Ω system. Typical data shown is for the attenuator in a BH connectorized package with a sine wave input applied to the input port.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Frequency Range | - | 0 | 40 | - | - | - | GHz |
| Attenuation | Configuration A, Temp = 25°C | 0 | 40 | - | 6.45 | - | dB |
| Attenuation Flatness 1 | Configuration A, Temp = 25°C | 0 | 40 | - | 0.45 | - | dB |
| Impedance | Configuration A, Temp = 25°C | 0 | 40 | - | 50 | - | Ω |
| Return Loss | Configuration A, Temp = 25°C | 0 | 40 | 15 | 30 | - | dB |
[1] Attenuation Accuracy = Median Value of ABS(Measured Attenuation - Nominal Attenuation)
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| DC Current | 100 | mA |
| Maximum Operating Temperature | 100 | °C |
| Maximum Storage Temperature | 125 | °C |
| Minimum Operating Temperature | -55 | °C |
| Minimum Storage Temperature | -65 | °C |
| RF Power Handling | 2 | W |
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: BH | 9.2g |
| Dimensions | - | 30.1 x 9.5 mm |

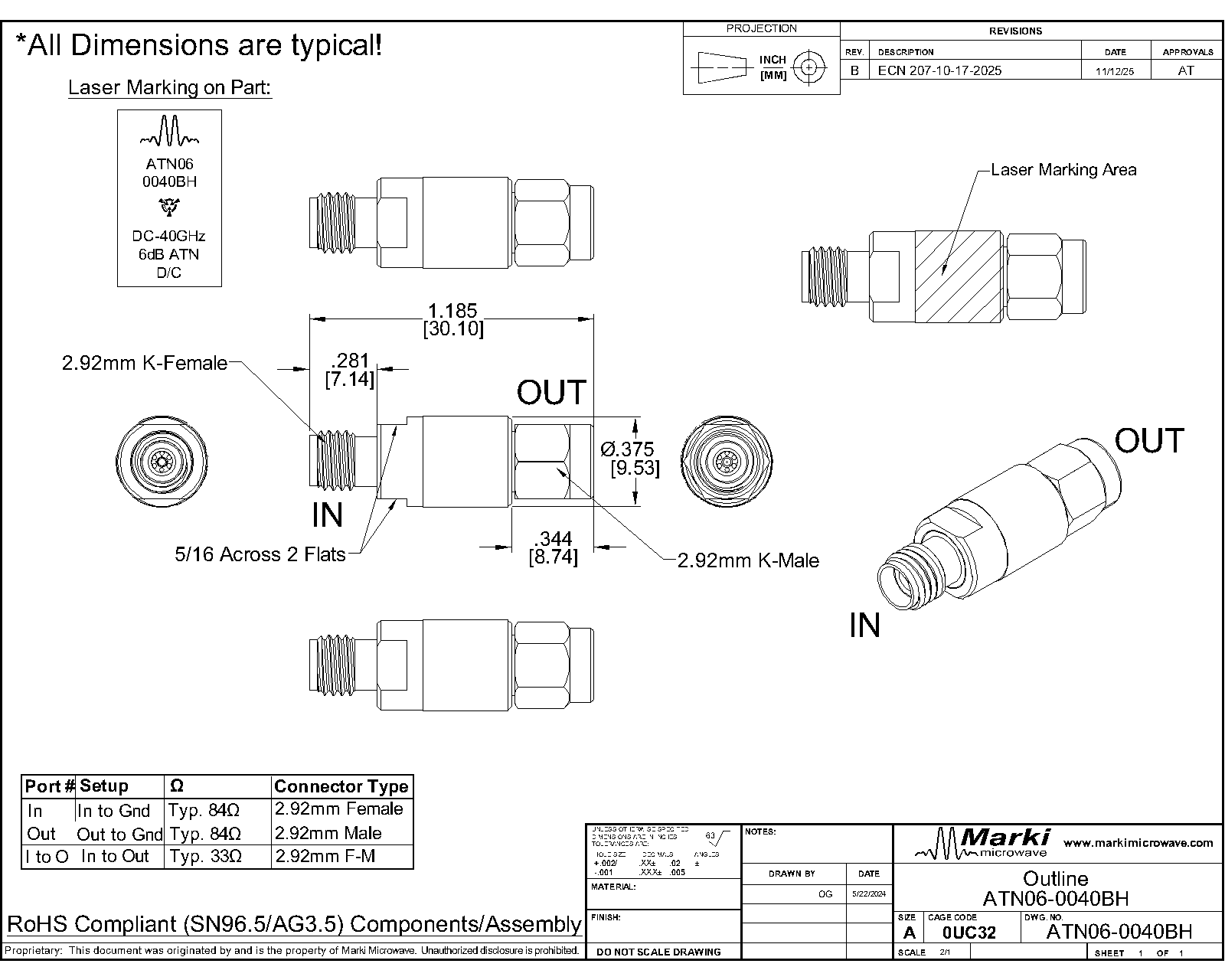

The package outline drawing is shown below.
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | Ground for the BH package is provided through the metal housing and outer coax conductor. |  |
| IN | Input/Output | 2.92F | IN and OUT are DC connected to each other and ground through a T-network of resistors. |  |
| OUT | Input/Output | 2.92M | IN and OUT are DC connected to each other and ground through a T-network of resistors. | |
Download : Outline 2D Drawing
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-11-18 | Initial Release |
