Device Overview

General Description

The AMM2-0070UH is a ultra-broadband high gain amplifier capable of delivering high 18 dB gain over a 10 MHz to 70 GHz frequency range. The AMM2-0070UH features excellent 20 dB return losses, a positive gain slope response and 4.5 dB noise figure. This amplifier is housed in a 1” x 1.7” connectorized module and operates with a single positive bias supply without the need for sequencing.

Photo of AMM2-0070UH

Features

  • Ultra-Broadband 10 MHz - 70 GHz Operation
  • Gain, 18 dB typ
  • Positive Gain Slope
  • Noise Figure, 4 dB typ
  • Internal Voltage Sequencer
  • Single-Supply, Positive-Only Bias, 5.5 to 20 V

Applications

  • Test and Measurement Equipment
  • SATCOM
  • LO signal chain for mmWave mixers
  • Radar
  • Electronic warfare equipment
  • Aerospace and Defense

Functional Block Diagram

Block Diagram

Part Ordering Options

Part NumberDescriptionPackageConnectorsGreen StatusProduct LifecycleExport Classification
AMM2-0070UH10 MHz - 70GHz, Broadband High Gain Distributed AmplifierUH-

REACH

RoHS

ReleasedEAR99

Table Of Contents

Revision History

Revision CodeRevision DateComment
-2025-10-06Initial Release

Rev: - | Copyright © 2025 Marki Microwave LLC.

2

Port Configuration and Functions

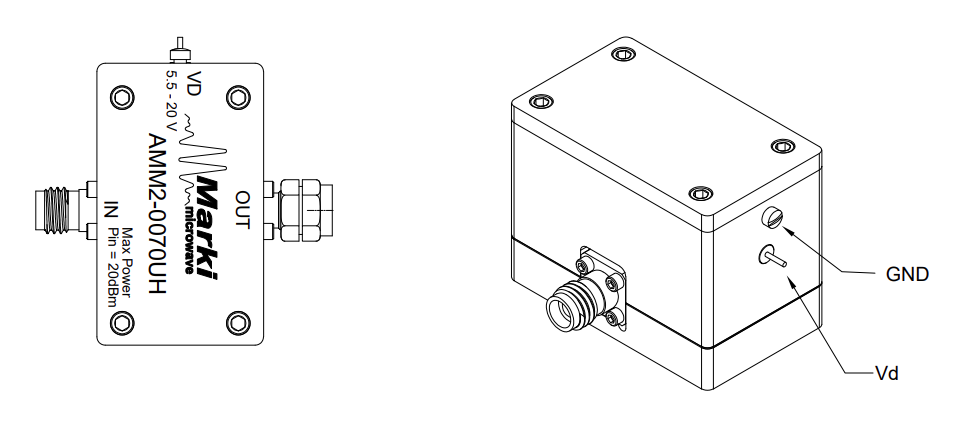

Port Diagram

The port diagram of the AMM2-0070UH is shown below.

Diagram of the port configuration for AMM2-0070UH

Port Functions

PortFunctionConnector TypeDescriptionDC Equivalent
Circuit
GNDGround -Ground Connection for UH ModuleEquivalent circuit for the Ground
RF InRF Input 1.85FRF input port to the module. This port is internally DC blocked and matched to 50 Ohms.Equivalent circuit for the RF Input
RF OutRF Output 1.85MRF output port to module. This port is internally DC blocked and matched to 50 Ohms.Equivalent circuit for the RF Output
VdPositive DC Supply Voltage -This pin provides DC power to the amplifier. DC voltage at this pin should be set to 5.5V to 20V for normal operation.-

Rev: - | Copyright © 2025 Marki Microwave LLC.

3

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device.

ParameterMaximum RatingUnit
Maximum Operating Temperature for MTTF > 1E6 hours 85°C
Maximum Storage Temperature 125°C
Minimum Operating Temperature for MTTF > 1E6 hours -40°C
Minimum Storage Temperature -65°C
Power Supply DC Voltage (Vd) 20V
RF Input Power 20dBm

Package Information

ParameterDetailsRating
Dimensions-25.2 x 42.6 mm

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

ParameterMinNominalMaxUnit
Input Power for Saturation --4-dBm
Power Supply DC Current (Id) 1-108-mA
Power Supply DC Voltage (Vd) 25.5820V

[1] Recommended operating current condition without RF input applied.

[2] Device can be biased anywhere from 5.5V to 20V and retain all electrical performance. Power consumption increases with higher bias voltage

Rev: - | Copyright © 2025 Marki Microwave LLC.

4

Electrical Specifications

Performance shown measured with 8V bias. Due to in module linear regulator, performance is independent to bias voltage within recommended operating conditions.

ParameterTest ConditionsMinimum
Frequency
(GHz)
Maximum
Frequency
(GHz)
MinTypMaxUnit
Input Return Loss 5.5V < Vd < 20V, Pin=-20dBm
0.01 67-20-dB
Noise Figure 5.5V < Vd < 20V
30 50-5-dB
Noise Figure 5.5V < Vd < 20V
1 10-5-dB
Noise Figure 5.5V < Vd < 20V
10 30-4-dB
Output IP3 5.5V < 5V < 20V
40 67-17-dBm
Output IP3 5.5V < Vd < 20V
0.01 40-20-dBm
Output P1dB 5.5V < Vd < 20V
0.01 30-11-dBm
Output P1dB 5.5V < Vd < 20V
30 67-6-dBm
Output Return Loss 5.5V < Vd < 20V, Pin=-20dBm
0.01 67-15-dB
Reverse Isolation 5.5V < Vd < 20V, Pin=-20dBm
0.01 67-60-dB
Small Signal Gain 5.5V < Vd < 20V, Pin=-20dBm
0.01 67-18-dB

Rev: - | Copyright © 2025 Marki Microwave LLC.

5

Typical Performance Plots

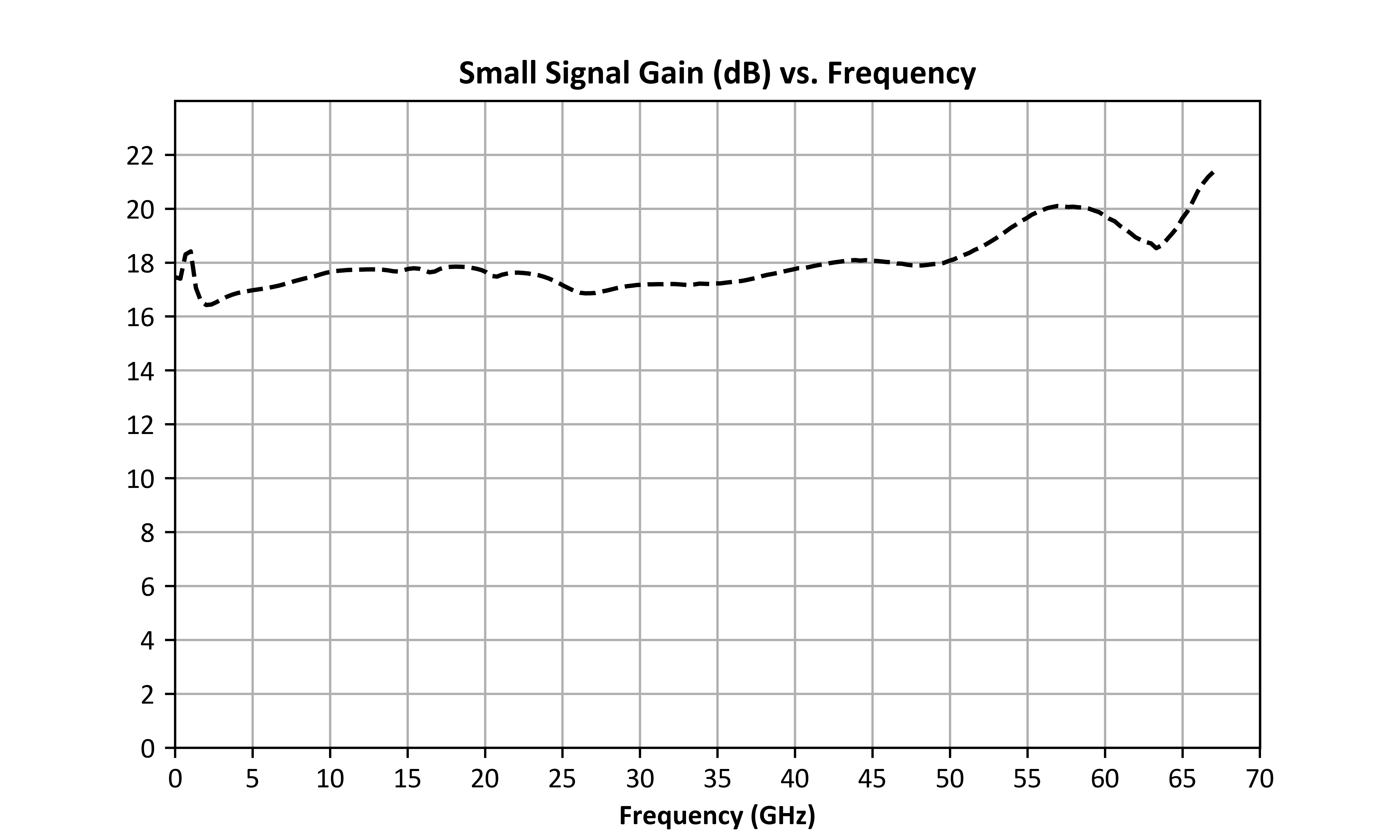

Small Signal Gain (dB) graph for AMM2-0070UH

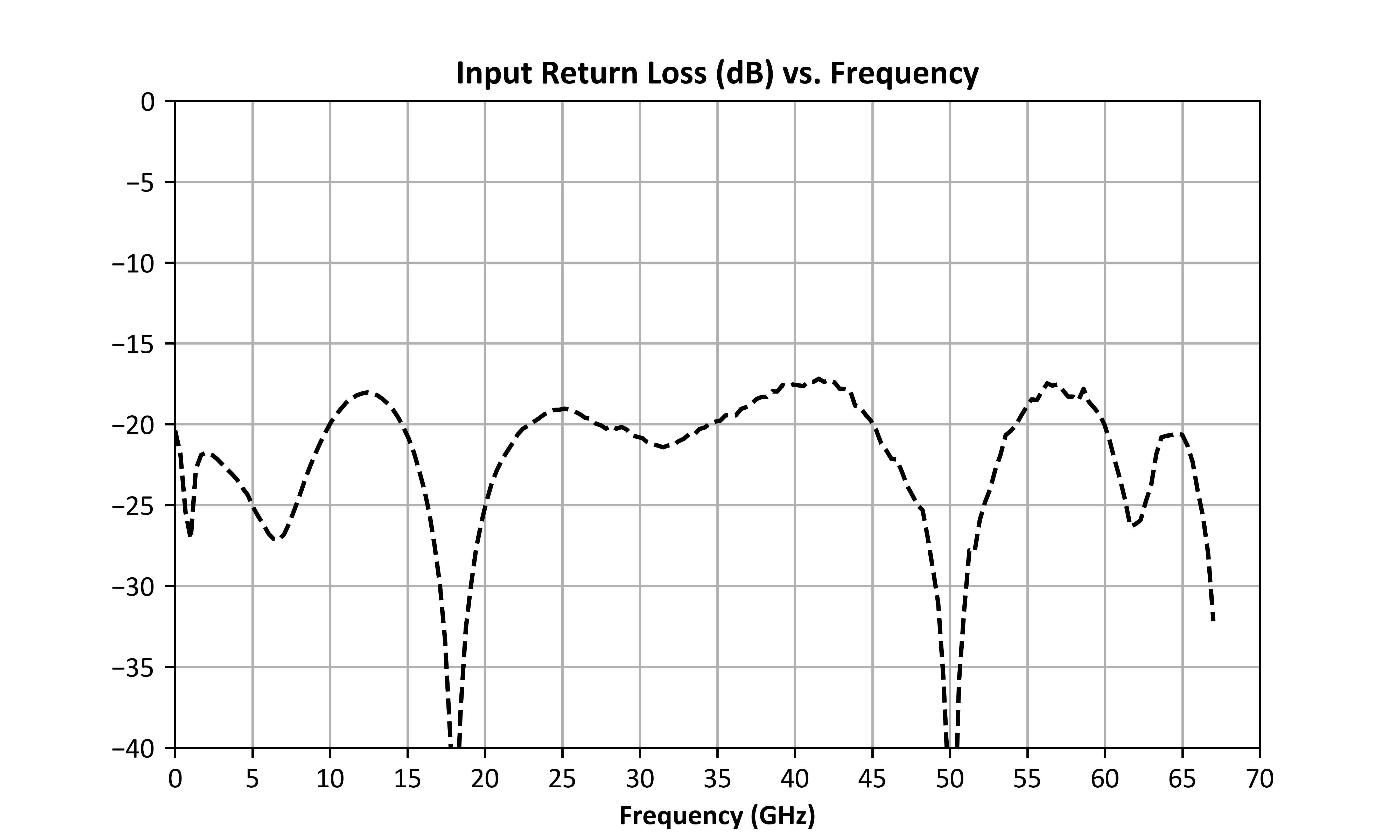

Input Return Loss graph for AMM2-0070UH

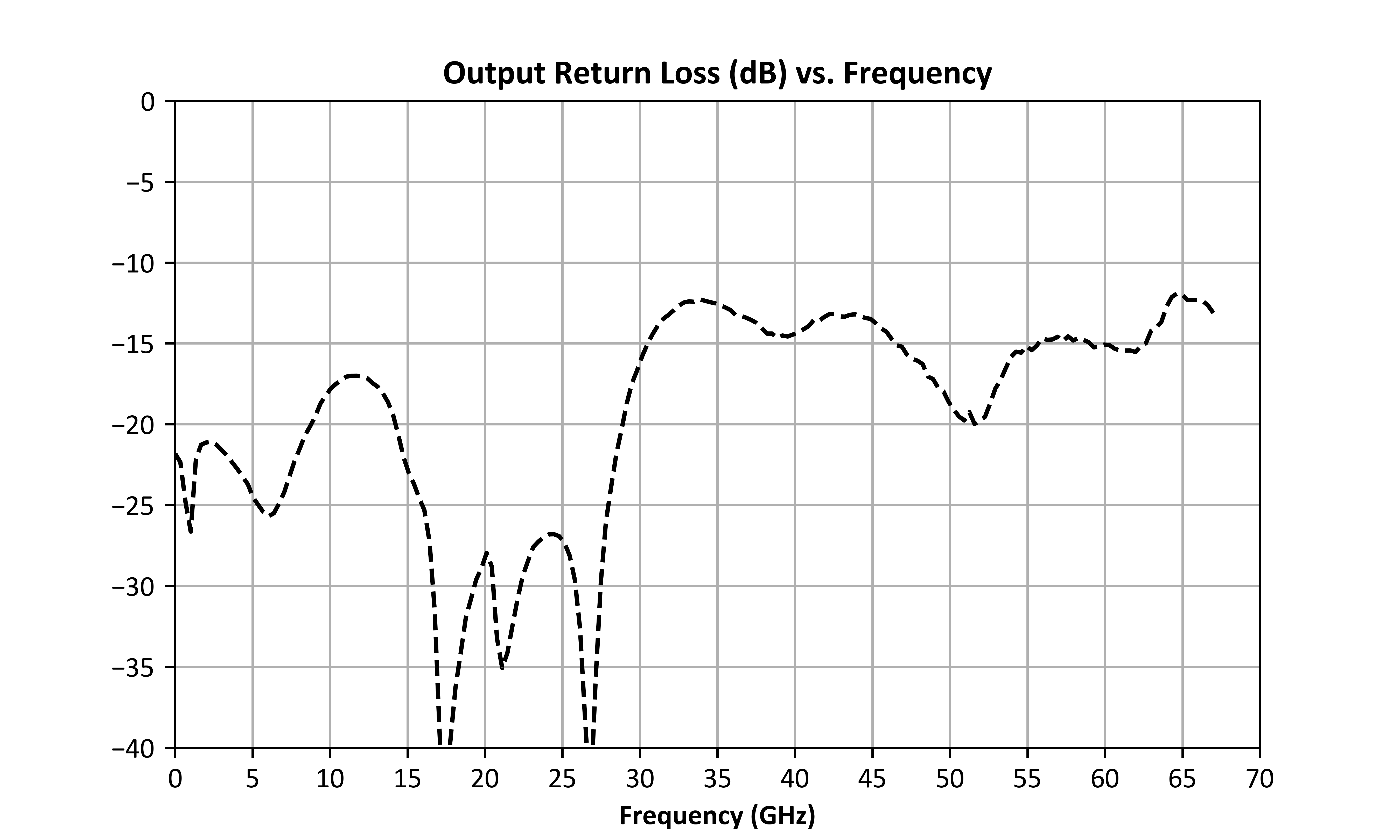

Output Return Loss graph for AMM2-0070UH

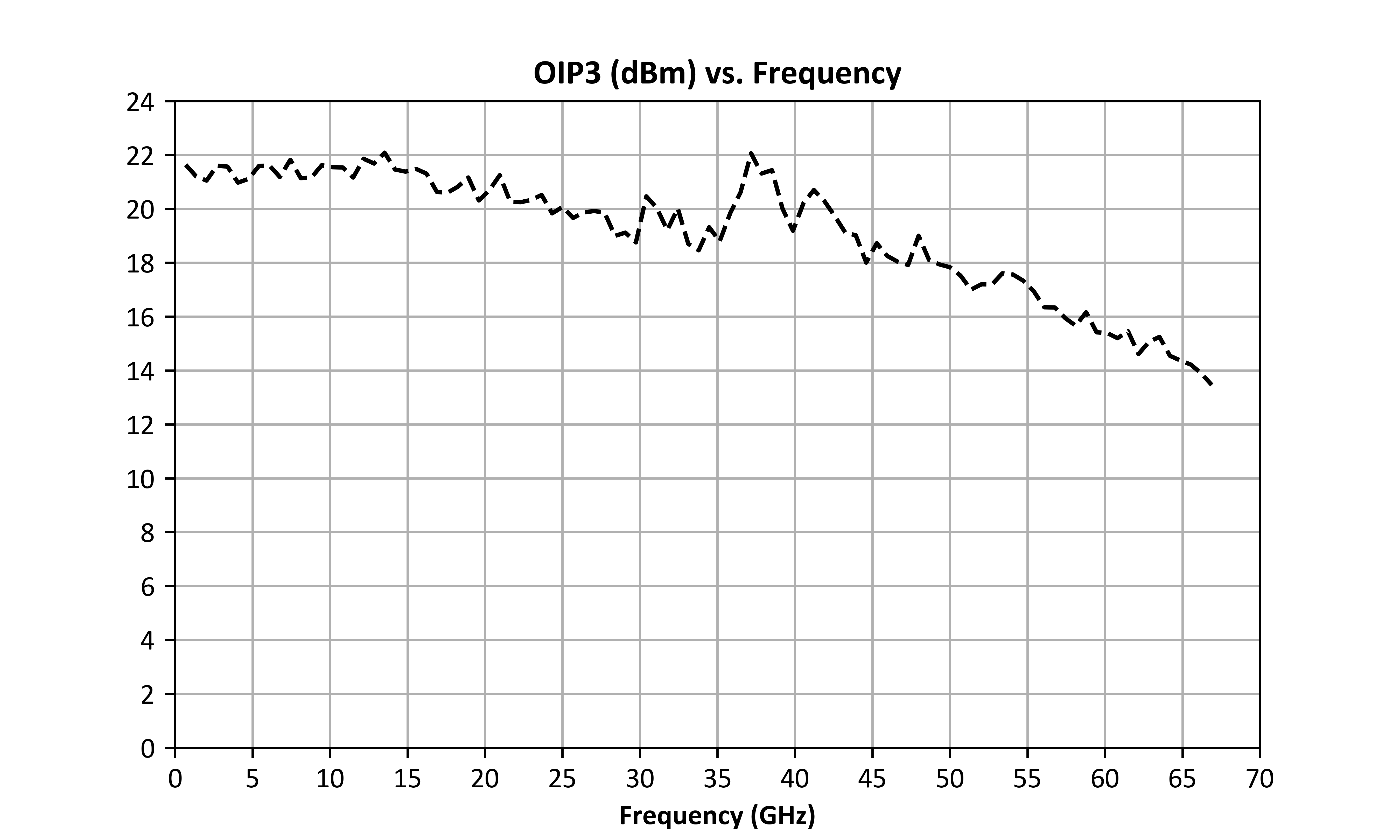

OIP3 (dBm) graph for AMM2-0070UH

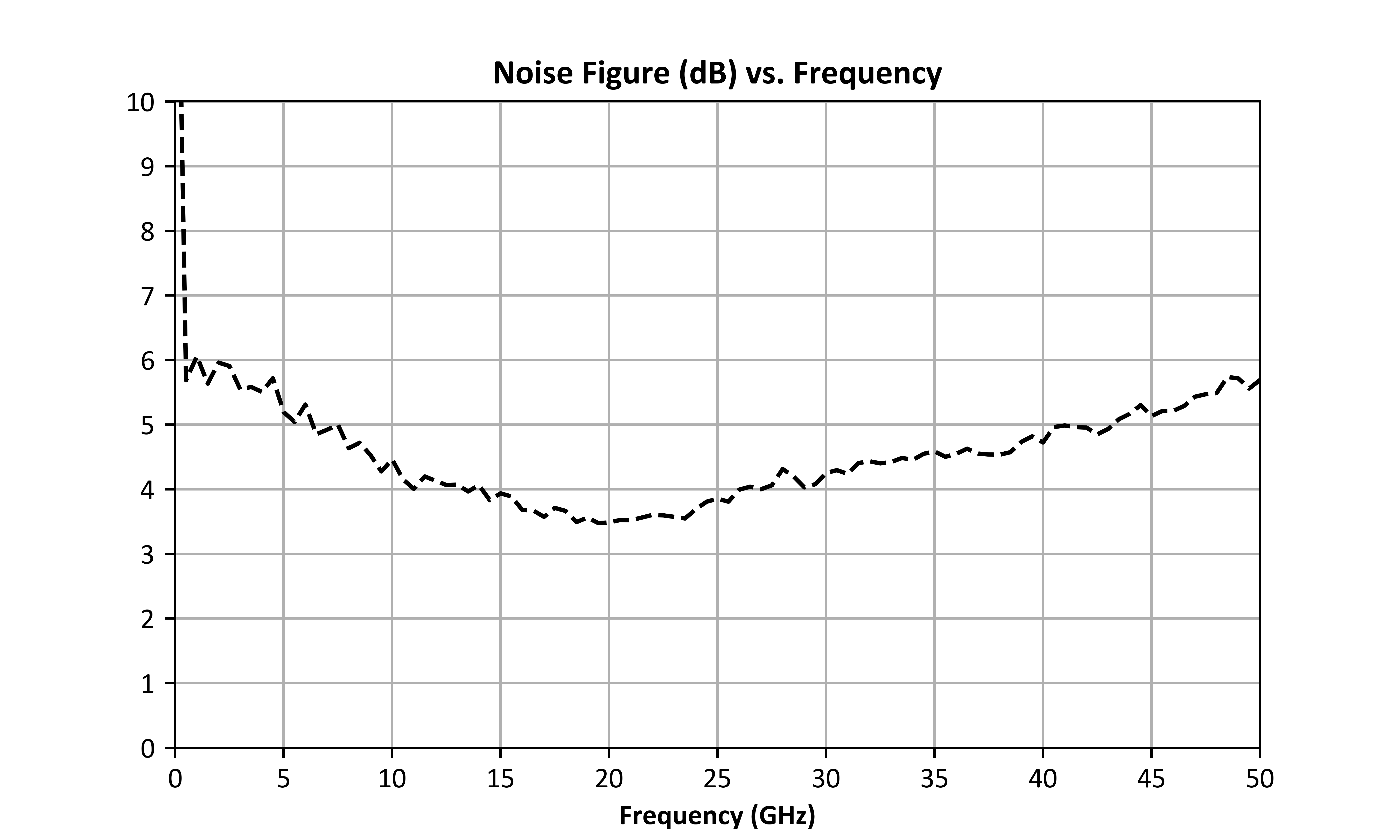

Noise Figure (dB) vs. Frequency graph for AMM2-0070UH

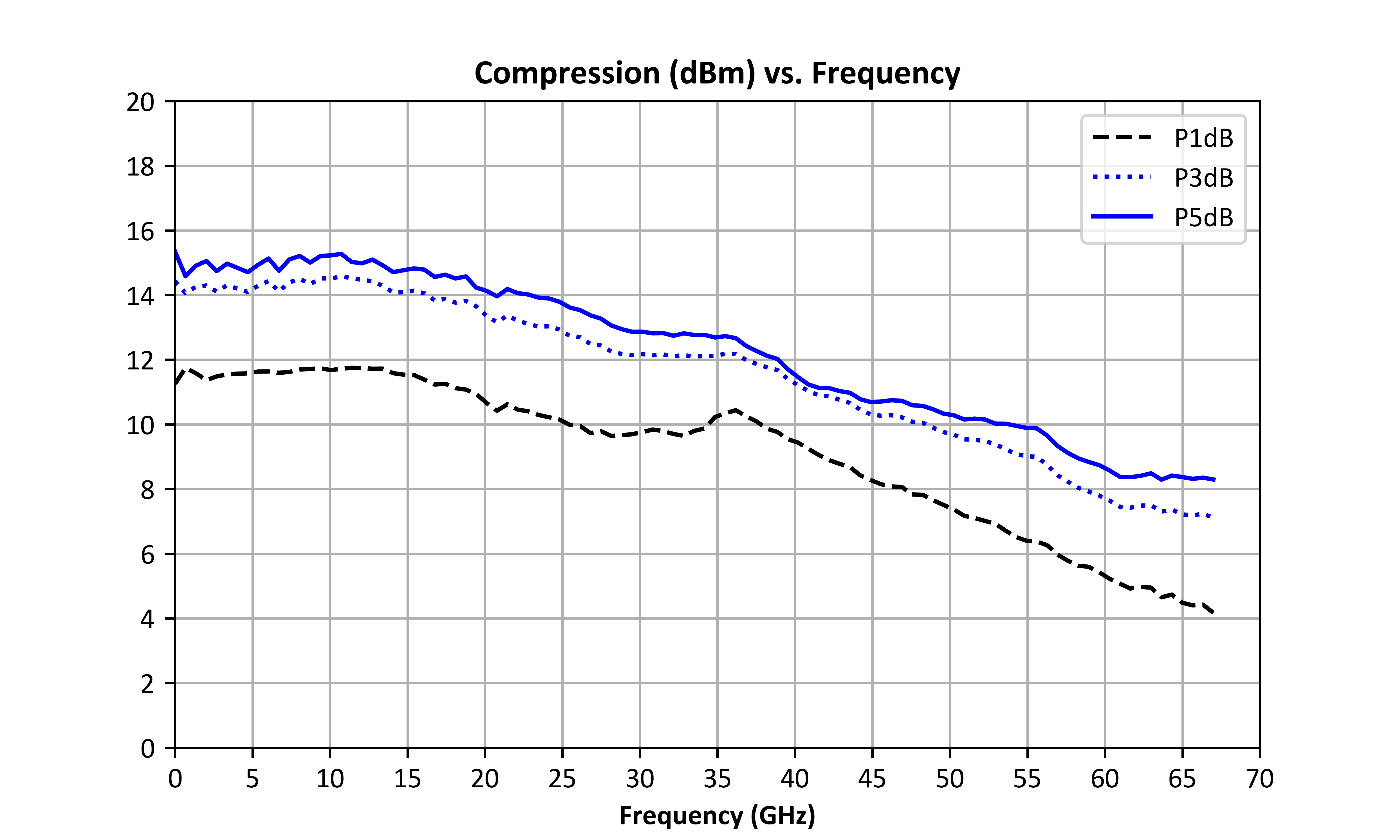

Output Compression graph for AMM2-0070UH

Rev: - | Copyright © 2025 Marki Microwave LLC.

6

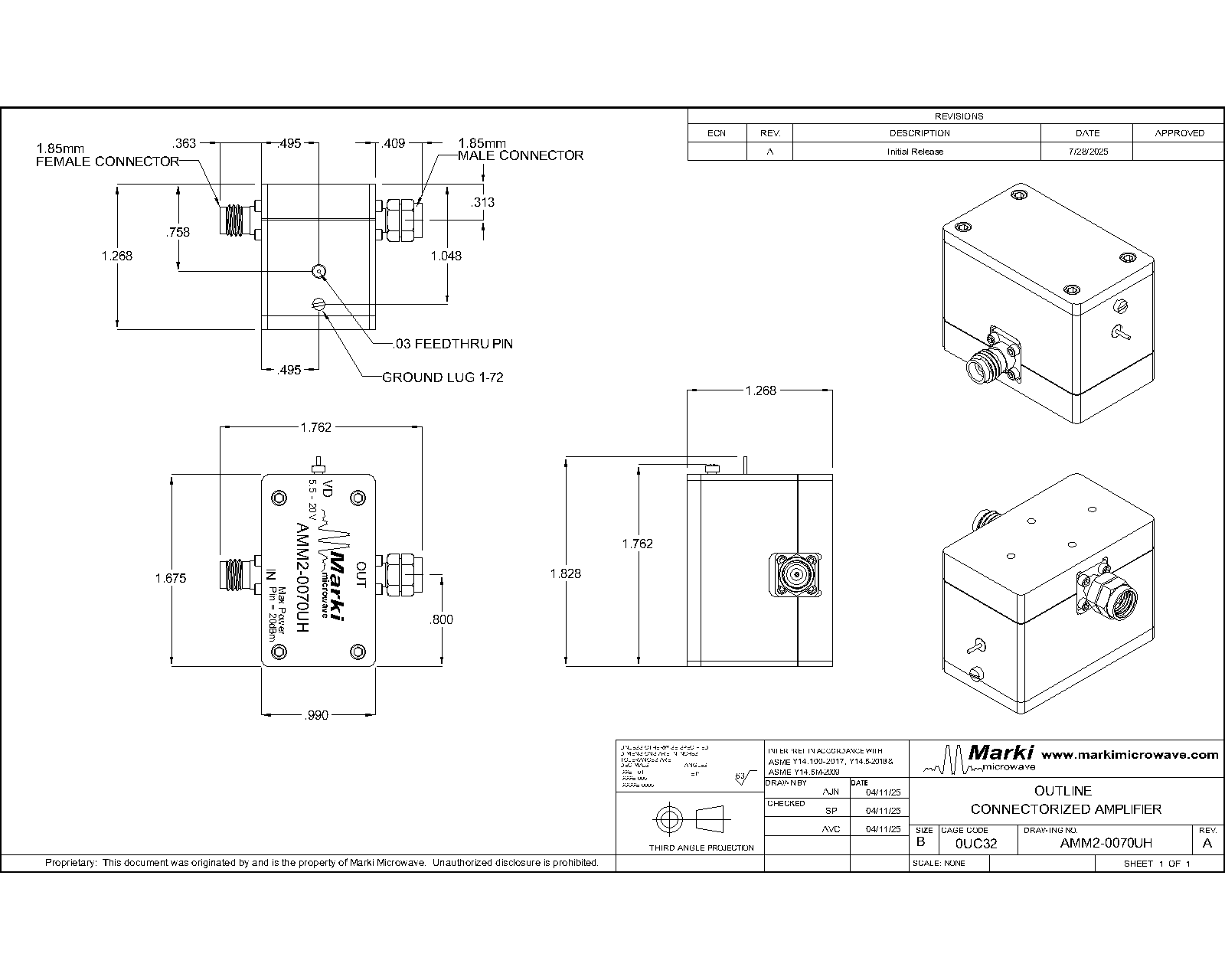

Mechanical Data

Rev: - | Copyright © 2025 Marki Microwave LLC.

7
