Device Overview
General Description
The AMM-7200UC-K is a general-purpose broadband MMIC driver amplifier that provides +21 dBm output power suitable for driving a Marki H or L diode mixer at 12-40 GHz and S diode mixer from 14-40 GHz. The amplifier also has excellent return losses and a small die size which allows it to be used in a variety of applications. It has built in DC-blocking capacitors on the input and output.
Features
- +21 dBm Output Power
- 18 dB gain
- Excellent Return Losses
- Small Die size
Applications
- Mobile test and measurement equipment
- 5G transceivers
- Driver amplifier L,H,S – diode mixers
- Radar
- SATCOM
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| AMM-7200UC-K | 12 GHz – 40 GHz GaAs Driver Amplifier | UC | - | RoHS RoHS | Released | EAR99 |
| AMM-7200UC | 12 GHz – 46 GHz GaAs Driver Amplifier | UC | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| AMM-7200UC-K | 12 GHz – 40 GHz GaAs Driver Amplifier | UC | - | RoHS RoHS | Released | EAR99 |
| AMM-7200UC | 12 GHz – 46 GHz GaAs Driver Amplifier | UC | Standard | REACH RoHS | Released | EAR99 |
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
Table Of Contents
- Device Overview
- Port Configuration and Functions
- Revision History
- Specifications
- Operation
- Mechanical Data
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2024-02-14 | Datasheet Initial Release |
| A | 2024-12-02 | Update 220-07200A die |
| B | 2026-02-13 | MTTF Table Added. |
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | Exterior housing must be connected to a DC/RF ground potential with high thermal and electrical conductivity. |  |
| RF In | RF Input | 2.92F | This is the RF Input port of the amplifier module. It is internally DC blocked and RF matched to 50 Ω. |  |
| RF Out | RF Output | 2.92M | This is the RF Output port of the amplifier module. It is internally DC blocked and RF matched to 50 Ω. |  |
| Vd | Drain Supply Pin | - | The Vd pin supplies drain voltage to the amplifier IC. Apply gate voltage Vg before applying drain voltage. |  |
| Vg | Gate Bias Pin | - | The Vg pin supplies negative control voltage to the amplifier and controls the amplifier gain. Lower (more negative) voltages on a Vg pad will result in lower drain current and lower small signal gain. |  |
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime. This amplifier is designed and characterized in a 50Ω system, and operation in a reflective environment can cause performance degradation.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Continuous Power Dissipation (PDISS) (at 85 ˚C case temp.) 1 | 1 | W |
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Max Junction Temperature for MTTF> 1E6 hours | 175 | °C |
| Minimum Operating Temperature | -45 | °C |
| Minimum Storage Temperature | -65 | °C |
| Negative Bias Voltage (Vg) | -2 | V |
| Positive Drain Supply Current (Id) (with RF Input) | 450 | mA |
| Positive Drain Supply Voltage (Vd) | 4.5 | V |
| RF Input Power | 20 | dBm |
| Thermal Resistance, θJC | 90 | ºC/W |
[1] Derates by 11 mW/ ˚C above 85 ˚C case temperature.
FIT and MTTF Table
| T (°C) | λ (TIF) | MTTF (hr) | MTTF (yr) |
|---|---|---|---|
| 105 | 2,441.45 | 4.10E+05 | 47 |
| 85 | 310.48 | 3.22E+06 | 368 |
| 55 | 8.79 | 1.14E+08 | 12,992 |
| 25 | 0.12 | 8.24E+09 | 941,063 |
Package Information
| Parameter | Details | Rating |
|---|---|---|
| Weight | Package name: UC | 12.4g |
| Dimensions | - | 13.21 x 14.22 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Input Power for Saturation | 6 | 9 | 12 | dBm |
| Power Supply DC Current (Id) (No RF Input) | 115 | 180 | 300 | mA |
| Ambient Temperature | -40 | 25 | 85 | °C |
| Negative Bias Voltage (Vg) | -0.6 | -0.5 | -0.4 | V |
| Power Supply DC Voltage (Vd) | 2.5 | 3 | 3 | V |
Module conditions provided for laboratory settings. Bare die operating conditions should be followed when used in test systems with extended lifetimes.
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | 3V/-0.4V | - | - | - | 230 | - | mA |
| Current Consumption 2 | 3V/-0.5V | - | - | - | 180 | - | mA |
| Current Consumption 3 | 3V/-0.6V | - | - | - | 130 | - | mA |
| Input IP3 | 3V/-0.5V, -20 dBm Input Power | 12 | 40 | - | 12 | - | dBm |
| Input Power for Saturation | 3V/-0.5V bias | 12 | 40 | - | 9 | - | dBm |
| Input Return Loss | 3V/-0.5V Bias | 12 | 40 | - | 19 | - | dB |
| Noise Figure | 3V/-0.5V bias | 12 | 40 | - | 6.3 | - | dB |
| Output IP3 | 3V/-0.5V, -20 dBm Input Power | 12 | 40 | - | 29 | - | dBm |
| Output P1dB | 3V/-0.5V bias | 12 | 40 | - | 19 | - | dBm |
| Output Return Loss | 3V/-0.5V Bias | 12 | 40 | - | 18 | - | dB |
| Reverse Isolation | 3V/-0.5V Bias | 12 | 40 | - | 52 | - | dB |
| Saturated Output Power 4 | 3V/-0.5V bias | 18 | 35 | 17 | 21.5 | - | dBm |
| Saturated Output Power 5 | 3V/-0.5V bias | 35 | 40 | - | 19.5 | - | dBm |
| Saturated Output Power 6 | 3V/-0.5V bias | 12 | 18 | - | 19 | - | dBm |
| Small Signal Gain | 3V/-0.5V bias | 35 | 40 | - | 15 | - | dB |
| Small Signal Gain | 3V/-0.5V bias | 18 | 35 | 14 | 18 | - | dB |
| Small Signal Gain | 3V/-0.5V bias | 12 | 18 | - | 17 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | 3V/-0.4V | - | - | - | 230 | - | mA |
| Current Consumption 2 | 3V/-0.5V | - | - | - | 180 | - | mA |
| Current Consumption 3 | 3V/-0.6V | - | - | - | 130 | - | mA |
| Input IP3 | 3V/-0.5V, -20 dBm Input Power | 12 | 40 | - | 12 | - | dBm |
| Input Power for Saturation | 3V/-0.5V bias | 12 | 40 | - | 9 | - | dBm |
| Input Return Loss | 3V/-0.5V Bias | 12 | 40 | - | 19 | - | dB |
| Noise Figure | 3V/-0.5V bias | 12 | 40 | - | 6.3 | - | dB |
| Output IP3 | 3V/-0.5V, -20 dBm Input Power | 12 | 40 | - | 29 | - | dBm |
| Output P1dB | 3V/-0.5V bias | 12 | 40 | - | 19 | - | dBm |
| Output Return Loss | 3V/-0.5V Bias | 12 | 40 | - | 18 | - | dB |
| Reverse Isolation | 3V/-0.5V Bias | 12 | 40 | - | 52 | - | dB |
| Saturated Output Power 4 | 3V/-0.5V bias | 18 | 35 | 17 | 21.5 | - | dBm |
| Saturated Output Power 5 | 3V/-0.5V bias | 35 | 40 | - | 19.5 | - | dBm |
| Saturated Output Power 6 | 3V/-0.5V bias | 12 | 18 | - | 19 | - | dBm |
| Small Signal Gain | 3V/-0.5V bias | 35 | 40 | - | 15 | - | dB |
| Small Signal Gain | 3V/-0.5V bias | 18 | 35 | 14 | 18 | - | dB |
| Small Signal Gain | 3V/-0.5V bias | 12 | 18 | - | 17 | - | dB |
[1][2][3] Bias conditions tested with no RF input power. Bias conditions presented as Vd/Vg.
[4][5][6] Saturated Output Power specification defined using the AMM-7200UC P5dB compression curve shown in section 3.7.
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier

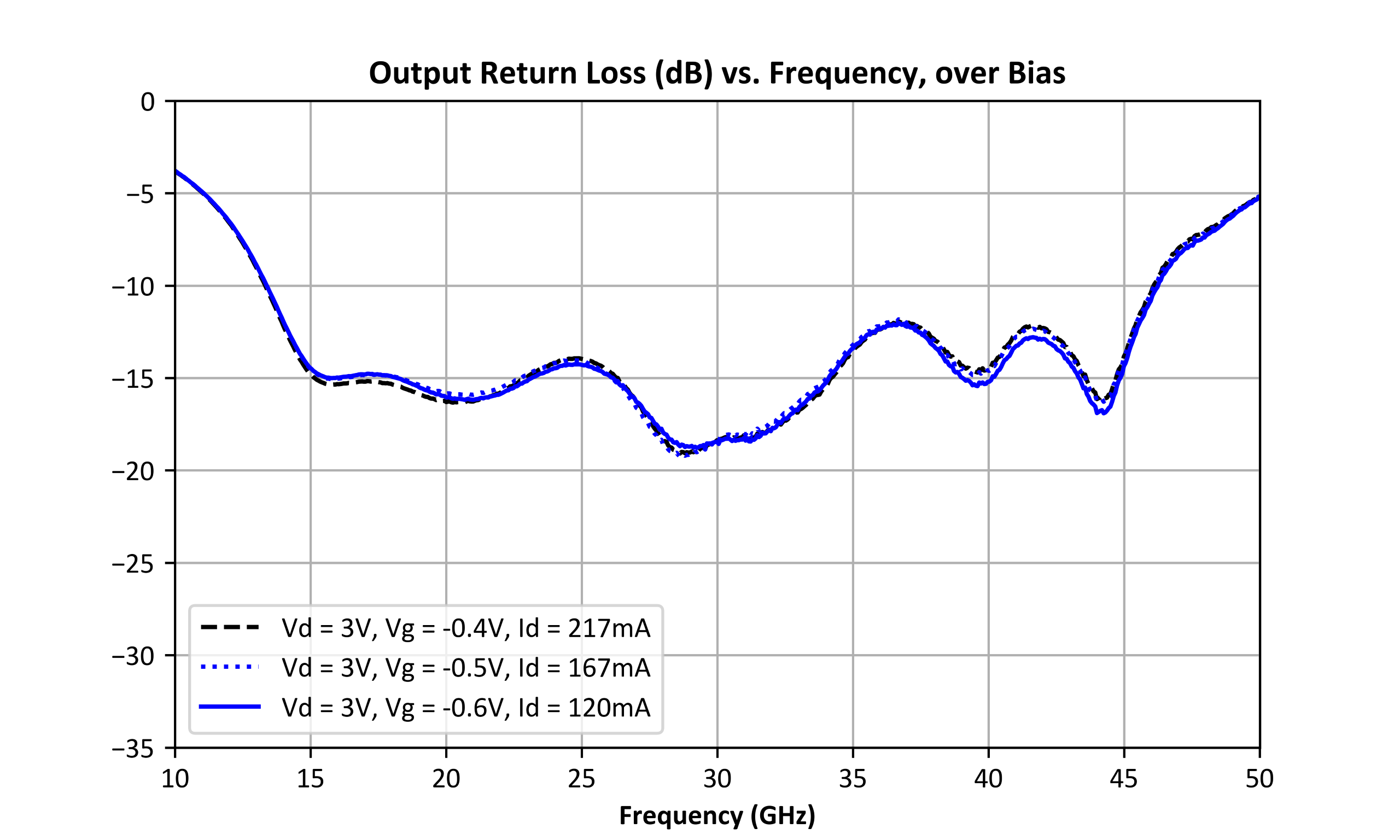

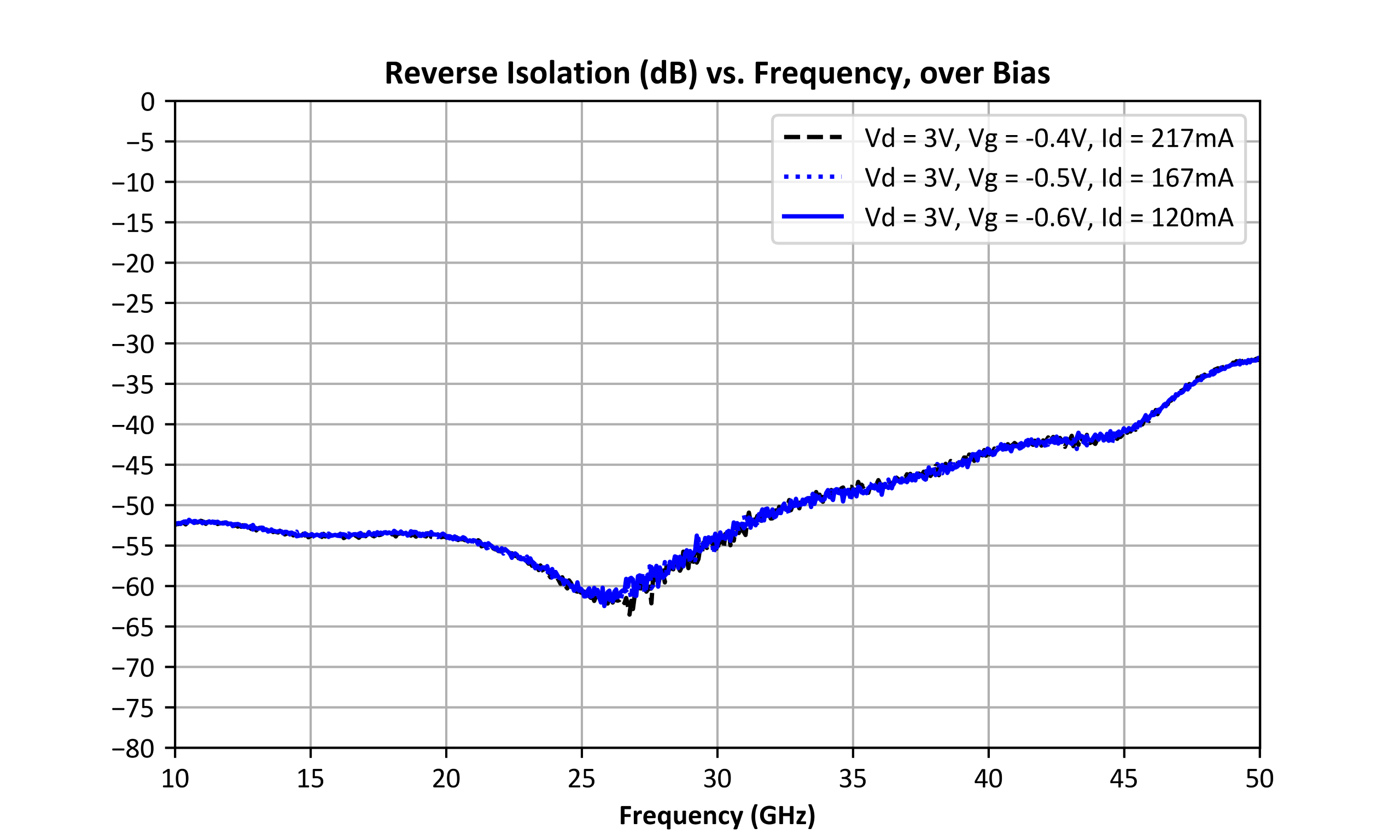

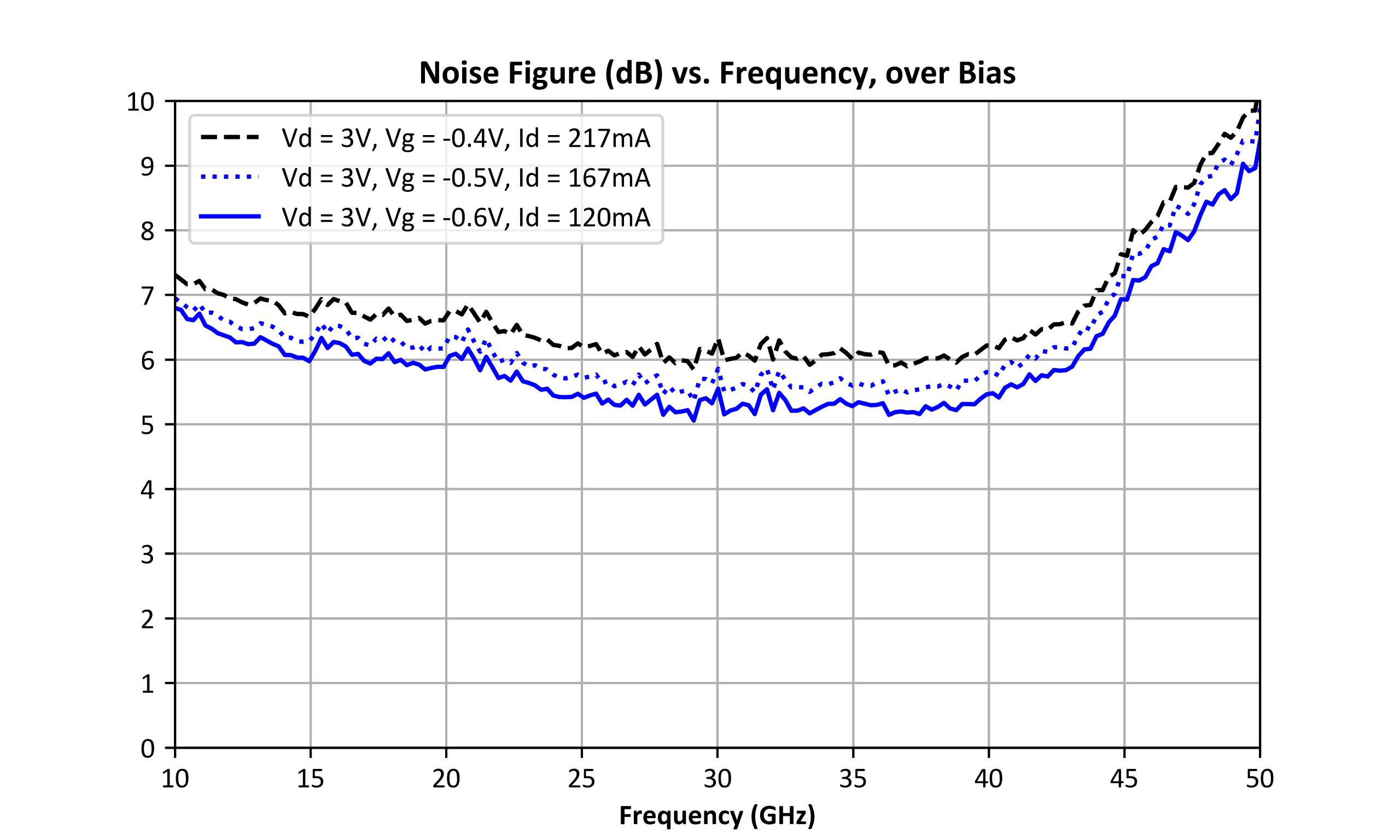

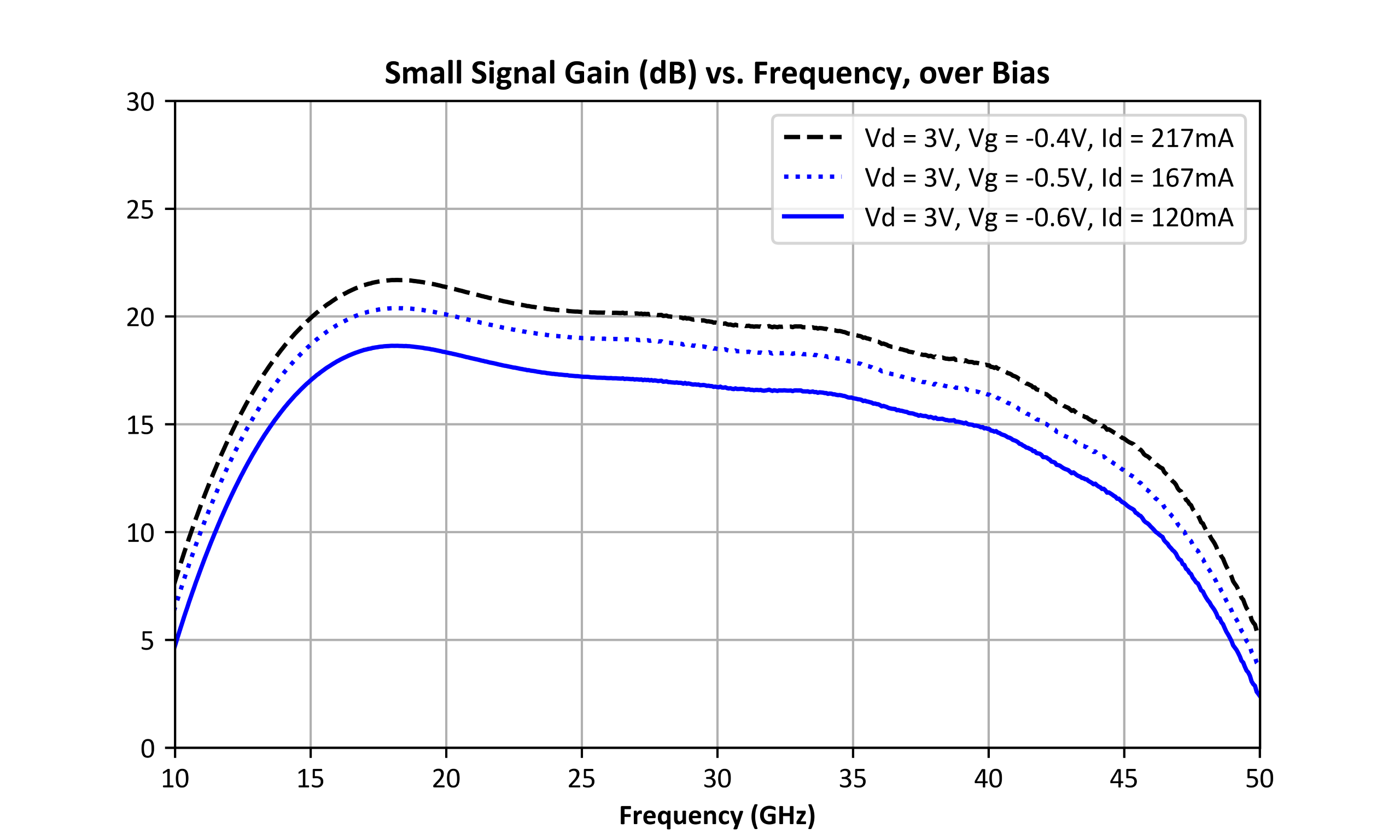

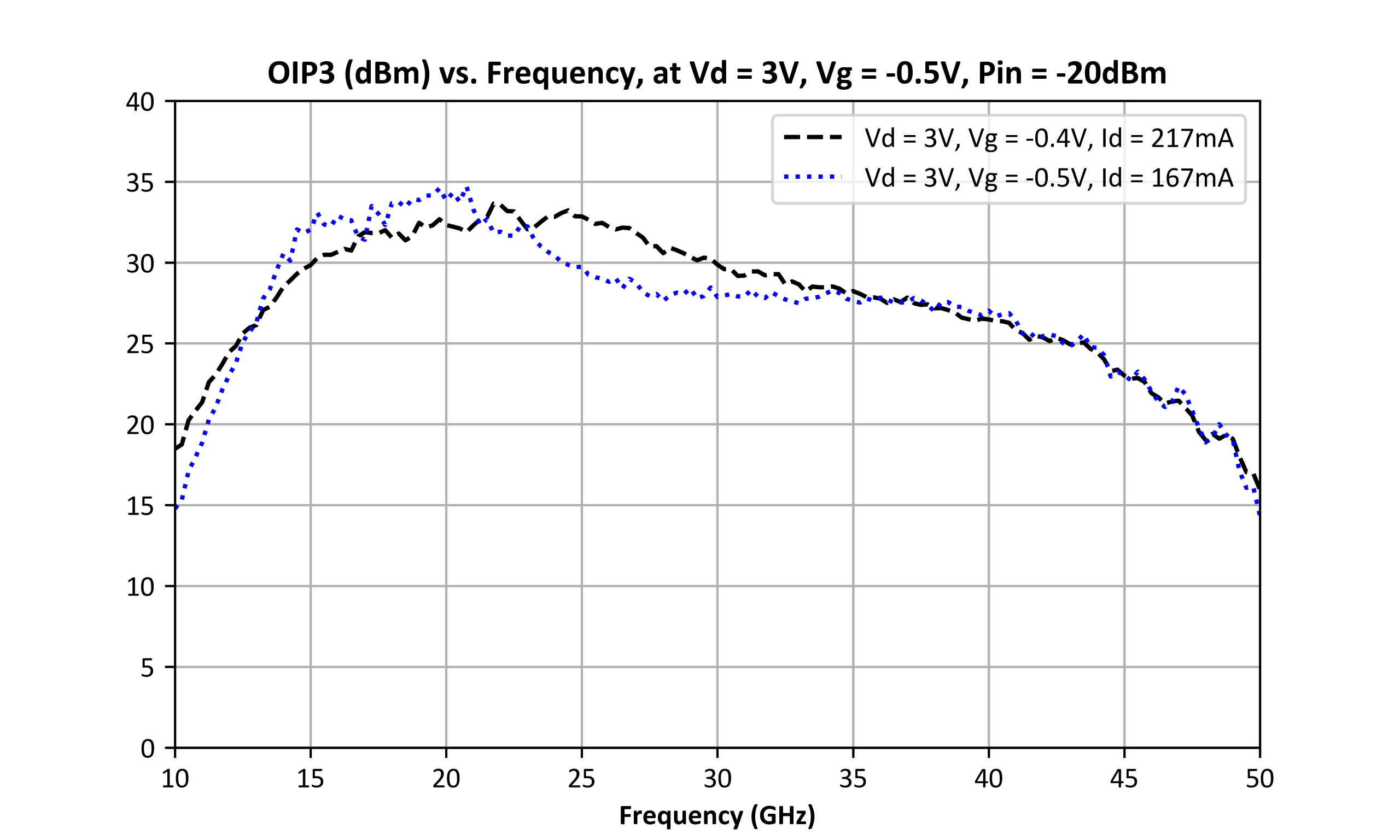

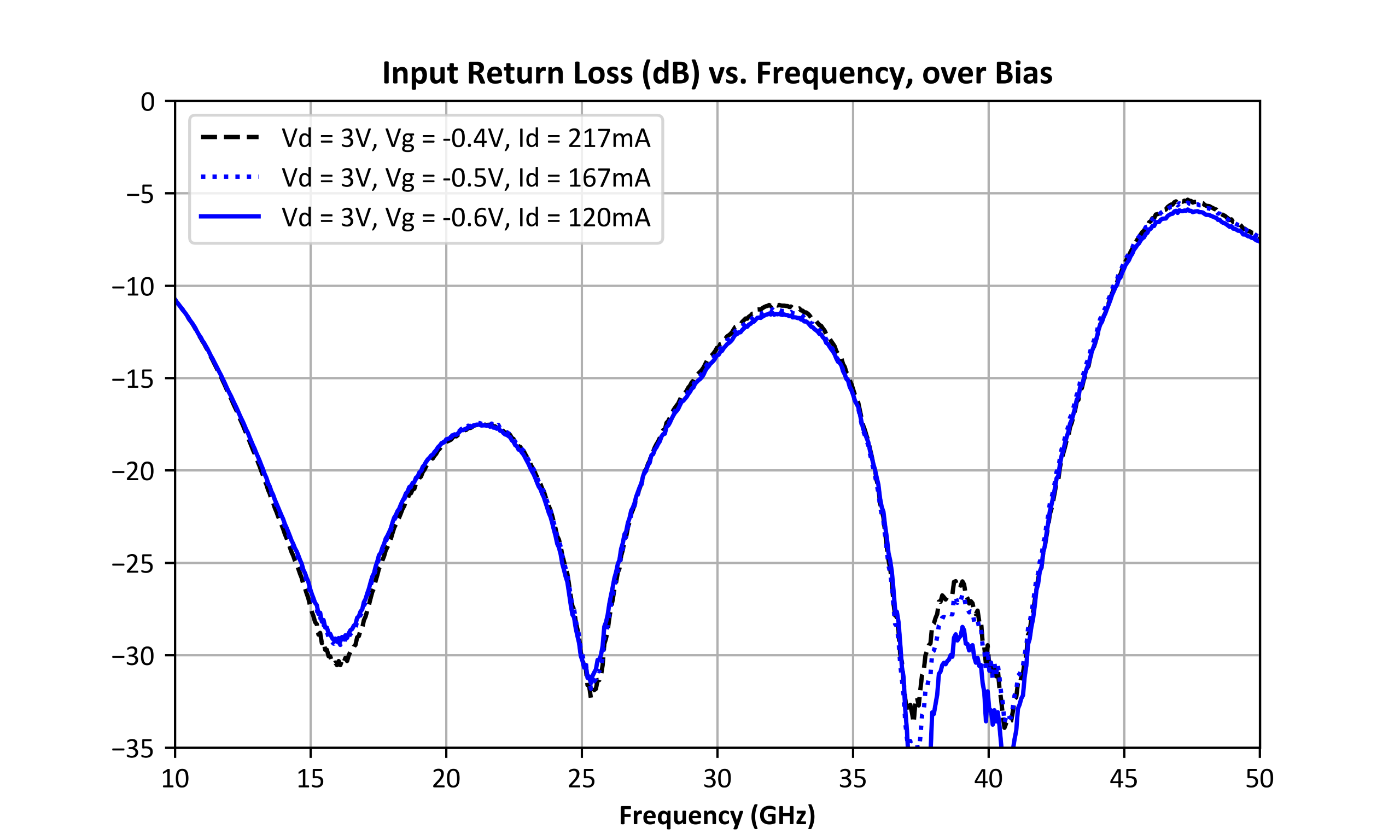

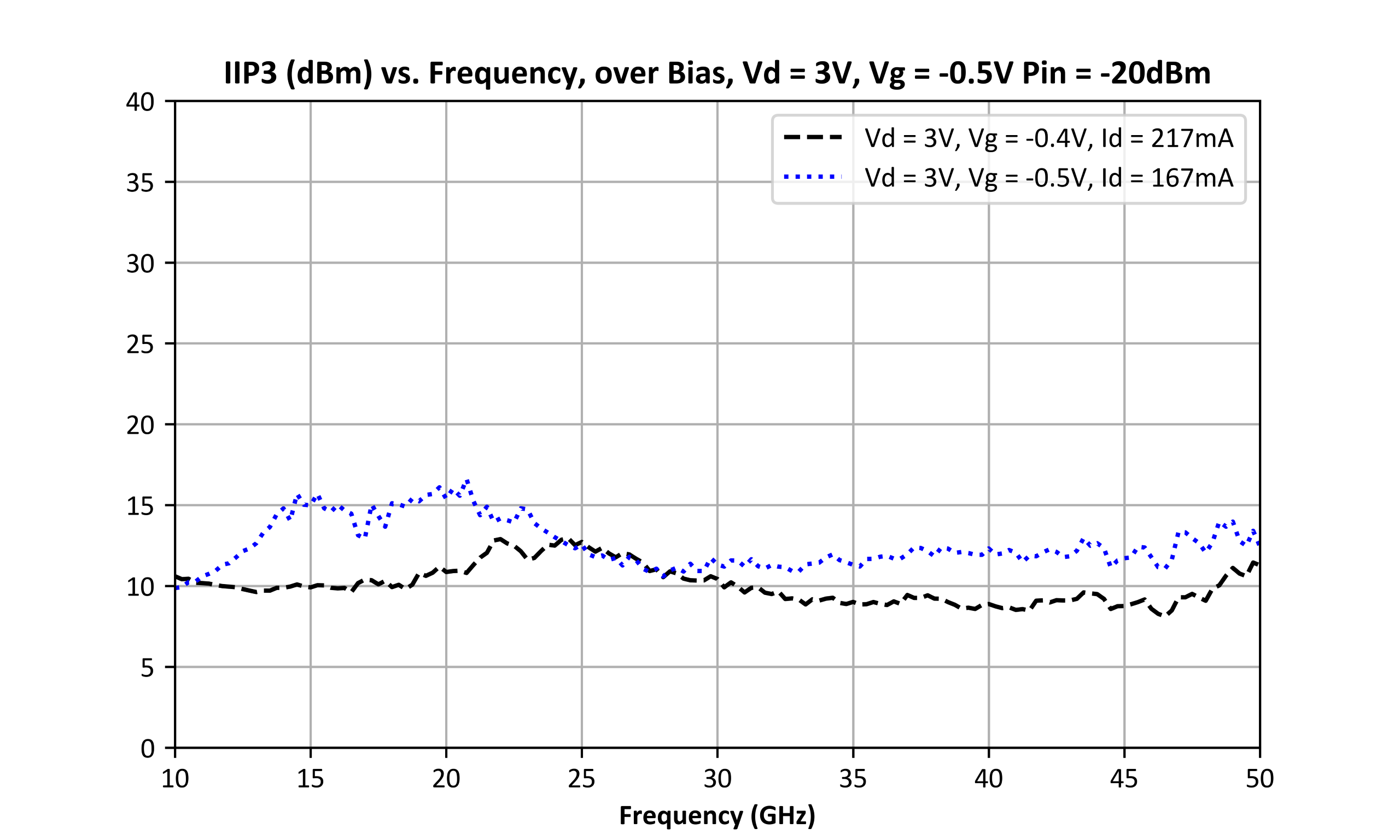

AMM-7200UC Typical Performance Plots
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
Typical Marki Mixer Performance Plots with AMM-7200UC LO Driver
LO Input Powers specified as the input power into the AMM-7200UC LO driver
AMM-7200UC-K
12 GHz – 40 GHz GaAs Driver Amplifier
