Device Overview
General Description
The AMM-6702 is a broadband MMIC LO buffer amplifier that efficiently provides high gain and output power over a 20-55 GHz frequency band. It is designed to provide a strong, flat output power response when driven with an input power at 0 dBm. It has built-in DC blocking capacitors on the input and output.
Features
- High 25+ dB gain
- Broadband performance
- +20 dBm output power
- 20%+ PAE
- 5V Single Supply Voltage Module
Applications
- Mobile test and measurement equipment
- Radar
- SATCOM
- 5G transceivers
- Optimal LO driver amp for Marki S-diode and H-diode mixers and millimeter-wave multipliers
- LO driver for Marki MM1-1850, MM1-1467, MM1-1857 mixers
Functional Block Diagram
Part Ordering Options
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| AMM-6702UC5 | 20-55 GHz GaAs LO Driver Amplifier | UC5 | Standard | REACH RoHS | Released | EAR99 |
| AMM-6702UC | 20-55 GHz GaAs LO Driver Amplifier | UC | Standard | REACH RoHS | Released | EAR99 |
| Part Number | Description | Package | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|---|
| AMM-6702UC5 | 20-55 GHz GaAs LO Driver Amplifier | UC5 | Standard | REACH RoHS | Released | EAR99 |
| AMM-6702UC | 20-55 GHz GaAs LO Driver Amplifier | UC | Standard | REACH RoHS | Released | EAR99 |
AMM-6702UC5
20-55 GHz GaAs LO Driver Amplifier
Table Of Contents
Revision History
| Revision Code | Revision Date | Comment |
|---|---|---|
| - | 2018-10-01 | Datasheet Initial Release |
| A | 2019-01-01 | AMM-6702UC Release, additional data |
| B | 2019-02-01 | Updated Export Classification |
| C | 2019-03-01 | Updated Module Production Specs |
| D | 2019-08-01 | Updated Module Production Specs |
| E | 2019-09-01 | Updated Absolute Maximum Ratings |
| F | 2020-01-01 | Added .s2p Files Link |
| G | 2020-02-01 | Updated Datasheet Format, Expanded Performance Plots, Expanded Electrical Specs, Added Sequencing Procedure, Added AMM-6702UC5 Package |
| H | 2020-04-01 | Updated AMM-6702UC5 Specs and Performance Plots |
| I | 2020-06-01 | Corrected AMM-6702UC Outline Drawing to include Ground Screw |
| J | 2020-06-01 | Updated Absolute Maximum Ratings |
| K | 2020-07-01 | Update AMM-6702UC5 Saturated Output Power Min Spec |
| L | 2020-07-01 | Revised Max Operating Temperature |
| M | 2020-09-01 | Updated Ground Pin Location on AMM 6702UC5 Module |
| N | 2020-10-01 | Updated Thermal Specs, Updated OIP3 Spec |
| O | 2020-11-01 | Updated Min Frequency Spec |
| P | 2020-12-01 | Updated Electrical Specifications Table |
| Q | 2026-02-13 | MTTF Table Added. |
AMM-6702UC5
20-55 GHz GaAs LO Driver Amplifier
Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| GND | Ground | - | Exterior housing must be connected to a DC/RF ground potential with high thermal and electrical conductivity. |  |
| RF In | RF Input | 1.85F | This is the RF Input port of the amplifier die. It is internally DC blocked and RF matched to 50 Ω. |  |
| RF Out | RF Output | 1.85M | This is the RF Output port of the amplifier die. It is internally DC blocked and RF matched to 50 Ω. |  |
| V5 | 5V Voltage Pin | - | The 5V voltage pin activates an internal negative voltage generator and a voltage sequencer with 5V of externally applied bias. Nominally applies 3.5V to Vd and -0.5V to Vg at the amplifier level. |  |
AMM-6702UC5
20-55 GHz GaAs LO Driver Amplifier
Specifications
Absolute Maximum Ratings
The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may be inoperable or have a reduced lifetime.
| Parameter | Maximum Rating | Unit |
|---|---|---|
| Maximum Operating Temperature | 85 | °C |
| Maximum Storage Temperature | 150 | °C |
| Minimum Operating Temperature | -40 | °C |
| Minimum Storage Temperature | -65 | °C |
| Positive Bias Current (Pin1) | 430 | mA |
| RF Input Power | 22 | dBm |
| V5 Voltage | 6 | V |
FIT and MTTF Table
| T (°C) | λ (TIF) | MTTF (hr) | MTTF (yr) |
|---|---|---|---|
| 105 | 2,441.45 | 4.10E+05 | 47 |
| 85 | 310.48 | 3.22E+06 | 368 |
| 55 | 8.79 | 1.14E+08 | 12,992 |
| 25 | 0.12 | 8.24E+09 | 941,063 |

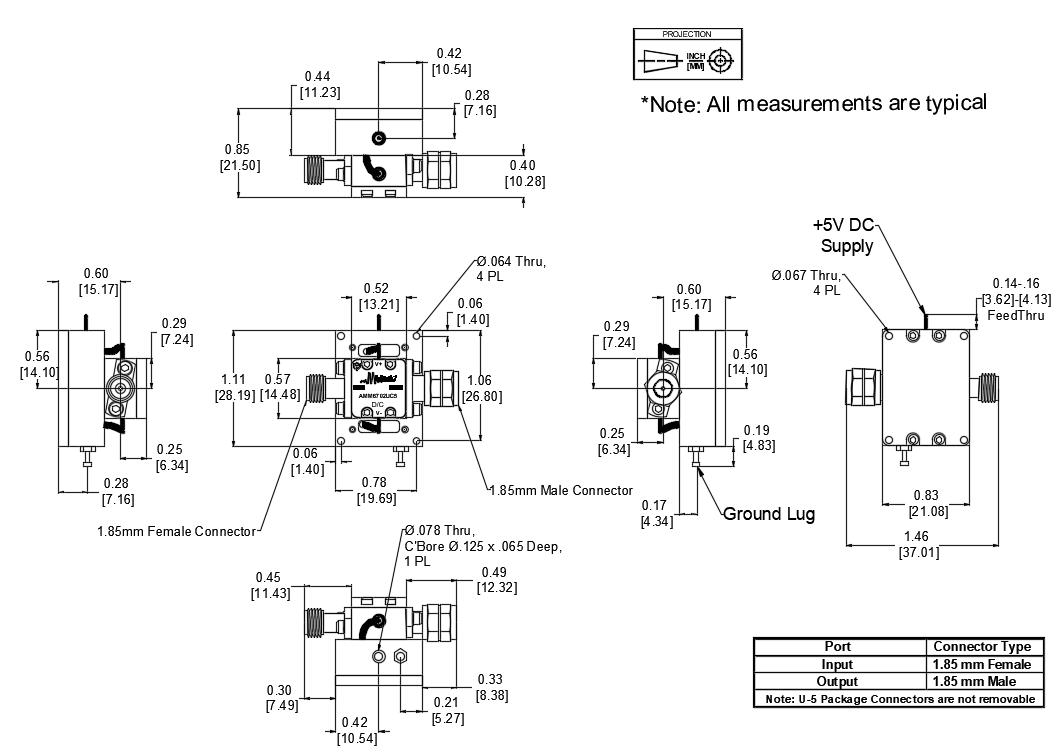

Package Information
| Parameter | Details | Rating |
|---|---|---|
| ESD | < 250 Volts | HBM Class 0 |
| Weight | Package name: UC5 | 45.8g |
| Dimensions | - | 13.21 x 28.19 mm |
Recommended Operating Conditions
The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.
| Parameter | Min | Nominal | Max | Unit |
|---|---|---|---|---|
| Ambient Temperature | -55 | 25 | 85 | °C |
| Positive DC Voltage | 3.5 | 5 | 5.5 | V |
| Positive DC Current | 200 | 230 | 400 | mA |
AMM-6702UC5
20-55 GHz GaAs LO Driver Amplifier
Electrical Specifications
The electrical specifications apply at TA=+25°C in a 50Ω system. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C.
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | +5V | - | - | - | 230 | - | mA |
| Input IP3 | 5V bias, -25 dBm Input Power | 21 | 55 | - | 3 | - | dBm |
| Input Power for Saturation | +5V Bias | 21 | 55 | - | 3 | - | dBm |
| Input Return Loss | +5V bias, -25 dBm Input Power | 21 | 55 | - | 8 | - | dB |
| Noise Figure | +5V bias, -25 dBm Input Power | 21 | 55 | - | 6.5 | - | dB |
| Output IP3 | 5V bias, -25 dBm Input Power | 21 | 55 | - | 27 | - | dBm |
| Output P1dB | +5V Bias | 21 | 55 | - | 14.8 | - | dBm |
| Output Return Loss | +5V bias, -25 dBm Input Power | 21 | 55 | - | 9 | - | dB |
| Reverse Isolation | +5V bias, -25 dBm Input Power | 21 | 55 | - | 45 | - | dB |
| Saturated Output Power | +5V bias, +5 dBm Input Power | 48 | 55 | - | 17 | - | dBm |
| Saturated Output Power | +5V bias, +5 dBm Input Power | 21 | 25 | - | 20 | - | dBm |
| Saturated Output Power | +5V bias, +5 dBm Input Power | 25 | 48 | 17 | 21 | - | dBm |
| Small Signal Gain | +5V bias, -25 dBm Input Power | 25 | 48 | 20 | 24 | - | dB |
| Small Signal Gain | +5V bias, -25 dBm Input Power | 21 | 25 | - | 25 | - | dB |
| Small Signal Gain | +5V bias, -25 dBm Input Power | 48 | 55 | - | 22 | - | dB |
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Current Consumption 1 | +5V | - | - | - | 230 | - | mA |
| Input IP3 | 5V bias, -25 dBm Input Power | 21 | 55 | - | 3 | - | dBm |
| Input Power for Saturation | +5V Bias | 21 | 55 | - | 3 | - | dBm |
| Input Return Loss | +5V bias, -25 dBm Input Power | 21 | 55 | - | 8 | - | dB |
| Noise Figure | +5V bias, -25 dBm Input Power | 21 | 55 | - | 6.5 | - | dB |
| Output IP3 | 5V bias, -25 dBm Input Power | 21 | 55 | - | 27 | - | dBm |
| Output P1dB | +5V Bias | 21 | 55 | - | 14.8 | - | dBm |
| Output Return Loss | +5V bias, -25 dBm Input Power | 21 | 55 | - | 9 | - | dB |
| Reverse Isolation | +5V bias, -25 dBm Input Power | 21 | 55 | - | 45 | - | dB |
| Saturated Output Power | +5V bias, +5 dBm Input Power | 48 | 55 | - | 17 | - | dBm |
| Saturated Output Power | +5V bias, +5 dBm Input Power | 21 | 25 | - | 20 | - | dBm |
| Saturated Output Power | +5V bias, +5 dBm Input Power | 25 | 48 | 17 | 21 | - | dBm |
| Small Signal Gain | +5V bias, -25 dBm Input Power | 25 | 48 | 20 | 24 | - | dB |
| Small Signal Gain | +5V bias, -25 dBm Input Power | 21 | 25 | - | 25 | - | dB |
| Small Signal Gain | +5V bias, -25 dBm Input Power | 48 | 55 | - | 22 | - | dB |
[1] Bias conditions tested with no RF input power. See Electrical Specifications for DC current vs. RF power
