ADM1-8096PC_0.09 - 6 GHz High Dynamic Range Gain Block

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
ADM1-8096PC	0.09 - 6 GHz High Dynamic Range Gain Block	PC	Standard	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
ADM1-8096PC	0.09 - 6 GHz High Dynamic Range Gain Block	PC	Standard	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2022-11-01	Initial Release
A	2024-07-31	Connectors Updated to SMA

Port Configuration and Functions

Port Diagram

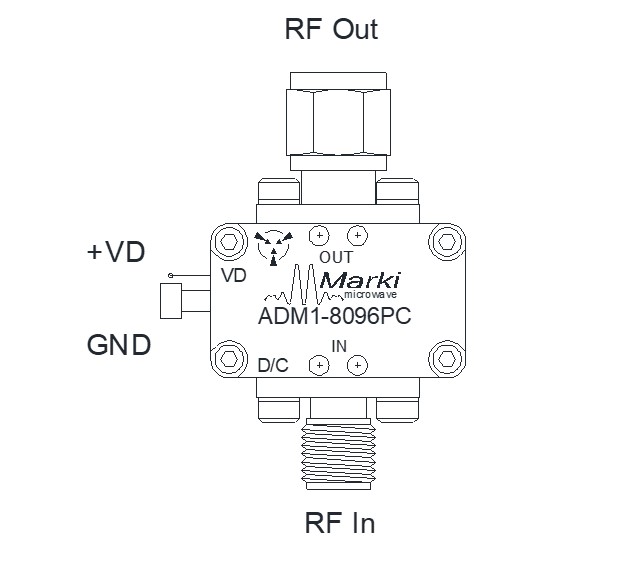

A port diagram of the ADM1-8096PC is shown below.

Diagram of the port configuration for ADM1-8096PC

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	The housing or outside of the coaxial cables must be connected to a DC/RF ground potential with high thermal and electrical conductivity.
RF In	RF Input	SMAF	The amplifier’s RF Input port is matched to 50 Ω and has built-in DC blocking capacitors.
RF Out	RF Output	SMAM	The amplifier’s RF Output port is matched to 50 Ω and has built-in DC blocking capacitors.
Vd	Drain Supply Pin	-	The VD pin supplies DC voltage to the drain of the amplifier IC.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device.

Parameter	Maximum Rating	Unit
Drain Current (RF Applied)	130	mA
Drain Supply Voltage (Vd)	8	V
Maximum Operating Temperature for MTTF > 1E6 hours	85	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature for MTTF > 1E6 hours	-40	°C
Minimum Storage Temperature	-65	°C
RF Input Power	15	dBm

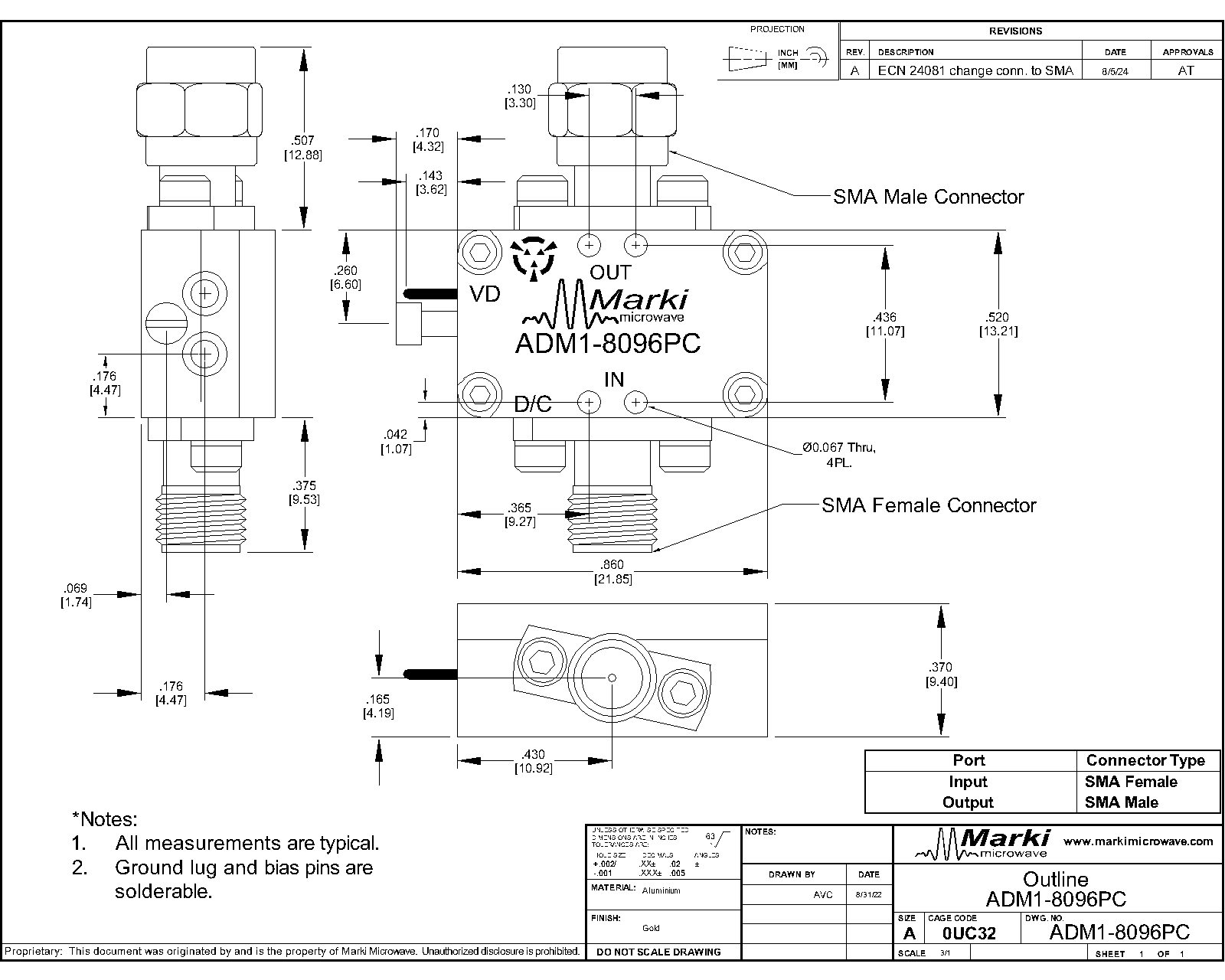

Package Information

Parameter	Details	Rating
Dimensions	-	21.85 x 13.21 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications. Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the Electrical Specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Ambient Temperature	-40	25	85	°C
Power Supply DC Voltage (Vd)	3	5	6	V
Input Power for Saturation	2	4	6	dBm
Power Supply DC Current (Id) (No RF Input) ¹	44	84	107	mA

^[1] Recommended operating current conditions without RF input applied.

Electrical Specifications

Unless otherwise specified, electrical specifications apply at TA=+25°C, Vd = 5 V. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Current Consumption	Vd = 5 V, no RF input	-	-	-	84	-	mA
Input IP3	Vd = 5 V, Pin = -15 dBm per tone, 10 MHz tone spacing	0.09	6	-	14	-	dBm
Input Power for Saturation	Vd = 5V	0.09	6	2	4	-	dBm
Input Return Loss	Vd = 5 V, Pin = -20 dBm	0.09	6	-	16	-	dB
Noise Figure	-	3	6	-	2.2	-	dB
Noise Figure	-	0.09	3	-	1.5	-	dB
Output IP3	Vd = 5 V, Pin = -15 dBm per tone, 10 MHz tone spacing	0.09	6	-	35	-	dBm
Output P1dB	Vd = 5V	0.09	6	-	23	-	dBm
Output Return Loss	Vd = 5 V, Pin = -20 dBm	0.09	6	-	16	-	dB
Reverse Isolation	Vd = 5 V, Pin = -20 dBm	0.09	6	-	28	-	dB
Saturated Output Power	Vd = 5 V	0.09	6	-	23	-	dBm
Small Signal Gain	Vd = 5 V, Pin = -20 dBm	0.09	6	-	22.5	-	dB

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Current Consumption	Vd = 5 V, no RF input	-	-	-	84	-	mA
Input IP3	Vd = 5 V, Pin = -15 dBm per tone, 10 MHz tone spacing	0.09	6	-	14	-	dBm
Input Power for Saturation	Vd = 5V	0.09	6	2	4	-	dBm
Input Return Loss	Vd = 5 V, Pin = -20 dBm	0.09	6	-	16	-	dB
Noise Figure	-	3	6	-	2.2	-	dB
Noise Figure	-	0.09	3	-	1.5	-	dB
Output IP3	Vd = 5 V, Pin = -15 dBm per tone, 10 MHz tone spacing	0.09	6	-	35	-	dBm
Output P1dB	Vd = 5V	0.09	6	-	23	-	dBm
Output Return Loss	Vd = 5 V, Pin = -20 dBm	0.09	6	-	16	-	dB
Reverse Isolation	Vd = 5 V, Pin = -20 dBm	0.09	6	-	28	-	dB
Saturated Output Power	Vd = 5 V	0.09	6	-	23	-	dBm
Small Signal Gain	Vd = 5 V, Pin = -20 dBm	0.09	6	-	22.5	-	dB
