ADM1-8007APC_2 - 40 GHz Wideband LO Driver Amplifier

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
ADM1-8007APC	2 - 40 GHz Wideband LO Driver Amplifier	PC	-	REACH RoHS	Released	EAR99

Part Number	Description	Package	Connectors	Green Status	Product Lifecycle	Export Classification
ADM1-8007APC	2 - 40 GHz Wideband LO Driver Amplifier	PC	-	REACH RoHS	Released	EAR99

Revision History

Revision Code	Revision Date	Comment
-	2024-10-09	Initial Release
A	2025-08-08	STP file added

Port Configuration and Functions

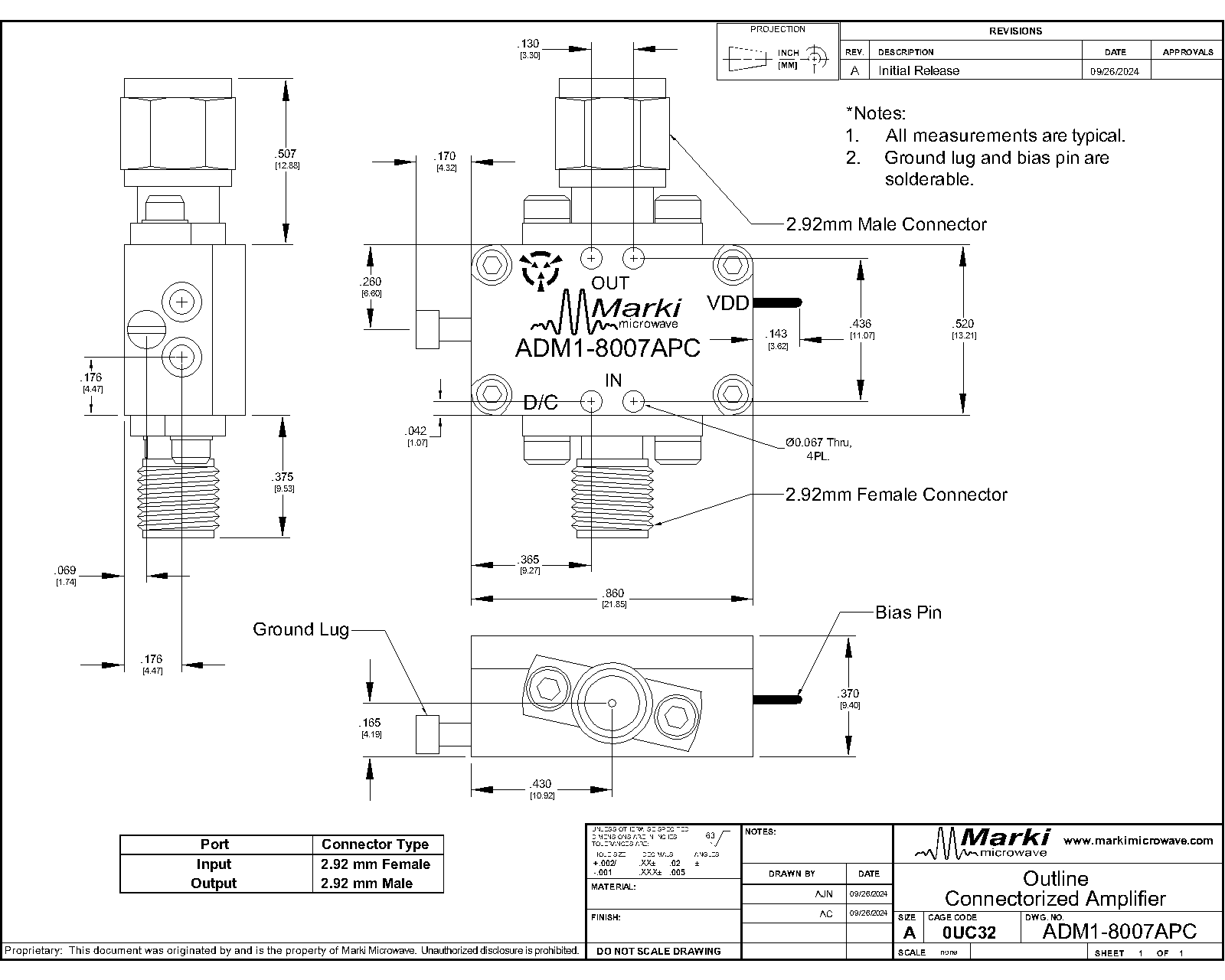

Port Diagram

The port diagram of the ADM1-8007APC is shown below.

Diagram of the port configuration for ADM1-8007APC

Port Functions

Port	Function	Connector Type	Description
GND	Ground	-	Housing or outside of the coaxial cables must be connected to a DC/RF ground potential with high thermal and electrical conductivity.
IN	RF Input	-	This is the RF Input port of the amplifier die. It is RF matched to 50 Ω, and has built-in DC blocking capacitors.
OUT	RF Output	-	This is the amplifier’s RF Output. It is RF matched to 50 Ω and has built-in DC blocking capacitors.
VDD	Positive DC Supply Voltage	-	The VDD pin supplies DC voltage to the drain of the amplifier IC.

Specifications

Absolute Maximum Ratings

The Absolute Maximum Ratings indicate limits beyond which damage may occur to the device. If these limits are exceeded, the device may become inoperable or have a reduced lifetime. Reliability limits are individual, instantaneous catastrophic limits only. Functional operation limits are indicated below. Operation of the device at multiple absolute maximum limits or for extended periods at a single limit can cause degradation and damage to the device.

Parameter	Maximum Rating	Unit
Junction to Case Thermal Resistance	30	ºC/W
Maximum Operating Temperature for MTTF > 1E6 hours	85	°C
Maximum Storage Temperature	125	°C
Minimum Operating Temperature for MTTF > 1E6 hours	-40	°C
Minimum Storage Temperature	-65	°C
Power Supply Current	400	mA
Power Supply Voltage	8	V
RF Input Power	15	dBm

Package Information

Parameter	Details	Rating
Dimensions	-	21.85 x 13.21 mm

Recommended Operating Conditions

The Recommended Operating Conditions indicate the limits, inside which the device should be operated, to guarantee the performance given in Electrical Specifications Operating outside these limits may not necessarily cause damage to the device, but the performance may degrade outside the limits of the electrical specifications. For limits, above which damage may occur, see Absolute Maximum Ratings.

Parameter	Min	Nominal	Max	Unit
Input Power for Saturation	0	1	8	dBm
Ambient Temperature	-40	25	85	°C
Power Supply DC Voltage	3	5	6	V
Power Supply DC Current	133	232	276	mA

Electrical Specifications

Unless otherwise specified, electrical specifications apply at TA=+25°C, Vdd = 5 V. Min and Max limits apply only to our connectorized units and are guaranteed at TA=+25°C

Parameter	Test Conditions	Minimum Frequency (GHz)	Maximum Frequency (GHz)	Min	Typ	Max	Unit
Current Consumption	Vdd = 5 V no RF input	-	-	-	232	-	mA
Input IP3	Vdd = 5 V Pin = -24 dBm per tone, 1 MHz tone spacing	20	40	-	5	-	dBm
Input IP3	Vdd = 5 V Pin = -24 dBm per tone, 1 MHz tone spacing	2	20	-	9	-	dBm
Input Power for Saturation	Vdd = 5 V	27	40	-	0	-	dBm
Input Power for Saturation	Vdd = 5 V	2	27	-	2	-	dBm
Input Return Loss	Vdd = 5 V Pin = -20 dBm	2	40	-	15	-	dB
Noise Figure	Vdd = 5 V Pin = -20 dBm	2	40	-	3.3	-	dB
Output IP2	Vdd = 5 V Pin = -24 dBm per tone, 1 MHz tone spacing	12	22	-	37	-	dBm
Output IP2	Vdd = 5 V Pin = -24 dBm per tone, 1 MHz tone spacing	2	12	-	45	-	dBm
Output IP3	Vdd = 5 V Pin = -24 dBm per tone, 1 MHz tone spacing	2	20	-	30	-	dBm
Output IP3	Vdd = 5 V Pin = -24 dBm per tone, 1 MHz tone spacing	20	40	-	25	-	dBm
Output P1dB	Vdd = 5 V	2	40	-	21	-	dBm
Output Return Loss	Vdd = 5 V Pin = -20 dBm	2	40	-	15	-	dB
Reverse Isolation	Vdd = 5 V Pin = -20 dBm	2	40	-	55	-	dB
Saturated Output Power	Vdd = 5 V	2	27	-	22	-	dBm
Saturated Output Power	Vdd = 5 V	27	40	-	20	-	dBm
Small Signal Gain	Vdd = 5 V Pin = -20 dBm	2	40	-	22	-	dB
