| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Temp = 25°C | 0 | 40 | - | 0.2 | - | dB |
| Return Loss | Temp = 25°C | 0 | 40 | - | 33 | - | dB |
Sales: 408-778-9952 | General: 408-778-4200 | Fax: 408-778-4300
Sales & Customer Support: [email protected]
Tech Support: [email protected]
Device Overview
General Description
The RA-40 is a right angle adapter featuring a unique construction that minimizes insertion loss and offers excellent return loss across a DC to 40 GHz operating band.
Features
- DC to 40.0 GHz
- Low Insertion Loss
- 2.92 mm Male/Female Connectors
Applications
N/A
Functional Block Diagram
N/A
Part Ordering Options
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| RA-40FM | Right-Angle Adapter | Standard | Consult Factory | Released | EAR99 |
| Part Number | Description | Connectors | Green Status | Product Lifecycle | Export Classification |
|---|---|---|---|---|---|
| RA-40FM | Right-Angle Adapter | Standard | Consult Factory | Released | EAR99 |
RA-40FM
Right-Angle Adapter
Table Of Contents
RA-40FM
Right-Angle Adapter

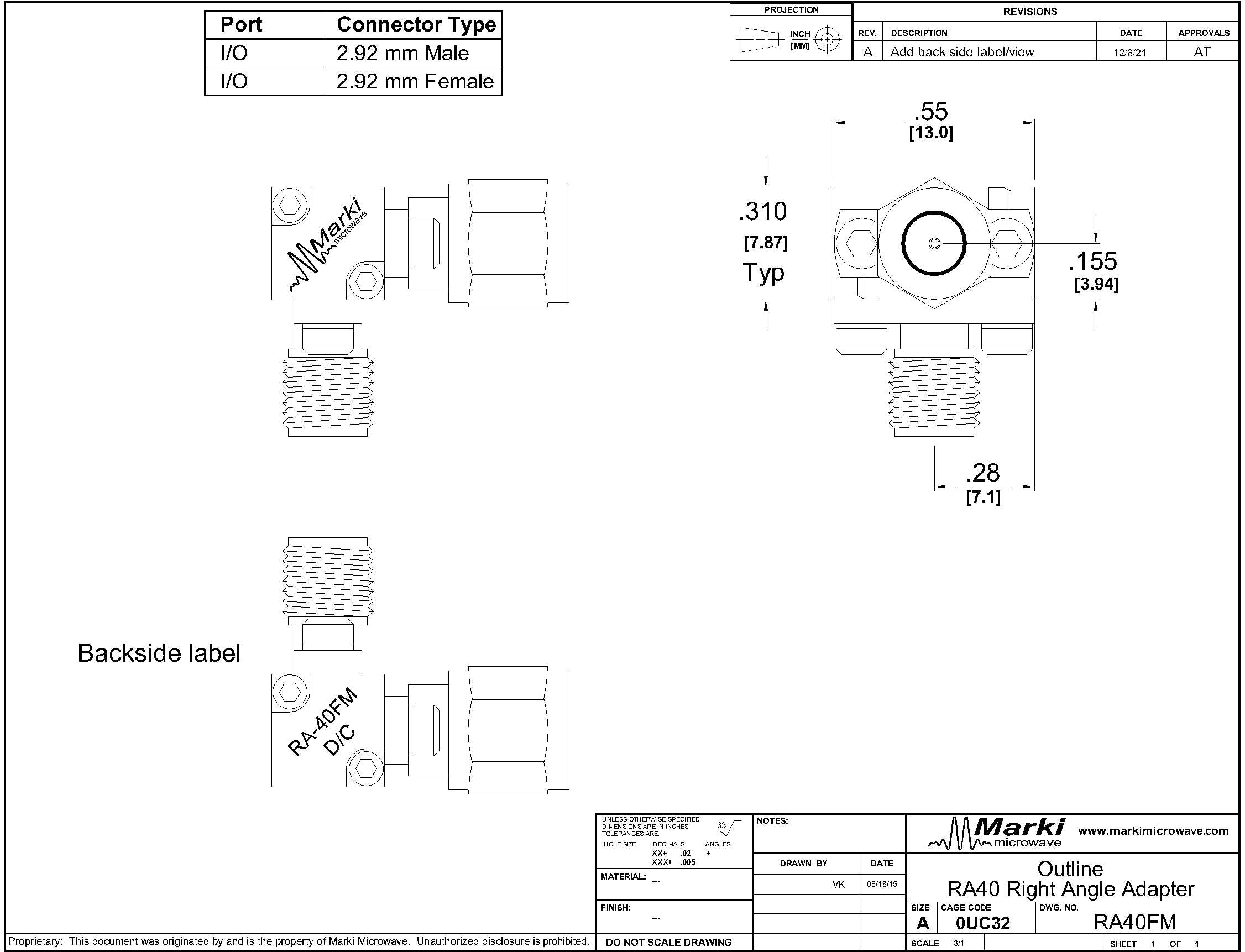

Port Configuration and Functions
Port Functions
| Port | Function | Connector Type | Description | DC Equivalent Circuit |
|---|---|---|---|---|
| Port 1 | RF Input / Output | - | RF input/output port | - |
| Port 2 | RF Input / Output | - | RF input/output port | - |
RA-40FM
Right-Angle Adapter
Electrical Specifications
| Parameter | Test Conditions | Minimum Frequency (GHz) | Maximum Frequency (GHz) | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|---|
| Insertion Loss | Temp = 25°C | 0 | 40 | - | 0.2 | - | dB |
| Return Loss | Temp = 25°C | 0 | 40 | - | 33 | - | dB |
RA-40FM
Right-Angle Adapter

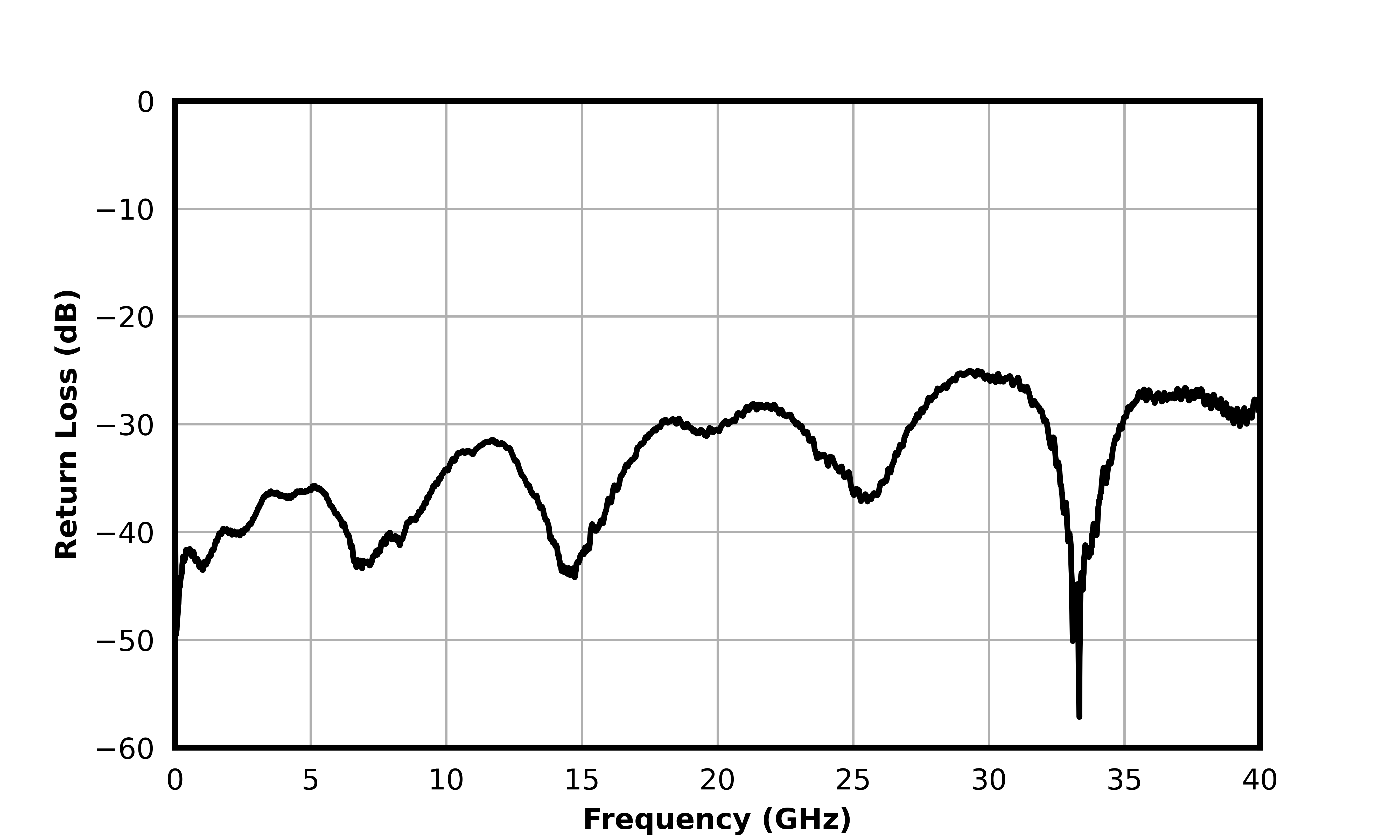

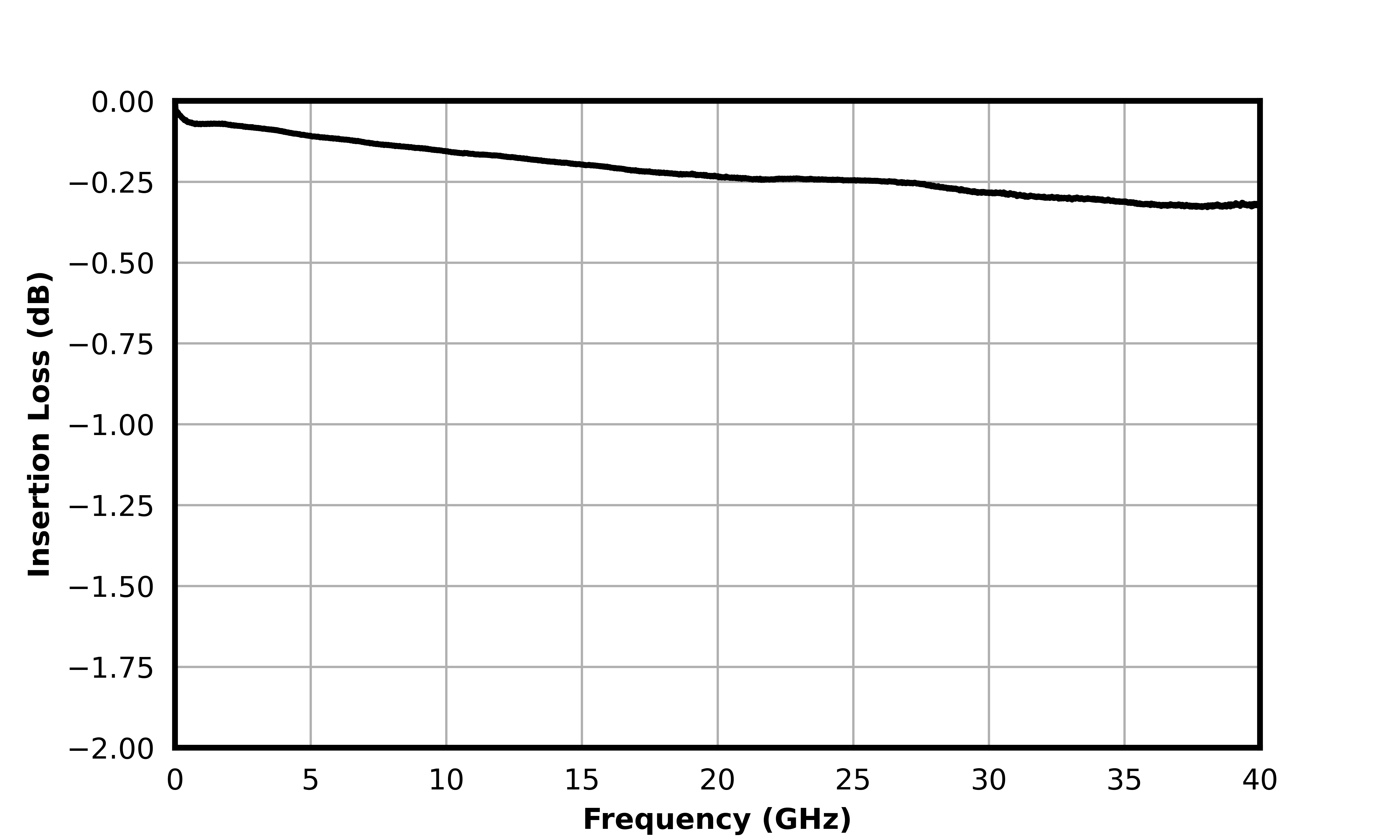

Typical Performance Plot
RA-40FM
Right-Angle Adapter
